| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_055T01_9000001114_08077cztM0_level2.evt | modeM0/AS1A02_055T01_9000001114_08077cztM0_level2_quad_clean.evt |
| Size (bytes) | 424,730,880 | 94,806,720 |
| Size | 405.1 MB | 90.4 MB |
| Events in quadrant A | 2,965,380 | 604,387 |
| Events in quadrant B | 3,107,973 | 624,113 |
| Events in quadrant C | 3,039,543 | 631,988 |
| Events in quadrant D | 3,339,465 | 588,979 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12795 | 3 |
| B | 0 | 13070 | 2 |
| C | 0 | 12944 | 2 |
| D | 0 | 13927 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27 | 0 |
| B | 0 | 27 | 0 |
| C | 0 | 27 | 0 |
| D | 0 | 27 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6041 | 74 | 1.224963% |
| B | 6041 | 92 | 1.522927% |
| C | 6041 | 66 | 1.092534% |
| D | 6041 | 156 | 2.582354% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8721 | 6043 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8721 | 6043 | 1 | 1 | 0.01% | 0.02% |  |
| C | 8721 | 6043 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8721 | 6043 | 60 | 60 | 0.69% | 0.99% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 128 | 10063 | 60.44 | 767 | 751 | 154.1 |
| A | 0 | 226 | 7139 | 41.46 | 767 | 751 | 154.1 |
| A | 12 | 194 | 6775 | 39.1 | 767 | 751 | 154.1 |
| B | 4 | 81 | 17961 | 117.85 | 781 | 764 | 145.9 |
| B | 12 | 111 | 14982 | 97.43 | 781 | 764 | 145.9 |
| B | 10 | 16 | 12821 | 82.63 | 781 | 764 | 145.9 |
| C | 1 | 16 | 33515 | 185.76 | 769 | 774 | 176.2 |
| C | 13 | 61 | 5900 | 29.08 | 769 | 774 | 176.2 |
| C | 8 | 222 | 4572 | 21.55 | 769 | 774 | 176.2 |
| D | 1 | 52 | 178895 | 964.78 | 756 | 734 | 184.7 |
| D | 1 | 83 | 150784 | 812.55 | 756 | 734 | 184.7 |
| D | 14 | 34 | 85587 | 459.5 | 756 | 734 | 184.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

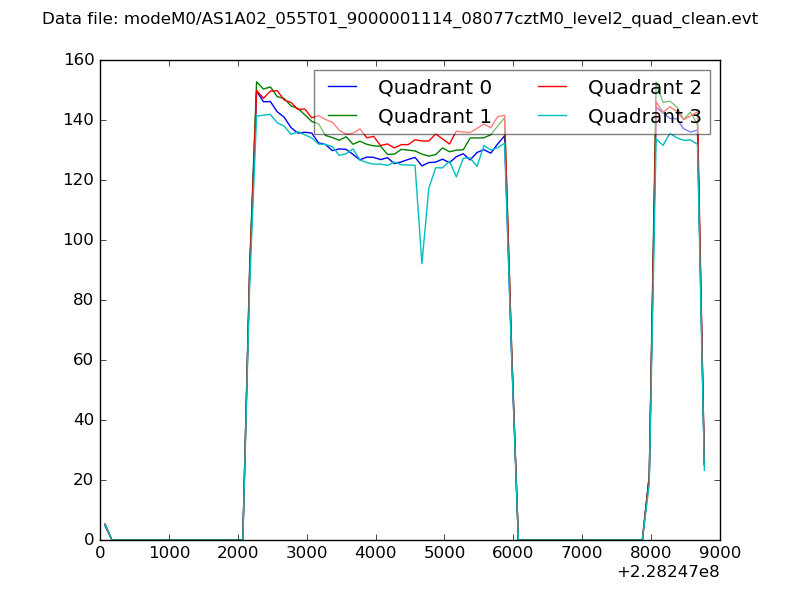

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

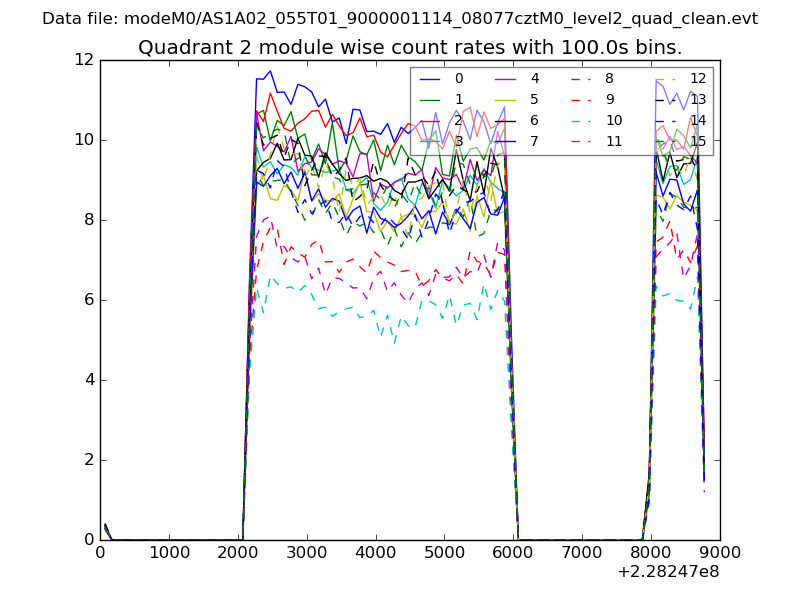

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

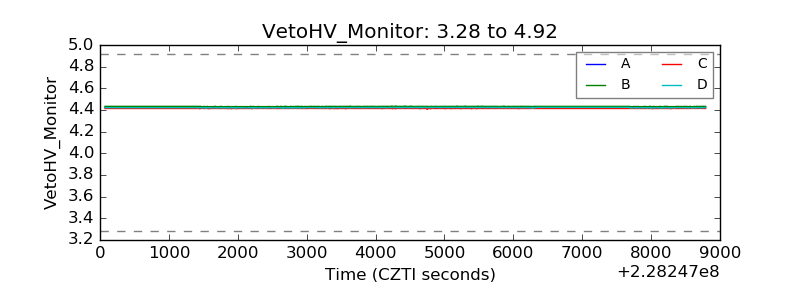

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

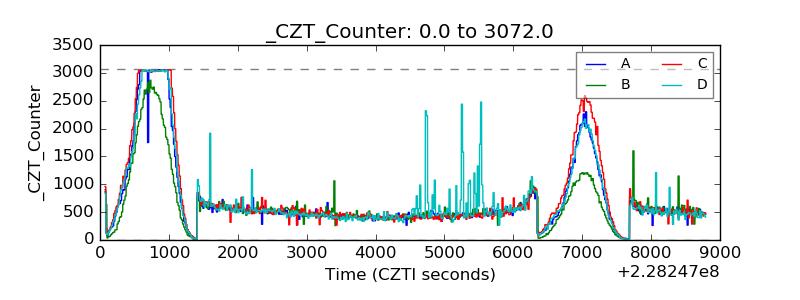

| CZT Counter |  |
