| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_055T01_9000001114_08085cztM0_level2.evt | modeM0/AS1A02_055T01_9000001114_08085cztM0_level2_quad_clean.evt |
| Size (bytes) | 414,250,560 | 77,279,040 |
| Size | 395.1 MB | 73.7 MB |
| Events in quadrant A | 2,933,025 | 472,853 |
| Events in quadrant B | 3,051,885 | 472,253 |
| Events in quadrant C | 2,952,997 | 477,059 |
| Events in quadrant D | 3,169,606 | 468,653 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13075 | 2 |
| B | 0 | 13198 | 1 |
| C | 0 | 13096 | 1 |
| D | 0 | 13866 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6434 | 46 | 0.714952% |
| B | 6434 | 54 | 0.839291% |
| C | 6434 | 26 | 0.404103% |
| D | 6434 | 69 | 1.072428% |

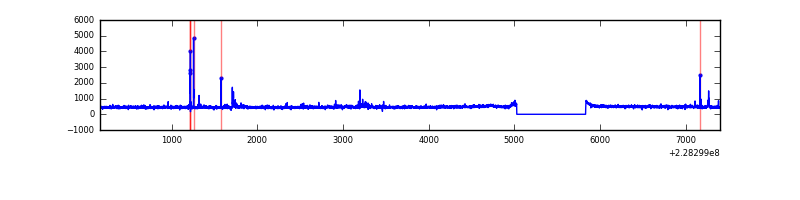

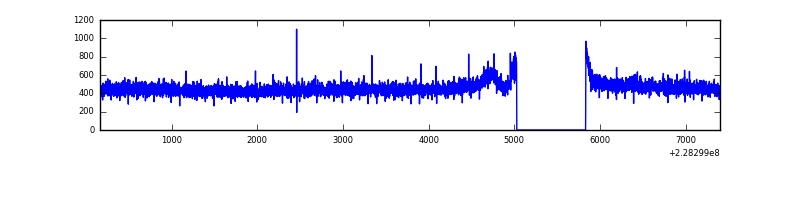

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7239 | 6435 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7239 | 6435 | 6 | 6 | 0.08% | 0.09% |  |
| C | 7239 | 6435 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7239 | 6435 | 33 | 33 | 0.46% | 0.51% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7208 | 41.38 | 762 | 744 | 156.2 |
| A | 12 | 194 | 6811 | 38.84 | 762 | 744 | 156.2 |
| A | 3 | 137 | 2923 | 13.95 | 762 | 744 | 156.2 |
| B | 10 | 16 | 34905 | 231.75 | 761 | 744 | 147.4 |
| B | 0 | 214 | 23435 | 153.94 | 761 | 744 | 147.4 |
| B | 0 | 231 | 21525 | 140.98 | 761 | 744 | 147.4 |
| C | 1 | 16 | 65120 | 375.01 | 736 | 738 | 171.7 |
| C | 1 | 3 | 15218 | 84.34 | 736 | 738 | 171.7 |
| C | 13 | 61 | 5469 | 27.55 | 736 | 738 | 171.7 |
| D | 1 | 52 | 261236 | 1393.13 | 737 | 717 | 187.0 |
| D | 7 | 71 | 28319 | 147.6 | 737 | 717 | 187.0 |
| D | 2 | 234 | 23110 | 119.75 | 737 | 717 | 187.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

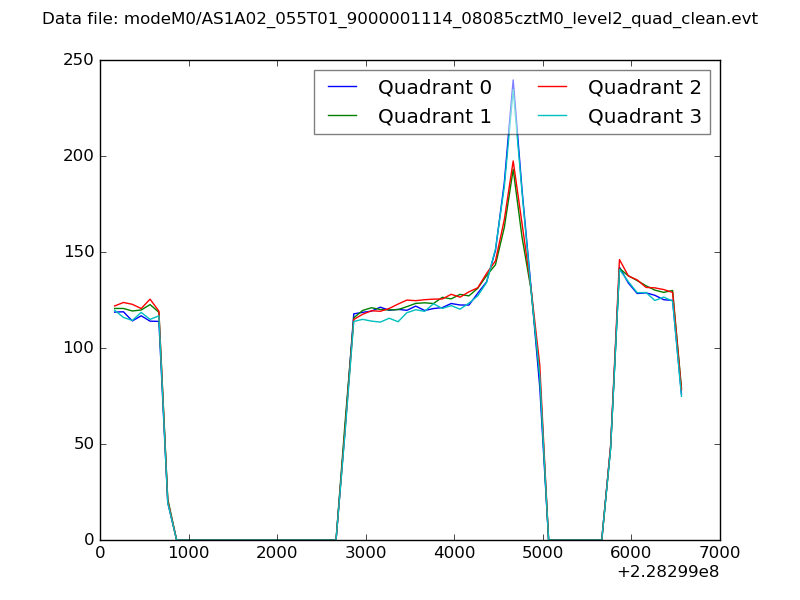

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

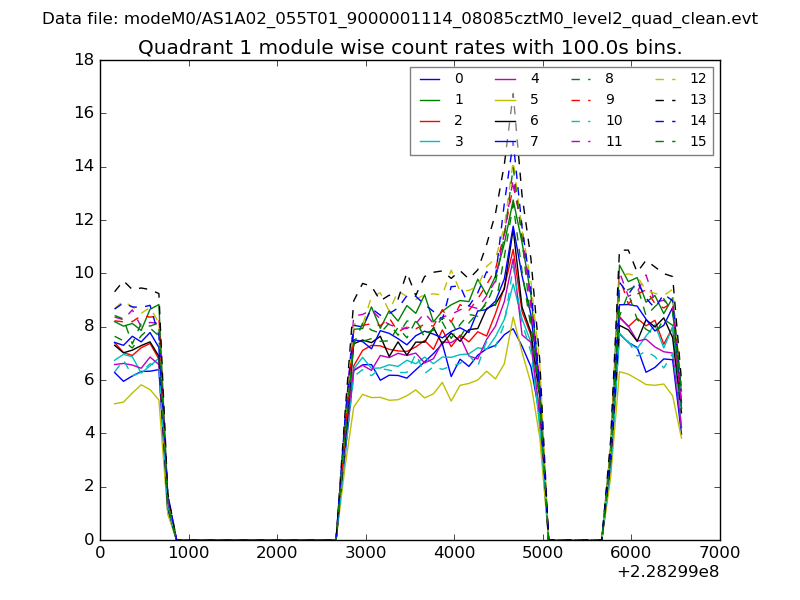

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

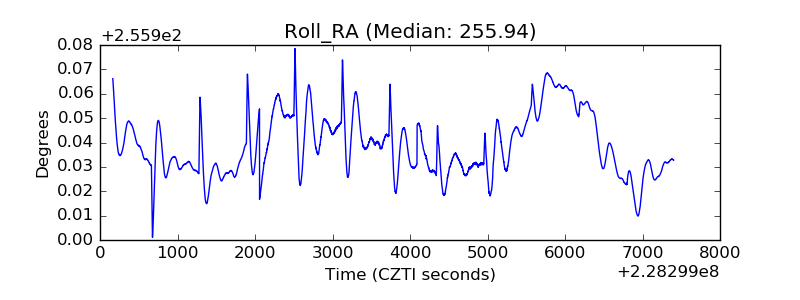

| _Roll_RA |  |

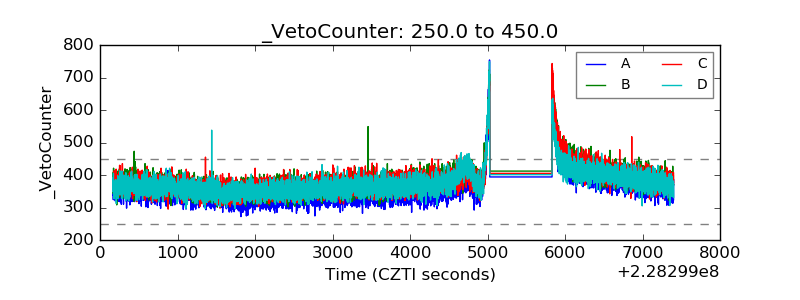

| Veto Counter |  |
