| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_055T01_9000001114_08088cztM0_level2.evt | modeM0/AS1A02_055T01_9000001114_08088cztM0_level2_quad_clean.evt |
| Size (bytes) | 513,604,800 | 68,662,080 |
| Size | 489.8 MB | 65.5 MB |
| Events in quadrant A | 3,332,361 | 398,029 |
| Events in quadrant B | 3,518,330 | 415,284 |
| Events in quadrant C | 3,327,442 | 413,469 |
| Events in quadrant D | 4,925,531 | 388,850 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14277 | 3 |
| B | 0 | 14705 | 2 |
| C | 0 | 14203 | 2 |
| D | 0 | 19117 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6647 | 102 | 1.534527% |
| B | 6647 | 134 | 2.015947% |
| C | 6647 | 95 | 1.429216% |
| D | 6647 | 412 | 6.198285% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7772 | 6647 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7772 | 6648 | 19 | 19 | 0.24% | 0.29% |  |
| C | 7772 | 6647 | 12 | 12 | 0.15% | 0.18% |  |
| D | 7772 | 6647 | 324 | 324 | 4.17% | 4.87% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 9292 | 47.94 | 863 | 843 | 176.2 |
| A | 0 | 226 | 8204 | 41.77 | 863 | 843 | 176.2 |
| A | 12 | 194 | 7939 | 40.26 | 863 | 843 | 176.2 |
| B | 0 | 231 | 120137 | 744.81 | 848 | 829 | 160.2 |
| B | 10 | 16 | 46607 | 285.78 | 848 | 829 | 160.2 |
| B | 11 | 51 | 37873 | 231.26 | 848 | 829 | 160.2 |
| C | 1 | 16 | 33393 | 169.93 | 832 | 838 | 191.6 |
| C | 9 | 68 | 23534 | 118.47 | 832 | 838 | 191.6 |
| C | 1 | 3 | 23513 | 118.36 | 832 | 838 | 191.6 |
| D | 1 | 52 | 1635367 | 7838.5 | 824 | 807 | 208.5 |
| D | 7 | 71 | 117840 | 561.23 | 824 | 807 | 208.5 |
| D | 2 | 234 | 22341 | 103.27 | 824 | 807 | 208.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

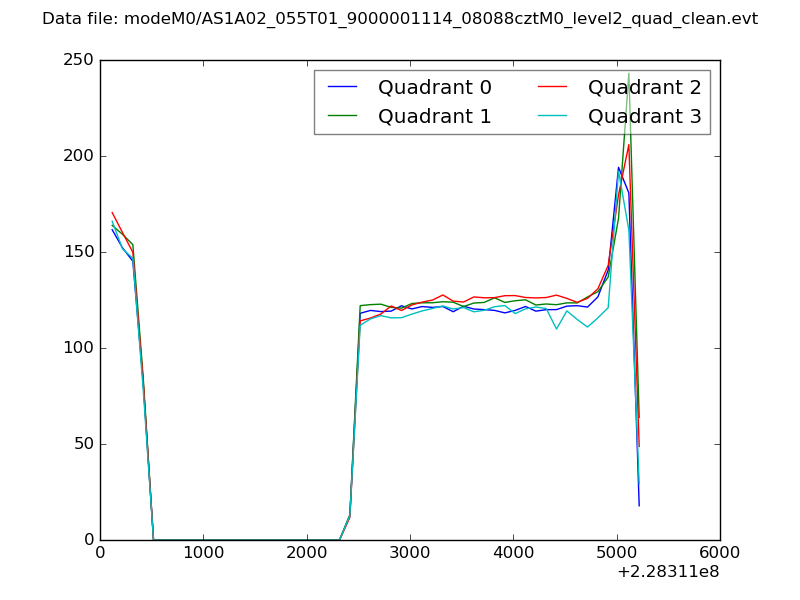

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

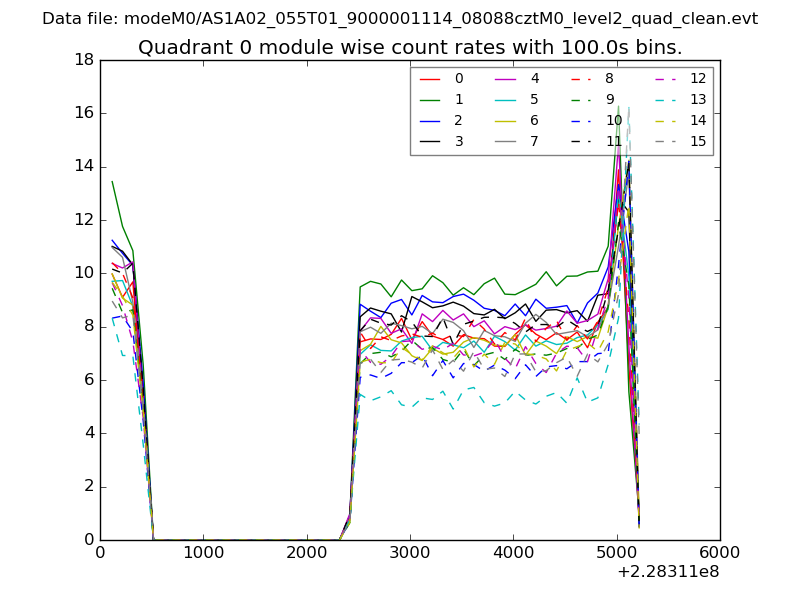

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

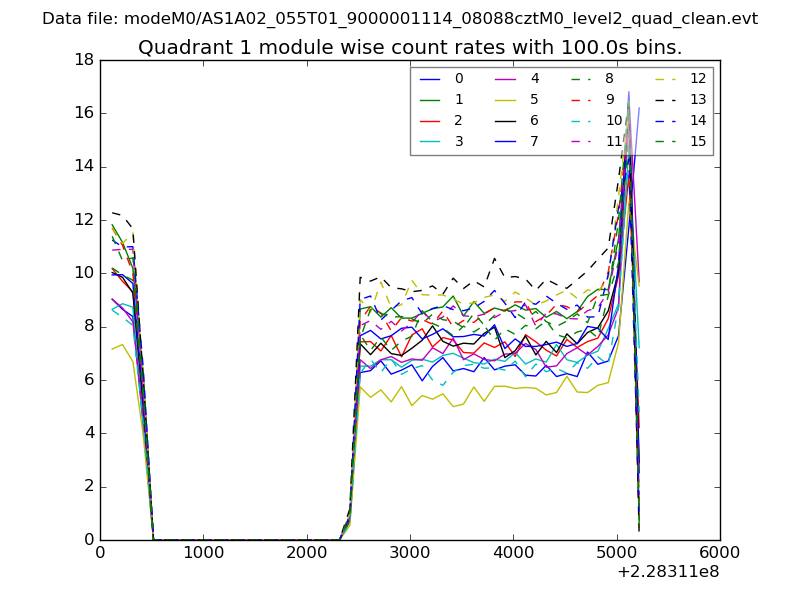

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

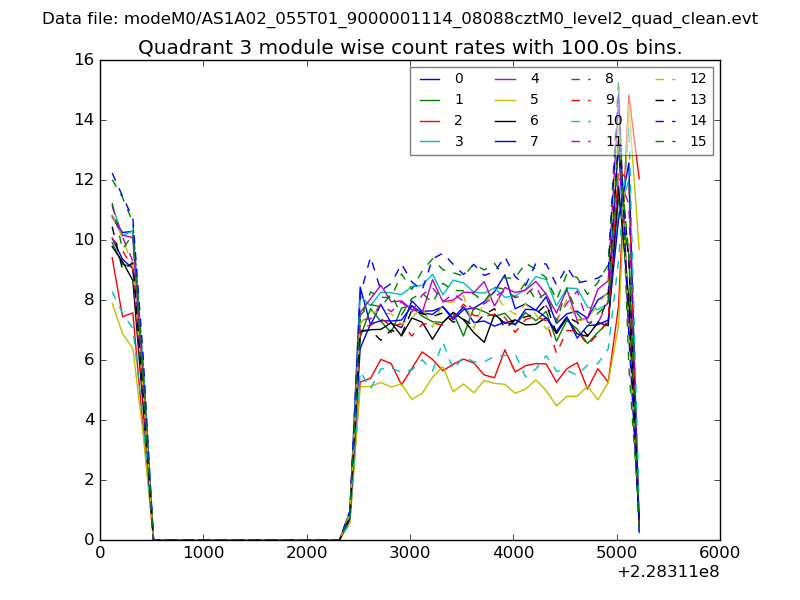

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

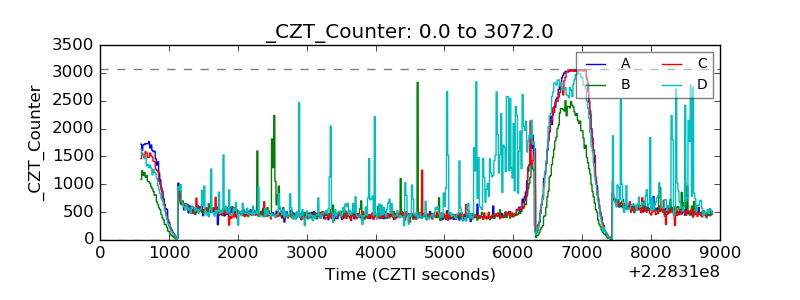

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

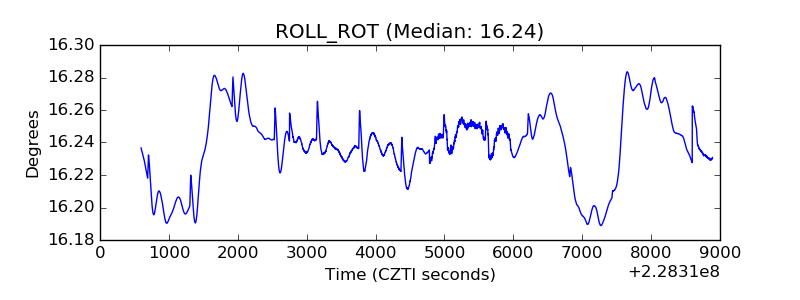

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

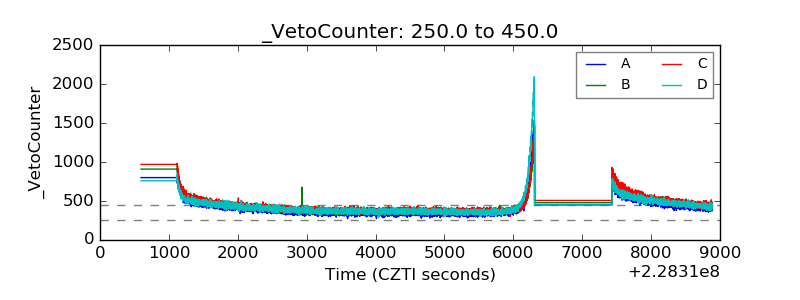

| Veto Counter |  |
