| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_055T01_9000001114_08092cztM0_level2.evt | modeM0/AS1A02_055T01_9000001114_08092cztM0_level2_quad_clean.evt |
| Size (bytes) | 413,472,960 | 97,511,040 |
| Size | 394.3 MB | 93.0 MB |
| Events in quadrant A | 2,913,562 | 620,276 |
| Events in quadrant B | 3,117,564 | 641,833 |
| Events in quadrant C | 3,152,118 | 646,518 |
| Events in quadrant D | 2,920,069 | 614,796 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12819 | 2 |
| B | 0 | 13322 | 1 |
| C | 0 | 13471 | 1 |
| D | 0 | 12890 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6158 | 57 | 0.925625% |
| B | 6158 | 82 | 1.331601% |
| C | 6158 | 68 | 1.104255% |
| D | 6158 | 53 | 0.860669% |

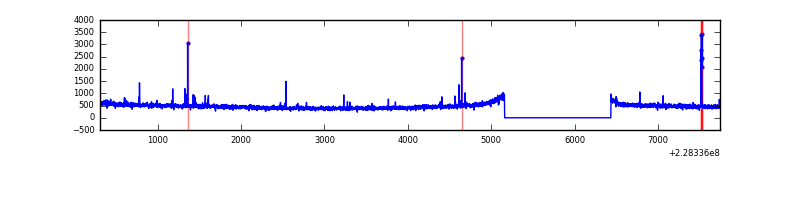

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7433 | 6159 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7433 | 6159 | 7 | 7 | 0.09% | 0.11% |  |
| C | 7433 | 6159 | 4 | 4 | 0.05% | 0.06% |  |
| D | 7433 | 6159 | 8 | 8 | 0.11% | 0.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7107 | 41.36 | 757 | 740 | 153.9 |
| A | 12 | 194 | 6639 | 38.32 | 757 | 740 | 153.9 |
| A | 3 | 137 | 2854 | 13.73 | 757 | 740 | 153.9 |
| B | 11 | 51 | 51268 | 344.31 | 770 | 752 | 146.7 |
| B | 0 | 231 | 26449 | 175.15 | 770 | 752 | 146.7 |
| B | 10 | 16 | 24868 | 164.37 | 770 | 752 | 146.7 |
| C | 0 | 224 | 97681 | 559.61 | 757 | 762 | 173.2 |
| C | 1 | 16 | 97055 | 556.0 | 757 | 762 | 173.2 |
| C | 13 | 61 | 5671 | 28.34 | 757 | 762 | 173.2 |
| D | 1 | 52 | 35262 | 190.1 | 751 | 728 | 181.7 |
| D | 13 | 112 | 25438 | 136.02 | 751 | 728 | 181.7 |
| D | 2 | 234 | 22667 | 120.77 | 751 | 728 | 181.7 |

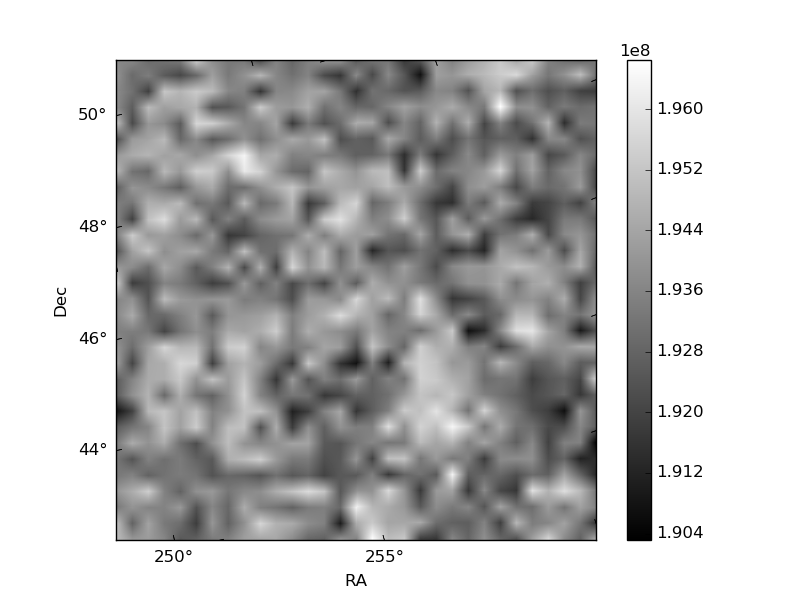

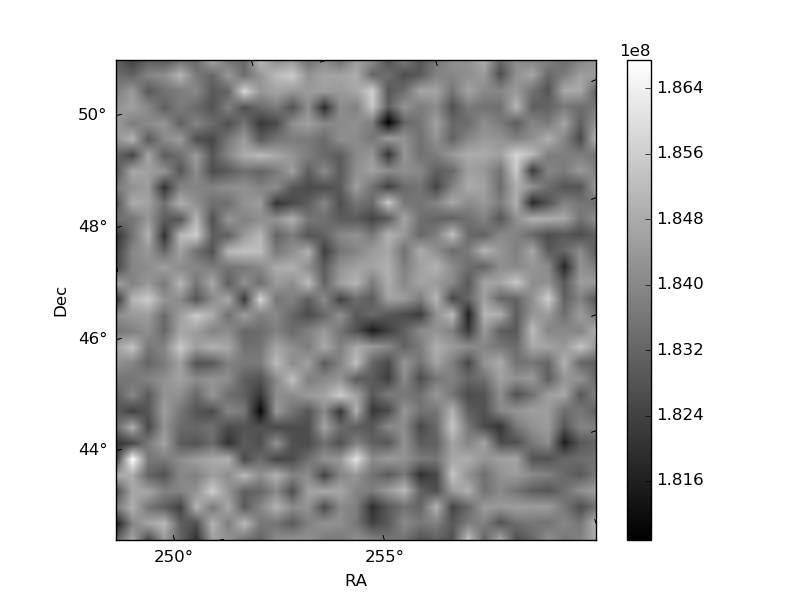

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

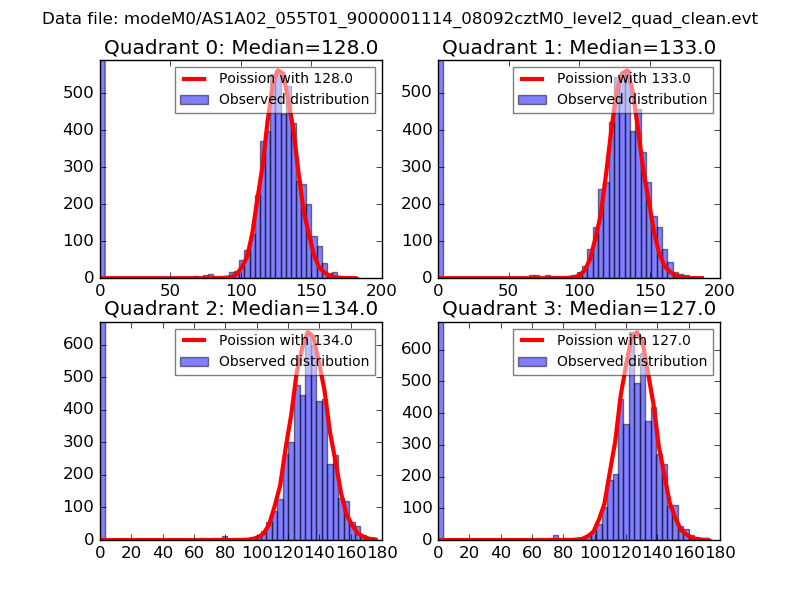

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

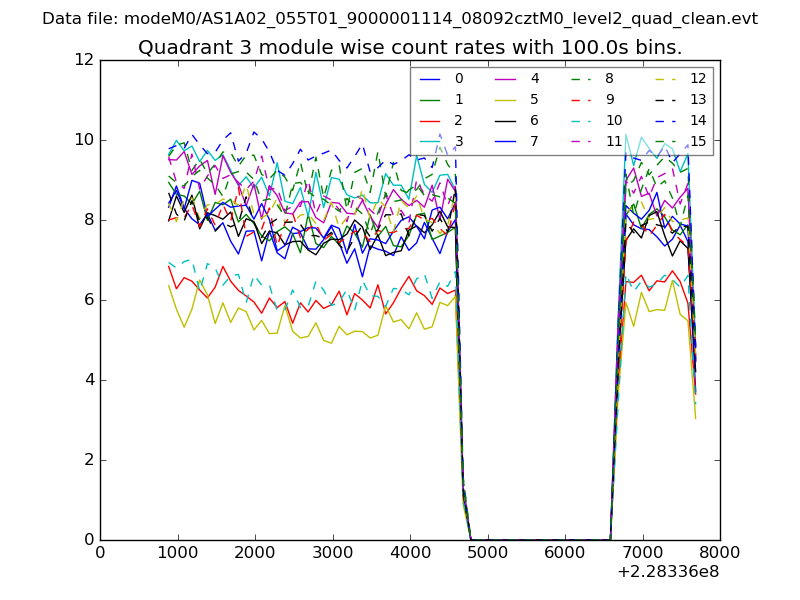

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

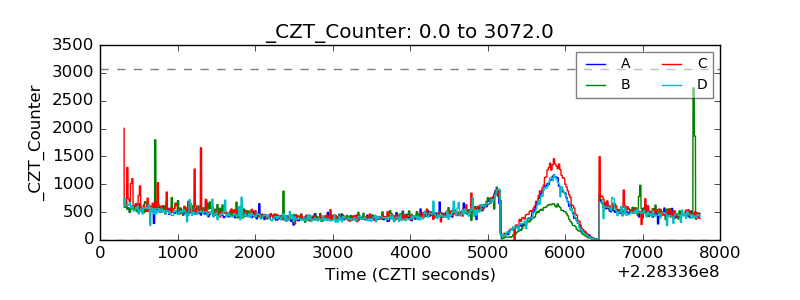

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

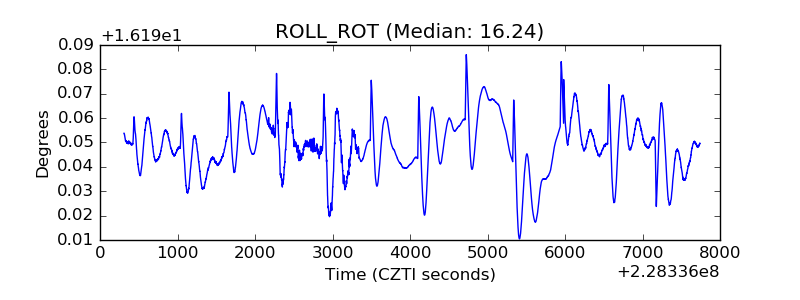

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

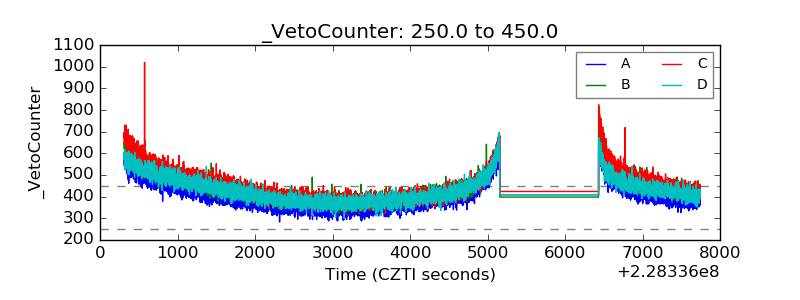

| Veto Counter |  |
