| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_168T15_9000001110_08052cztM0_level2.evt | modeM0/AS1G06_168T15_9000001110_08052cztM0_level2_quad_clean.evt |
| Size (bytes) | 377,562,240 | 69,284,160 |
| Size | 360.1 MB | 66.1 MB |
| Events in quadrant A | 3,003,052 | 414,806 |
| Events in quadrant B | 2,653,964 | 436,206 |
| Events in quadrant C | 2,554,787 | 435,775 |
| Events in quadrant D | 2,839,780 | 417,845 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13046 | 1 |
| B | 0 | 11819 | 1 |
| C | 0 | 11623 | 1 |
| D | 0 | 12572 | 6 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 114 | 0 |
| B | 0 | 114 | 0 |
| C | 0 | 114 | 0 |
| D | 0 | 114 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5629 | 277 | 4.920945% |
| B | 5629 | 83 | 1.474507% |
| C | 5629 | 37 | 0.657310% |
| D | 5627 | 68 | 1.208459% |

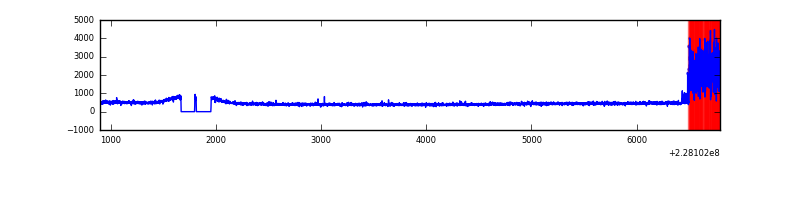

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5899 | 5631 | 160 | 160 | 2.71% | 2.84% |  |
| B | 5899 | 5631 | 2 | 2 | 0.03% | 0.04% |  |
| C | 5899 | 5631 | 0 | 0 | 0.00% | 0.00% |  |
| D | 5899 | 5631 | 33 | 33 | 0.56% | 0.59% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 544096 | 4106.44 | 637 | 621 | 132.3 |
| A | 0 | 226 | 5790 | 39.06 | 637 | 621 | 132.3 |
| A | 12 | 194 | 5586 | 37.52 | 637 | 621 | 132.3 |
| B | 5 | 250 | 58050 | 450.26 | 653 | 635 | 127.5 |
| B | 4 | 81 | 44231 | 341.89 | 653 | 635 | 127.5 |
| B | 12 | 111 | 14277 | 106.98 | 653 | 635 | 127.5 |
| C | 1 | 16 | 70997 | 471.71 | 635 | 635 | 149.2 |
| C | 13 | 61 | 4753 | 27.61 | 635 | 635 | 149.2 |
| C | 8 | 222 | 3261 | 17.61 | 635 | 635 | 149.2 |
| D | 1 | 52 | 211056 | 1336.27 | 625 | 609 | 157.5 |
| D | 4 | 95 | 105424 | 665.54 | 625 | 609 | 157.5 |
| D | 2 | 14 | 102907 | 649.56 | 625 | 609 | 157.5 |

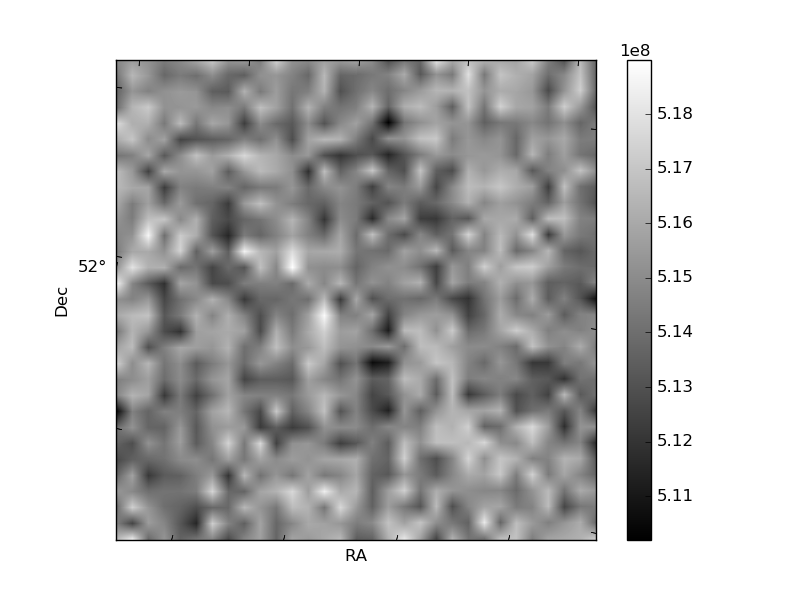

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

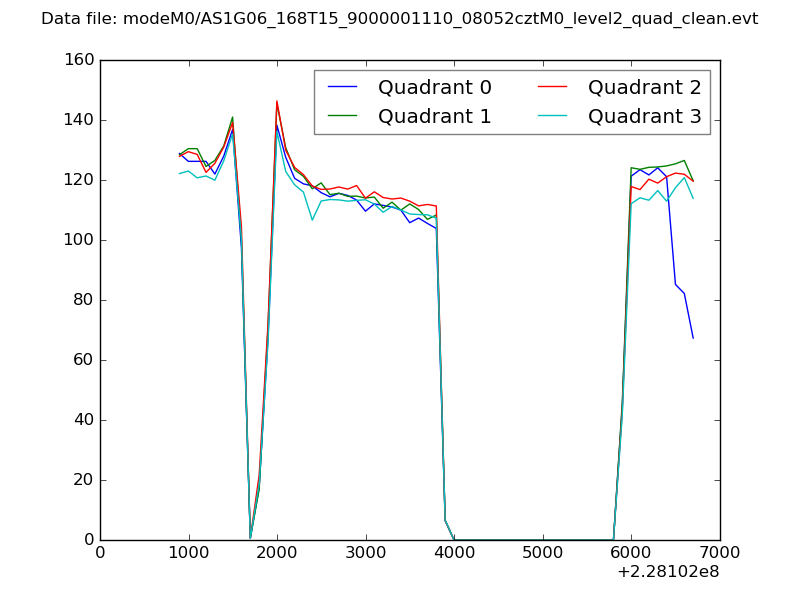

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

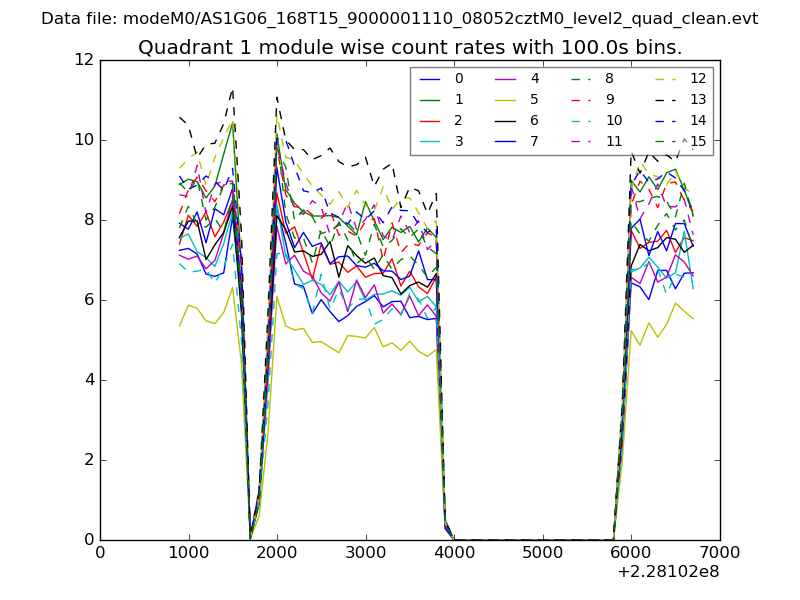

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

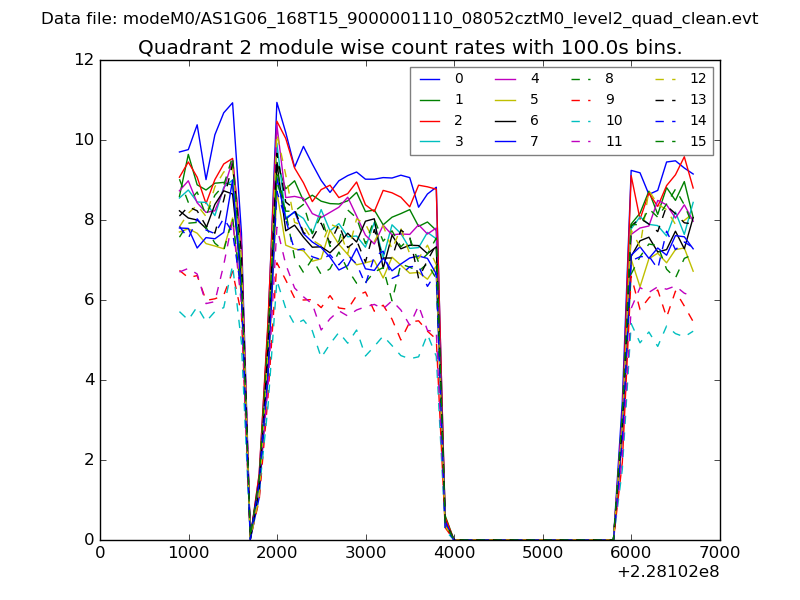

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

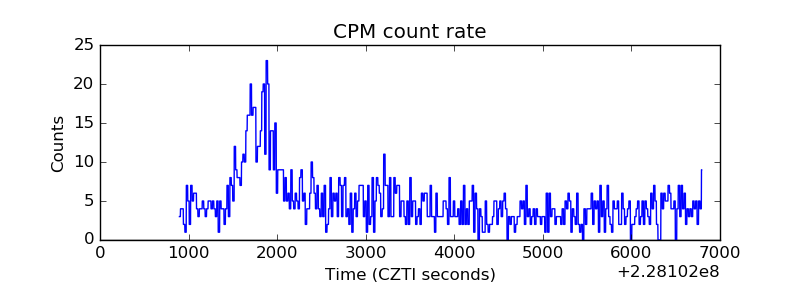

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

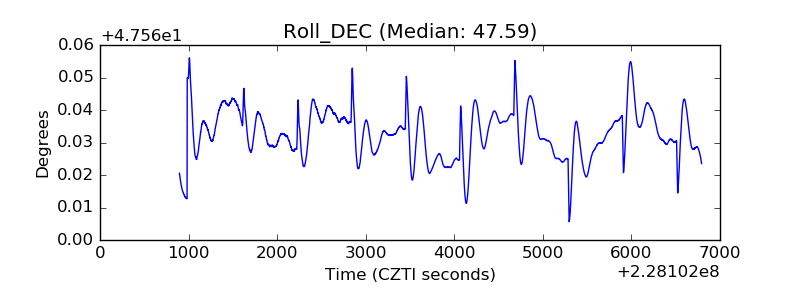

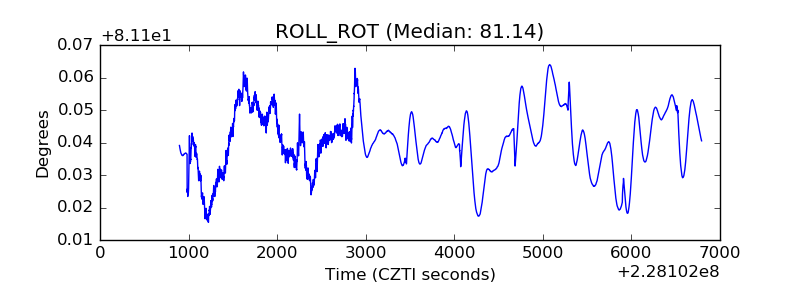

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
