| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_033T01_9000001116_08108cztM0_level2.evt | modeM0/AS1G06_033T01_9000001116_08108cztM0_level2_quad_clean.evt |
| Size (bytes) | 507,179,520 | 88,433,280 |
| Size | 483.7 MB | 84.3 MB |
| Events in quadrant A | 3,799,243 | 549,952 |
| Events in quadrant B | 3,327,550 | 561,370 |
| Events in quadrant C | 3,187,755 | 567,220 |
| Events in quadrant D | 4,588,155 | 529,487 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15731 | 3 |
| B | 0 | 14261 | 2 |
| C | 0 | 13892 | 2 |
| D | 0 | 18037 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6745 | 53 | 0.785767% |
| B | 6745 | 54 | 0.800593% |
| C | 6745 | 17 | 0.252039% |
| D | 6745 | 103 | 1.527057% |

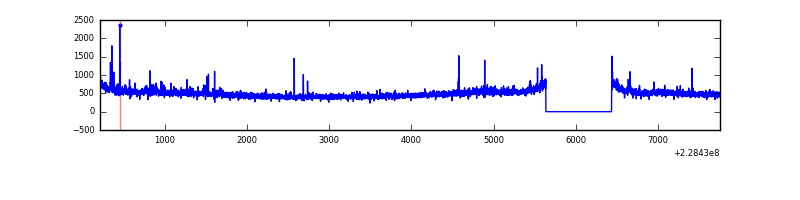

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7545 | 6746 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7545 | 6746 | 1 | 1 | 0.01% | 0.01% |  |
| C | 7545 | 6746 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7545 | 6746 | 140 | 140 | 1.86% | 2.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 614263 | 3624.74 | 826 | 812 | 169.2 |
| A | 0 | 226 | 7558 | 39.86 | 826 | 812 | 169.2 |
| A | 12 | 194 | 7416 | 39.02 | 826 | 812 | 169.2 |
| B | 11 | 51 | 33283 | 202.64 | 832 | 813 | 160.2 |
| B | 0 | 214 | 21994 | 132.19 | 832 | 813 | 160.2 |
| B | 0 | 230 | 18721 | 111.76 | 832 | 813 | 160.2 |
| C | 1 | 16 | 15807 | 79.6 | 812 | 821 | 188.3 |
| C | 13 | 61 | 6221 | 28.68 | 812 | 821 | 188.3 |
| C | 7 | 235 | 5502 | 24.87 | 812 | 821 | 188.3 |
| D | 1 | 52 | 1369477 | 6944.3 | 806 | 785 | 197.1 |
| D | 12 | 233 | 87911 | 442.05 | 806 | 785 | 197.1 |
| D | 5 | 233 | 54375 | 271.9 | 806 | 785 | 197.1 |

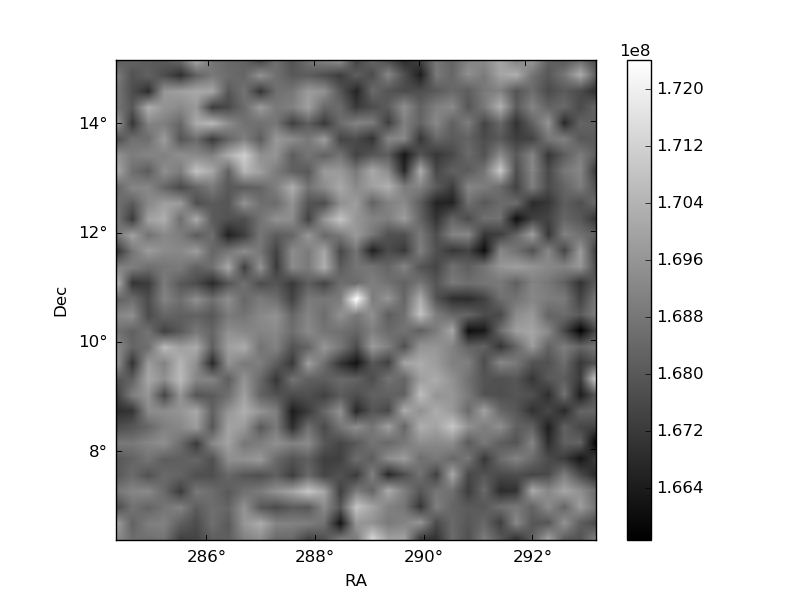

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

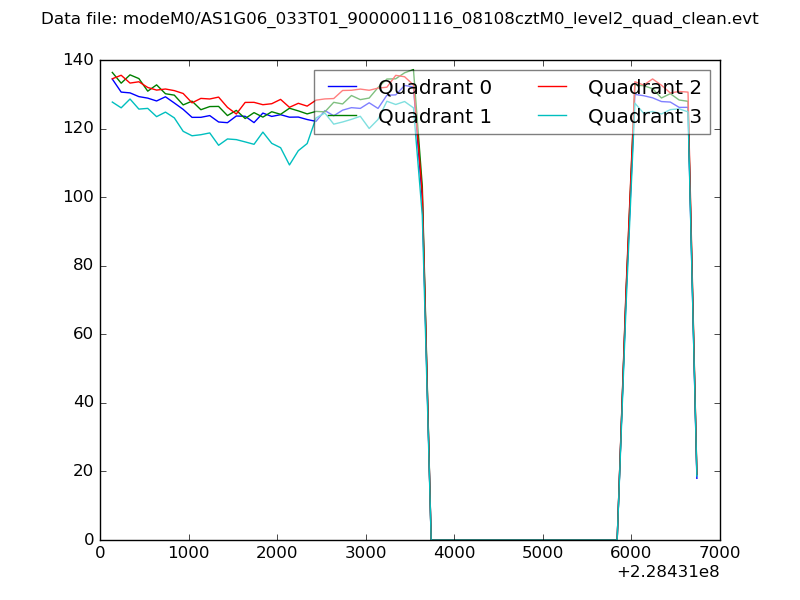

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

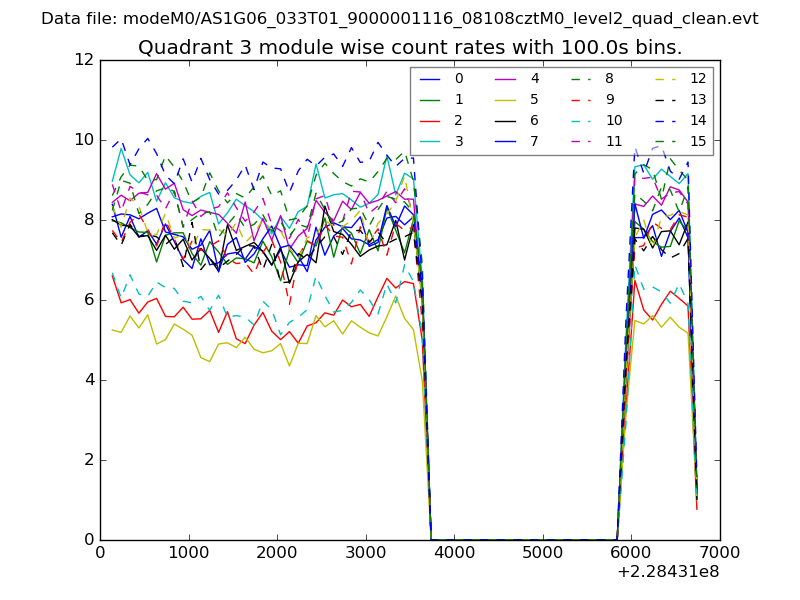

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

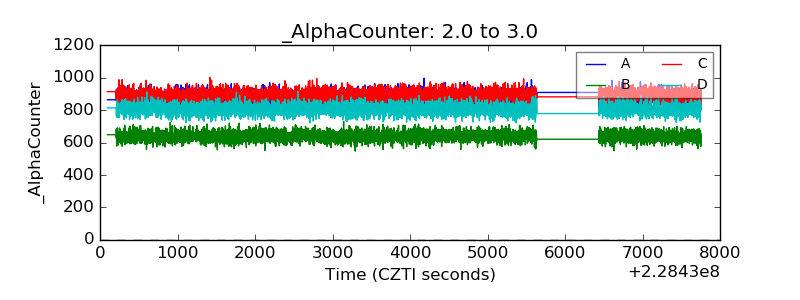

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

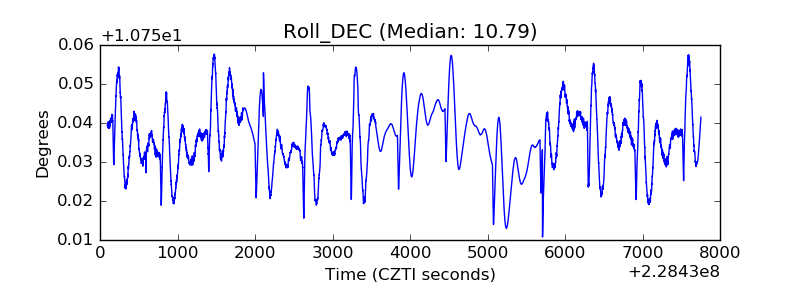

| _ROLL_ROT |  |
| _Roll_DEC |  |

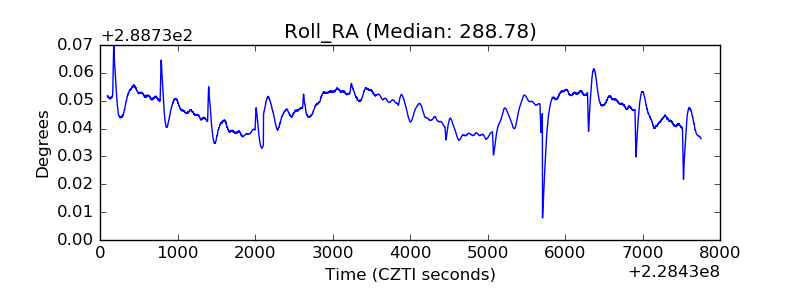

| _Roll_RA |  |

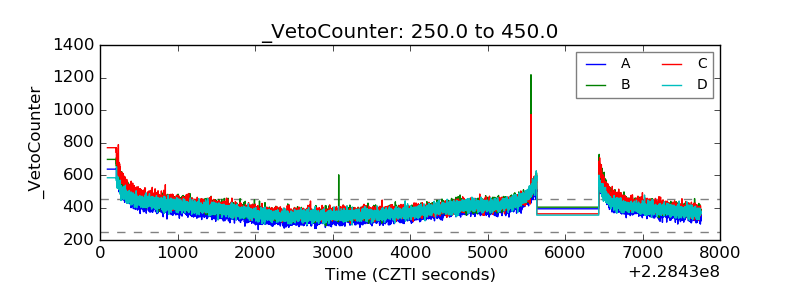

| Veto Counter |  |
