| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_033T01_9000001116_08118cztM0_level2.evt | modeM0/AS1G06_033T01_9000001116_08118cztM0_level2_quad_clean.evt |
| Size (bytes) | 444,600,000 | 62,496,000 |
| Size | 424.0 MB | 59.6 MB |
| Events in quadrant A | 3,175,036 | 365,170 |
| Events in quadrant B | 3,424,861 | 367,664 |
| Events in quadrant C | 3,080,293 | 369,919 |
| Events in quadrant D | 3,359,058 | 352,331 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13230 | 2 |
| B | 0 | 14172 | 1 |
| C | 0 | 12969 | 1 |
| D | 0 | 13811 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6265 | 63 | 1.005587% |
| B | 6265 | 86 | 1.372706% |
| C | 6265 | 44 | 0.702314% |
| D | 6265 | 70 | 1.117318% |

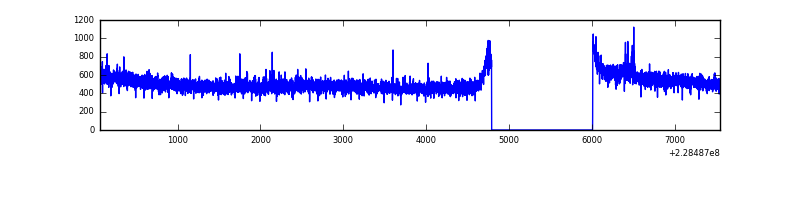

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7485 | 6265 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7485 | 6265 | 11 | 11 | 0.15% | 0.18% |  |
| C | 7485 | 6265 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7485 | 6266 | 15 | 15 | 0.20% | 0.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 49442 | 294.27 | 811 | 795 | 165.3 |
| A | 0 | 226 | 7943 | 43.24 | 811 | 795 | 165.3 |
| A | 12 | 194 | 7273 | 39.19 | 811 | 795 | 165.3 |
| B | 0 | 214 | 161309 | 1055.37 | 807 | 790 | 152.1 |
| B | 10 | 16 | 77296 | 503.0 | 807 | 790 | 152.1 |
| B | 0 | 219 | 23620 | 150.1 | 807 | 790 | 152.1 |
| C | 12 | 4 | 10459 | 53.6 | 786 | 791 | 180.4 |
| C | 13 | 61 | 6135 | 29.63 | 786 | 791 | 180.4 |
| C | 1 | 16 | 4057 | 18.11 | 786 | 791 | 180.4 |
| D | 5 | 233 | 72159 | 367.52 | 791 | 769 | 194.2 |
| D | 2 | 152 | 69705 | 354.89 | 791 | 769 | 194.2 |
| D | 12 | 227 | 67448 | 343.27 | 791 | 769 | 194.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

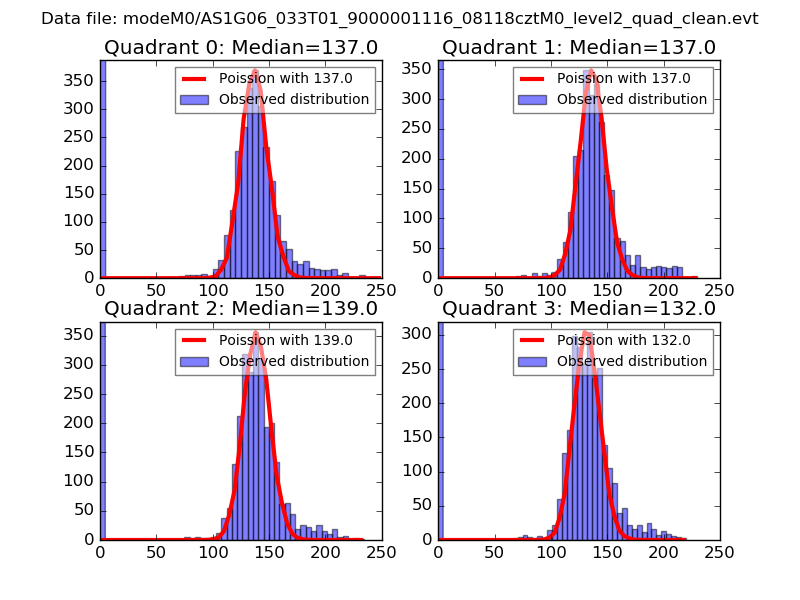

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

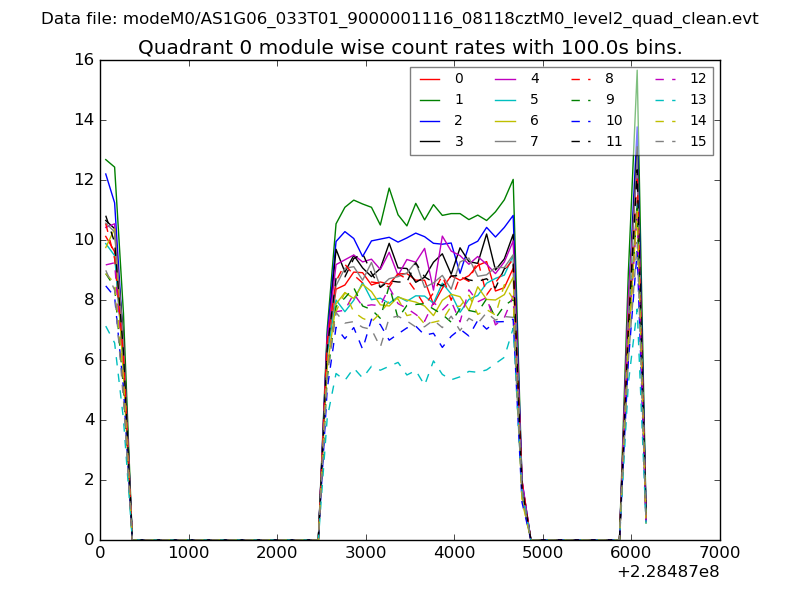

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

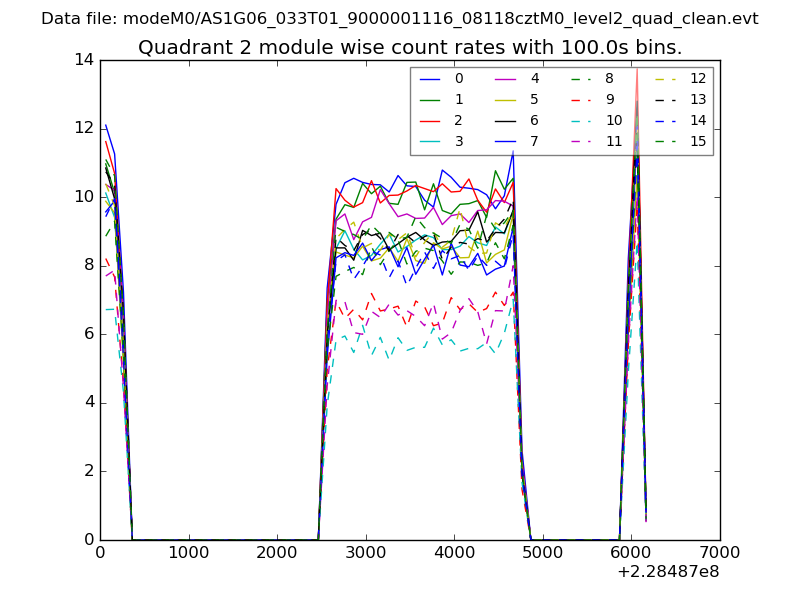

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

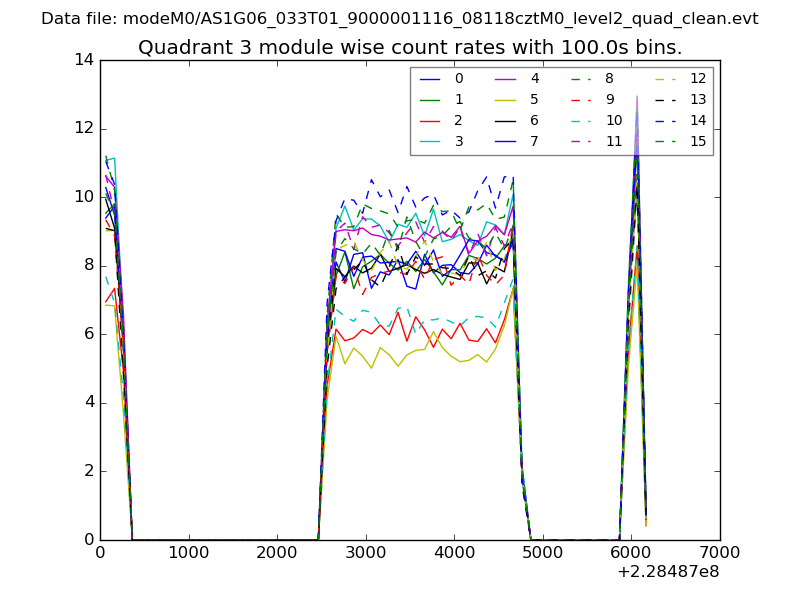

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

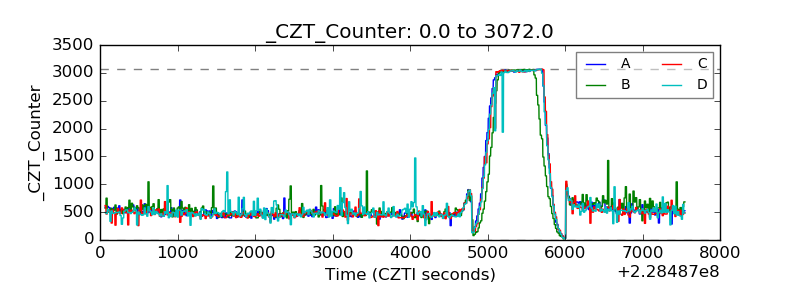

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

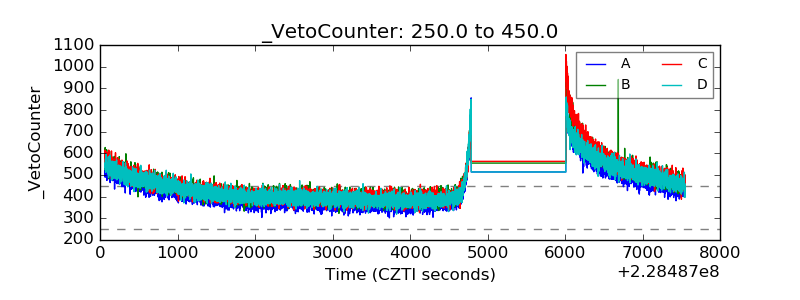

| Veto Counter |  |
