| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_178T01_9000001118_08122cztM0_level2.evt | modeM0/AS1A02_178T01_9000001118_08122cztM0_level2_quad_clean.evt |
| Size (bytes) | 294,586,560 | 53,740,800 |
| Size | 280.9 MB | 51.3 MB |
| Events in quadrant A | 2,056,171 | 329,291 |
| Events in quadrant B | 2,201,092 | 338,475 |
| Events in quadrant C | 2,041,325 | 332,672 |
| Events in quadrant D | 2,320,350 | 314,739 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 90 | 0 |
| B | 0 | 90 | 0 |
| C | 0 | 90 | 0 |
| D | 0 | 90 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9129 | 2 |
| B | 0 | 9560 | 1 |
| C | 0 | 9089 | 1 |
| D | 0 | 10024 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4435 | 8 | 0.180383% |
| B | 4435 | 32 | 0.721533% |
| C | 4435 | 8 | 0.180383% |
| D | 4435 | 22 | 0.496054% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

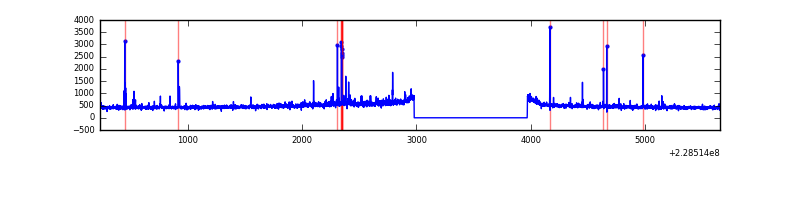

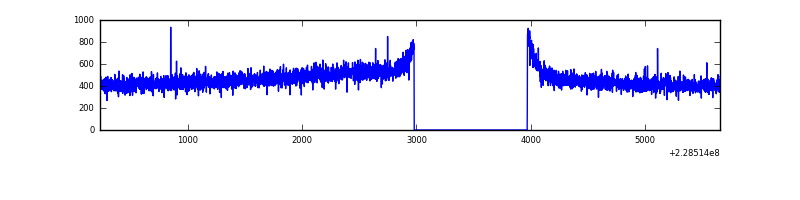

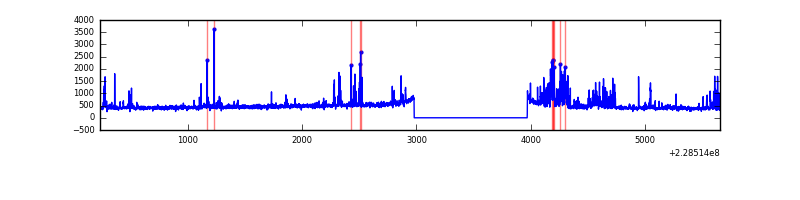

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5425 | 4436 | 0 | 0 | 0.00% | 0.00% |  |
| B | 5425 | 4436 | 13 | 13 | 0.24% | 0.29% |  |
| C | 5425 | 4436 | 0 | 0 | 0.00% | 0.00% |  |
| D | 5425 | 4436 | 11 | 11 | 0.20% | 0.25% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 6647 | 55.93 | 531 | 520 | 109.5 |
| A | 0 | 226 | 4867 | 39.68 | 531 | 520 | 109.5 |
| A | 12 | 194 | 4804 | 39.11 | 531 | 520 | 109.5 |
| B | 10 | 16 | 63558 | 612.46 | 533 | 522 | 102.9 |
| B | 0 | 214 | 47854 | 459.88 | 533 | 522 | 102.9 |
| B | 10 | 252 | 11717 | 108.77 | 533 | 522 | 102.9 |
| C | 13 | 61 | 3992 | 28.71 | 522 | 525 | 120.8 |
| C | 1 | 16 | 3970 | 28.53 | 522 | 525 | 120.8 |
| C | 8 | 222 | 1339 | 6.74 | 522 | 525 | 120.8 |
| D | 1 | 52 | 218406 | 1706.2 | 517 | 501 | 127.7 |
| D | 2 | 152 | 73446 | 571.16 | 517 | 501 | 127.7 |
| D | 13 | 122 | 25951 | 199.27 | 517 | 501 | 127.7 |

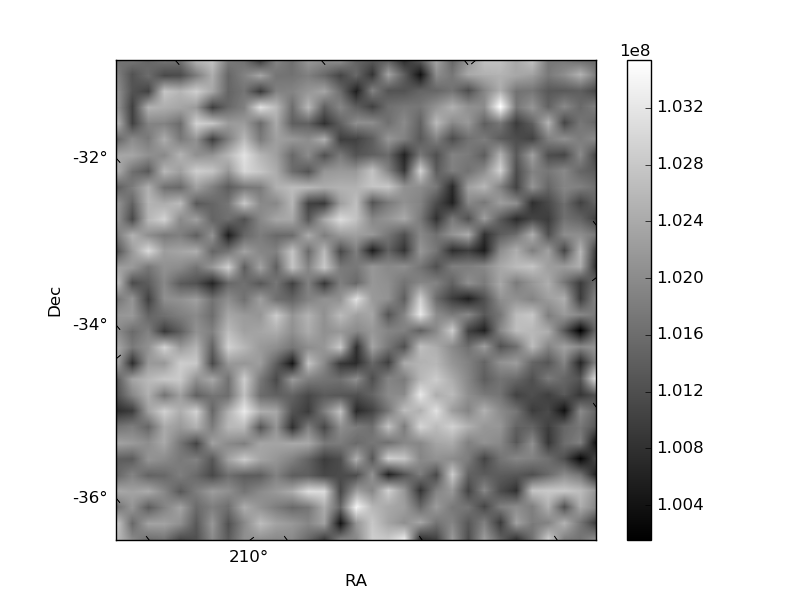

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|

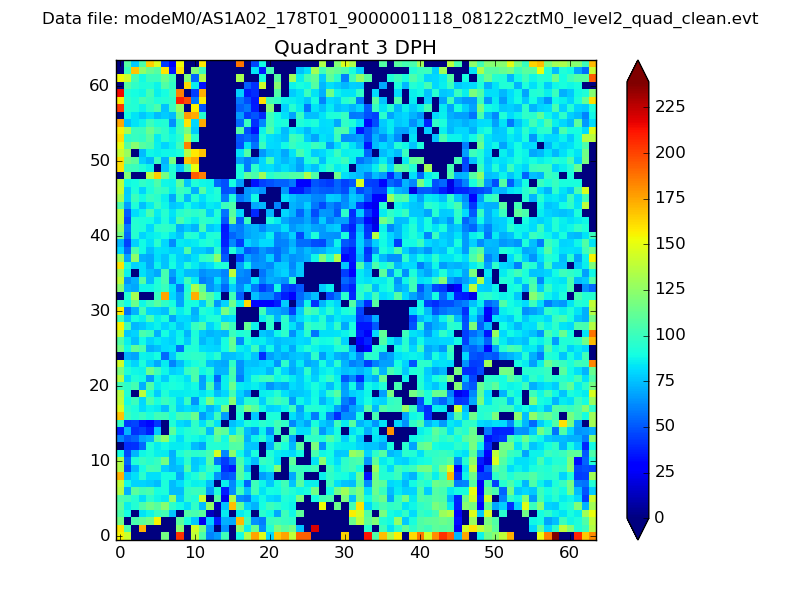

| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

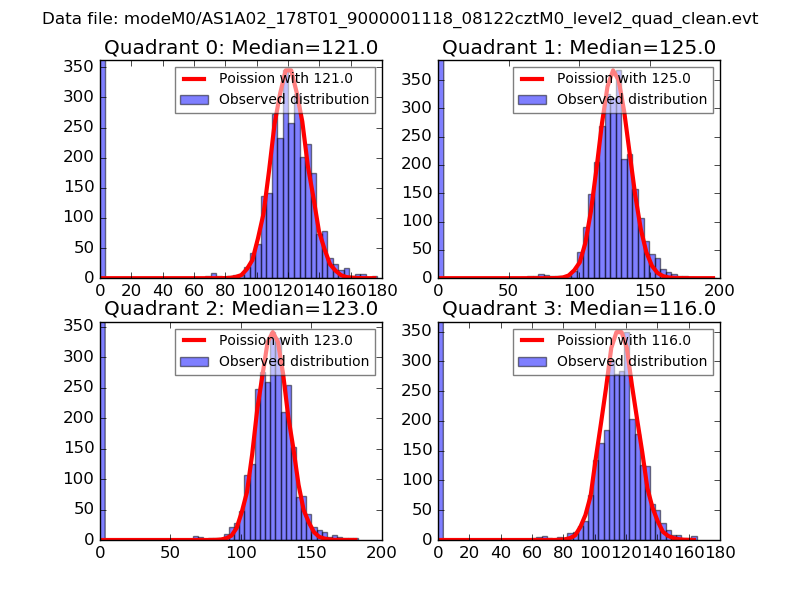

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

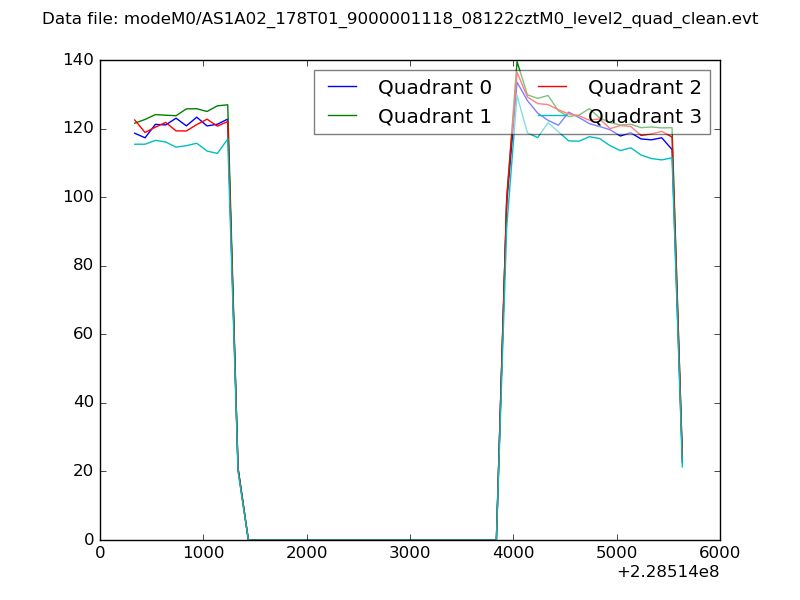

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

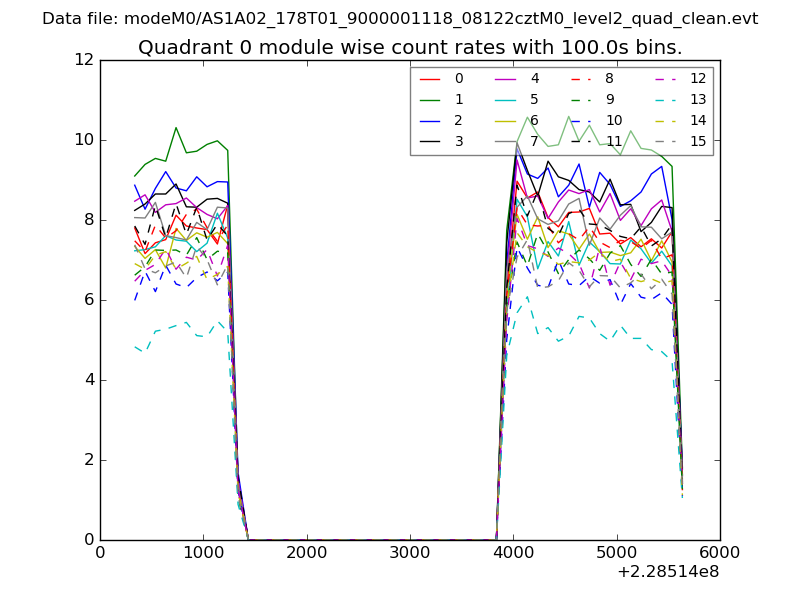

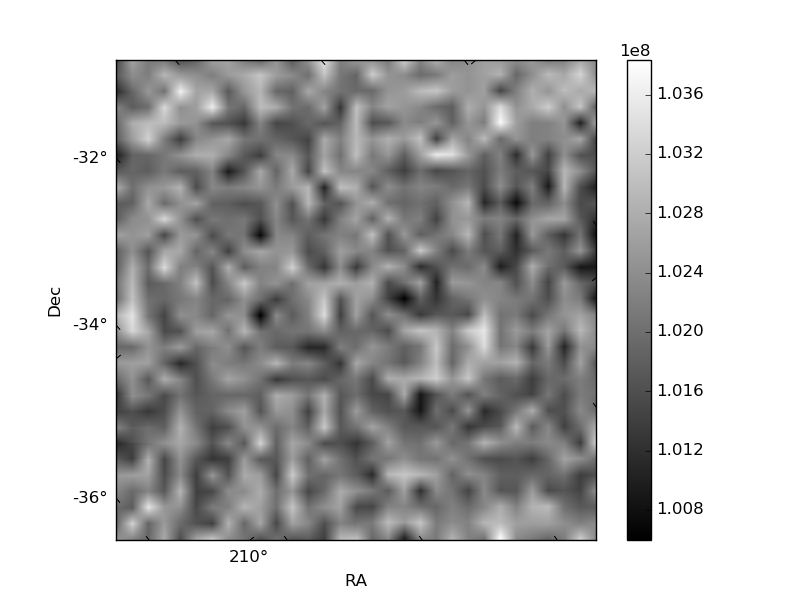

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

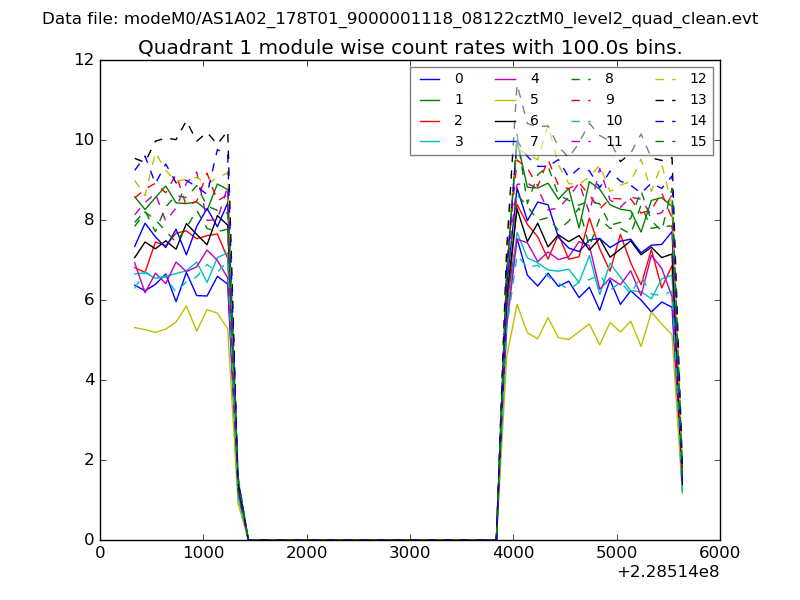

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

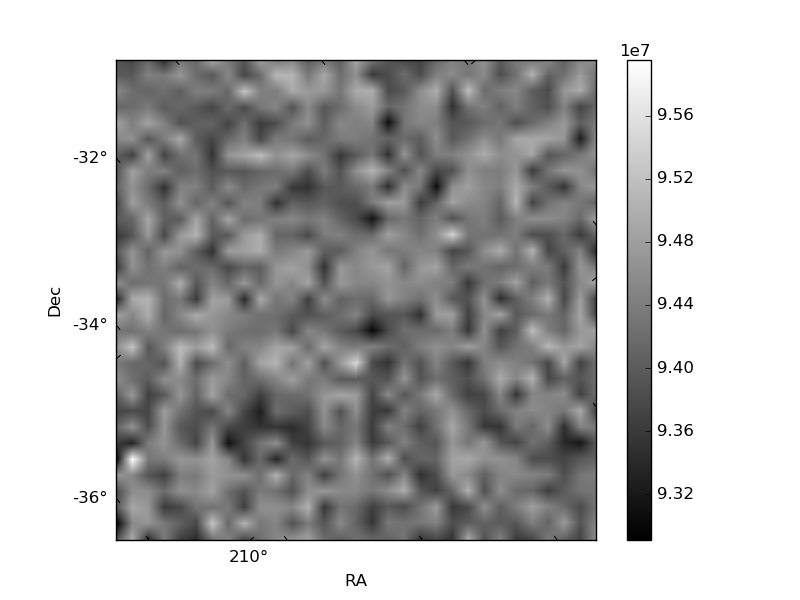

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

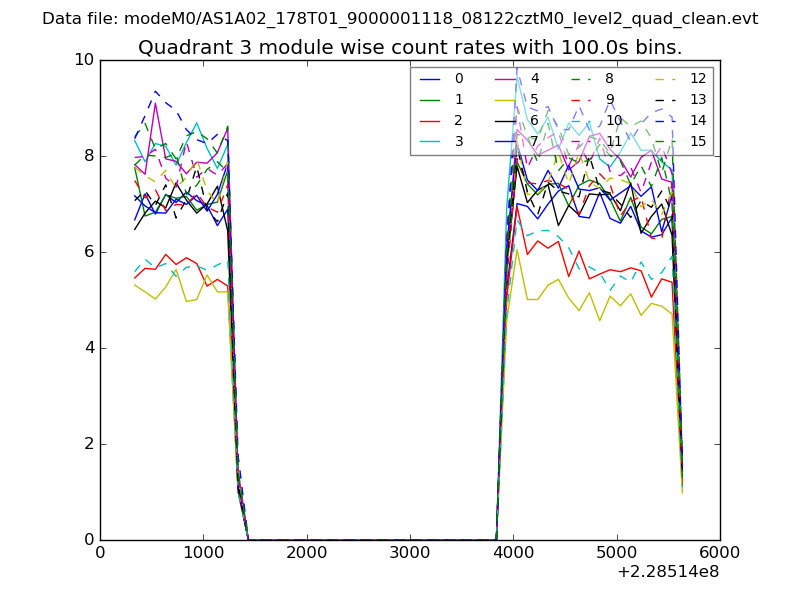

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

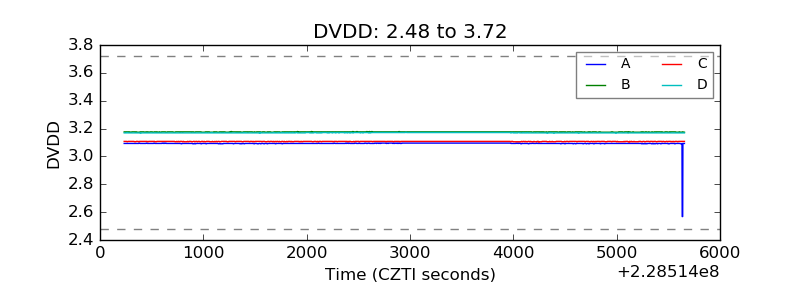

| D_VDD |  |

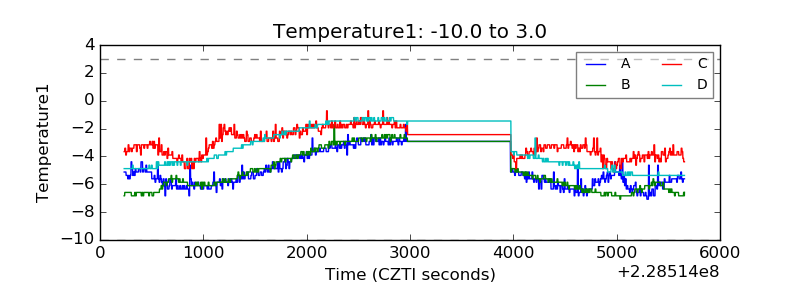

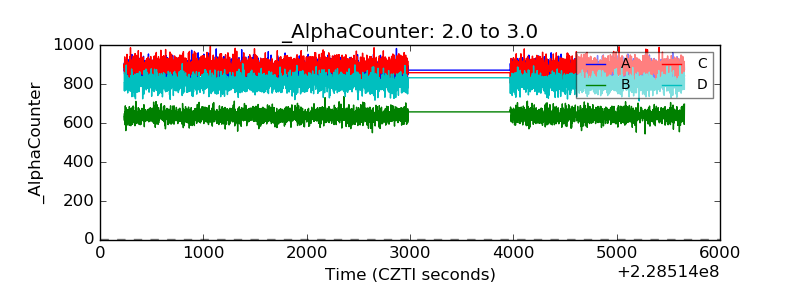

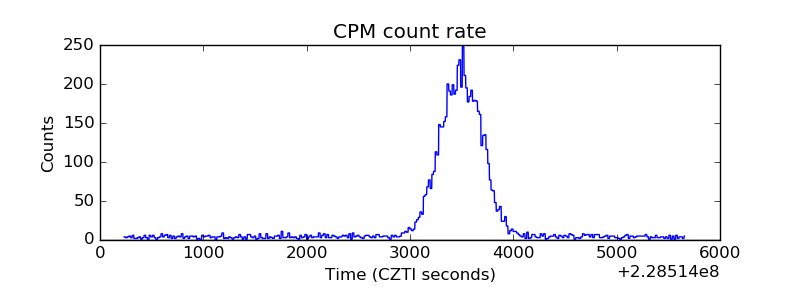

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

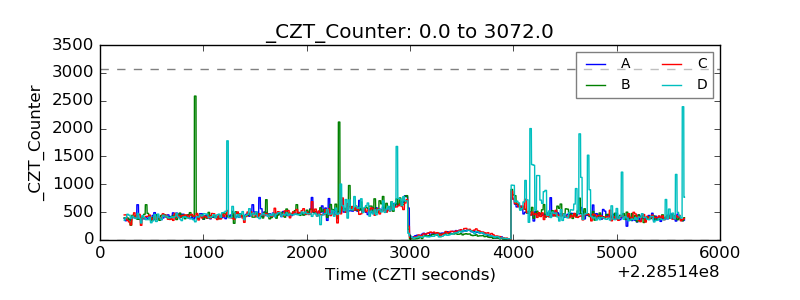

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

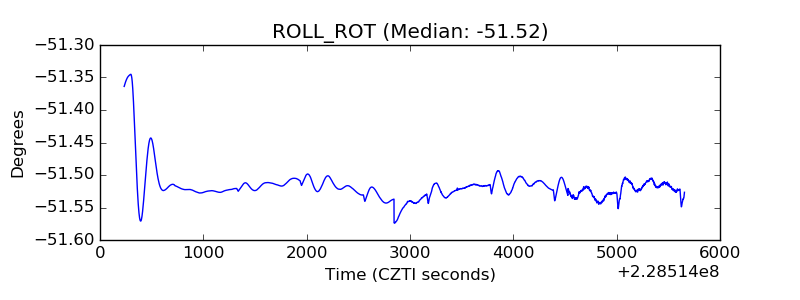

| _ROLL_ROT |  |

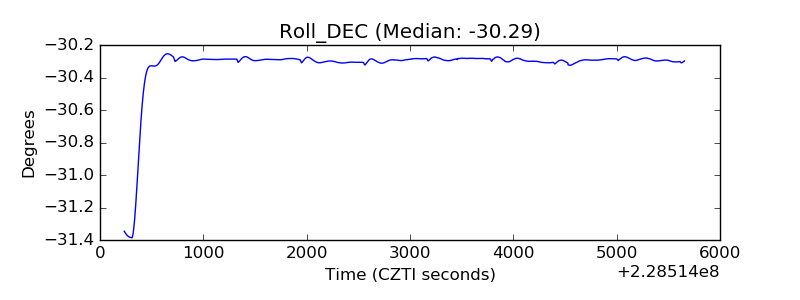

| _Roll_DEC |  |

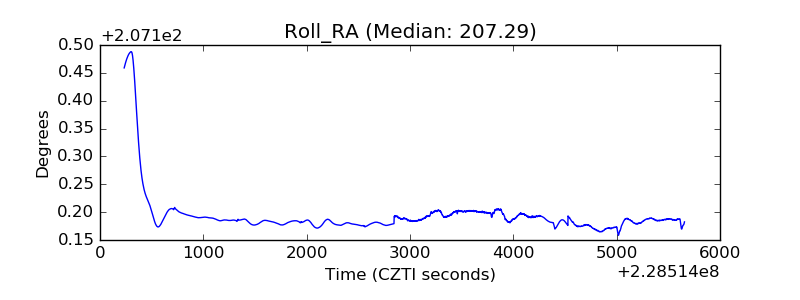

| _Roll_RA |  |

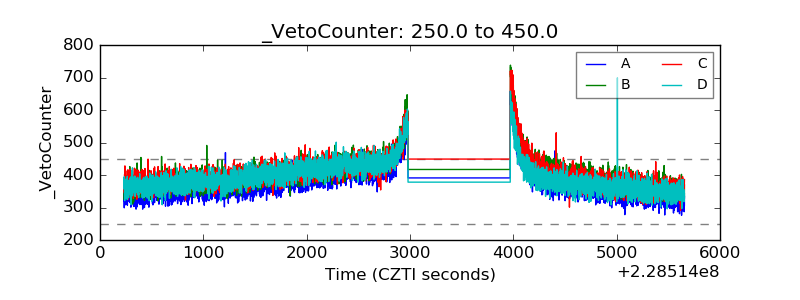

| Veto Counter |  |
