| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_178T01_9000001118_08131cztM0_level2.evt | modeM0/AS1A02_178T01_9000001118_08131cztM0_level2_quad_clean.evt |
| Size (bytes) | 451,843,200 | 67,340,160 |
| Size | 430.9 MB | 64.2 MB |
| Events in quadrant A | 3,245,165 | 394,368 |
| Events in quadrant B | 3,406,527 | 398,102 |
| Events in quadrant C | 3,259,467 | 397,490 |
| Events in quadrant D | 3,319,378 | 383,933 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14072 | 3 |
| B | 0 | 14415 | 2 |
| C | 0 | 14212 | 2 |
| D | 0 | 14514 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6671 | 180 | 2.698246% |
| B | 6671 | 189 | 2.833158% |
| C | 6671 | 152 | 2.278519% |
| D | 6671 | 160 | 2.398441% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

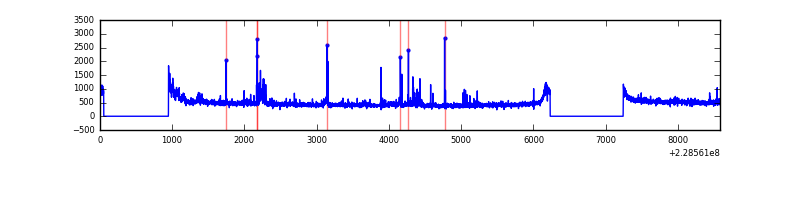

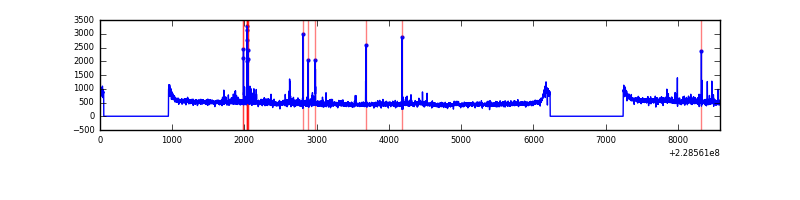

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8576 | 6671 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8576 | 6671 | 14 | 14 | 0.16% | 0.21% |  |
| C | 8576 | 6671 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8576 | 6671 | 7 | 7 | 0.08% | 0.10% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 35059 | 201.74 | 833 | 814 | 169.8 |
| A | 0 | 226 | 7672 | 40.4 | 833 | 814 | 169.8 |
| A | 12 | 194 | 7401 | 38.8 | 833 | 814 | 169.8 |
| B | 0 | 214 | 86426 | 530.3 | 834 | 812 | 161.4 |
| B | 10 | 16 | 59660 | 364.51 | 834 | 812 | 161.4 |
| B | 12 | 111 | 16822 | 99.17 | 834 | 812 | 161.4 |
| C | 1 | 16 | 76264 | 397.53 | 815 | 818 | 189.8 |
| C | 13 | 61 | 6289 | 28.83 | 815 | 818 | 189.8 |
| C | 8 | 222 | 3371 | 13.45 | 815 | 818 | 189.8 |
| D | 1 | 52 | 153710 | 706.92 | 810 | 790 | 216.3 |
| D | 13 | 122 | 56162 | 255.98 | 810 | 790 | 216.3 |
| D | 2 | 234 | 22983 | 102.59 | 810 | 790 | 216.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

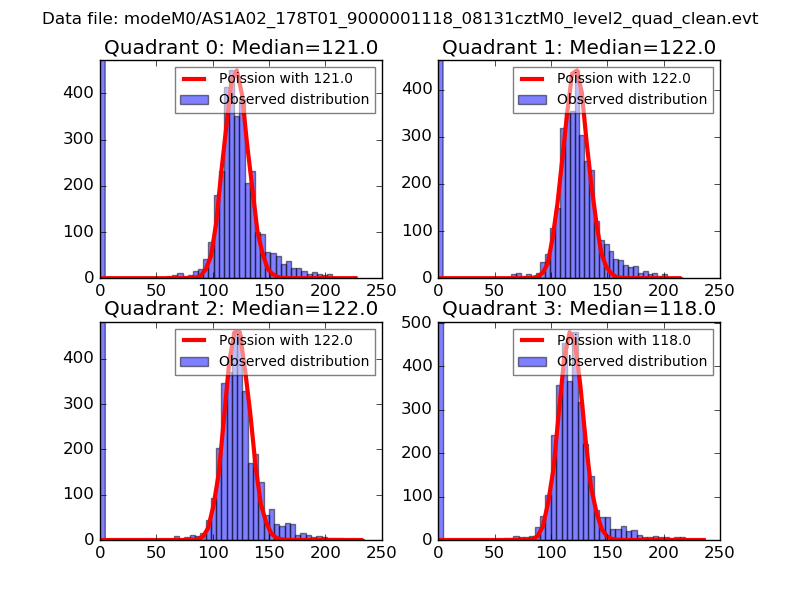

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

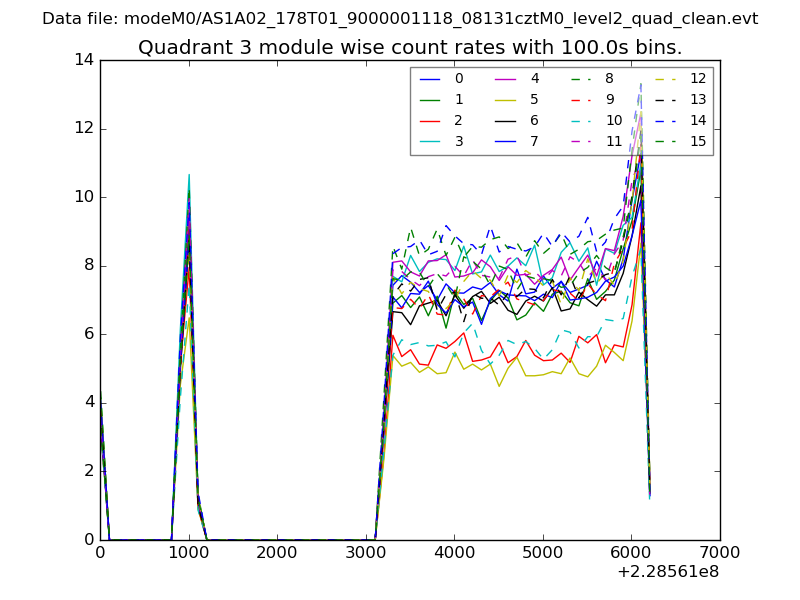

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

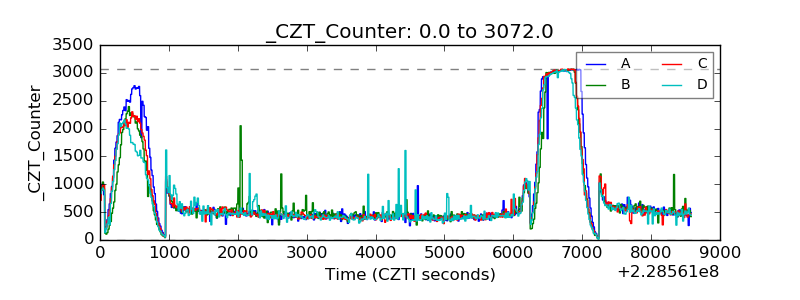

| CZT Counter |  |
| +2.5 Volts monitor |  |

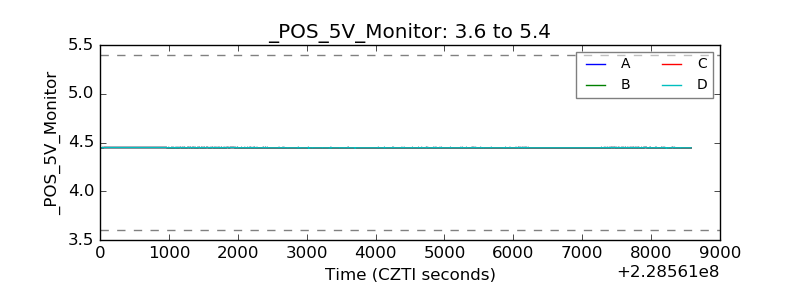

| +5 Volts monitor |  |
| _ROLL_ROT |  |

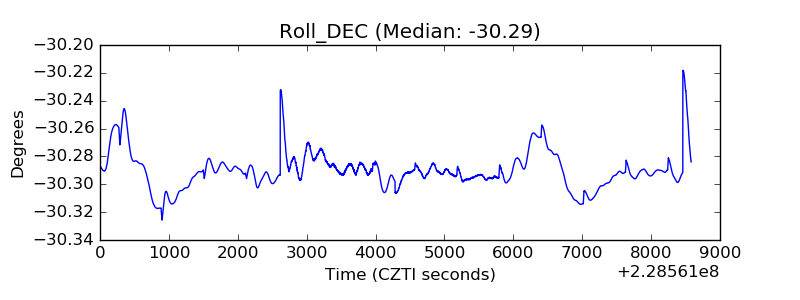

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
