| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_028T01_9000001122_08151cztM0_level2.evt | modeM0/AS1G06_028T01_9000001122_08151cztM0_level2_quad_clean.evt |
| Size (bytes) | 446,135,040 | 87,099,840 |
| Size | 425.5 MB | 83.1 MB |
| Events in quadrant A | 3,152,529 | 544,554 |
| Events in quadrant B | 3,406,876 | 548,650 |
| Events in quadrant C | 3,302,704 | 554,522 |
| Events in quadrant D | 3,200,330 | 529,596 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13644 | 3 |
| B | 0 | 14376 | 2 |
| C | 0 | 14110 | 2 |
| D | 0 | 14003 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6602 | 57 | 0.863375% |
| B | 6602 | 69 | 1.045138% |
| C | 6602 | 58 | 0.878522% |
| D | 6602 | 66 | 0.999697% |

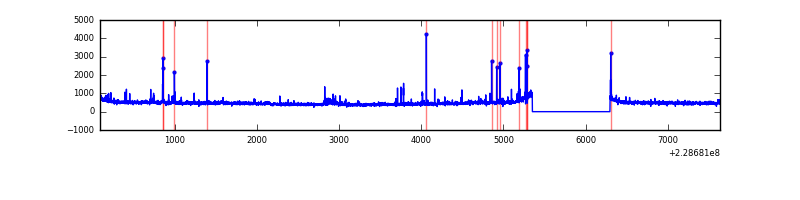

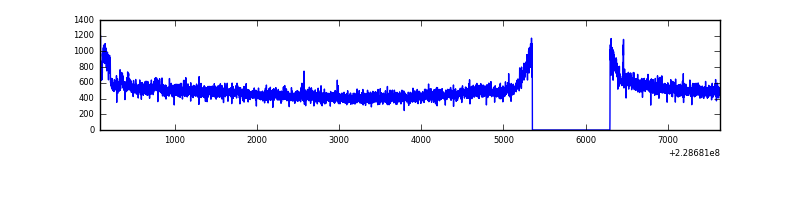

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

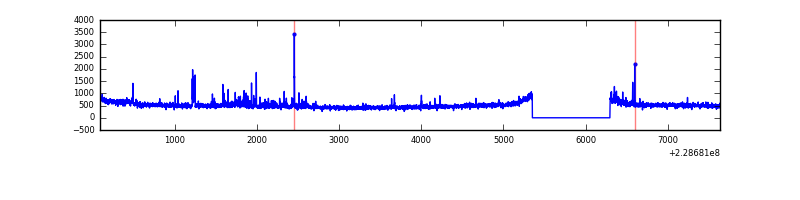

| A | 7547 | 6603 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7547 | 6603 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7547 | 6603 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7547 | 6603 | 13 | 13 | 0.17% | 0.20% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7651 | 40.77 | 817 | 800 | 168.1 |
| A | 12 | 194 | 7304 | 38.7 | 817 | 800 | 168.1 |
| A | 0 | 254 | 6591 | 34.46 | 817 | 800 | 168.1 |
| B | 0 | 219 | 72943 | 464.29 | 819 | 803 | 155.4 |
| B | 4 | 173 | 66584 | 423.37 | 819 | 803 | 155.4 |
| B | 0 | 213 | 24509 | 152.57 | 819 | 803 | 155.4 |
| C | 1 | 16 | 180510 | 969.27 | 799 | 805 | 185.4 |
| C | 13 | 61 | 6014 | 28.1 | 799 | 805 | 185.4 |
| C | 8 | 128 | 4435 | 19.58 | 799 | 805 | 185.4 |
| D | 12 | 233 | 67867 | 340.97 | 798 | 777 | 196.8 |
| D | 1 | 52 | 49373 | 246.98 | 798 | 777 | 196.8 |
| D | 5 | 233 | 33825 | 167.96 | 798 | 777 | 196.8 |

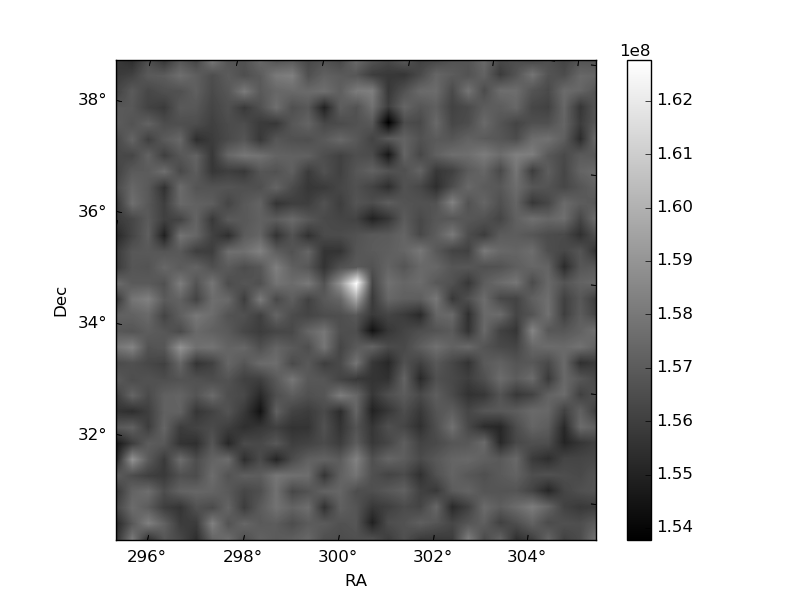

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

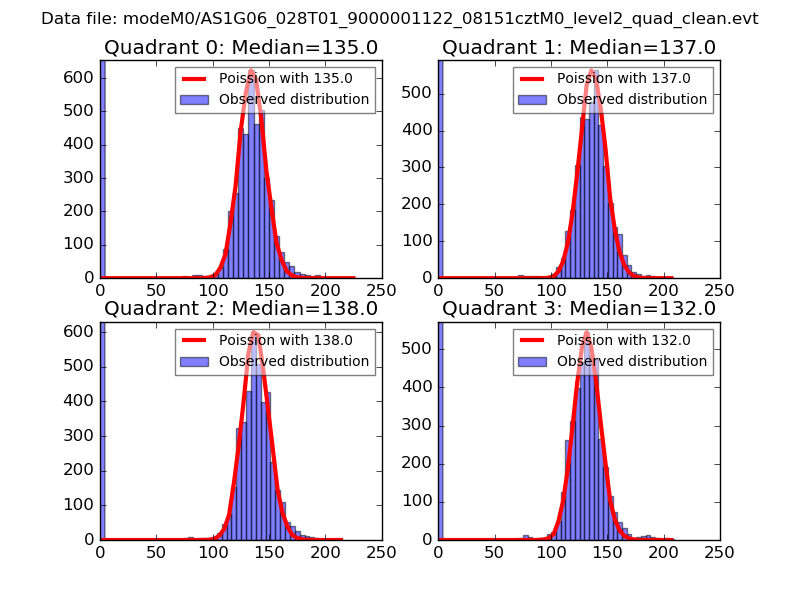

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

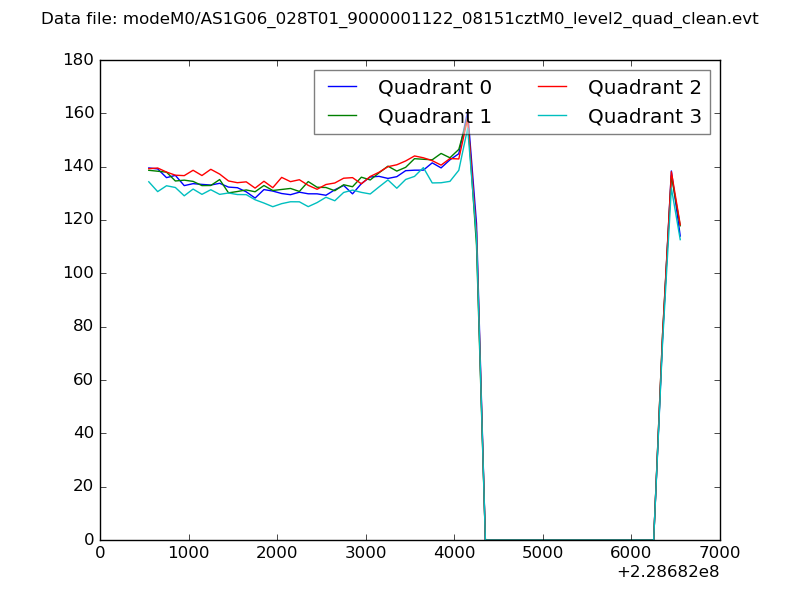

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

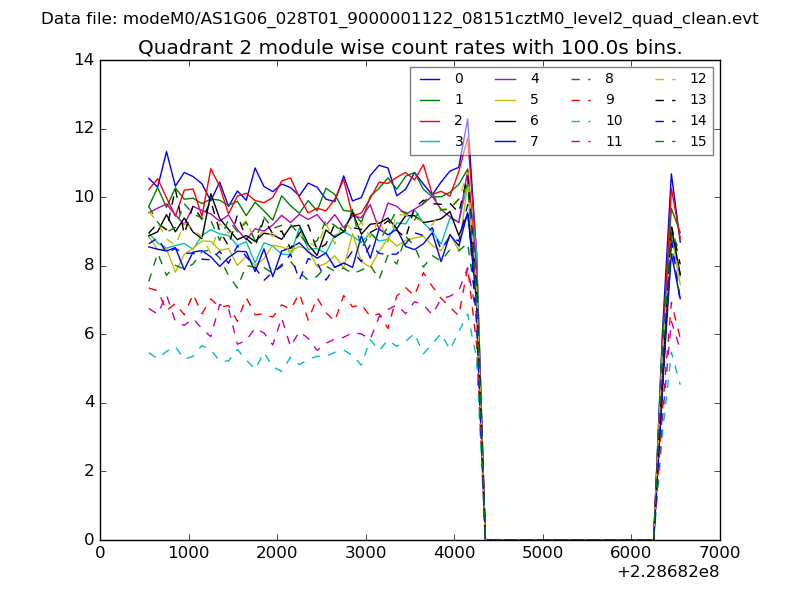

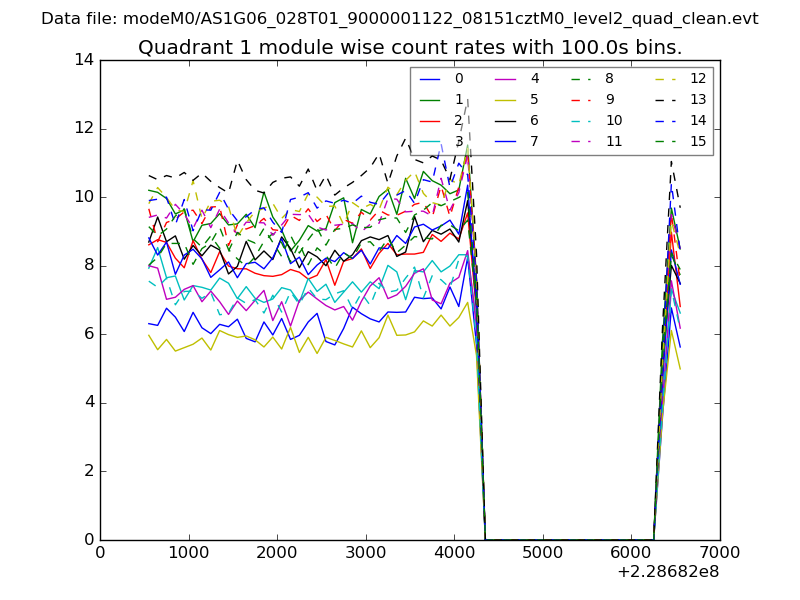

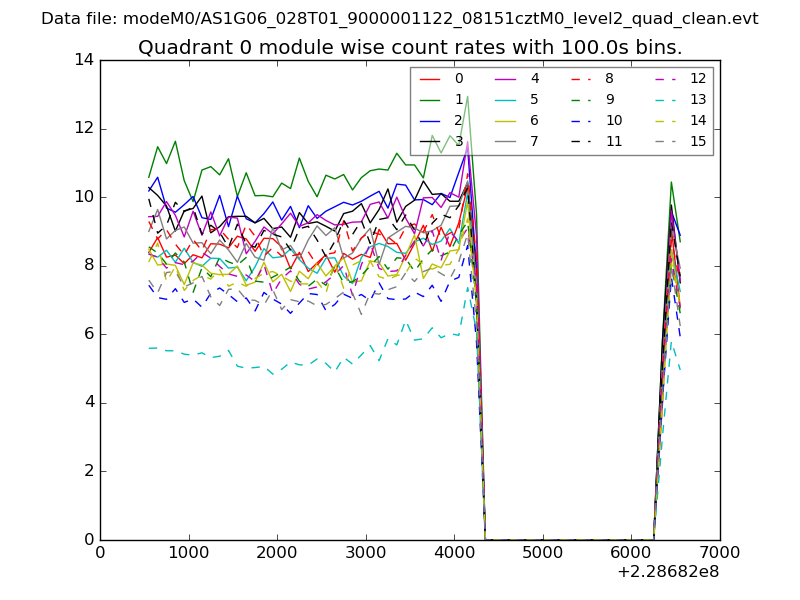

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

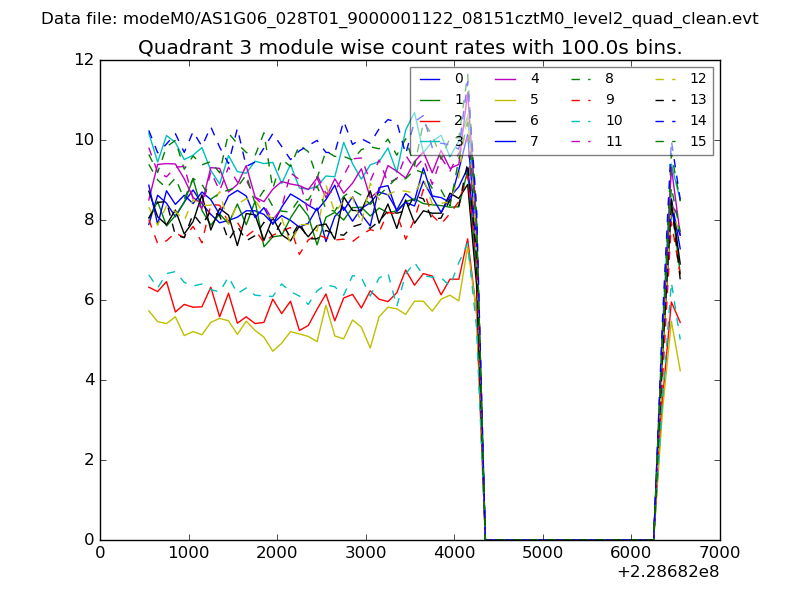

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

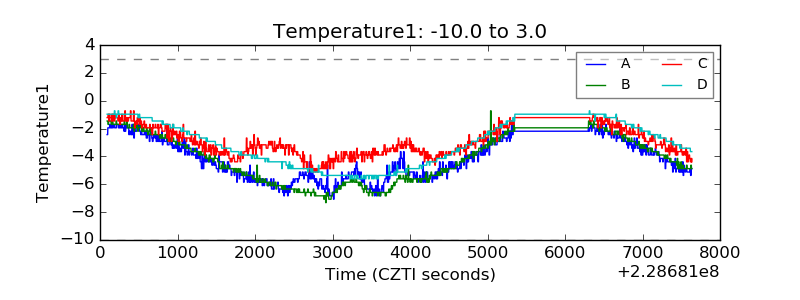

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

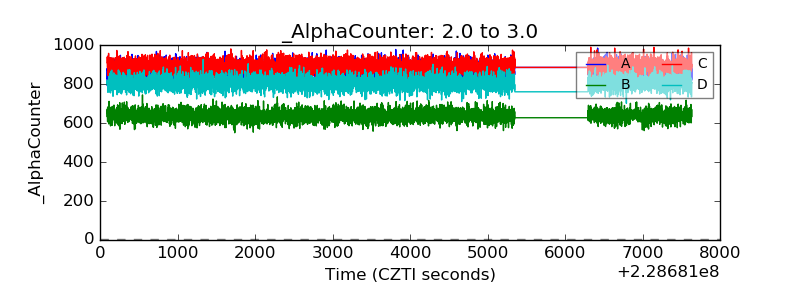

| Alpha Counter |  |

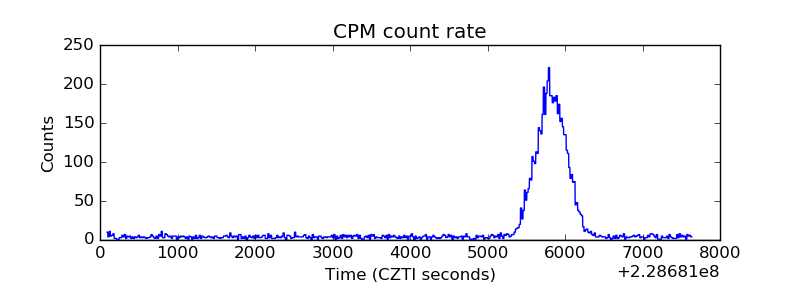

| _CPM_Rate |  |

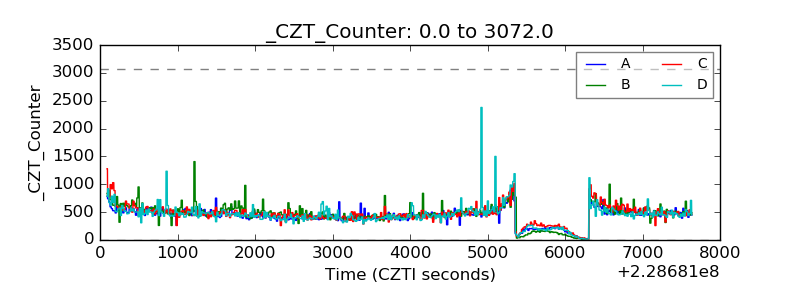

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

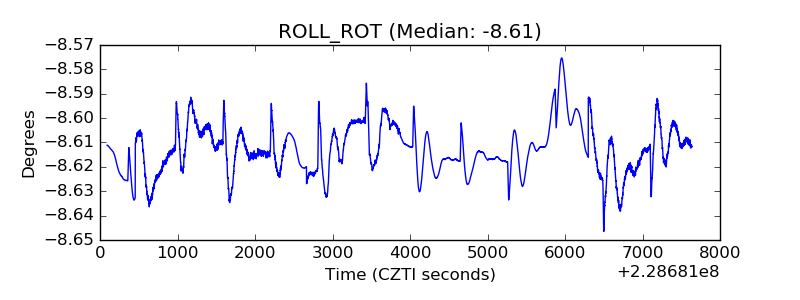

| _ROLL_ROT |  |

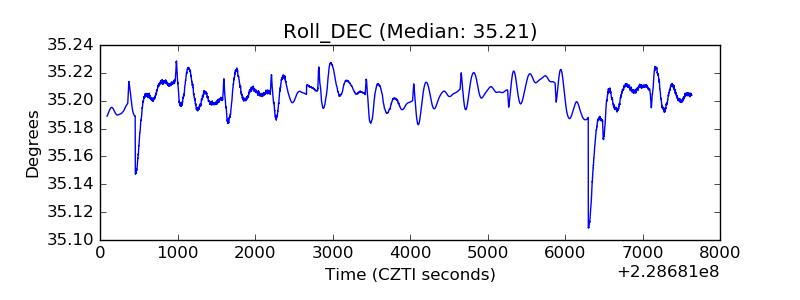

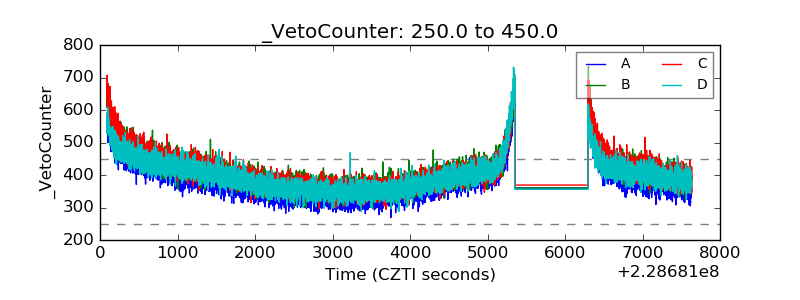

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
