| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_028T01_9000001122_08153cztM0_level2.evt | modeM0/AS1G06_028T01_9000001122_08153cztM0_level2_quad_clean.evt |
| Size (bytes) | 505,546,560 | 85,674,240 |
| Size | 482.1 MB | 81.7 MB |
| Events in quadrant A | 3,228,547 | 538,588 |
| Events in quadrant B | 4,718,911 | 508,476 |
| Events in quadrant C | 3,302,616 | 550,020 |
| Events in quadrant D | 3,598,654 | 523,189 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14162 | 1 |
| B | 0 | 18354 | 1 |
| C | 0 | 14288 | 1 |
| D | 0 | 15483 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6800 | 67 | 0.985294% |
| B | 6800 | 581 | 8.544118% |
| C | 6800 | 53 | 0.779412% |
| D | 6800 | 76 | 1.117647% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6995 | 6801 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6995 | 6801 | 288 | 288 | 4.12% | 4.23% |  |
| C | 6995 | 6801 | 0 | 0 | 0.00% | 0.00% |  |
| D | 6995 | 6801 | 26 | 26 | 0.37% | 0.38% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7961 | 41.38 | 836 | 819 | 172.6 |
| A | 12 | 194 | 7427 | 38.28 | 836 | 819 | 172.6 |
| A | 13 | 254 | 6965 | 35.61 | 836 | 819 | 172.6 |
| B | 4 | 81 | 1406993 | 8981.91 | 817 | 798 | 156.6 |
| B | 0 | 219 | 34359 | 214.37 | 817 | 798 | 156.6 |
| B | 4 | 173 | 26130 | 161.81 | 817 | 798 | 156.6 |
| C | 1 | 16 | 115263 | 604.92 | 817 | 822 | 189.2 |
| C | 13 | 61 | 6393 | 29.45 | 817 | 822 | 189.2 |
| C | 3 | 202 | 2029 | 6.38 | 817 | 822 | 189.2 |
| D | 2 | 152 | 108660 | 536.33 | 814 | 792 | 201.1 |
| D | 12 | 233 | 75521 | 371.56 | 814 | 792 | 201.1 |
| D | 13 | 29 | 69221 | 340.24 | 814 | 792 | 201.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|

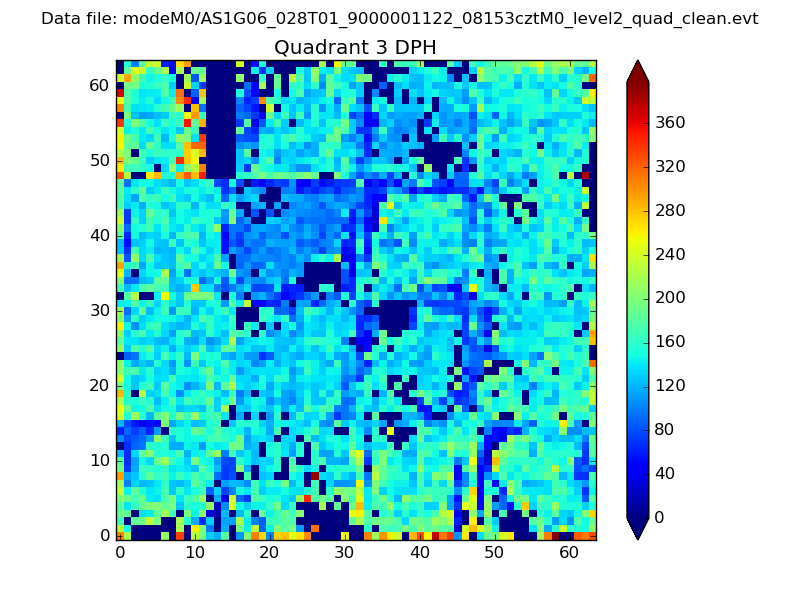

| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

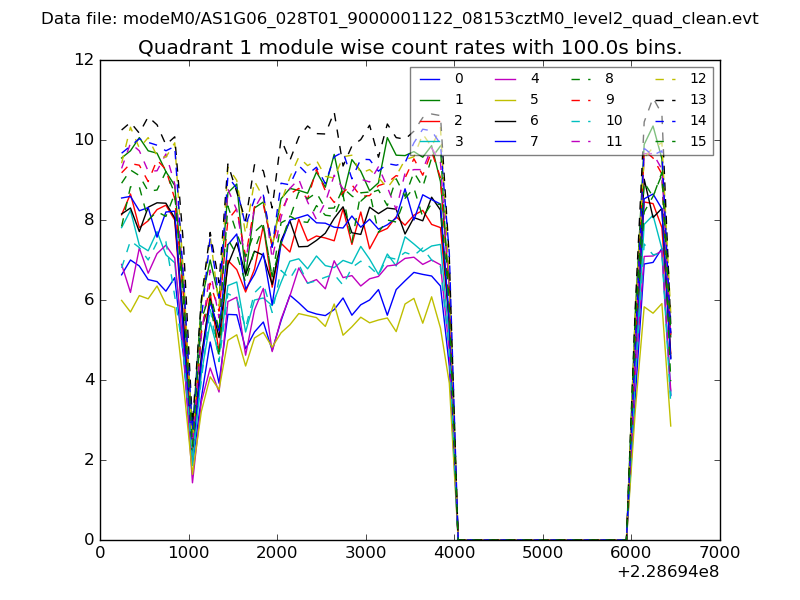

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

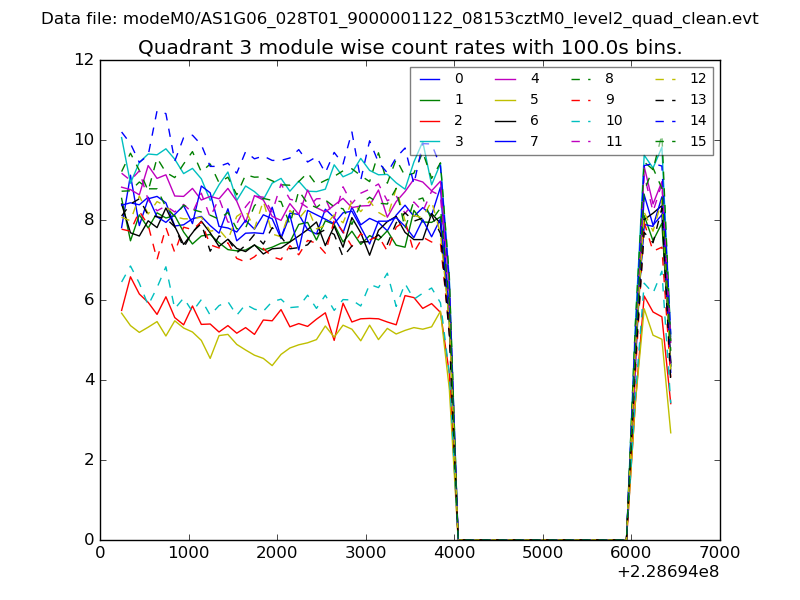

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

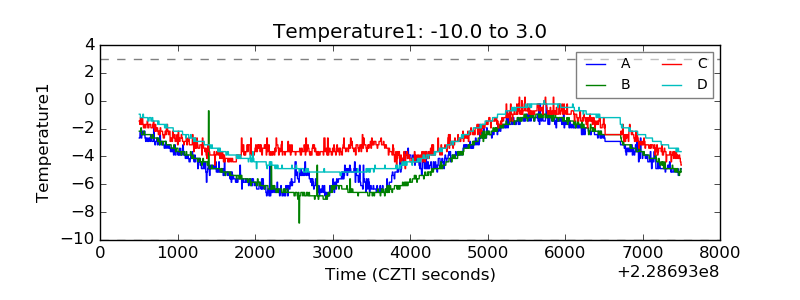

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

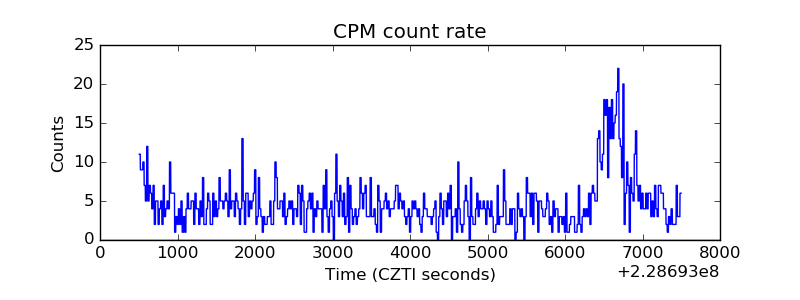

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

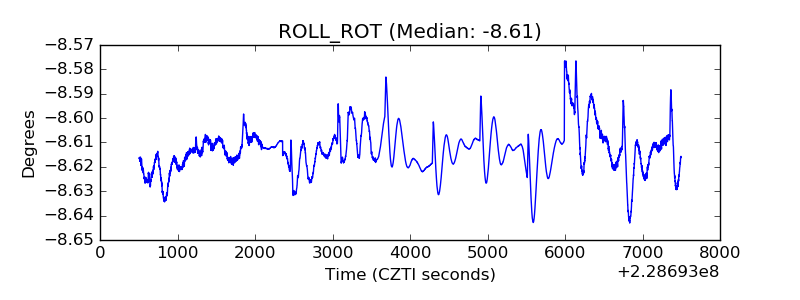

| _ROLL_ROT |  |

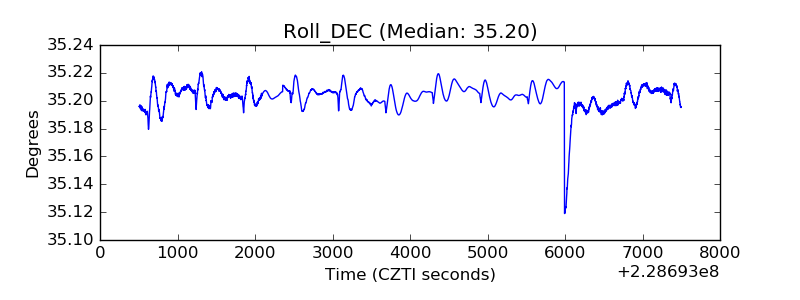

| _Roll_DEC |  |

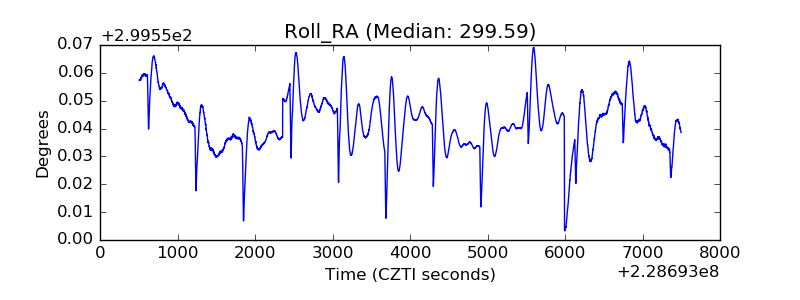

| _Roll_RA |  |
| Veto Counter |  |
