| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_043T01_9000001126_08164cztM0_level2.evt | modeM0/AS1G07_043T01_9000001126_08164cztM0_level2_quad_clean.evt |
| Size (bytes) | 486,800,640 | 68,627,520 |
| Size | 464.2 MB | 65.4 MB |
| Events in quadrant A | 3,235,014 | 403,359 |
| Events in quadrant B | 3,374,864 | 409,443 |
| Events in quadrant C | 4,086,488 | 412,605 |
| Events in quadrant D | 3,600,369 | 394,497 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13718 | 3 |
| B | 0 | 14039 | 2 |
| C | 0 | 16421 | 2 |
| D | 0 | 14875 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6557 | 137 | 2.089370% |
| B | 6557 | 175 | 2.668903% |
| C | 6557 | 199 | 3.034925% |
| D | 6557 | 222 | 3.385695% |

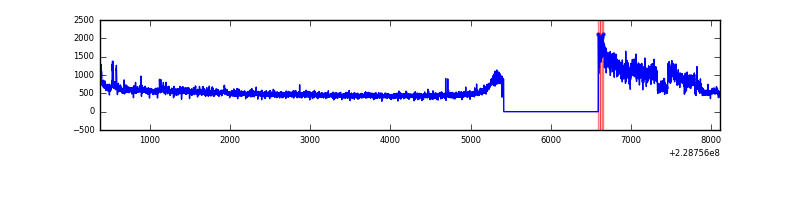

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7737 | 6557 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7737 | 6557 | 12 | 12 | 0.16% | 0.18% |  |
| C | 7737 | 6557 | 5 | 5 | 0.06% | 0.08% |  |
| D | 7737 | 6557 | 80 | 80 | 1.03% | 1.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7801 | 41.16 | 837 | 820 | 169.6 |
| A | 12 | 194 | 7680 | 40.44 | 837 | 820 | 169.6 |
| A | 8 | 15 | 6375 | 32.75 | 837 | 820 | 169.6 |
| B | 10 | 16 | 72209 | 454.01 | 837 | 816 | 157.3 |
| B | 12 | 111 | 15500 | 93.38 | 837 | 816 | 157.3 |
| B | 0 | 219 | 14006 | 83.88 | 837 | 816 | 157.3 |
| C | 1 | 16 | 890613 | 4731.43 | 819 | 823 | 188.1 |
| C | 13 | 61 | 6351 | 29.39 | 819 | 823 | 188.1 |
| C | 11 | 1 | 2292 | 7.81 | 819 | 823 | 188.1 |
| D | 1 | 52 | 209890 | 1049.6 | 819 | 793 | 199.2 |
| D | 7 | 71 | 80490 | 400.05 | 819 | 793 | 199.2 |
| D | 12 | 227 | 65255 | 323.58 | 819 | 793 | 199.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file

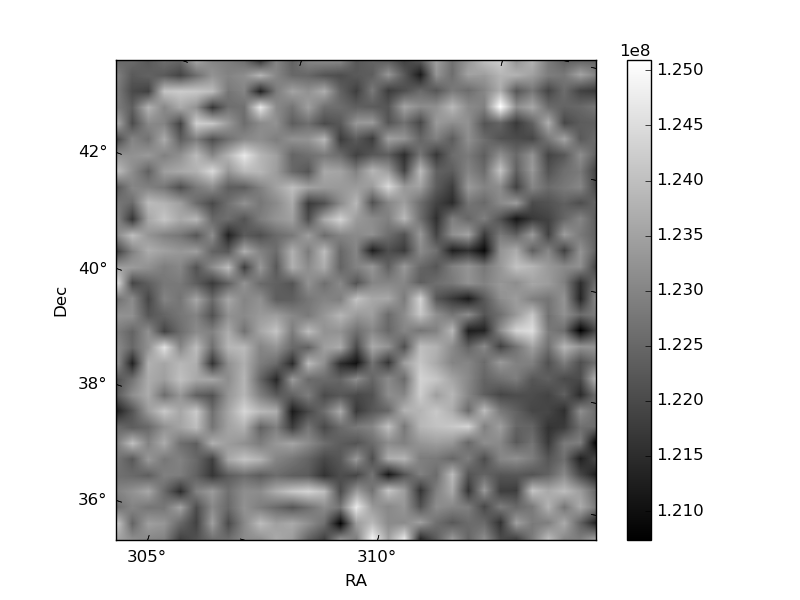

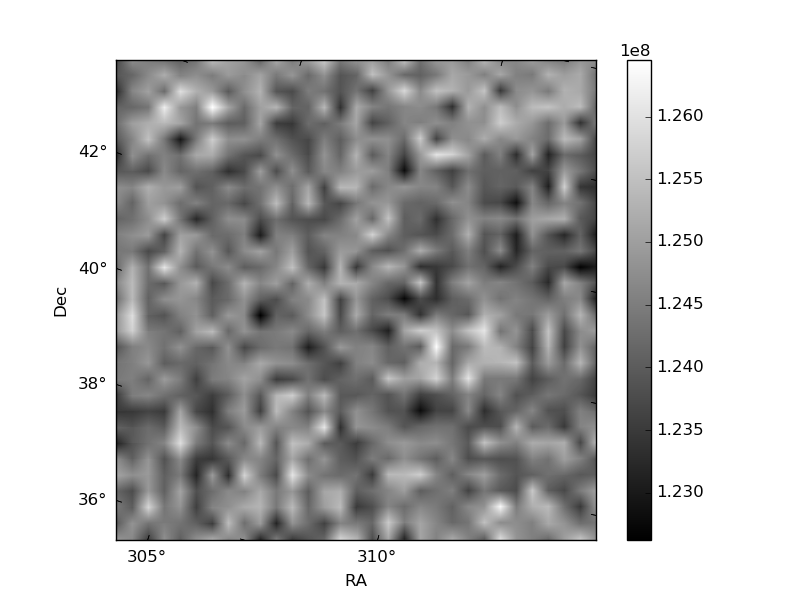

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

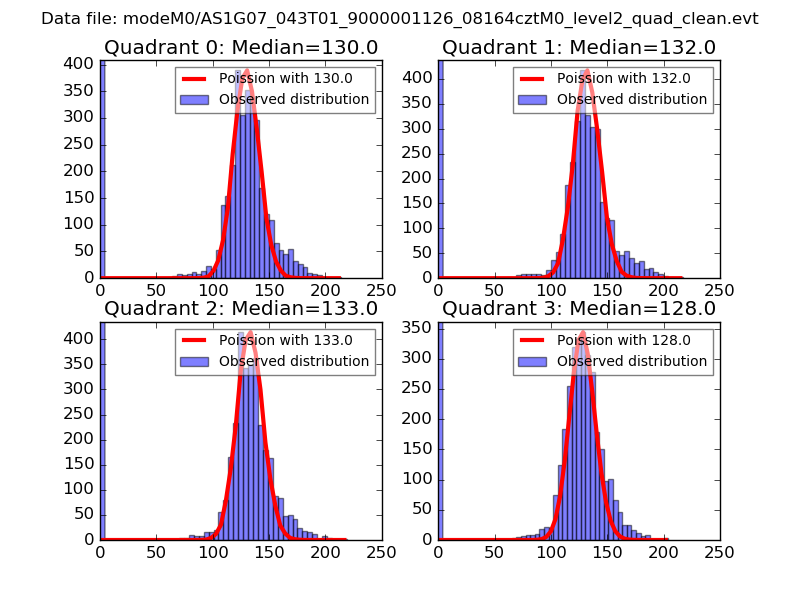

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

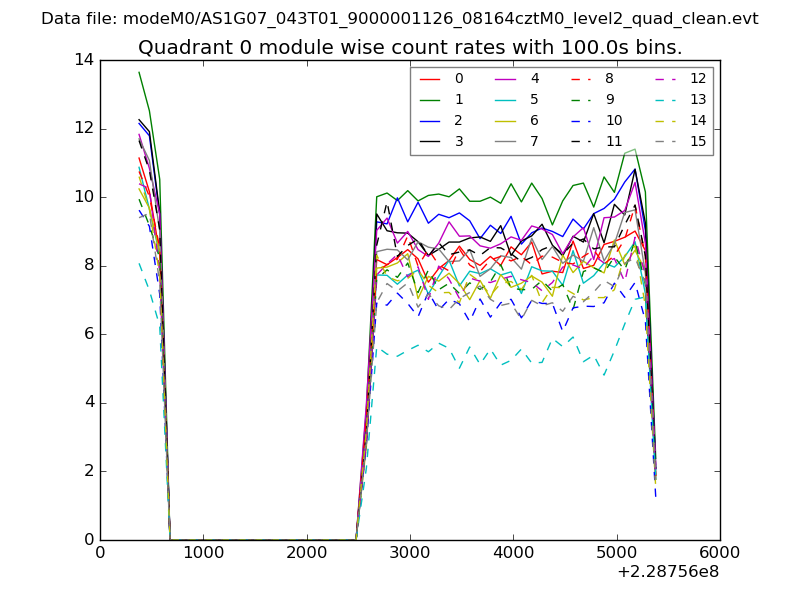

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

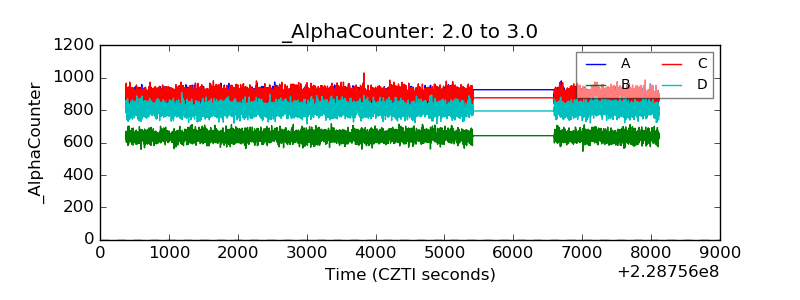

| Alpha Counter |  |
| _CPM_Rate |  |

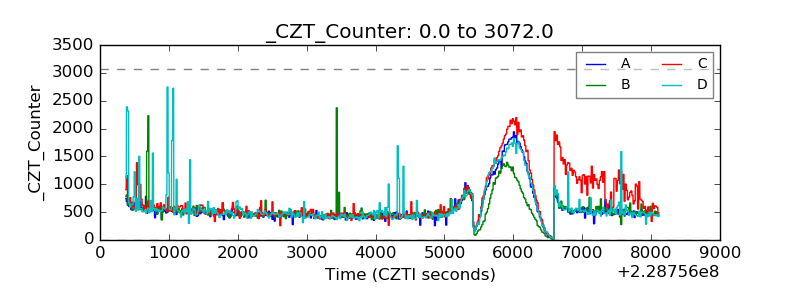

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

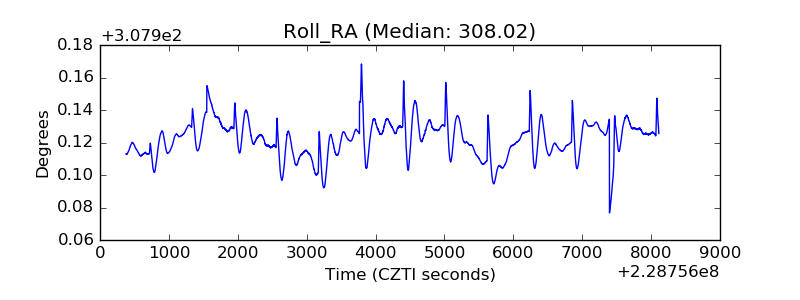

| _Roll_RA |  |
| Veto Counter |  |
