| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_043T01_9000001126_08166cztM0_level2.evt | modeM0/AS1G07_043T01_9000001126_08166cztM0_level2_quad_clean.evt |
| Size (bytes) | 457,611,840 | 83,664,000 |
| Size | 436.4 MB | 79.8 MB |
| Events in quadrant A | 3,246,540 | 508,742 |
| Events in quadrant B | 3,395,089 | 515,745 |
| Events in quadrant C | 3,332,703 | 521,589 |
| Events in quadrant D | 3,409,298 | 500,510 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14456 | 3 |
| B | 0 | 14687 | 2 |
| C | 0 | 14660 | 2 |
| D | 0 | 14891 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6989 | 100 | 1.430820% |
| B | 6989 | 112 | 1.602518% |
| C | 6989 | 108 | 1.545285% |
| D | 6989 | 108 | 1.545285% |

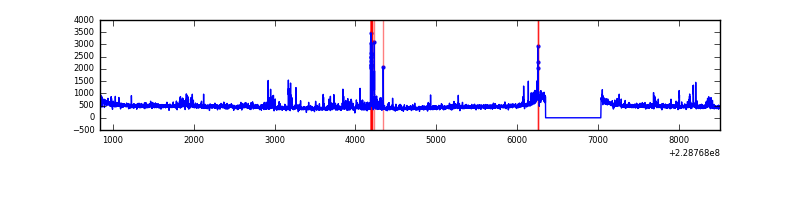

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7674 | 6990 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7674 | 6990 | 1 | 1 | 0.01% | 0.01% |  |
| C | 7674 | 6990 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7674 | 6990 | 18 | 18 | 0.23% | 0.26% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 79 | 12642 | 69.01 | 837 | 818 | 171.3 |
| A | 0 | 226 | 7973 | 41.76 | 837 | 818 | 171.3 |
| A | 12 | 194 | 7665 | 39.96 | 837 | 818 | 171.3 |
| B | 10 | 16 | 37441 | 226.52 | 840 | 819 | 161.7 |
| B | 4 | 81 | 34607 | 208.99 | 840 | 819 | 161.7 |
| B | 0 | 219 | 24354 | 145.58 | 840 | 819 | 161.7 |
| C | 1 | 16 | 124006 | 649.46 | 822 | 826 | 189.7 |
| C | 13 | 61 | 6397 | 29.37 | 822 | 826 | 189.7 |
| C | 3 | 202 | 2061 | 6.51 | 822 | 826 | 189.7 |
| D | 5 | 233 | 139657 | 685.92 | 824 | 798 | 202.4 |
| D | 2 | 14 | 78661 | 384.62 | 824 | 798 | 202.4 |
| D | 7 | 71 | 31851 | 153.39 | 824 | 798 | 202.4 |

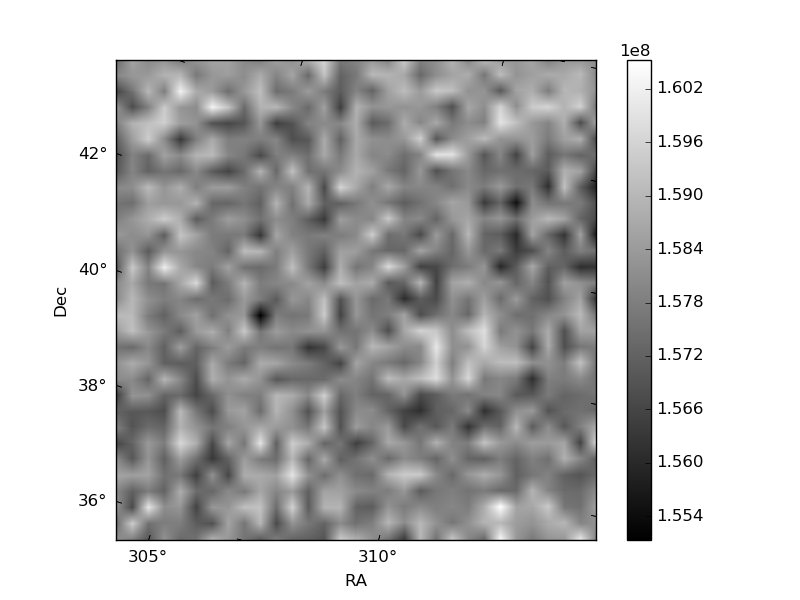

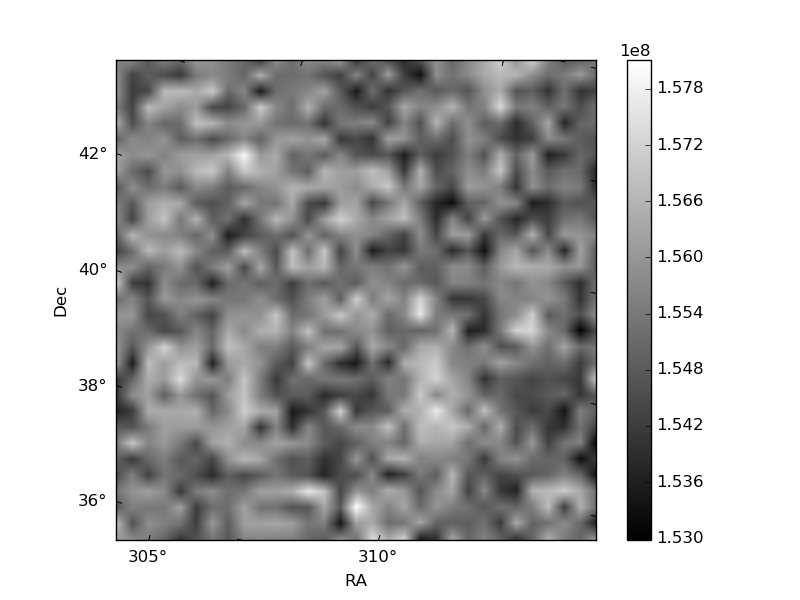

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

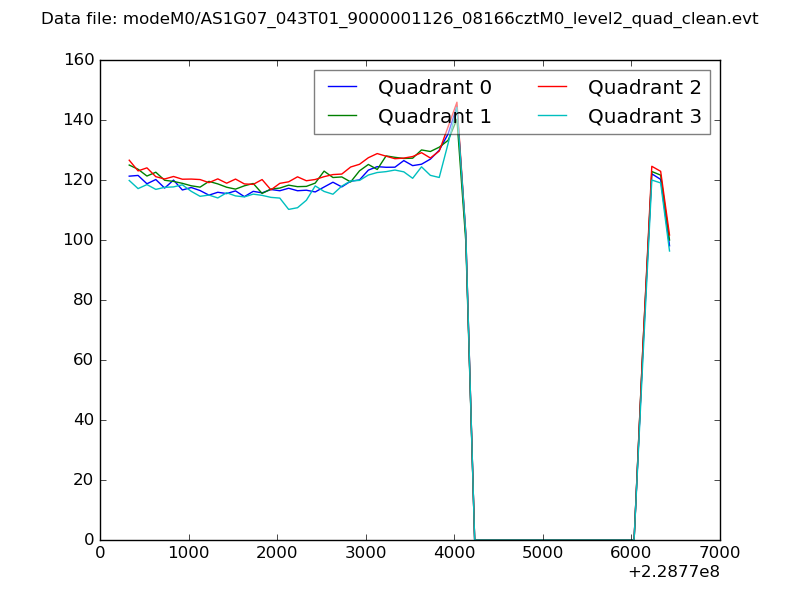

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

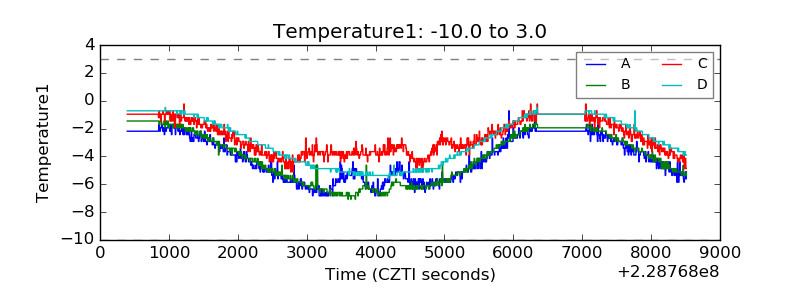

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

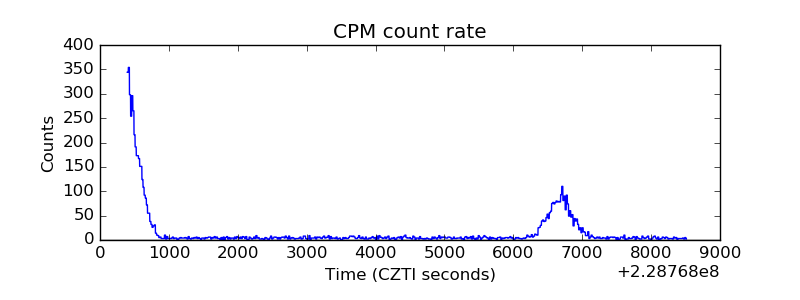

| _CPM_Rate |  |

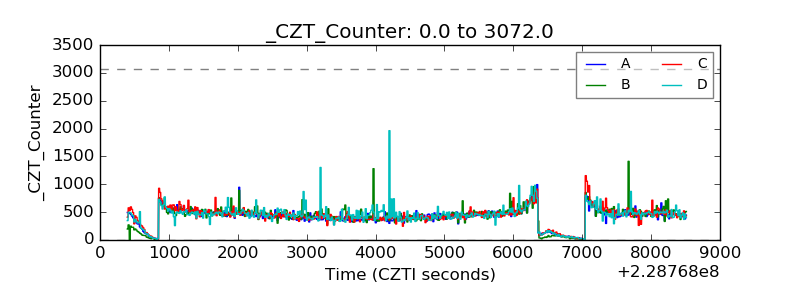

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

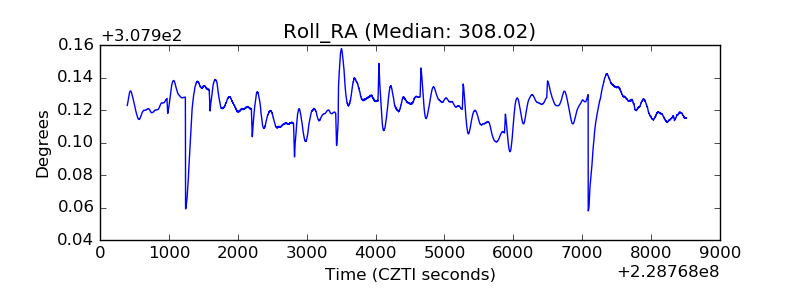

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
