| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_043T01_9000001126_08173cztM0_level2.evt | modeM0/AS1G07_043T01_9000001126_08173cztM0_level2_quad_clean.evt |
| Size (bytes) | 387,362,880 | 85,380,480 |
| Size | 369.4 MB | 81.4 MB |
| Events in quadrant A | 2,821,029 | 538,439 |
| Events in quadrant B | 2,907,709 | 543,561 |
| Events in quadrant C | 2,749,687 | 543,330 |
| Events in quadrant D | 2,823,640 | 520,332 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12763 | 1 |
| B | 0 | 12874 | 0 |
| C | 0 | 12741 | 0 |
| D | 0 | 13002 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6311 | 29 | 0.459515% |
| B | 6311 | 40 | 0.633814% |
| C | 6311 | 21 | 0.332752% |
| D | 6311 | 44 | 0.697195% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7316 | 6312 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7316 | 6312 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7316 | 6312 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7316 | 6312 | 18 | 18 | 0.25% | 0.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 6961 | 41.63 | 729 | 713 | 150.1 |
| A | 12 | 194 | 6627 | 39.4 | 729 | 713 | 150.1 |
| A | 6 | 16 | 5358 | 30.95 | 729 | 713 | 150.1 |
| B | 0 | 214 | 27617 | 191.39 | 729 | 713 | 140.6 |
| B | 10 | 16 | 20844 | 143.21 | 729 | 713 | 140.6 |
| B | 12 | 111 | 14548 | 98.42 | 729 | 713 | 140.6 |
| C | 13 | 61 | 5425 | 28.83 | 704 | 707 | 163.6 |
| C | 14 | 67 | 2006 | 7.94 | 704 | 707 | 163.6 |
| C | 3 | 202 | 1792 | 6.63 | 704 | 707 | 163.6 |
| D | 13 | 29 | 64324 | 369.98 | 706 | 686 | 172.0 |
| D | 6 | 225 | 25033 | 141.55 | 706 | 686 | 172.0 |
| D | 2 | 234 | 21373 | 120.27 | 706 | 686 | 172.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

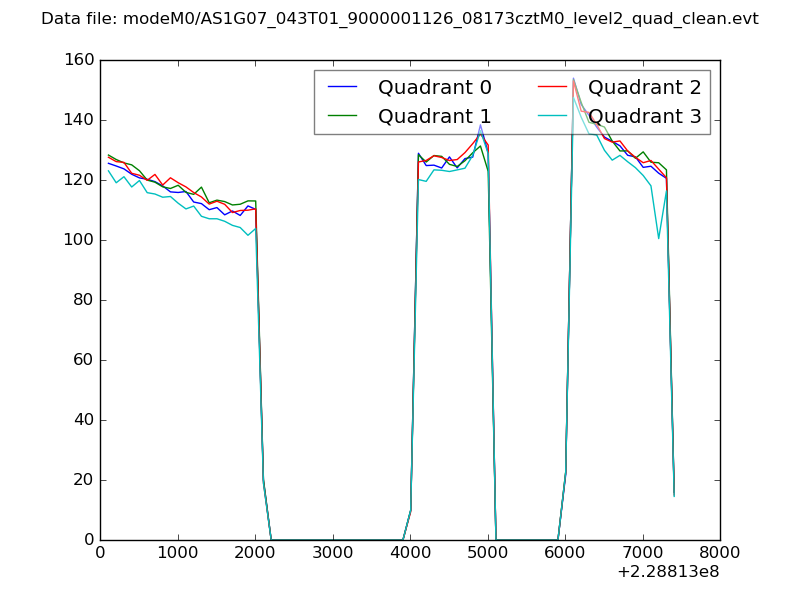

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

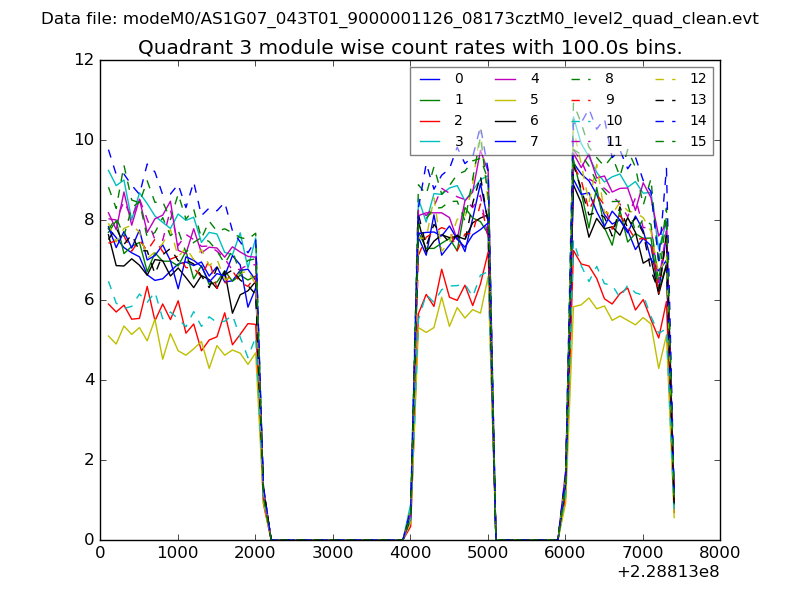

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

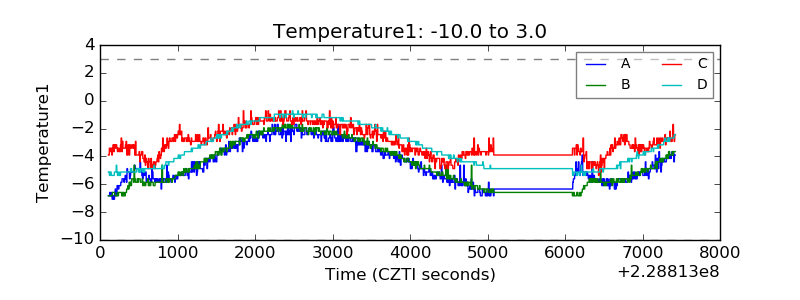

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

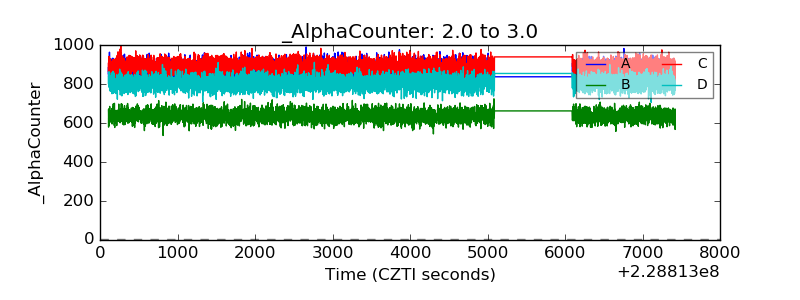

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

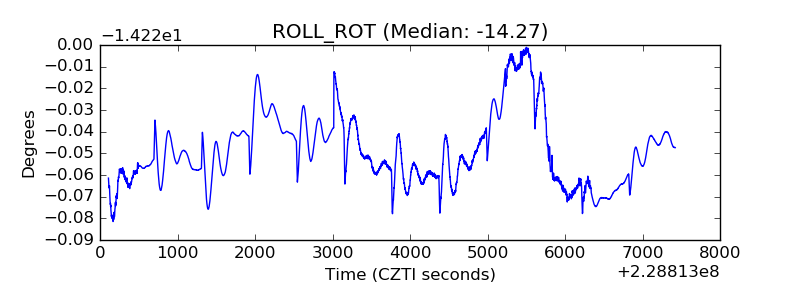

| _ROLL_ROT |  |
| _Roll_DEC |  |

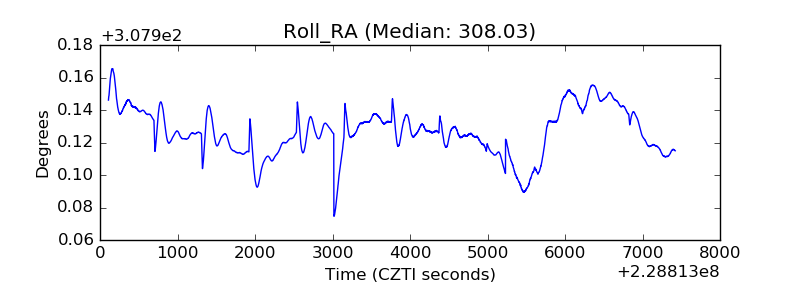

| _Roll_RA |  |
| Veto Counter |  |
