| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_043T01_9000001126_08177cztM0_level2.evt | modeM0/AS1G07_043T01_9000001126_08177cztM0_level2_quad_clean.evt |
| Size (bytes) | 457,352,640 | 83,678,400 |
| Size | 436.2 MB | 79.8 MB |
| Events in quadrant A | 3,165,896 | 525,022 |
| Events in quadrant B | 3,561,553 | 530,412 |
| Events in quadrant C | 3,059,655 | 532,975 |
| Events in quadrant D | 3,635,439 | 505,435 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13247 | 3 |
| B | 0 | 14445 | 2 |
| C | 0 | 13018 | 2 |
| D | 0 | 14836 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6307 | 90 | 1.426986% |
| B | 6307 | 112 | 1.775805% |
| C | 6307 | 54 | 0.856192% |
| D | 6307 | 148 | 2.346599% |

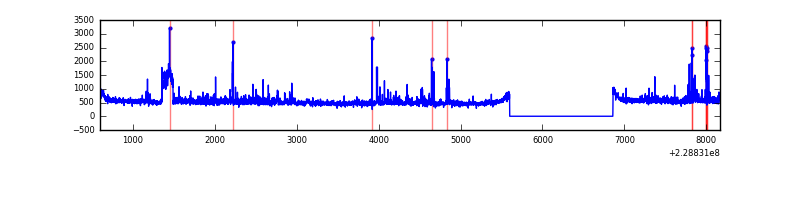

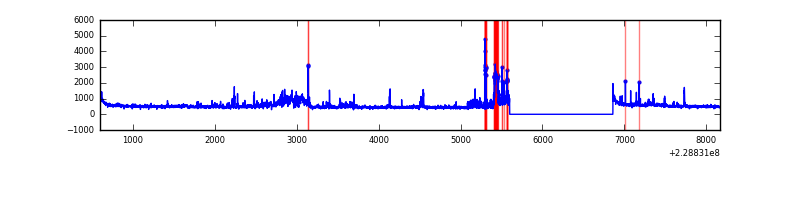

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7567 | 6307 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7567 | 6308 | 12 | 12 | 0.16% | 0.19% |  |
| C | 7567 | 6308 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7567 | 6308 | 59 | 59 | 0.78% | 0.94% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 30128 | 179.92 | 811 | 794 | 163.0 |
| A | 15 | 79 | 8575 | 47.73 | 811 | 794 | 163.0 |
| A | 0 | 226 | 8070 | 44.63 | 811 | 794 | 163.0 |
| B | 0 | 214 | 131388 | 860.95 | 804 | 785 | 151.7 |
| B | 5 | 255 | 119344 | 781.56 | 804 | 785 | 151.7 |
| B | 0 | 213 | 96559 | 631.35 | 804 | 785 | 151.7 |
| C | 13 | 61 | 6089 | 29.61 | 782 | 788 | 179.0 |
| C | 12 | 4 | 5260 | 24.98 | 782 | 788 | 179.0 |
| C | 9 | 68 | 3424 | 14.73 | 782 | 788 | 179.0 |
| D | 13 | 122 | 187356 | 978.15 | 783 | 760 | 190.8 |
| D | 2 | 14 | 165305 | 862.56 | 783 | 760 | 190.8 |
| D | 1 | 52 | 116378 | 606.08 | 783 | 760 | 190.8 |

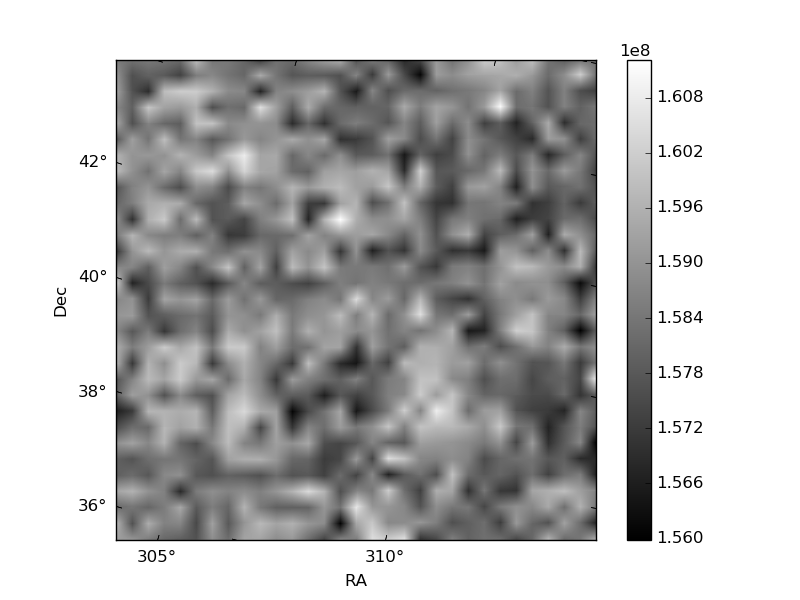

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

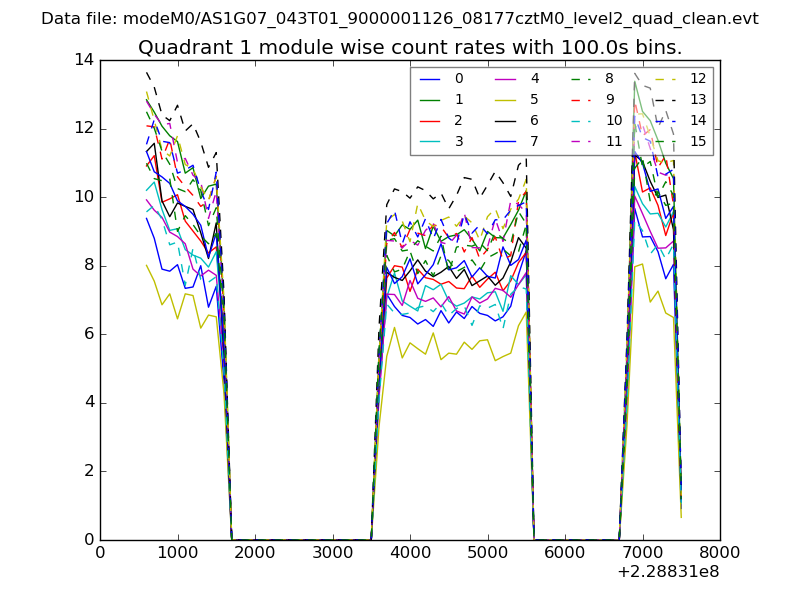

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

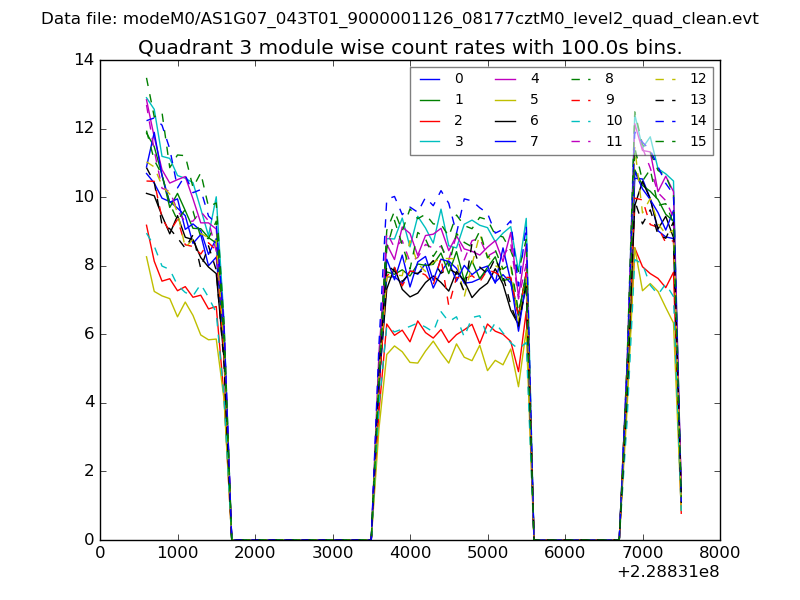

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

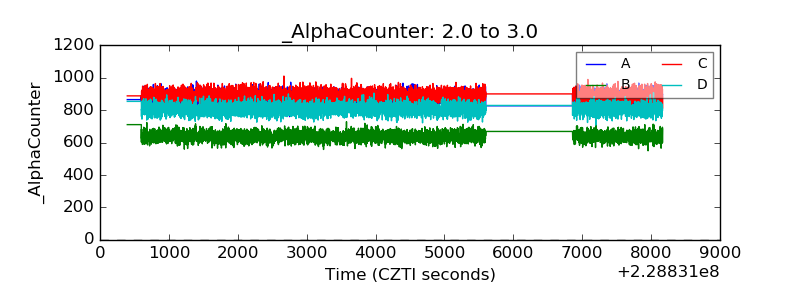

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

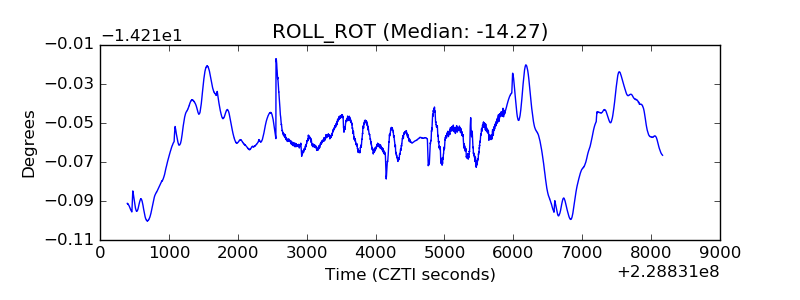

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

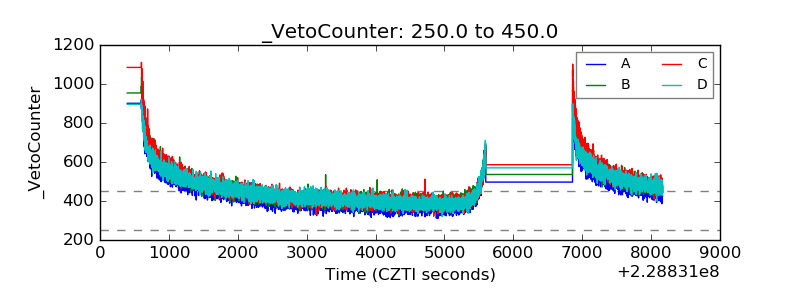

| Veto Counter |  |
