| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_106T01_9000001130_08193cztM0_level2.evt | modeM0/AS1A03_106T01_9000001130_08193cztM0_level2_quad_clean.evt |
| Size (bytes) | 384,572,160 | 97,888,320 |
| Size | 366.8 MB | 93.4 MB |
| Events in quadrant A | 2,743,432 | 648,593 |
| Events in quadrant B | 2,891,220 | 654,038 |
| Events in quadrant C | 2,608,331 | 633,033 |
| Events in quadrant D | 2,998,434 | 613,096 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12209 | 2 |
| B | 0 | 12563 | 1 |
| C | 0 | 12145 | 1 |
| D | 0 | 13103 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5949 | 73 | 1.227097% |
| B | 5949 | 80 | 1.344764% |
| C | 5949 | 16 | 0.268953% |
| D | 5949 | 92 | 1.546478% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7169 | 5950 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7169 | 5950 | 15 | 15 | 0.21% | 0.25% |  |
| C | 7169 | 5950 | 0 | 0 | 0.00% | 0.00% |  |

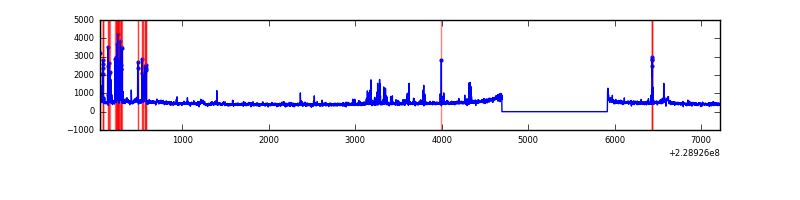

| D | 7169 | 5950 | 48 | 48 | 0.67% | 0.81% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 14 | 17050 | 113.45 | 707 | 693 | 144.2 |
| A | 0 | 226 | 6773 | 42.17 | 707 | 693 | 144.2 |
| A | 12 | 194 | 6417 | 39.7 | 707 | 693 | 144.2 |
| B | 4 | 81 | 43307 | 317.73 | 703 | 688 | 134.1 |
| B | 0 | 230 | 34540 | 252.37 | 703 | 688 | 134.1 |
| B | 0 | 219 | 27223 | 197.82 | 703 | 688 | 134.1 |
| C | 13 | 61 | 5251 | 29.98 | 668 | 670 | 152.8 |
| C | 3 | 202 | 1712 | 6.82 | 668 | 670 | 152.8 |
| C | 3 | 203 | 1494 | 5.39 | 668 | 670 | 152.8 |
| D | 12 | 233 | 169182 | 1026.5 | 672 | 651 | 164.2 |
| D | 1 | 52 | 76307 | 460.81 | 672 | 651 | 164.2 |
| D | 1 | 7 | 73238 | 442.12 | 672 | 651 | 164.2 |

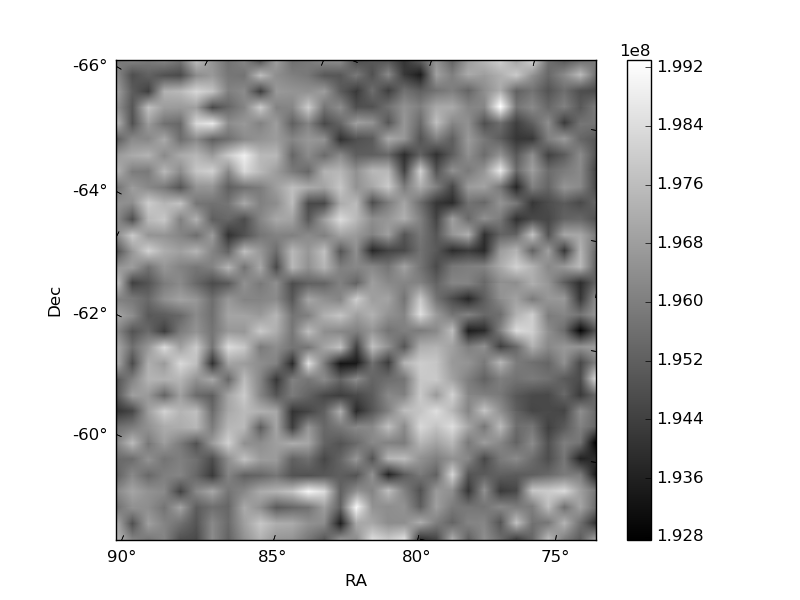

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

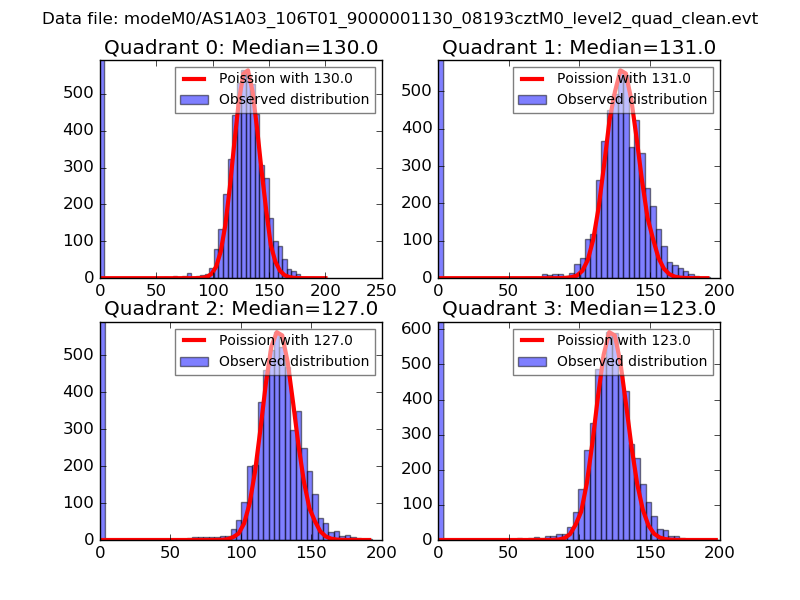

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

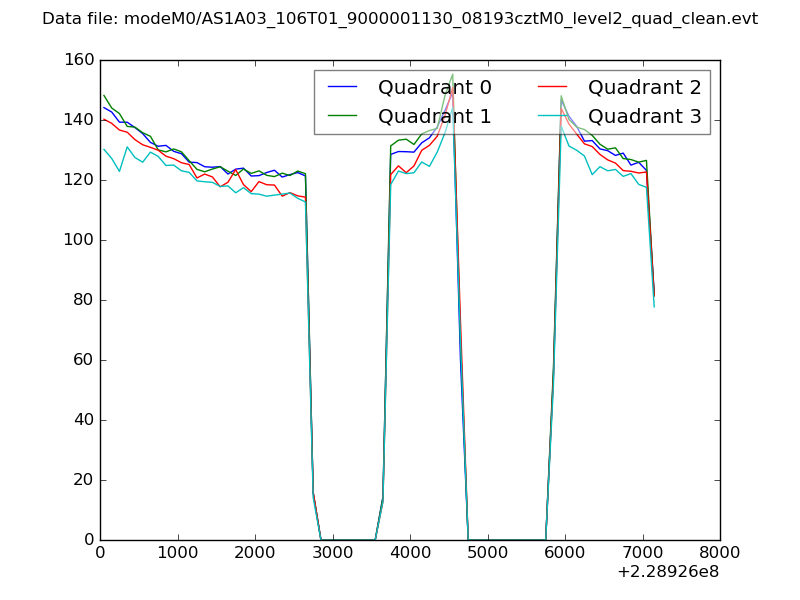

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

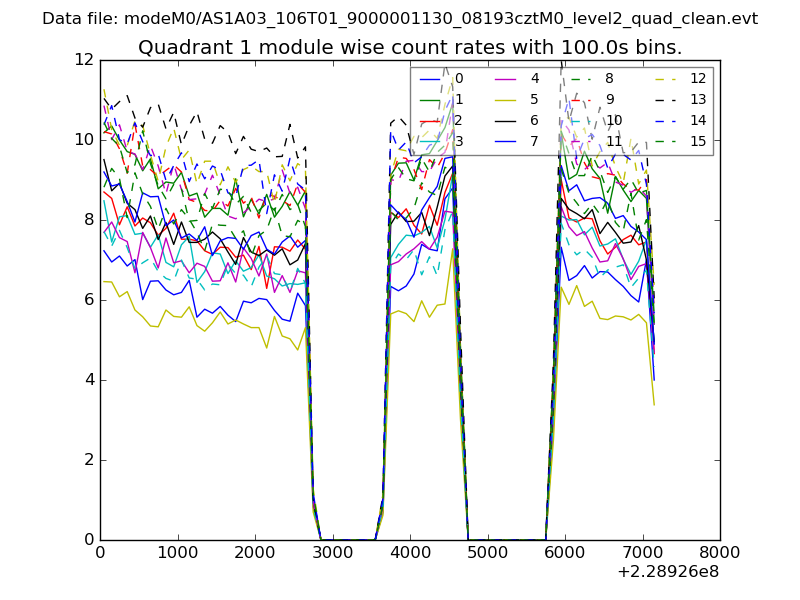

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

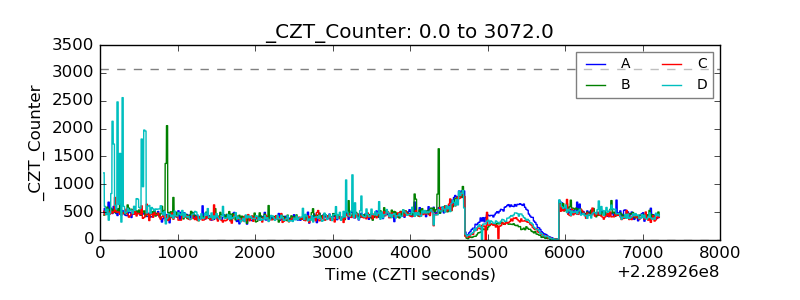

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

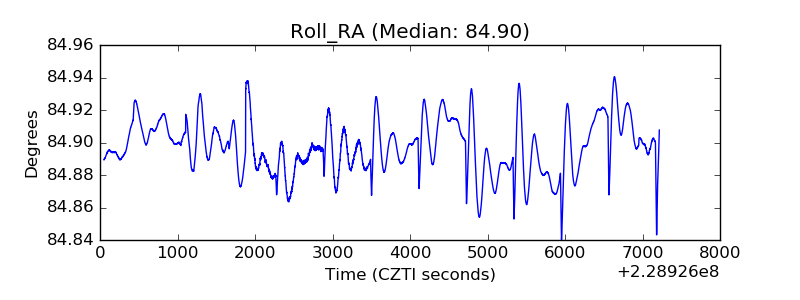

| _Roll_RA |  |

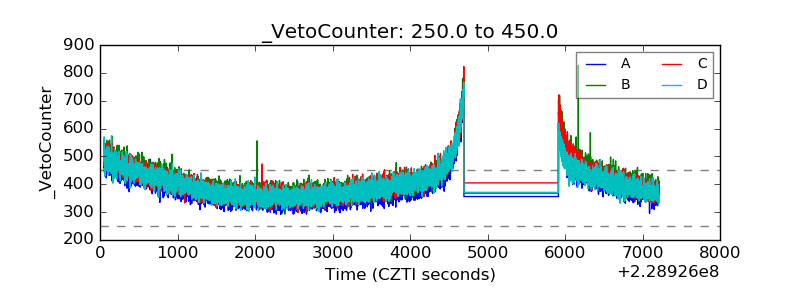

| Veto Counter |  |
