| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_106T01_9000001130_08196cztM0_level2.evt | modeM0/AS1A03_106T01_9000001130_08196cztM0_level2_quad_clean.evt |
| Size (bytes) | 482,158,080 | 119,194,560 |
| Size | 459.8 MB | 113.7 MB |
| Events in quadrant A | 3,335,830 | 782,274 |
| Events in quadrant B | 3,529,850 | 793,640 |
| Events in quadrant C | 3,219,199 | 774,157 |
| Events in quadrant D | 4,010,059 | 740,819 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15308 | 3 |
| B | 0 | 15648 | 2 |
| C | 0 | 15233 | 2 |
| D | 0 | 17477 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7451 | 75 | 1.006576% |
| B | 7451 | 80 | 1.073681% |
| C | 7451 | 23 | 0.308683% |
| D | 7451 | 230 | 3.086834% |

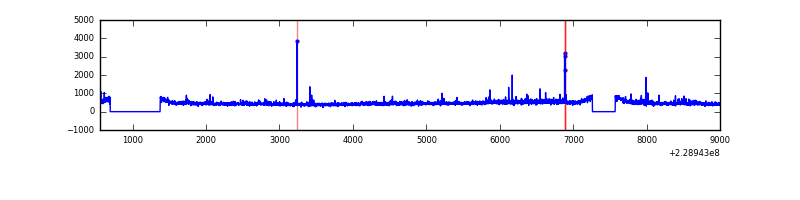

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8441 | 7453 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8441 | 7453 | 4 | 4 | 0.05% | 0.05% |  |
| C | 8441 | 7453 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8441 | 7453 | 149 | 149 | 1.77% | 2.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 14542 | 76.84 | 859 | 838 | 178.3 |
| A | 13 | 14 | 11059 | 57.31 | 859 | 838 | 178.3 |
| A | 0 | 226 | 8085 | 40.64 | 859 | 838 | 178.3 |
| B | 0 | 214 | 94492 | 568.25 | 861 | 839 | 164.8 |
| B | 4 | 81 | 40357 | 239.78 | 861 | 839 | 164.8 |
| B | 0 | 219 | 27733 | 163.18 | 861 | 839 | 164.8 |
| C | 13 | 61 | 6348 | 28.94 | 823 | 826 | 190.8 |
| C | 8 | 128 | 4420 | 18.84 | 823 | 826 | 190.8 |
| C | 8 | 112 | 2482 | 8.68 | 823 | 826 | 190.8 |
| D | 1 | 52 | 551983 | 2748.77 | 820 | 791 | 200.5 |
| D | 12 | 233 | 138085 | 684.68 | 820 | 791 | 200.5 |
| D | 13 | 105 | 106861 | 528.97 | 820 | 791 | 200.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

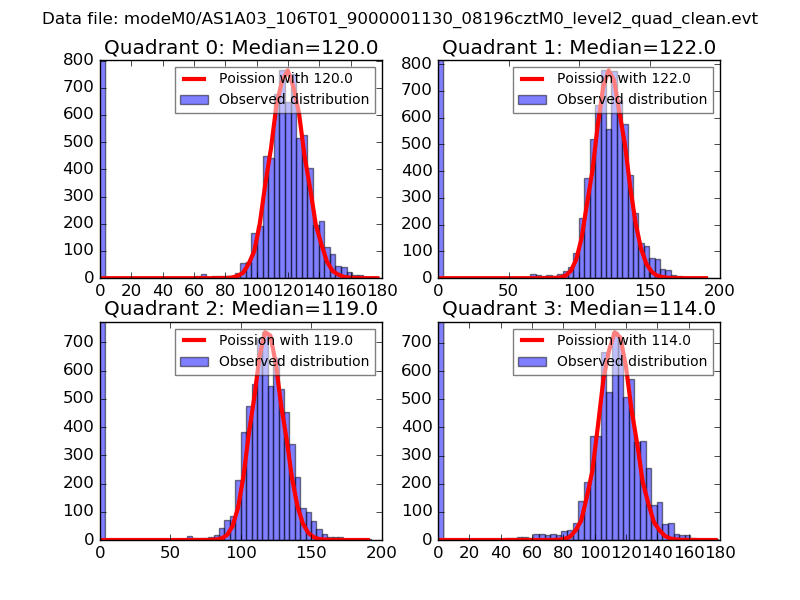

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

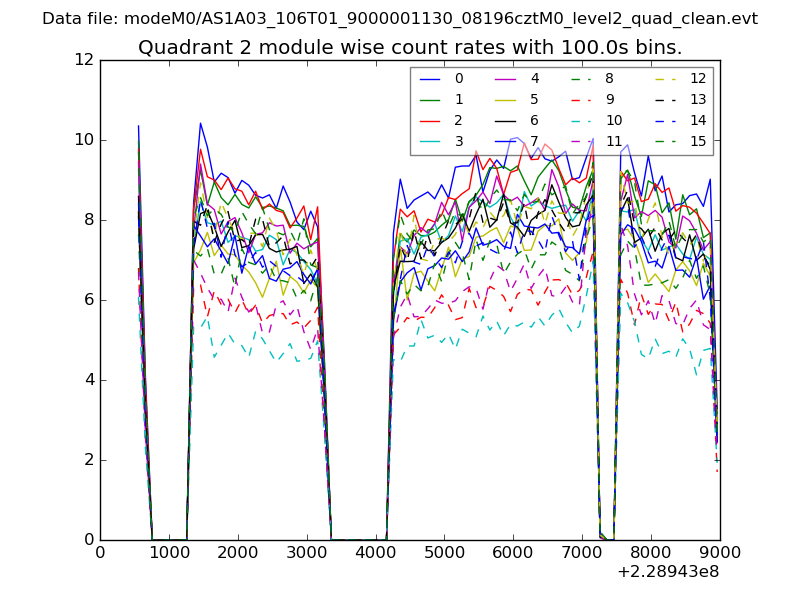

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

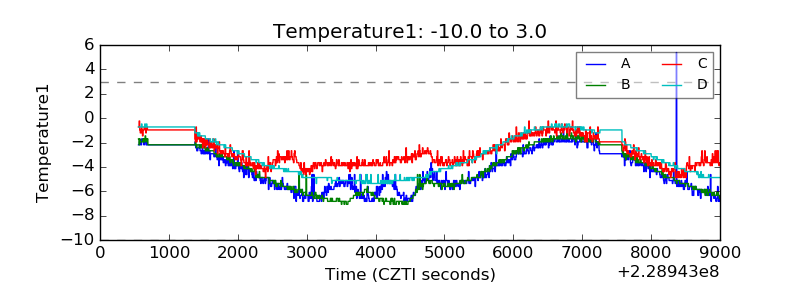

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

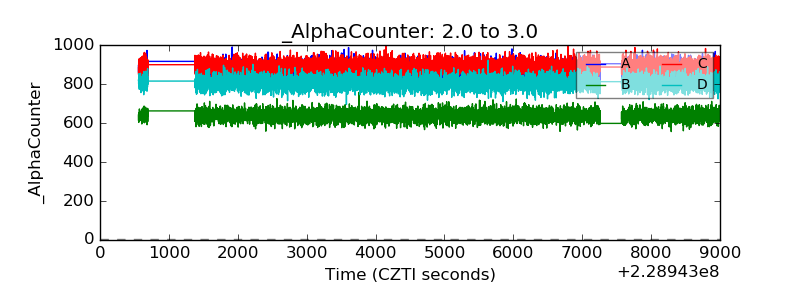

| Alpha Counter |  |

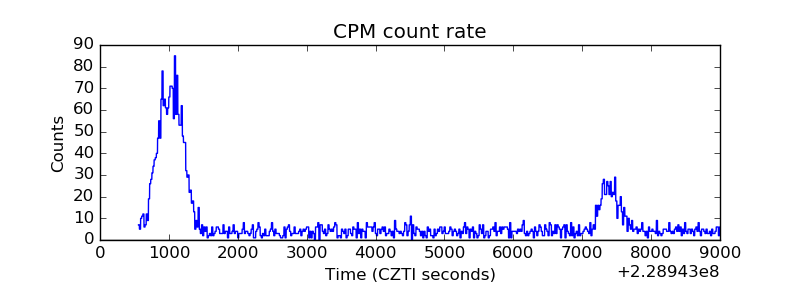

| _CPM_Rate |  |

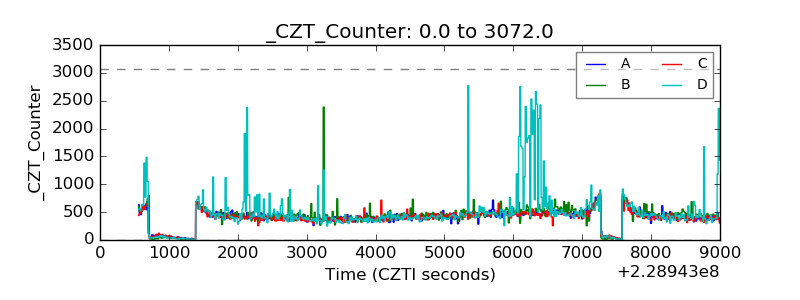

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

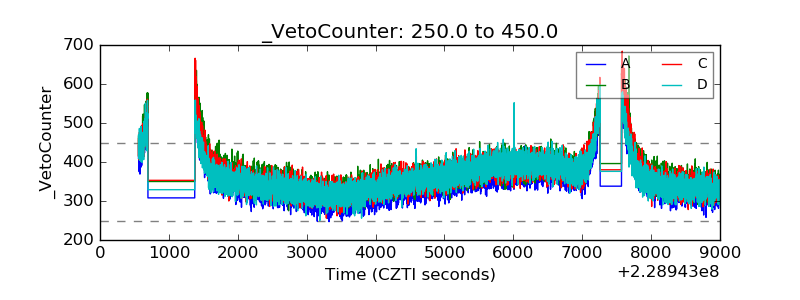

| Veto Counter |  |
