| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_103T01_9000001132_08207cztM0_level2.evt | modeM0/AS1A03_103T01_9000001132_08207cztM0_level2_quad_clean.evt |
| Size (bytes) | 396,616,320 | 118,503,360 |
| Size | 378.2 MB | 113.0 MB |
| Events in quadrant A | 2,804,698 | 803,679 |
| Events in quadrant B | 3,099,826 | 813,655 |
| Events in quadrant C | 2,691,381 | 789,088 |
| Events in quadrant D | 3,001,253 | 757,712 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12471 | 2 |
| B | 0 | 13270 | 1 |
| C | 0 | 12387 | 1 |
| D | 0 | 13181 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6087 | 77 | 1.264991% |
| B | 6087 | 98 | 1.609989% |
| C | 6087 | 42 | 0.689995% |
| D | 6087 | 68 | 1.117135% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7332 | 6088 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7332 | 6088 | 22 | 22 | 0.30% | 0.36% |  |
| C | 7332 | 6088 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7332 | 6088 | 16 | 16 | 0.22% | 0.26% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7016 | 42.74 | 726 | 711 | 147.5 |
| A | 12 | 194 | 6556 | 39.62 | 726 | 711 | 147.5 |
| A | 4 | 2 | 4901 | 28.4 | 726 | 711 | 147.5 |
| B | 0 | 214 | 130347 | 953.33 | 725 | 709 | 136.0 |
| B | 10 | 16 | 104813 | 765.56 | 725 | 709 | 136.0 |
| B | 4 | 80 | 17701 | 124.96 | 725 | 709 | 136.0 |
| C | 13 | 61 | 5184 | 28.53 | 689 | 694 | 157.4 |
| C | 1 | 16 | 1853 | 7.36 | 689 | 694 | 157.4 |
| C | 3 | 202 | 1763 | 6.79 | 689 | 694 | 157.4 |
| D | 12 | 233 | 110860 | 647.4 | 694 | 672 | 170.2 |
| D | 1 | 52 | 105368 | 615.13 | 694 | 672 | 170.2 |
| D | 2 | 152 | 63367 | 368.36 | 694 | 672 | 170.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

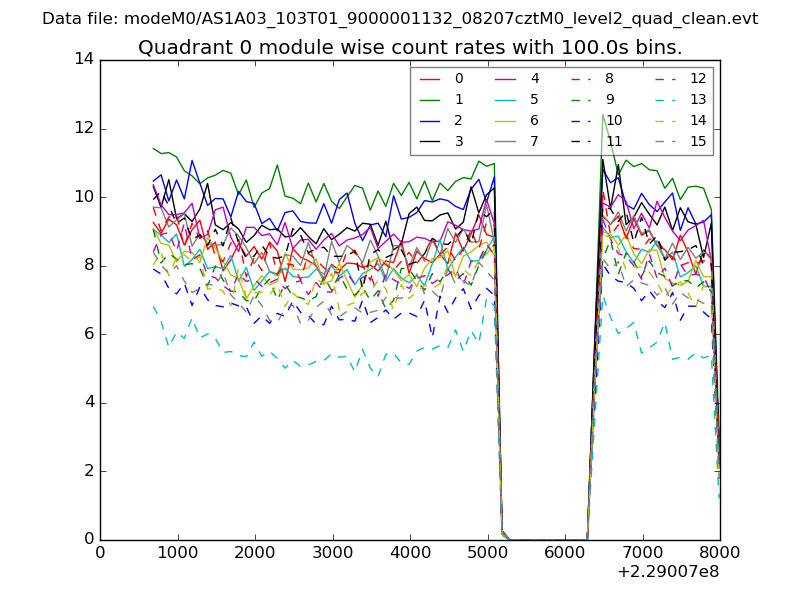

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

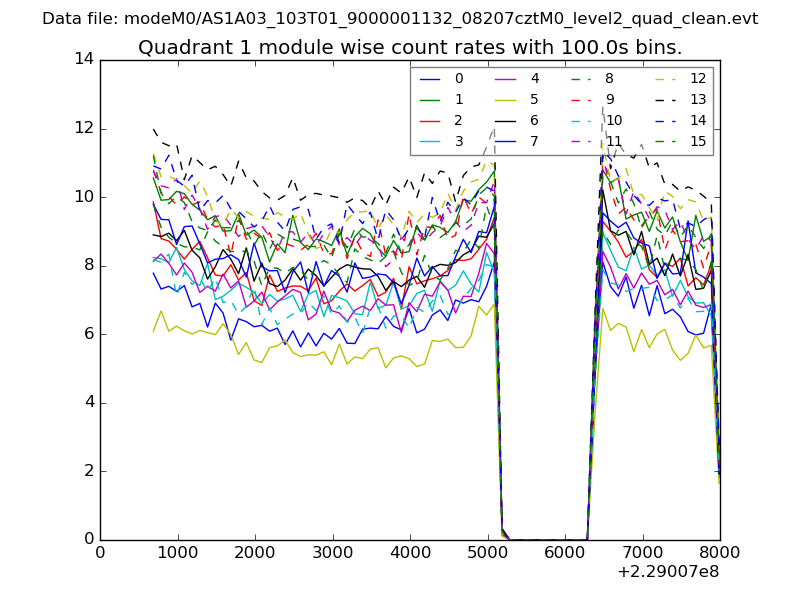

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

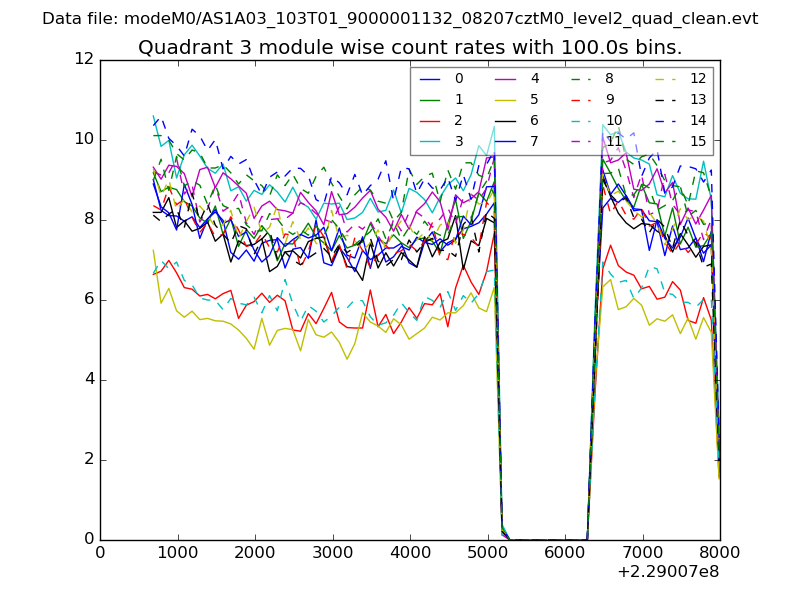

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

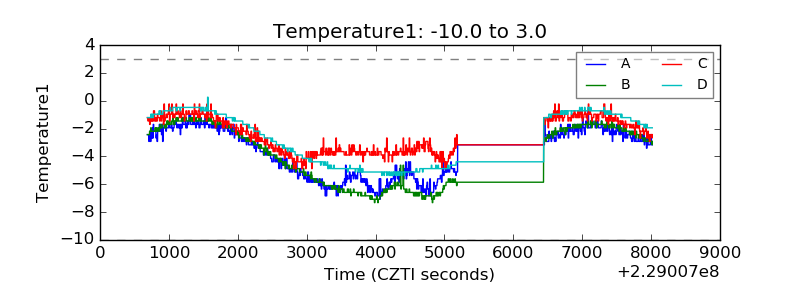

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

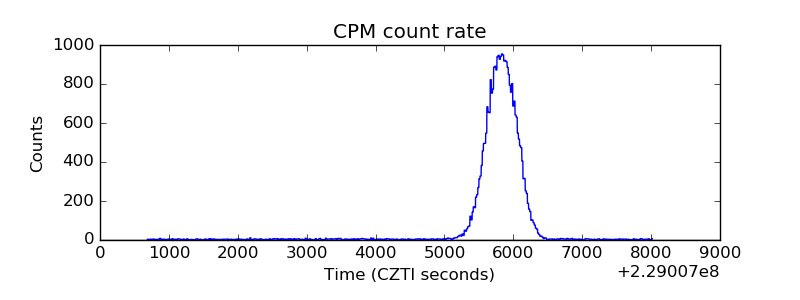

| _CPM_Rate |  |

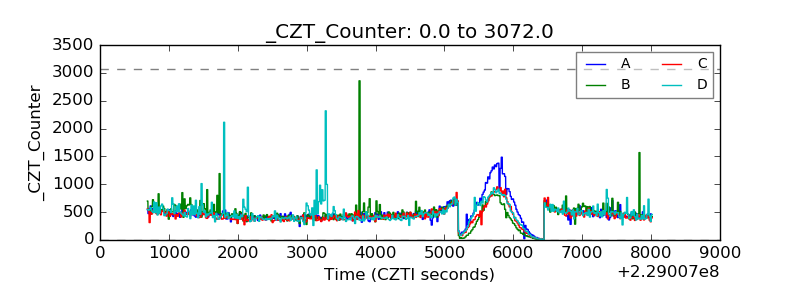

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
