| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C02_041T01_9000001136_08226cztM0_level2.evt | modeM0/AS1C02_041T01_9000001136_08226cztM0_level2_quad_clean.evt |
| Size (bytes) | 534,709,440 | 107,496,000 |
| Size | 509.9 MB | 102.5 MB |
| Events in quadrant A | 3,714,432 | 686,357 |
| Events in quadrant B | 4,175,282 | 686,000 |
| Events in quadrant C | 3,906,692 | 678,161 |
| Events in quadrant D | 3,860,724 | 655,424 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 164 | 0 |
| B | 0 | 164 | 0 |
| C | 0 | 164 | 0 |
| D | 0 | 164 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16651 | 3 |
| B | 0 | 17712 | 2 |
| C | 0 | 16723 | 2 |
| D | 0 | 17222 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7897 | 56 | 0.709130% |
| B | 7897 | 135 | 1.709510% |
| C | 7897 | 32 | 0.405217% |
| D | 7897 | 56 | 0.709130% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8467 | 7899 | 3 | 3 | 0.04% | 0.04% |  |
| B | 8467 | 7899 | 33 | 33 | 0.39% | 0.42% |  |
| C | 8467 | 7899 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8467 | 7899 | 36 | 36 | 0.43% | 0.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 64661 | 325.85 | 942 | 922 | 195.6 |
| A | 5 | 16 | 24332 | 119.68 | 942 | 922 | 195.6 |
| A | 0 | 226 | 9000 | 41.3 | 942 | 922 | 195.6 |
| B | 10 | 16 | 155194 | 842.86 | 941 | 918 | 183.0 |
| B | 11 | 51 | 123522 | 669.82 | 941 | 918 | 183.0 |
| B | 4 | 48 | 87828 | 474.82 | 941 | 918 | 183.0 |
| C | 9 | 68 | 315765 | 1488.73 | 908 | 912 | 211.5 |
| C | 1 | 16 | 48686 | 225.89 | 908 | 912 | 211.5 |
| C | 13 | 61 | 6980 | 28.69 | 908 | 912 | 211.5 |
| D | 12 | 233 | 130361 | 569.42 | 913 | 882 | 227.4 |
| D | 2 | 136 | 88107 | 383.6 | 913 | 882 | 227.4 |
| D | 7 | 55 | 54628 | 236.36 | 913 | 882 | 227.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

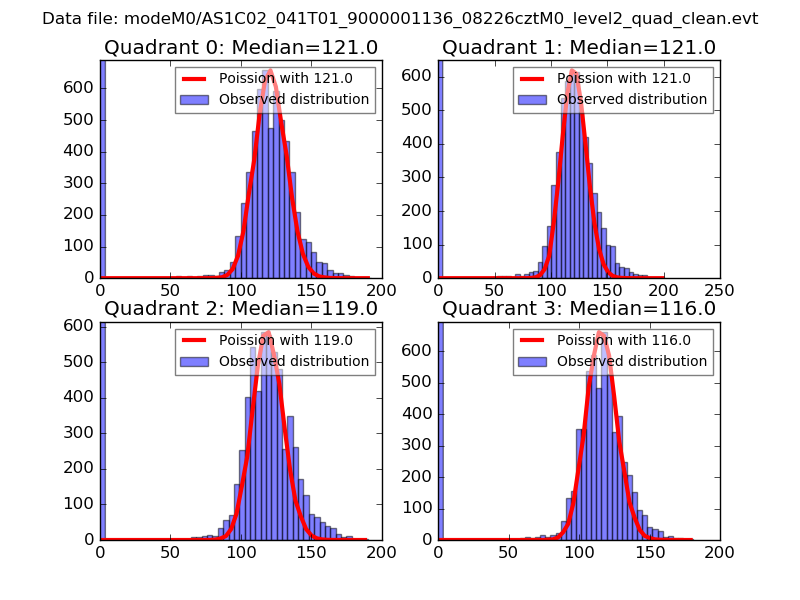

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

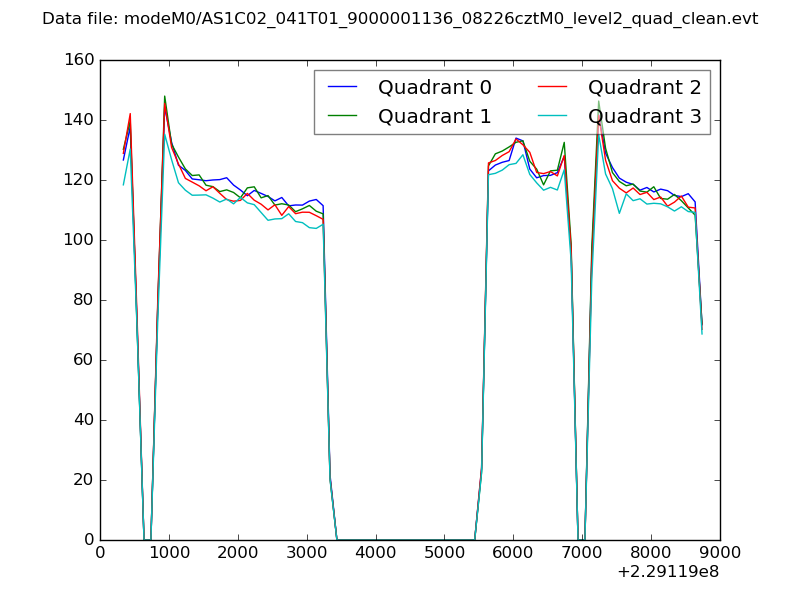

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

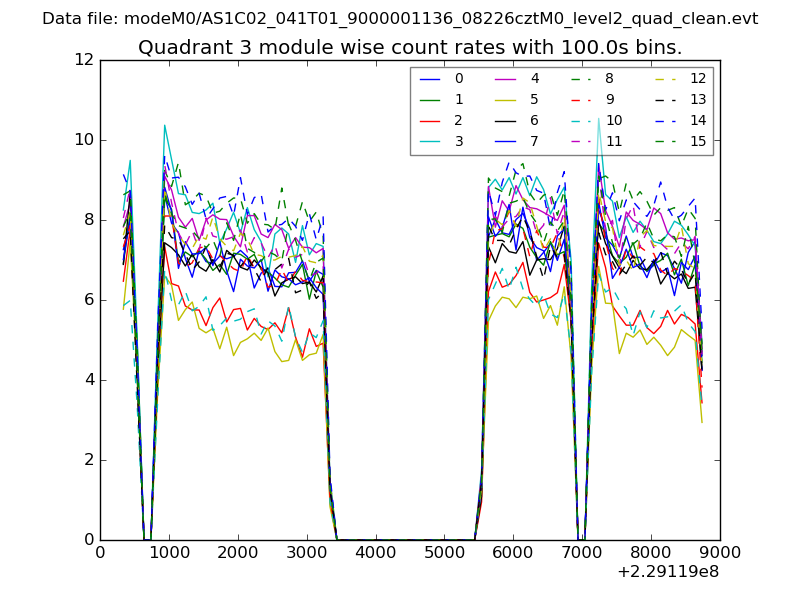

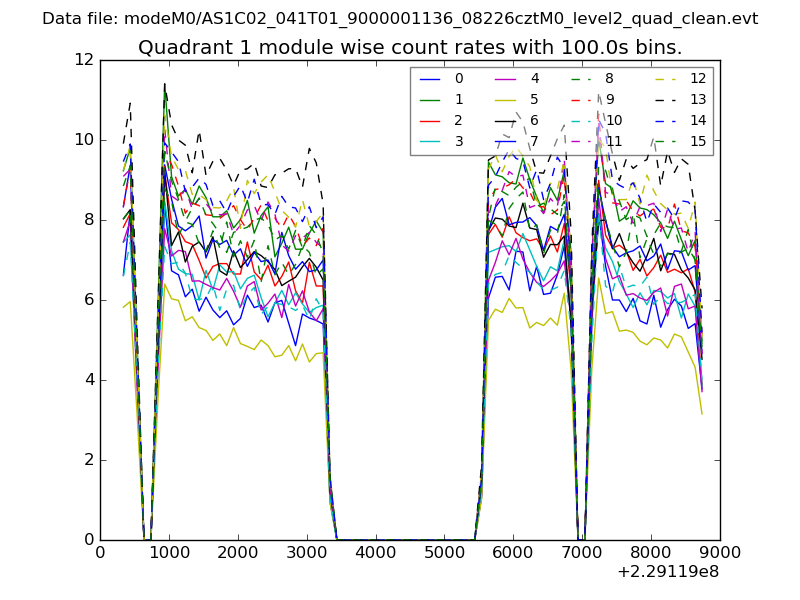

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

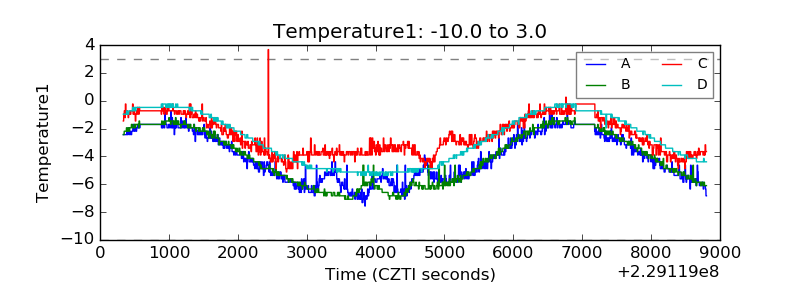

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
