| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_034T01_9000001134_08210cztM0_level2.evt | modeM0/AS1G07_034T01_9000001134_08210cztM0_level2_quad_clean.evt |
| Size (bytes) | 469,391,040 | 97,410,240 |
| Size | 447.6 MB | 92.9 MB |
| Events in quadrant A | 3,603,458 | 611,374 |
| Events in quadrant B | 3,398,658 | 621,122 |
| Events in quadrant C | 3,192,041 | 621,740 |
| Events in quadrant D | 3,530,864 | 593,180 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15746 | 3 |
| B | 0 | 15097 | 2 |
| C | 0 | 14746 | 2 |
| D | 0 | 15663 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7219 | 54 | 0.748026% |
| B | 7219 | 40 | 0.554093% |
| C | 7219 | 18 | 0.249342% |
| D | 7219 | 54 | 0.748026% |

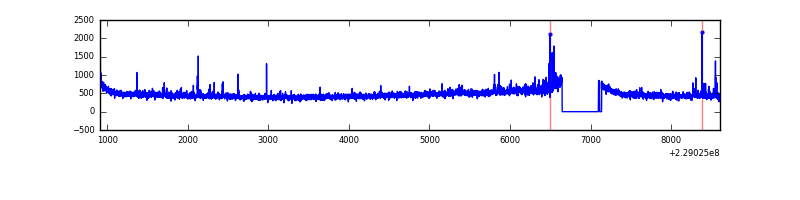

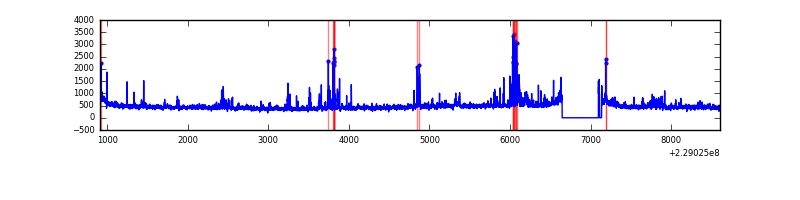

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7694 | 7221 | 10 | 10 | 0.13% | 0.14% |  |
| B | 7694 | 7221 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7694 | 7221 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7694 | 7221 | 21 | 21 | 0.27% | 0.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 112 | 265259 | 1526.5 | 842 | 825 | 173.2 |
| A | 5 | 16 | 41548 | 235.08 | 842 | 825 | 173.2 |
| A | 15 | 79 | 27217 | 152.35 | 842 | 825 | 173.2 |
| B | 0 | 214 | 38846 | 231.3 | 849 | 828 | 164.4 |
| B | 12 | 111 | 16746 | 96.84 | 849 | 828 | 164.4 |
| B | 0 | 213 | 15738 | 90.71 | 849 | 828 | 164.4 |
| C | 13 | 61 | 6259 | 28.62 | 816 | 820 | 190.0 |
| C | 14 | 67 | 4027 | 16.88 | 816 | 820 | 190.0 |
| C | 12 | 4 | 2949 | 11.2 | 816 | 820 | 190.0 |
| D | 1 | 52 | 150550 | 743.9 | 816 | 790 | 201.3 |
| D | 2 | 152 | 110652 | 545.71 | 816 | 790 | 201.3 |
| D | 2 | 14 | 47191 | 230.49 | 816 | 790 | 201.3 |

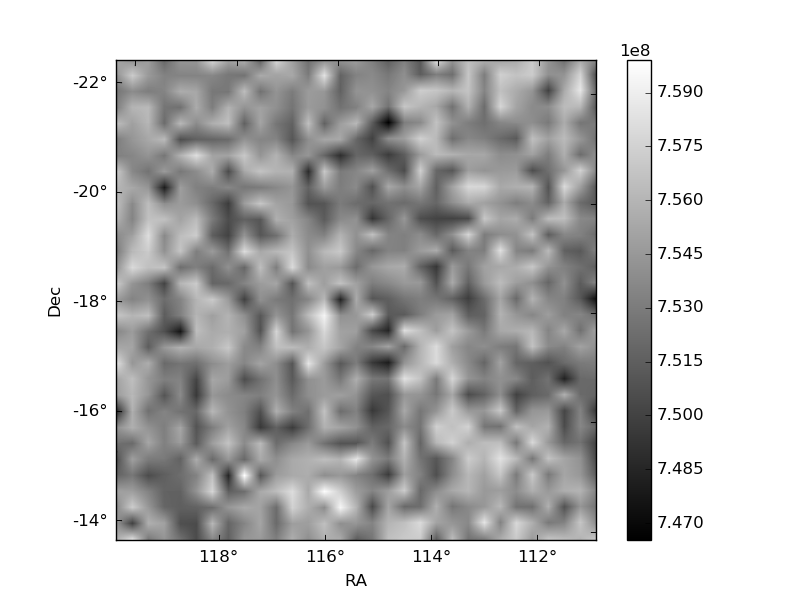

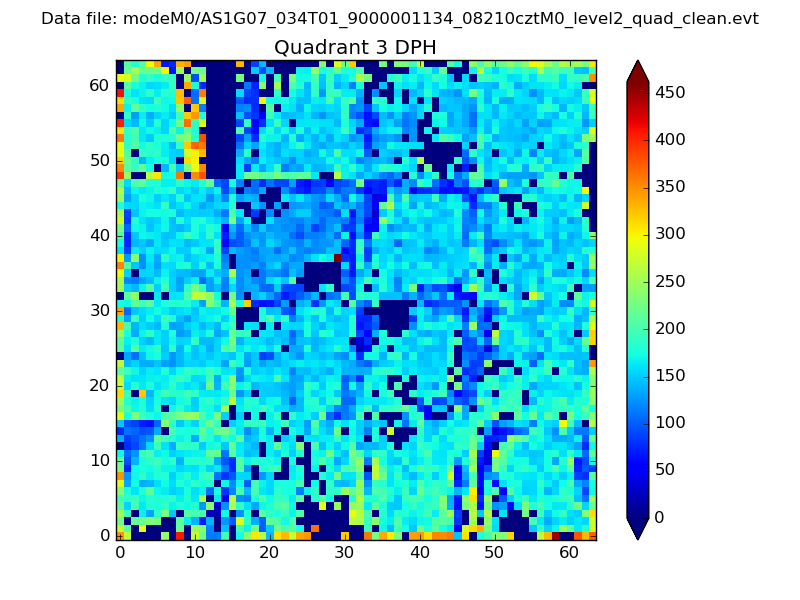

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

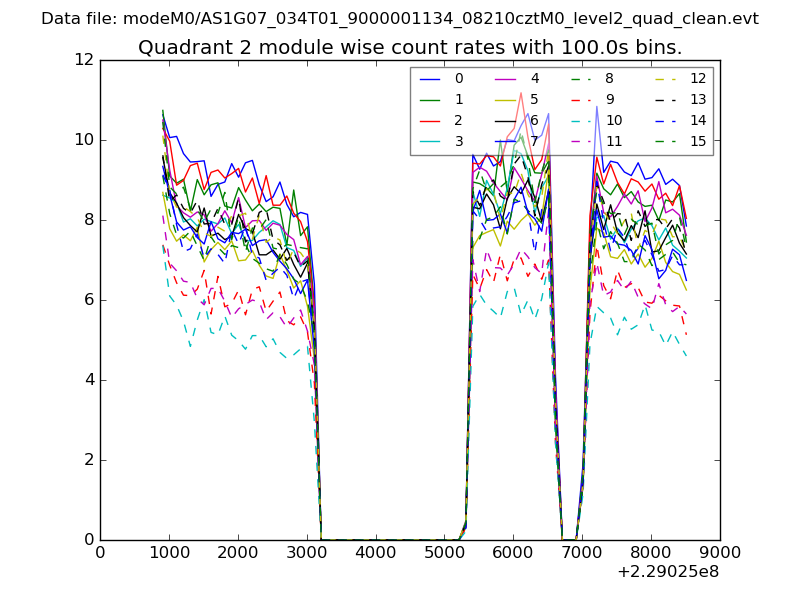

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

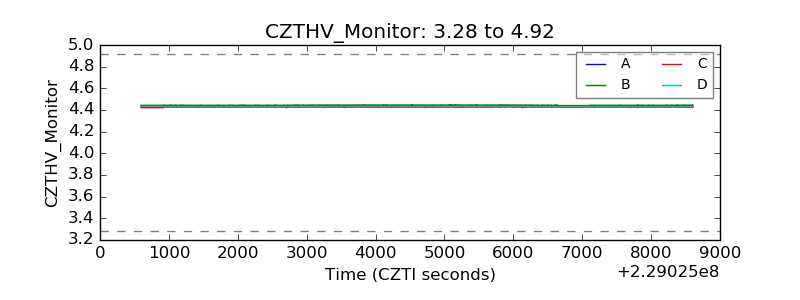

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

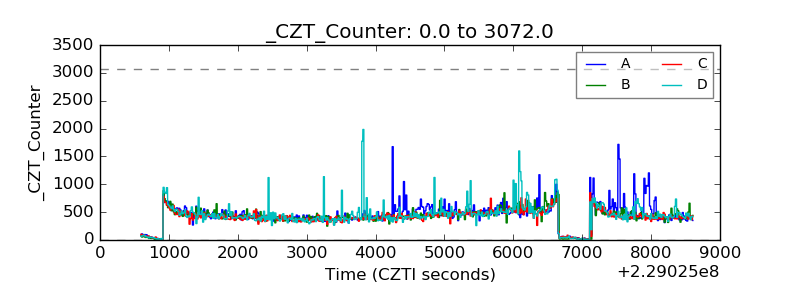

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

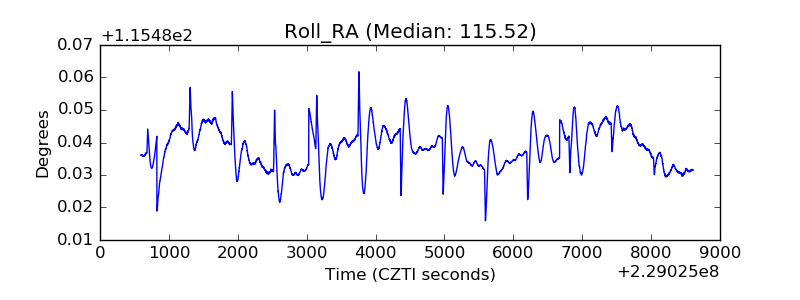

| _Roll_RA |  |
| Veto Counter |  |
