| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_070T01_9000001138_08231cztM0_level2.evt | modeM0/AS1G07_070T01_9000001138_08231cztM0_level2_quad_clean.evt |
| Size (bytes) | 475,557,120 | 62,657,280 |
| Size | 453.5 MB | 59.8 MB |
| Events in quadrant A | 3,273,703 | 363,767 |
| Events in quadrant B | 3,298,914 | 368,439 |
| Events in quadrant C | 3,295,592 | 363,432 |
| Events in quadrant D | 4,088,778 | 344,107 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14122 | 3 |
| B | 0 | 13957 | 2 |
| C | 0 | 14503 | 2 |
| D | 0 | 16654 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6560 | 114 | 1.737805% |
| B | 6560 | 67 | 1.021341% |
| C | 6560 | 63 | 0.960366% |
| D | 6560 | 216 | 3.292683% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7594 | 6560 | 42 | 42 | 0.55% | 0.64% |  |
| B | 7595 | 6560 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7595 | 6560 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7595 | 6561 | 164 | 164 | 2.16% | 2.50% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 238263 | 1471.85 | 785 | 768 | 161.4 |
| A | 0 | 226 | 7422 | 41.24 | 785 | 768 | 161.4 |
| A | 12 | 194 | 6911 | 38.07 | 785 | 768 | 161.4 |
| B | 4 | 81 | 69613 | 454.2 | 795 | 776 | 151.6 |
| B | 0 | 214 | 54397 | 353.8 | 795 | 776 | 151.6 |
| B | 11 | 51 | 51568 | 335.14 | 795 | 776 | 151.6 |
| C | 9 | 68 | 227622 | 1264.86 | 766 | 769 | 179.4 |
| C | 1 | 16 | 68669 | 378.59 | 766 | 769 | 179.4 |
| C | 13 | 61 | 5741 | 27.72 | 766 | 769 | 179.4 |
| D | 1 | 52 | 687084 | 3702.89 | 757 | 732 | 185.4 |
| D | 13 | 105 | 369345 | 1988.68 | 757 | 732 | 185.4 |
| D | 12 | 233 | 66706 | 355.93 | 757 | 732 | 185.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

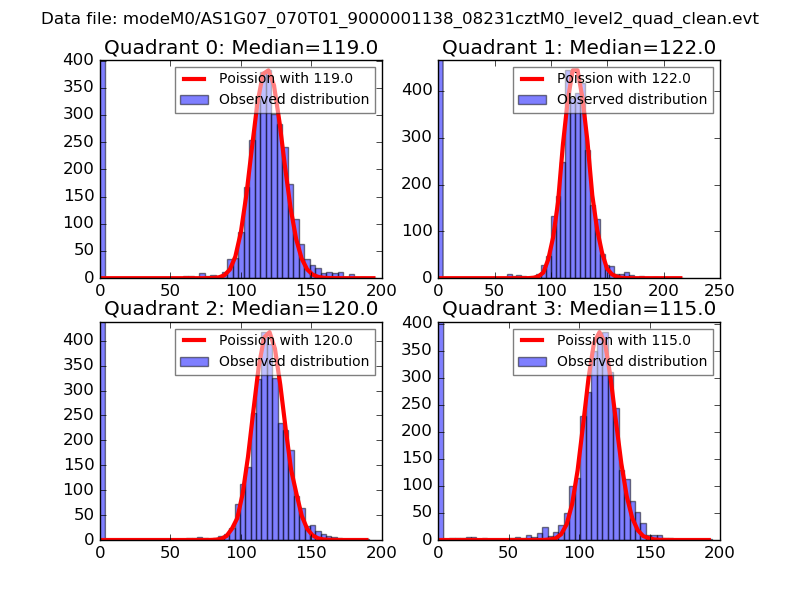

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

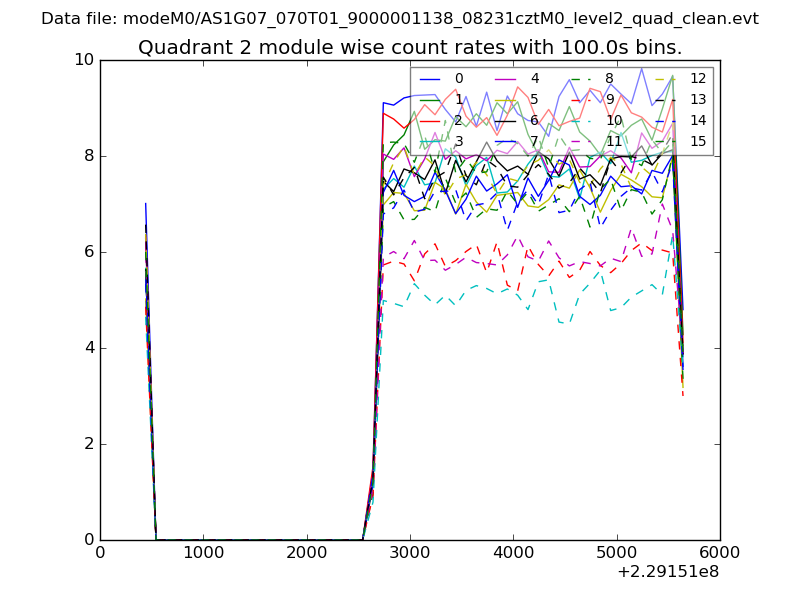

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

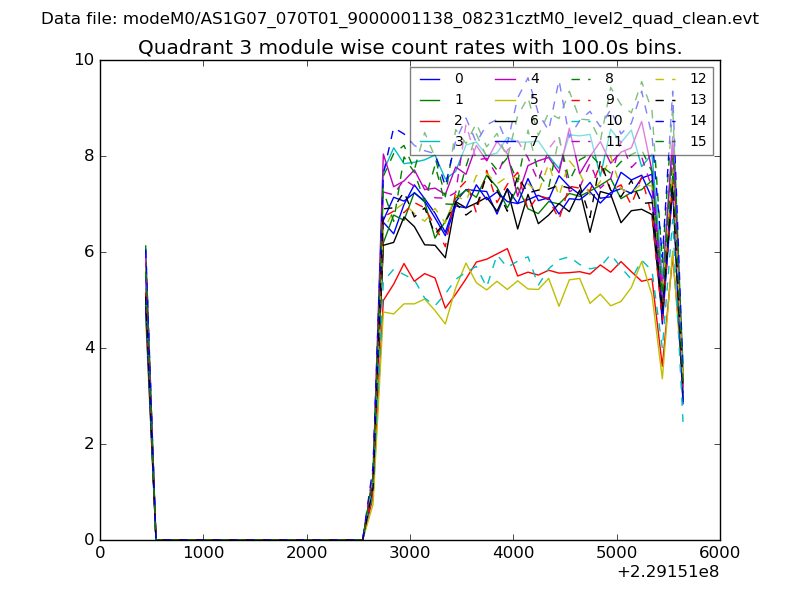

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

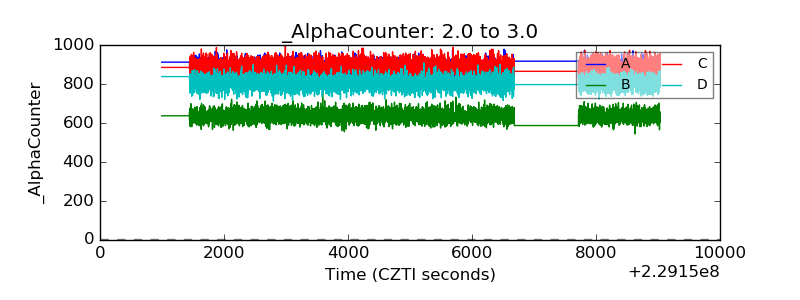

| Alpha Counter |  |

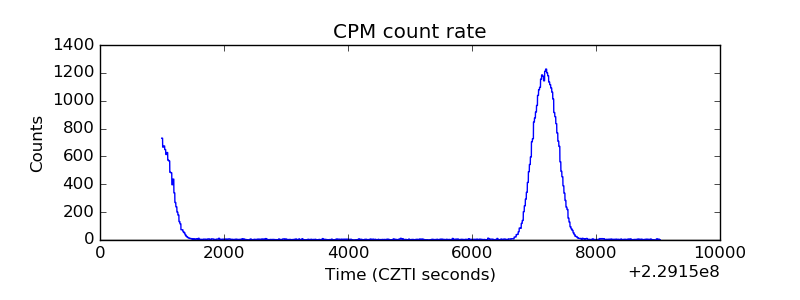

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
