| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_086T01_9000001142_08244cztM0_level2.evt | modeM0/AS1G07_086T01_9000001142_08244cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,201,754,880 | 225,711,360 |
| Size | 1.1 GB | 215.3 MB |
| Events in quadrant A | 8,373,717 | 1,404,064 |
| Events in quadrant B | 9,849,121 | 1,415,039 |
| Events in quadrant C | 8,134,945 | 1,389,455 |
| Events in quadrant D | 8,771,487 | 1,338,512 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38047 | 7 |
| B | 0 | 41940 | 15 |
| C | 0 | 37798 | 6 |
| D | 0 | 39867 | 10 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 386 | 0 |
| B | 0 | 386 | 2 |
| C | 0 | 386 | 0 |
| D | 0 | 386 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 23 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18697 | 76 | 0.406482% |
| B | 18694 | 232 | 1.241040% |
| C | 18697 | 50 | 0.267423% |
| D | 18696 | 68 | 0.363714% |

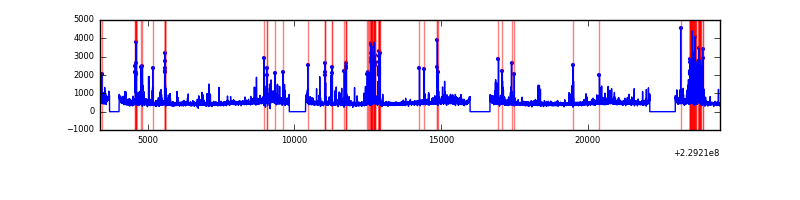

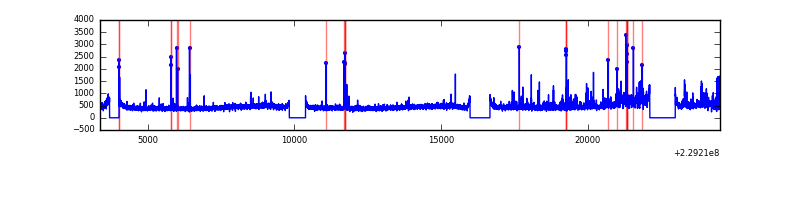

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 21128 | 18702 | 6 | 6 | 0.03% | 0.03% |  |
| B | 21128 | 18701 | 124 | 124 | 0.59% | 0.66% |  |
| C | 21128 | 18702 | 0 | 0 | 0.00% | 0.00% |  |
| D | 21128 | 18702 | 25 | 25 | 0.12% | 0.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 51149 | 112.23 | 2145 | 2097 | 437.1 |
| A | 8 | 15 | 48509 | 106.19 | 2145 | 2097 | 437.1 |
| A | 0 | 226 | 20179 | 41.37 | 2145 | 2097 | 437.1 |
| B | 10 | 16 | 1073262 | 2598.19 | 2159 | 2100 | 412.3 |
| B | 0 | 214 | 199646 | 479.16 | 2159 | 2100 | 412.3 |
| B | 11 | 51 | 96888 | 229.91 | 2159 | 2100 | 412.3 |
| C | 13 | 61 | 16009 | 28.87 | 2084 | 2088 | 482.1 |
| C | 5 | 128 | 7196 | 10.59 | 2084 | 2088 | 482.1 |
| C | 12 | 4 | 5287 | 6.63 | 2084 | 2088 | 482.1 |
| D | 8 | 230 | 411232 | 733.42 | 2057 | 2008 | 558.0 |
| D | 1 | 52 | 380643 | 678.6 | 2057 | 2008 | 558.0 |
| D | 2 | 234 | 70558 | 122.86 | 2057 | 2008 | 558.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |

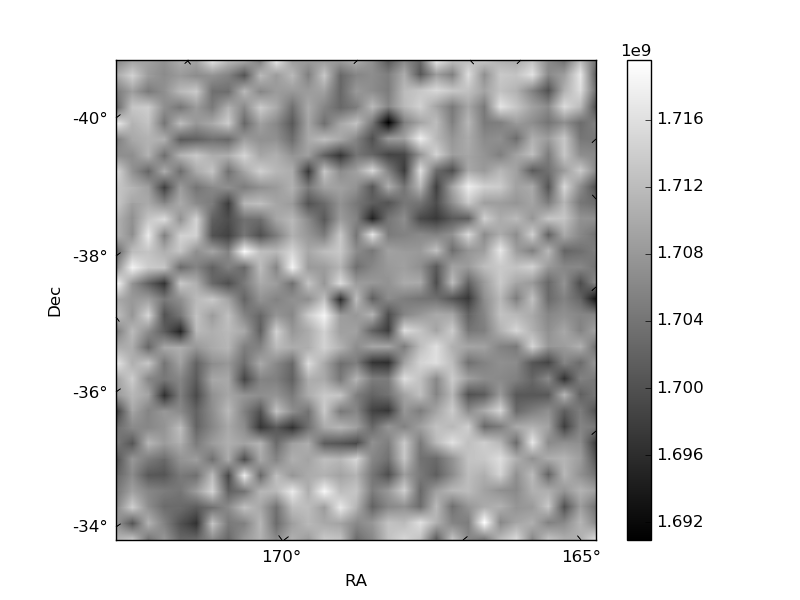

Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

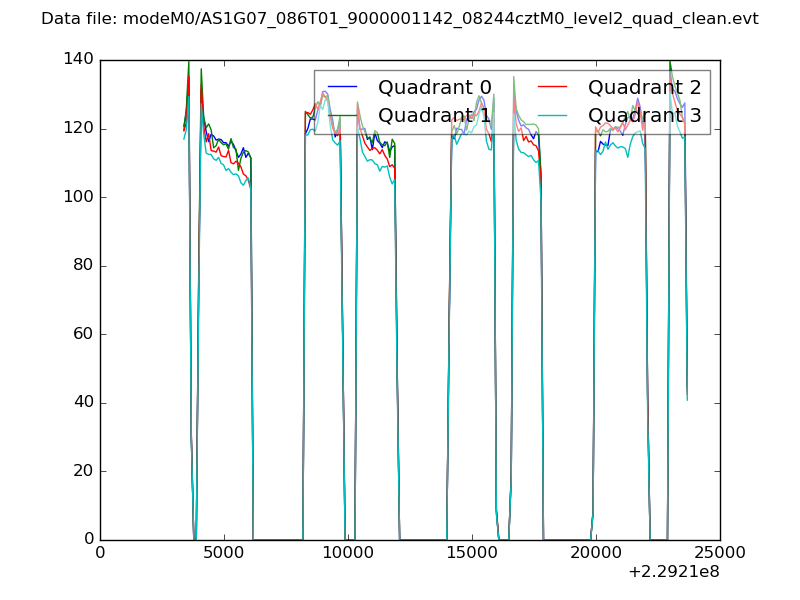

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

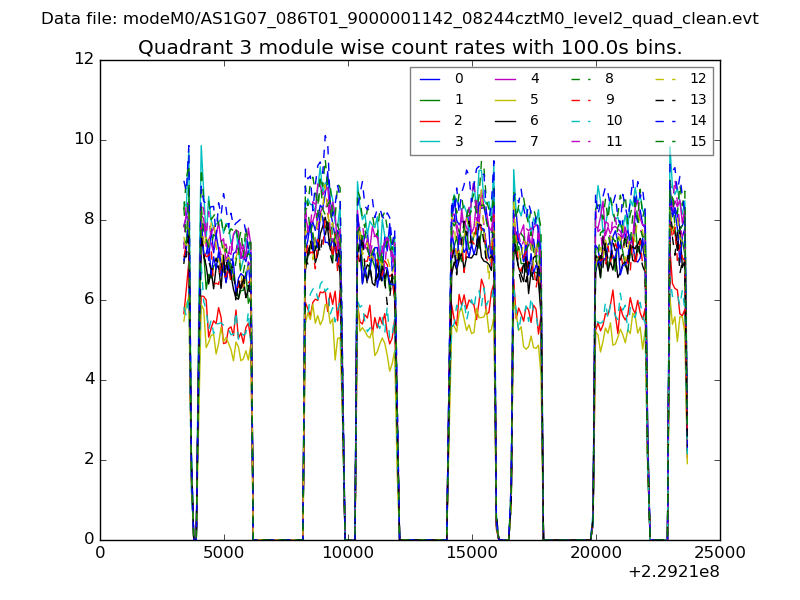

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

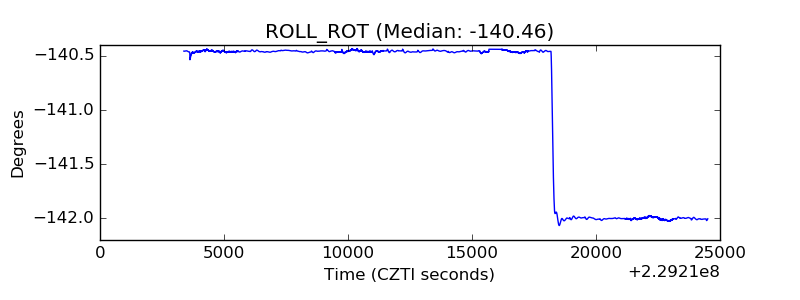

| _ROLL_ROT |  |

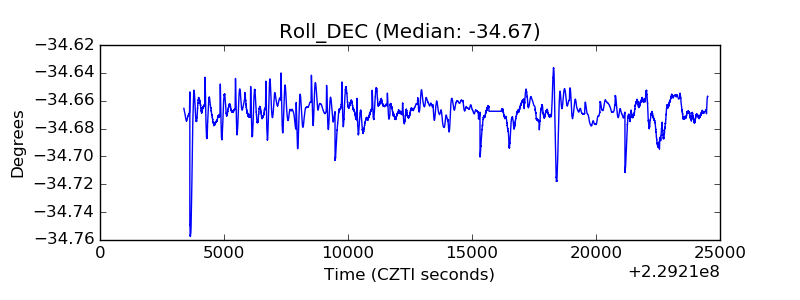

| _Roll_DEC |  |

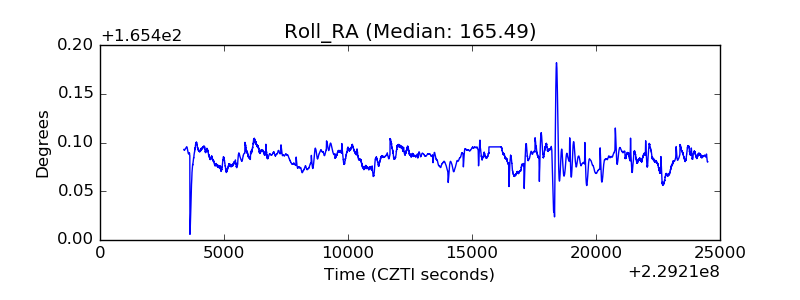

| _Roll_RA |  |
| Veto Counter |  |
