| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_086T01_9000001142_08245cztM0_level2.evt | modeM0/AS1G07_086T01_9000001142_08245cztM0_level2_quad_clean.evt |
| Size (bytes) | 445,550,400 | 70,928,640 |
| Size | 424.9 MB | 67.6 MB |
| Events in quadrant A | 2,970,018 | 427,275 |
| Events in quadrant B | 3,558,836 | 429,830 |
| Events in quadrant C | 2,952,967 | 426,550 |
| Events in quadrant D | 3,568,674 | 409,518 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13312 | 4 |
| B | 0 | 14864 | 10 |
| C | 0 | 13311 | 1 |
| D | 0 | 14986 | 5 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6516 | 43 | 0.659914% |
| B | 6514 | 135 | 2.072459% |
| C | 6517 | 45 | 0.690502% |
| D | 6515 | 64 | 0.982348% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7487 | 6518 | 4 | 4 | 0.05% | 0.06% |  |
| B | 7487 | 6518 | 70 | 70 | 0.93% | 1.07% |  |
| C | 7487 | 6518 | 3 | 3 | 0.04% | 0.05% |  |
| D | 7487 | 6518 | 12 | 12 | 0.16% | 0.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 23 | 18711 | 115.07 | 762 | 745 | 156.1 |
| A | 0 | 254 | 11956 | 71.8 | 762 | 745 | 156.1 |
| A | 0 | 226 | 8273 | 48.21 | 762 | 745 | 156.1 |
| B | 10 | 16 | 487666 | 3307.58 | 767 | 750 | 147.2 |
| B | 11 | 51 | 51885 | 347.36 | 767 | 750 | 147.2 |
| B | 4 | 81 | 26544 | 175.22 | 767 | 750 | 147.2 |
| C | 5 | 128 | 23411 | 129.83 | 749 | 753 | 174.5 |
| C | 13 | 61 | 5813 | 28.99 | 749 | 753 | 174.5 |
| C | 8 | 128 | 5353 | 26.36 | 749 | 753 | 174.5 |
| D | 1 | 52 | 541904 | 2781.26 | 736 | 719 | 194.6 |
| D | 8 | 230 | 127692 | 652.54 | 736 | 719 | 194.6 |
| D | 2 | 152 | 53887 | 273.24 | 736 | 719 | 194.6 |

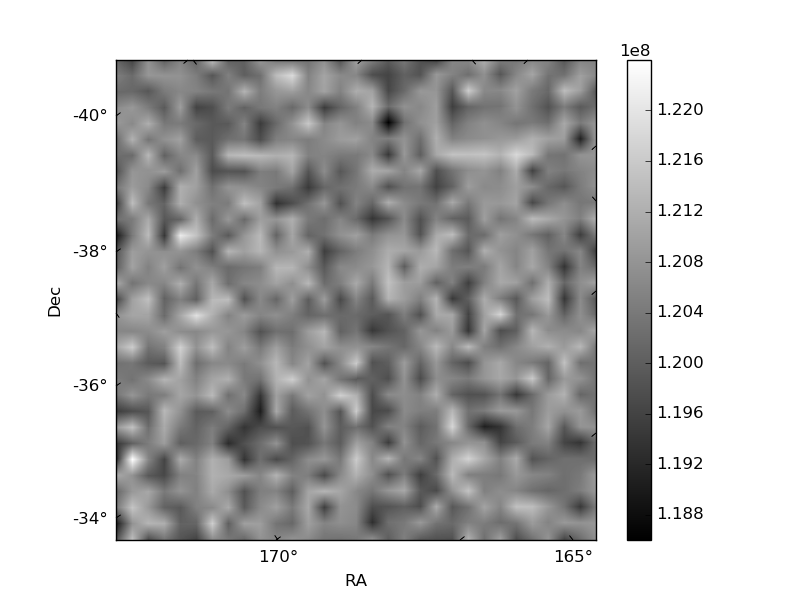

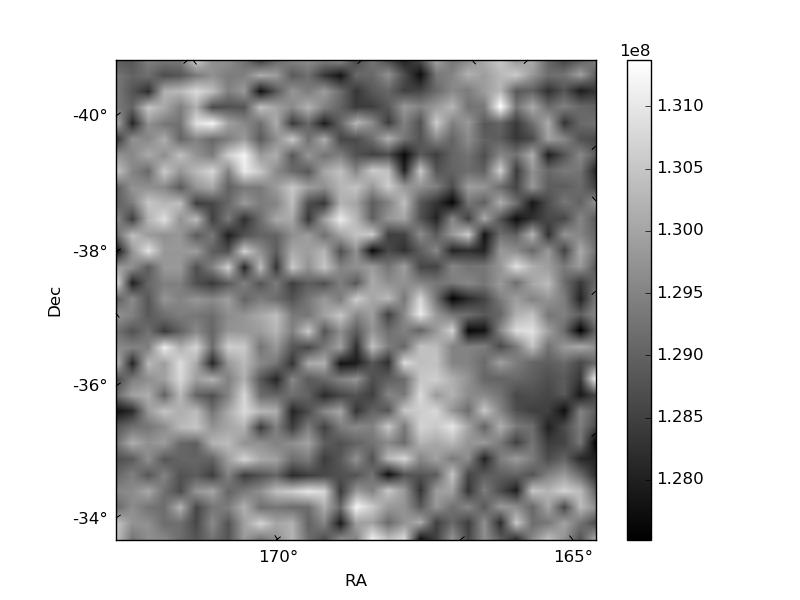

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

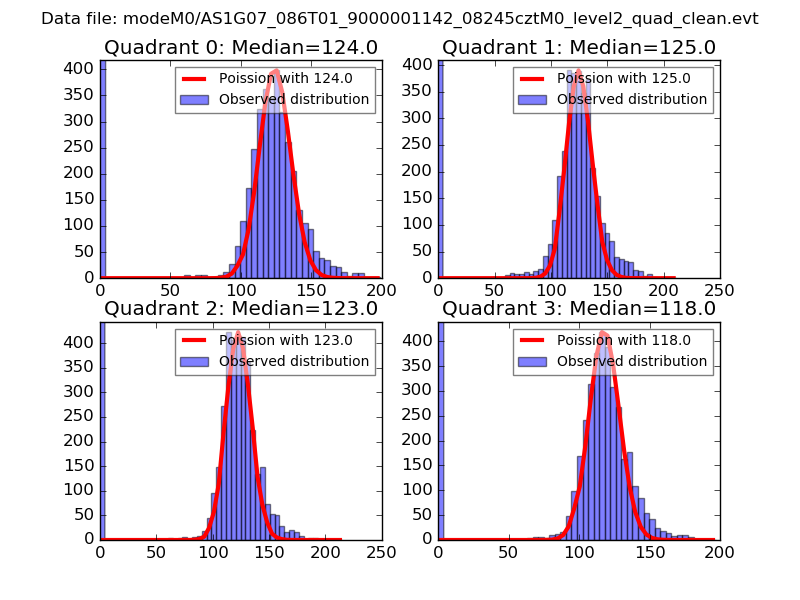

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

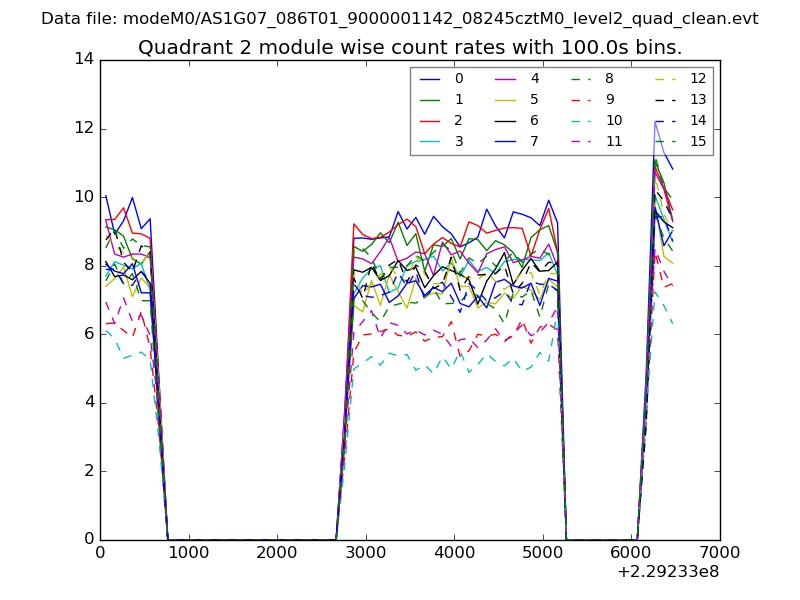

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

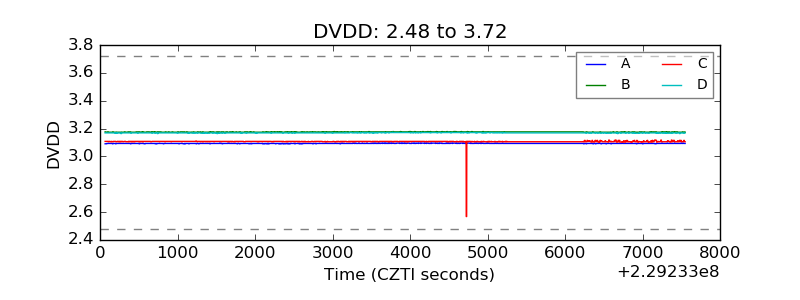

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

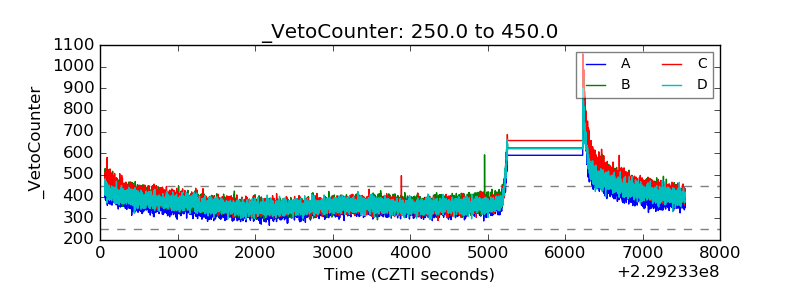

| Veto Counter |  |
