| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_164T01_9000001140_08240cztM0_level2.evt | modeM0/AS1T01_164T01_9000001140_08240cztM0_level2_quad_clean.evt |
| Size (bytes) | 463,187,520 | 78,456,960 |
| Size | 441.7 MB | 74.8 MB |
| Events in quadrant A | 3,142,847 | 481,935 |
| Events in quadrant B | 3,668,709 | 487,970 |
| Events in quadrant C | 3,062,598 | 486,517 |
| Events in quadrant D | 3,701,676 | 455,830 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13825 | 1 |
| B | 0 | 15354 | 1 |
| C | 0 | 13662 | 1 |
| D | 0 | 15463 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6649 | 70 | 1.052790% |
| B | 6649 | 175 | 2.631975% |
| C | 6649 | 45 | 0.676794% |
| D | 6649 | 160 | 2.406377% |

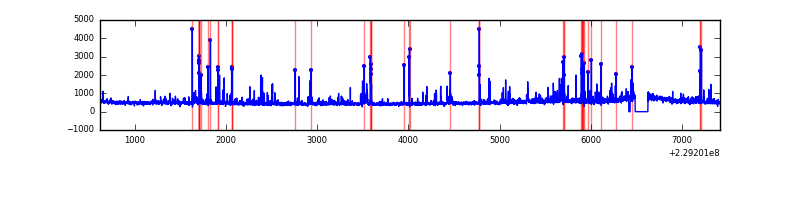

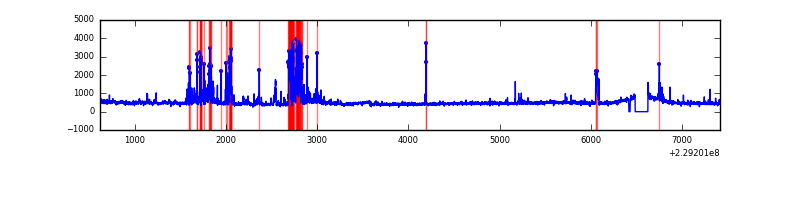

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

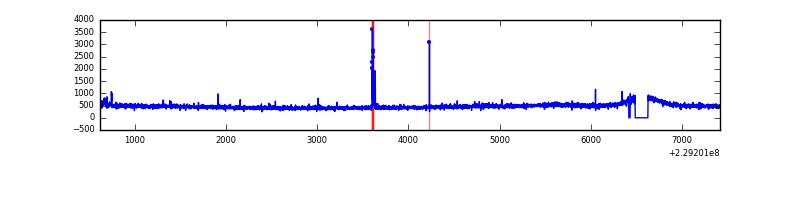

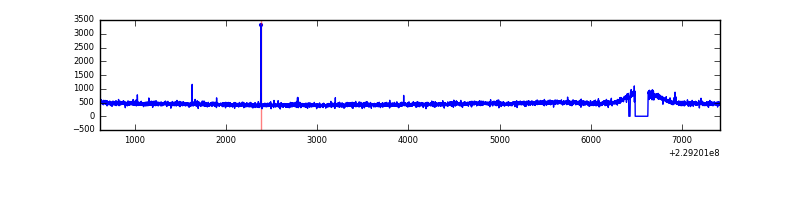

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6804 | 6651 | 7 | 7 | 0.10% | 0.11% |  |
| B | 6804 | 6651 | 47 | 47 | 0.69% | 0.71% |  |
| C | 6804 | 6651 | 1 | 1 | 0.01% | 0.02% |  |
| D | 6804 | 6651 | 105 | 105 | 1.54% | 1.58% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 35306 | 210.81 | 800 | 785 | 163.8 |
| A | 15 | 234 | 10568 | 59.74 | 800 | 785 | 163.8 |
| A | 13 | 248 | 8252 | 45.6 | 800 | 785 | 163.8 |
| B | 10 | 16 | 317857 | 2050.26 | 802 | 782 | 154.7 |
| B | 0 | 214 | 102288 | 656.35 | 802 | 782 | 154.7 |
| B | 11 | 51 | 62348 | 398.1 | 802 | 782 | 154.7 |
| C | 3 | 233 | 9457 | 47.55 | 782 | 788 | 182.3 |
| C | 13 | 61 | 5979 | 28.47 | 782 | 788 | 182.3 |
| C | 3 | 202 | 1888 | 6.03 | 782 | 788 | 182.3 |
| D | 1 | 52 | 546620 | 2830.11 | 778 | 755 | 192.9 |
| D | 13 | 105 | 127833 | 658.85 | 778 | 755 | 192.9 |
| D | 8 | 230 | 44256 | 225.54 | 778 | 755 | 192.9 |

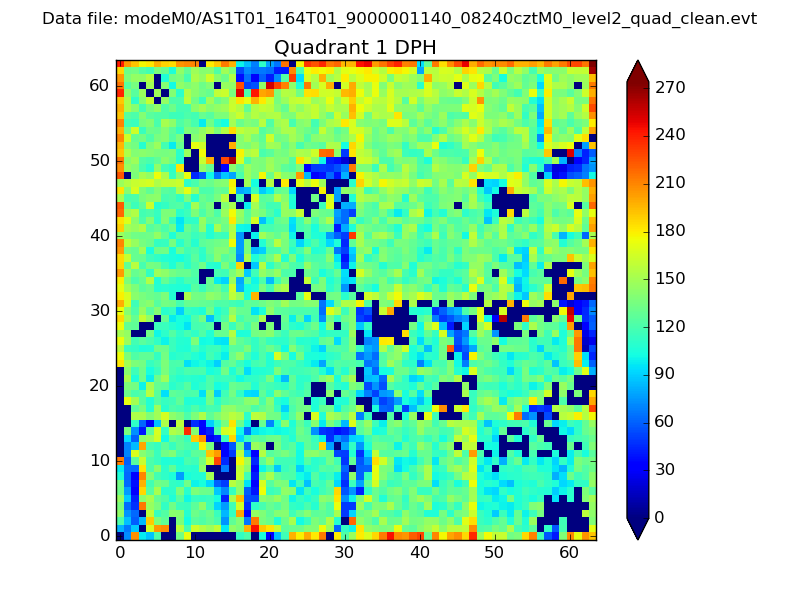

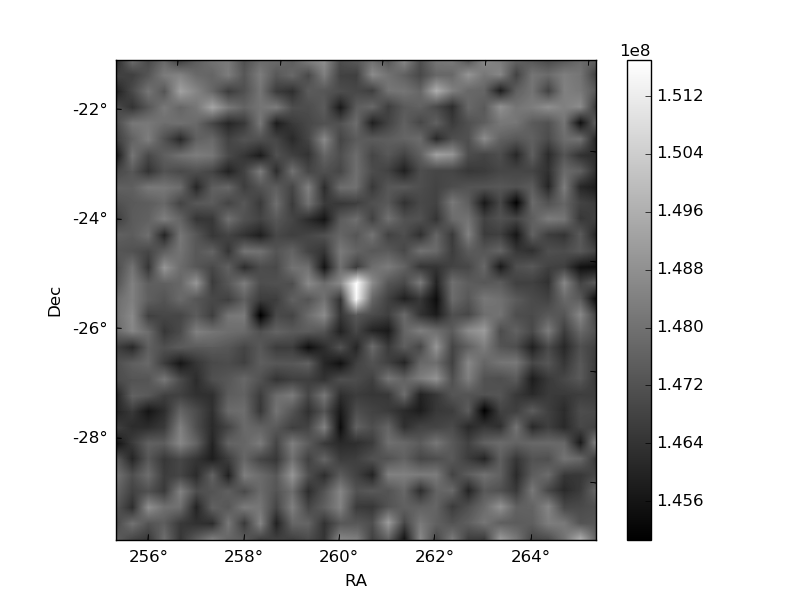

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

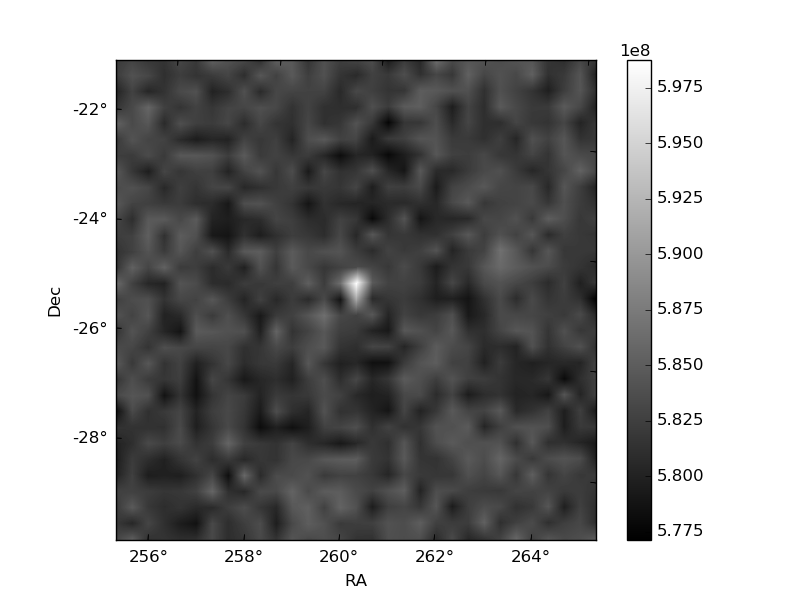

| Plot type | Count rate plots | Images |
|---|---|---|

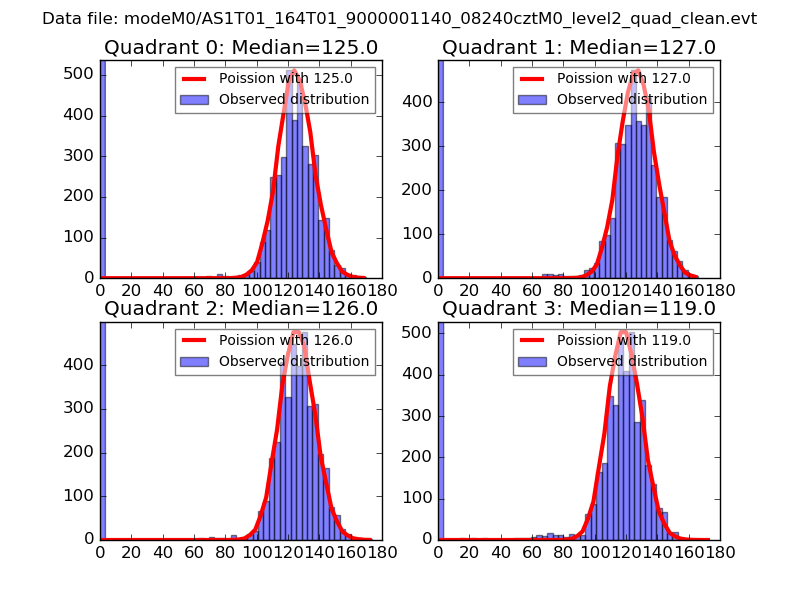

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

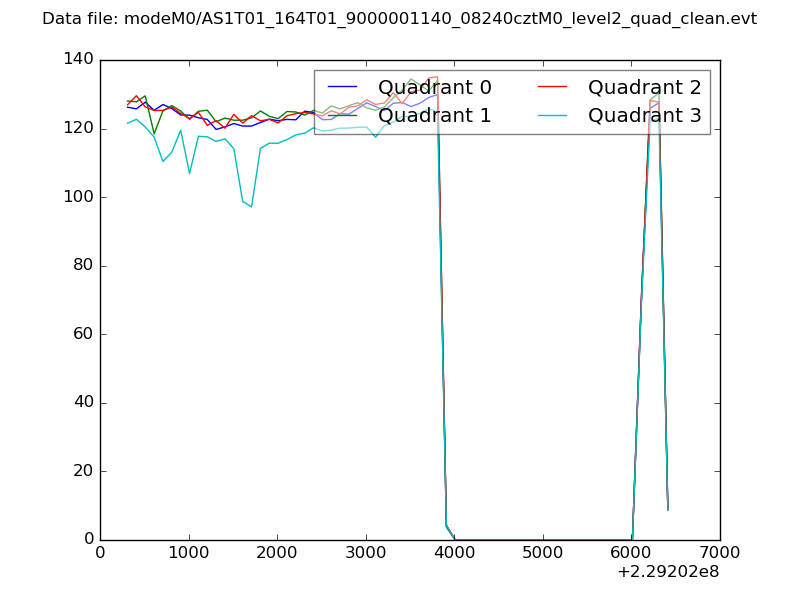

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

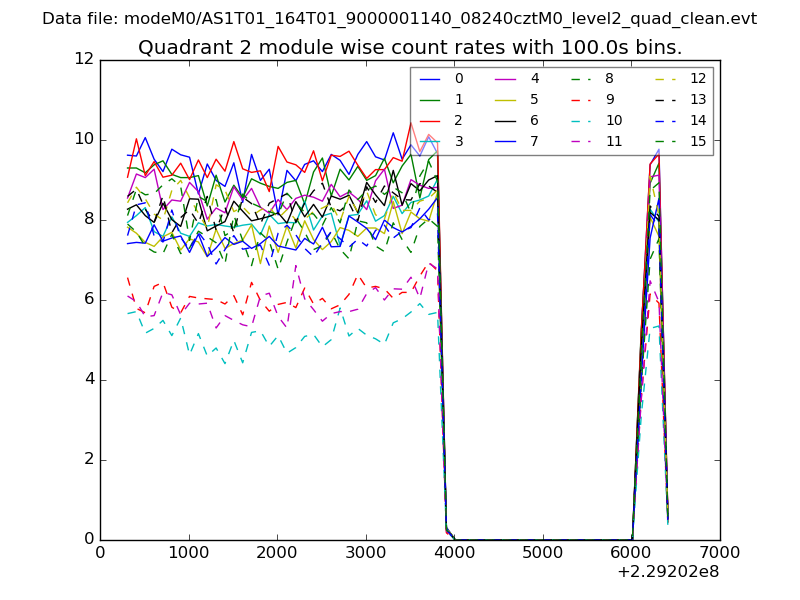

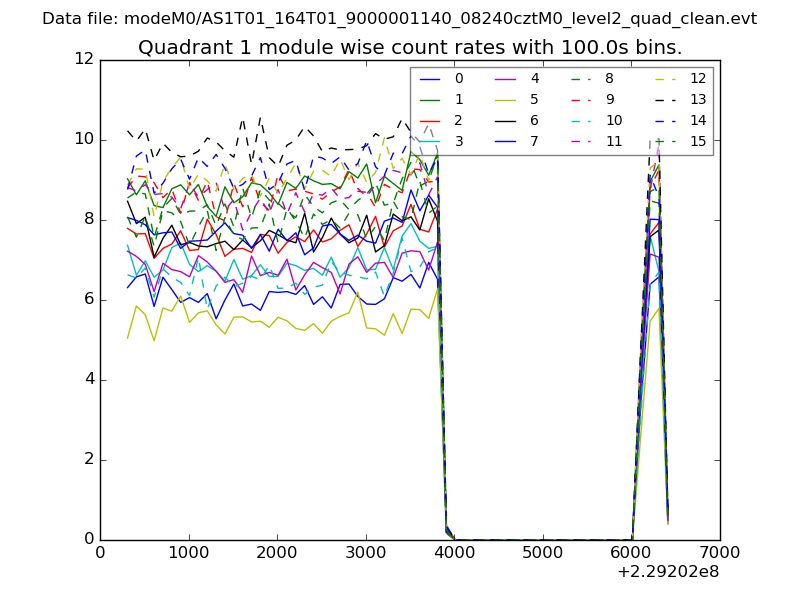

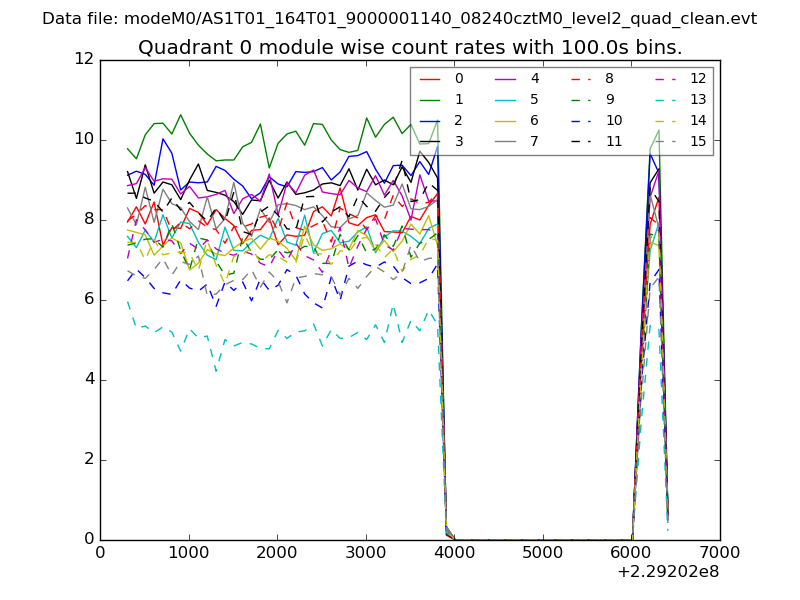

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

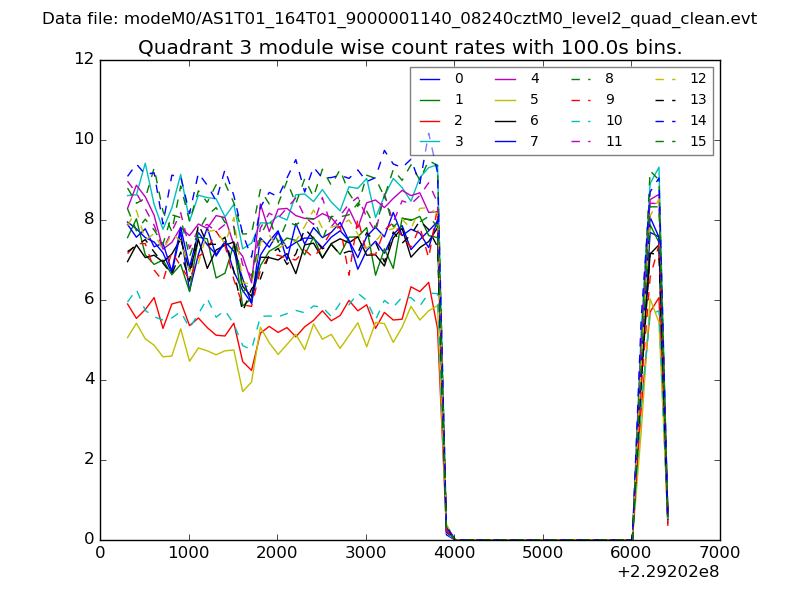

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

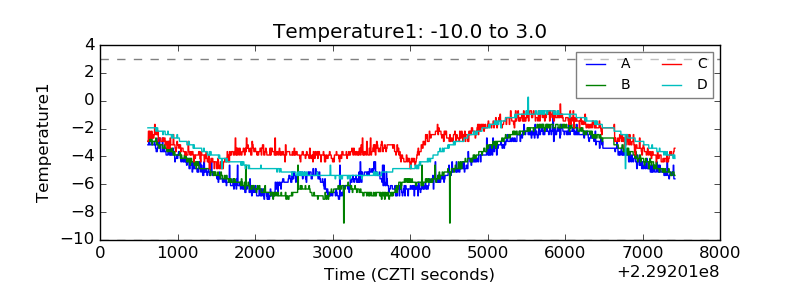

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

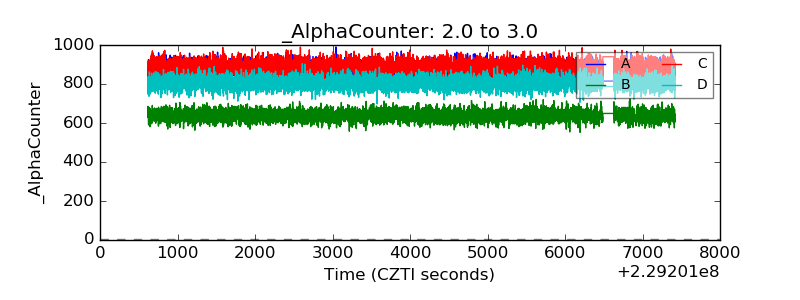

| Alpha Counter |  |

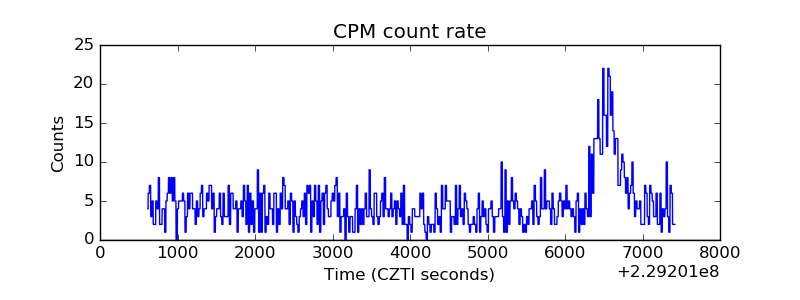

| _CPM_Rate |  |

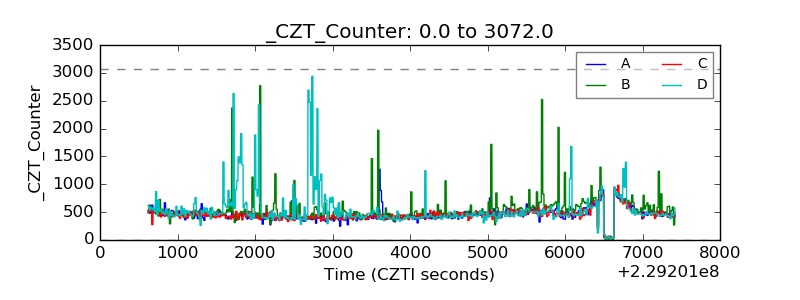

| CZT Counter |  |

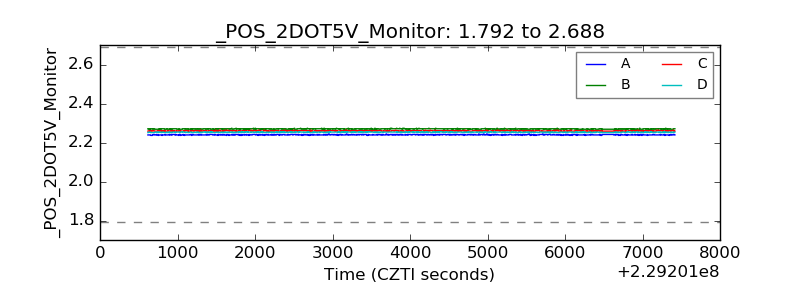

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

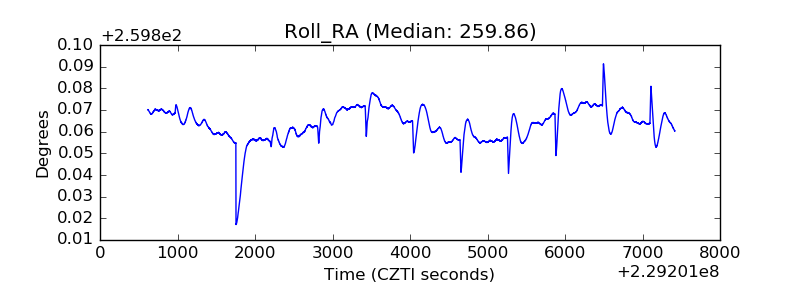

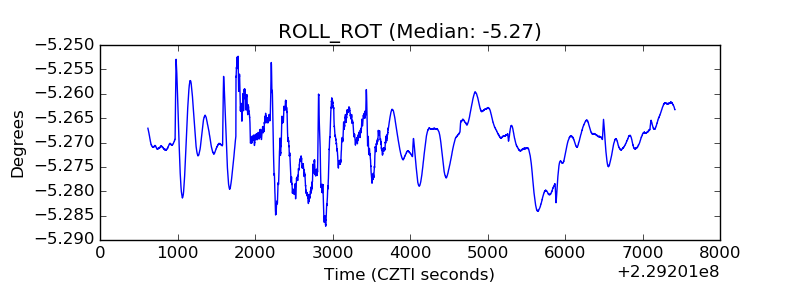

| _ROLL_ROT |  |

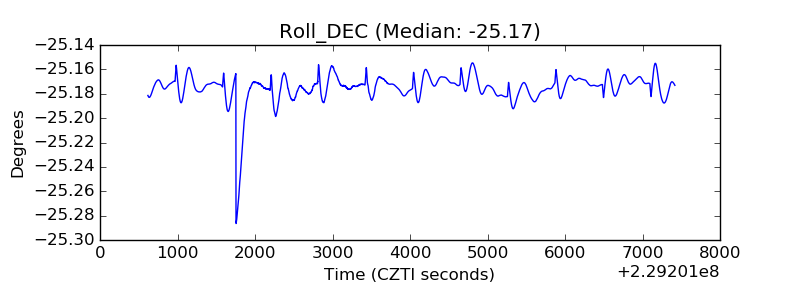

| _Roll_DEC |  |
| _Roll_RA |  |

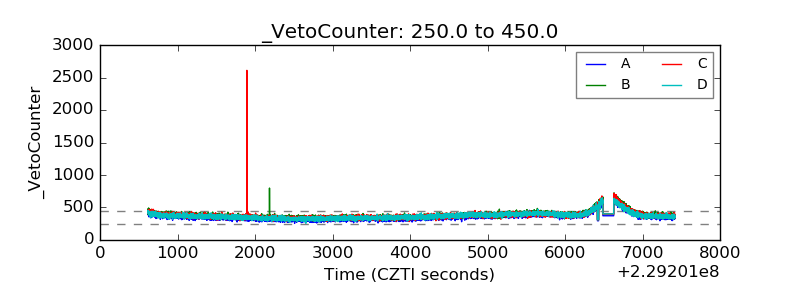

| Veto Counter |  |
