| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_086T02_9000001144_08252cztM0_level2.evt | modeM0/AS1G07_086T02_9000001144_08252cztM0_level2_quad_clean.evt |
| Size (bytes) | 540,233,280 | 90,213,120 |
| Size | 515.2 MB | 86.0 MB |
| Events in quadrant A | 7,329,350 | 457,000 |
| Events in quadrant B | 3,073,180 | 632,243 |
| Events in quadrant C | 2,783,088 | 612,941 |
| Events in quadrant D | 2,753,454 | 596,164 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26147 | 2 |
| B | 0 | 13110 | 1 |
| C | 0 | 12685 | 1 |
| D | 0 | 12758 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6202 | 2501 | 40.325701% |
| B | 6202 | 114 | 1.838117% |
| C | 6202 | 70 | 1.128668% |
| D | 6202 | 89 | 1.435021% |

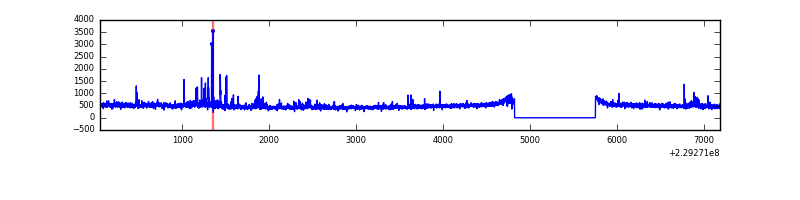

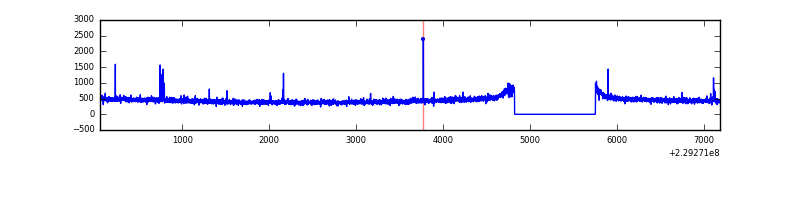

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7131 | 6201 | 1792 | 1792 | 25.13% | 28.90% |  |
| B | 7132 | 6202 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7132 | 6203 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7132 | 6203 | 1 | 1 | 0.01% | 0.02% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 128 | 5334443 | 52118.33 | 500 | 490 | 102.3 |
| A | 13 | 248 | 55440 | 536.92 | 500 | 490 | 102.3 |
| A | 8 | 15 | 6625 | 59.95 | 500 | 490 | 102.3 |
| B | 0 | 214 | 68561 | 474.6 | 744 | 727 | 142.9 |
| B | 11 | 51 | 60454 | 417.88 | 744 | 727 | 142.9 |
| B | 0 | 213 | 19997 | 134.82 | 744 | 727 | 142.9 |
| C | 13 | 61 | 5476 | 28.7 | 713 | 717 | 165.8 |
| C | 3 | 202 | 1827 | 6.69 | 713 | 717 | 165.8 |
| C | 7 | 247 | 1575 | 5.17 | 713 | 717 | 165.8 |
| D | 2 | 234 | 20776 | 105.34 | 712 | 696 | 190.6 |
| D | 1 | 52 | 15764 | 79.05 | 712 | 696 | 190.6 |
| D | 13 | 105 | 14442 | 72.11 | 712 | 696 | 190.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

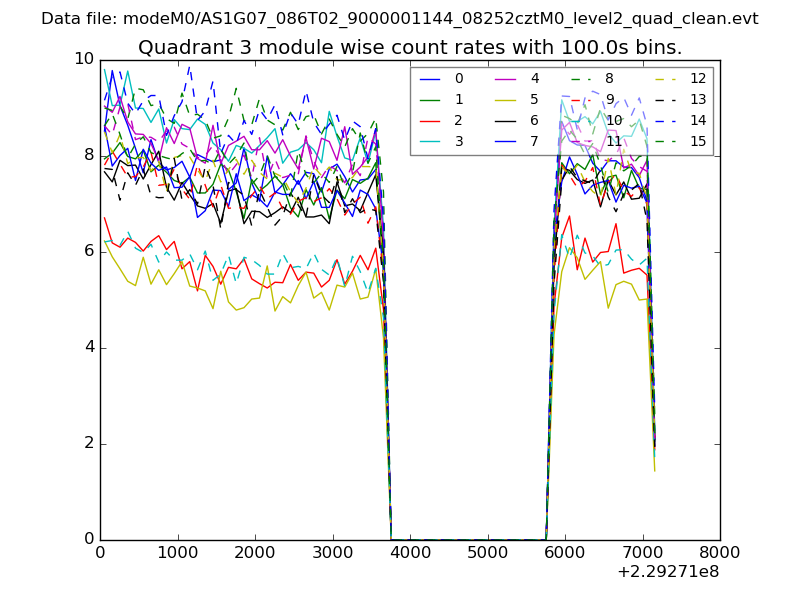

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

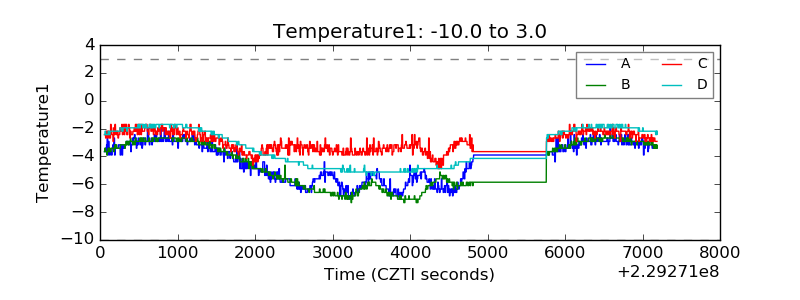

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

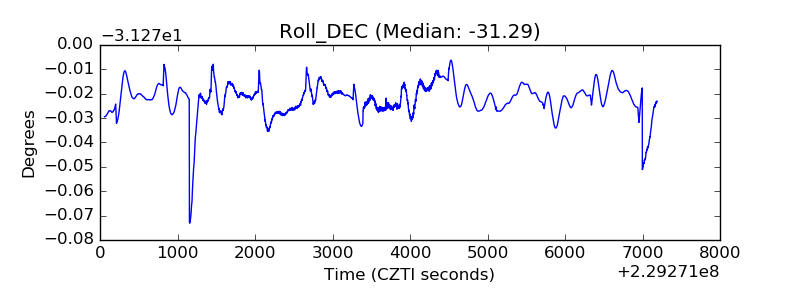

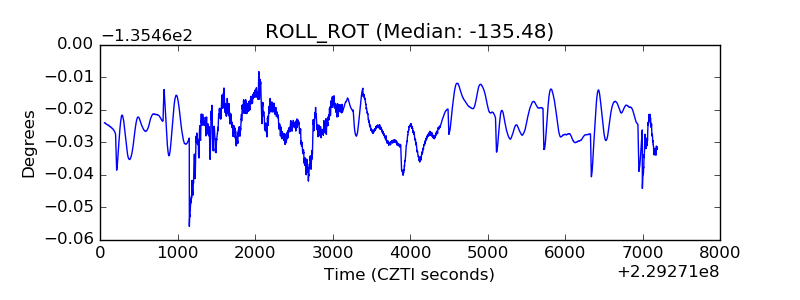

| _ROLL_ROT |  |
| _Roll_DEC |  |

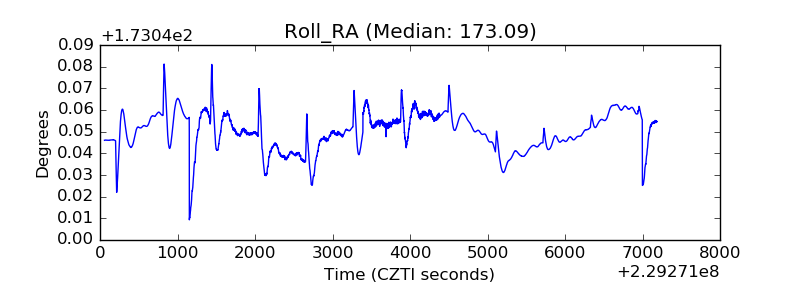

| _Roll_RA |  |

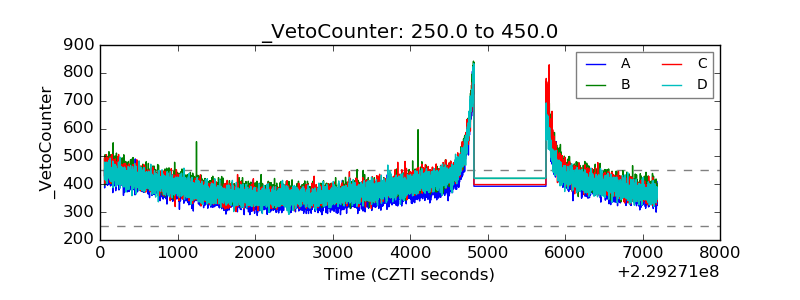

| Veto Counter |  |
