| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_086T02_9000001144_08253cztM0_level2.evt | modeM0/AS1G07_086T02_9000001144_08253cztM0_level2_quad_clean.evt |
| Size (bytes) | 769,648,320 | 88,346,880 |
| Size | 734.0 MB | 84.3 MB |
| Events in quadrant A | 12,828,505 | 271,685 |
| Events in quadrant B | 3,660,231 | 653,712 |
| Events in quadrant C | 3,133,243 | 636,833 |
| Events in quadrant D | 3,204,382 | 615,462 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 43017 | 3 |
| B | 0 | 15526 | 2 |
| C | 0 | 14492 | 2 |
| D | 0 | 14749 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7123 | 4172 | 58.570827% |
| B | 7123 | 82 | 1.151200% |
| C | 7123 | 21 | 0.294820% |
| D | 7123 | 14 | 0.196546% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7752 | 7124 | 3855 | 3855 | 49.73% | 54.11% |  |
| B | 7753 | 7125 | 27 | 27 | 0.35% | 0.38% |  |
| C | 7753 | 7125 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7753 | 7125 | 4 | 4 | 0.05% | 0.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 128 | 10995212 | 111929.95 | 473 | 463 | 98.2 |
| A | 15 | 234 | 7014 | 66.69 | 473 | 463 | 98.2 |
| A | 0 | 226 | 4305 | 39.11 | 473 | 463 | 98.2 |
| B | 10 | 16 | 155605 | 963.56 | 838 | 820 | 160.6 |
| B | 11 | 51 | 97821 | 603.85 | 838 | 820 | 160.6 |
| B | 0 | 214 | 72185 | 444.26 | 838 | 820 | 160.6 |
| C | 13 | 61 | 6303 | 29.2 | 803 | 805 | 188.3 |
| C | 5 | 128 | 2709 | 10.11 | 803 | 805 | 188.3 |
| C | 3 | 202 | 1967 | 6.17 | 803 | 805 | 188.3 |
| D | 12 | 233 | 113607 | 529.28 | 800 | 777 | 213.2 |
| D | 2 | 234 | 22513 | 101.96 | 800 | 777 | 213.2 |
| D | 2 | 14 | 14284 | 63.36 | 800 | 777 | 213.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

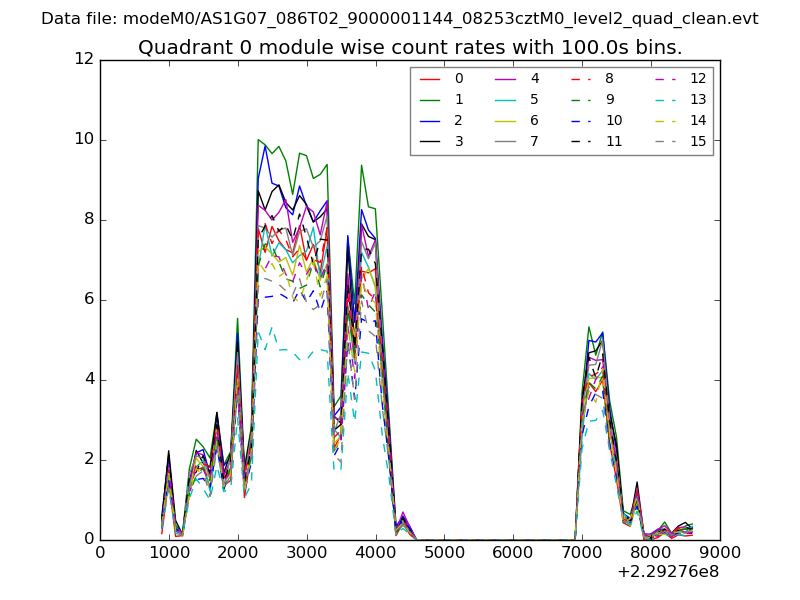

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

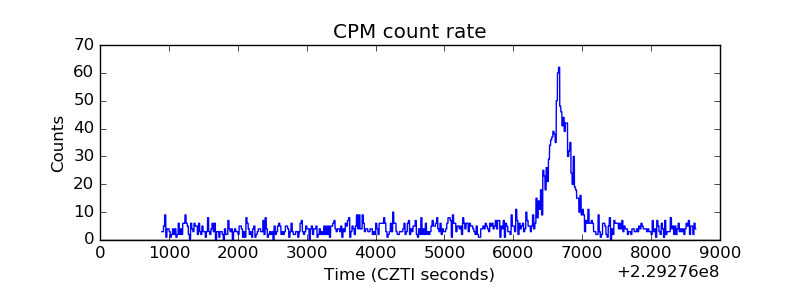

| _CPM_Rate |  |

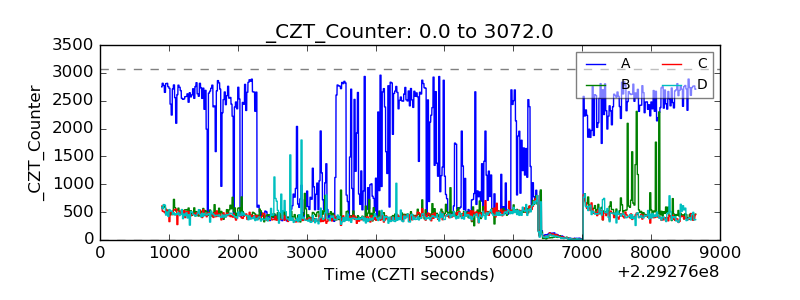

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

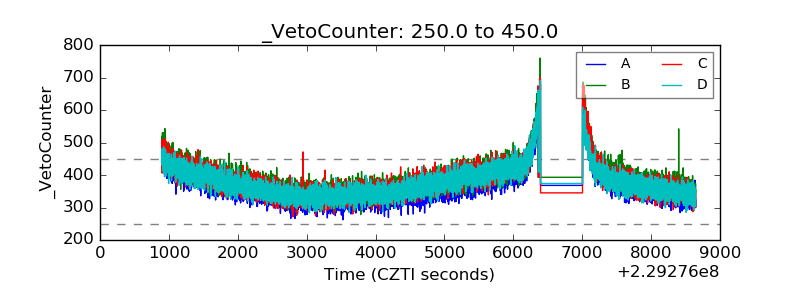

| Veto Counter |  |
