| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_086T02_9000001144_08254cztM0_level2.evt | modeM0/AS1G07_086T02_9000001144_08254cztM0_level2_quad_clean.evt |
| Size (bytes) | 933,762,240 | 85,622,400 |
| Size | 890.5 MB | 81.7 MB |
| Events in quadrant A | 17,218,163 | 190,721 |
| Events in quadrant B | 3,936,897 | 643,160 |
| Events in quadrant C | 3,327,829 | 629,704 |
| Events in quadrant D | 3,292,986 | 609,555 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 56278 | 2 |
| B | 0 | 16619 | 1 |
| C | 0 | 15330 | 1 |
| D | 0 | 15296 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7444 | 6147 | 82.576572% |
| B | 7444 | 139 | 1.867276% |
| C | 7444 | 31 | 0.416443% |
| D | 7444 | 20 | 0.268673% |

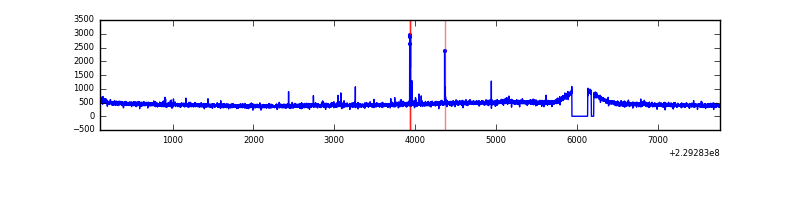

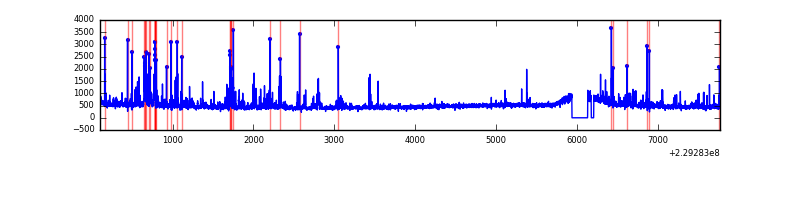

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7668 | 7443 | 5800 | 5800 | 75.64% | 77.93% |  |
| B | 7669 | 7446 | 35 | 35 | 0.46% | 0.47% |  |
| C | 7669 | 7446 | 4 | 4 | 0.05% | 0.05% |  |
| D | 7669 | 7446 | 1 | 1 | 0.01% | 0.01% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 128 | 15881138 | 229870.18 | 333 | 325 | 69.1 |
| A | 15 | 234 | 47339 | 680.51 | 333 | 325 | 69.1 |
| A | 13 | 248 | 4962 | 67.12 | 333 | 325 | 69.1 |
| B | 10 | 16 | 270408 | 1586.56 | 883 | 864 | 169.9 |
| B | 11 | 51 | 106074 | 619.28 | 883 | 864 | 169.9 |
| B | 0 | 214 | 69646 | 404.86 | 883 | 864 | 169.9 |
| C | 9 | 54 | 16237 | 77.4 | 846 | 849 | 198.8 |
| C | 5 | 128 | 12544 | 58.82 | 846 | 849 | 198.8 |
| C | 13 | 61 | 6490 | 28.37 | 846 | 849 | 198.8 |
| D | 12 | 233 | 52475 | 247.77 | 848 | 817 | 208.5 |
| D | 2 | 234 | 25218 | 117.03 | 848 | 817 | 208.5 |
| D | 2 | 14 | 16640 | 75.89 | 848 | 817 | 208.5 |

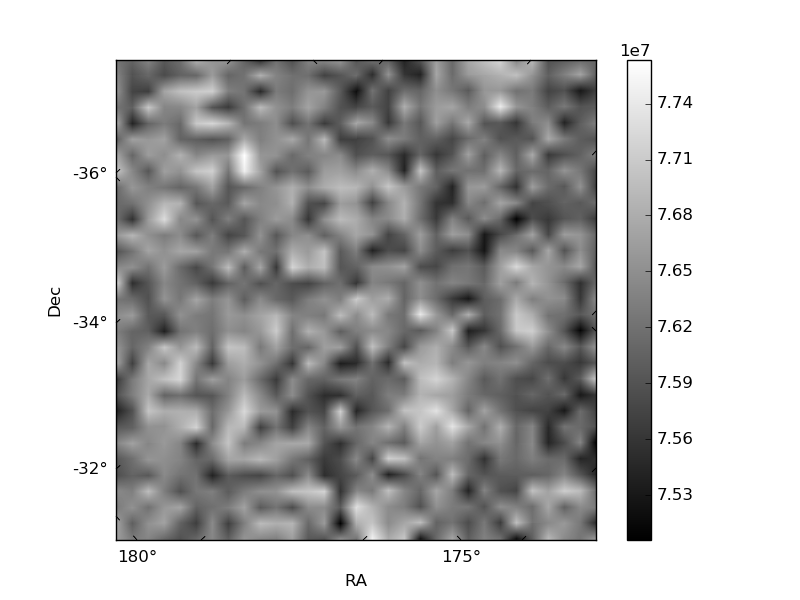

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

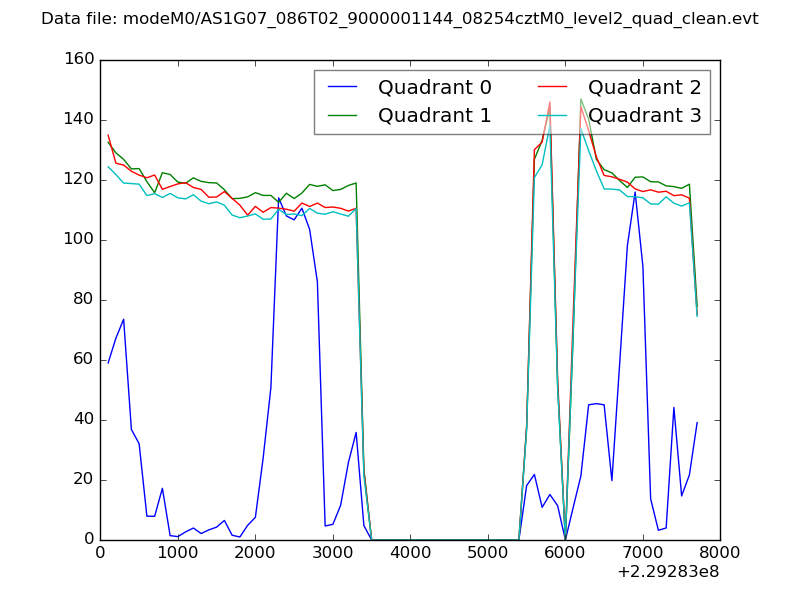

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

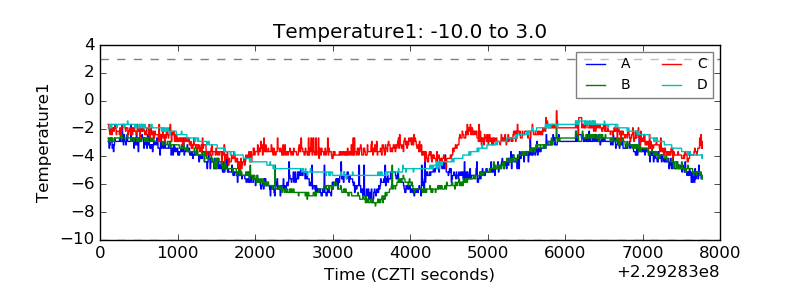

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

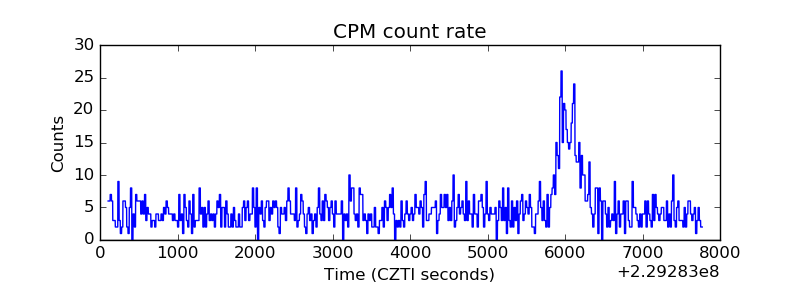

| _CPM_Rate |  |

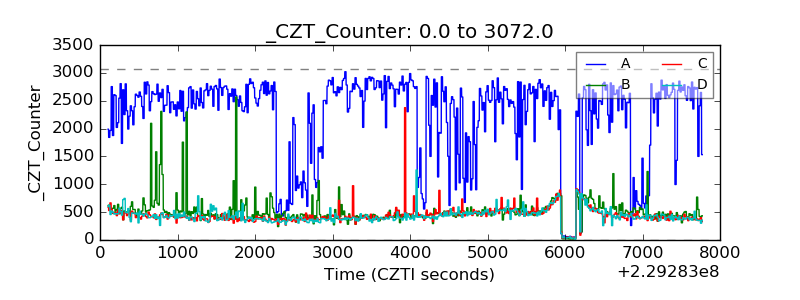

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

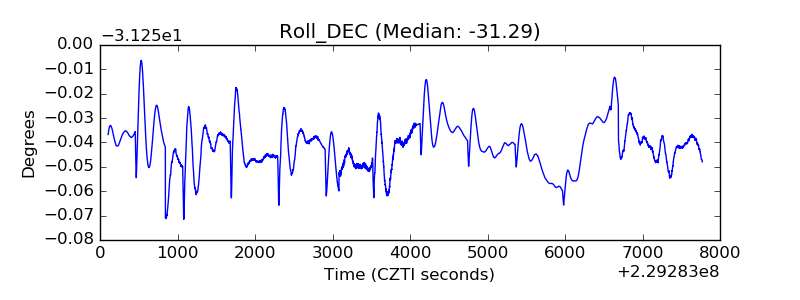

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
