| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_136T01_9000001148_08264cztM0_level2.evt | modeM0/AS1G06_136T01_9000001148_08264cztM0_level2_quad_clean.evt |
| Size (bytes) | 461,246,400 | 63,607,680 |
| Size | 439.9 MB | 60.7 MB |
| Events in quadrant A | 3,422,774 | 365,985 |
| Events in quadrant B | 3,383,265 | 377,166 |
| Events in quadrant C | 3,179,054 | 376,510 |
| Events in quadrant D | 3,554,866 | 365,327 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 20 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13928 | 3 |
| B | 0 | 13747 | 2 |
| C | 0 | 13226 | 2 |
| D | 0 | 14580 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6316 | 135 | 2.137429% |
| B | 6316 | 108 | 1.709943% |
| C | 6316 | 56 | 0.886637% |
| D | 6316 | 100 | 1.583281% |

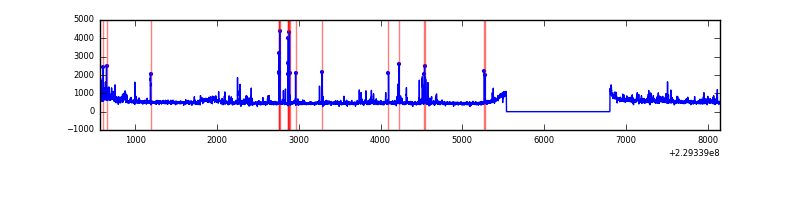

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7581 | 6316 | 43 | 43 | 0.57% | 0.68% |  |
| B | 7581 | 6316 | 9 | 9 | 0.12% | 0.14% |  |
| C | 7581 | 6317 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7581 | 6317 | 21 | 21 | 0.28% | 0.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 234 | 186295 | 1099.16 | 839 | 823 | 168.7 |
| A | 0 | 254 | 8155 | 43.45 | 839 | 823 | 168.7 |
| A | 0 | 226 | 7838 | 41.57 | 839 | 823 | 168.7 |
| B | 11 | 51 | 62085 | 383.48 | 841 | 825 | 159.7 |
| B | 0 | 214 | 37123 | 227.22 | 841 | 825 | 159.7 |
| B | 12 | 111 | 17117 | 101.99 | 841 | 825 | 159.7 |
| C | 13 | 61 | 6217 | 28.89 | 814 | 821 | 186.8 |
| C | 5 | 128 | 3225 | 12.87 | 814 | 821 | 186.8 |
| C | 3 | 202 | 2003 | 6.33 | 814 | 821 | 186.8 |
| D | 1 | 52 | 203112 | 1032.75 | 819 | 801 | 195.9 |
| D | 13 | 105 | 69031 | 348.3 | 819 | 801 | 195.9 |
| D | 2 | 152 | 59200 | 298.11 | 819 | 801 | 195.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file

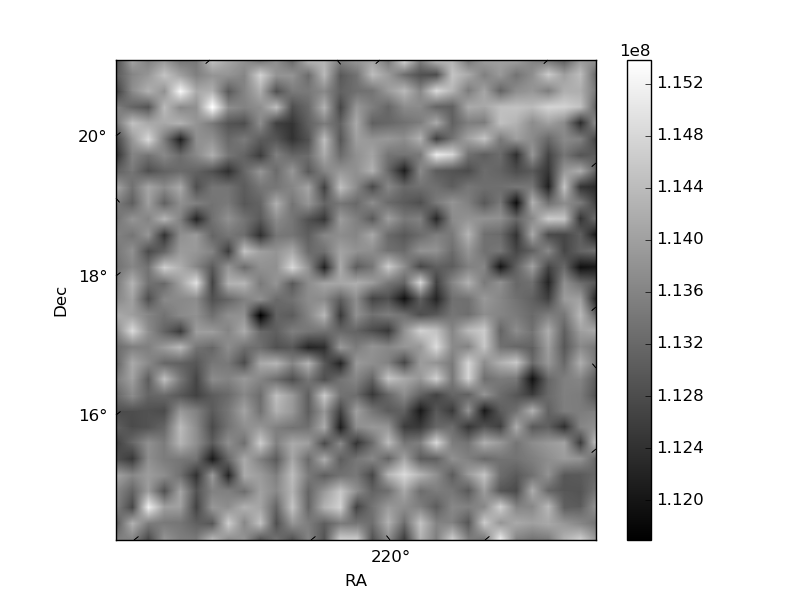

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|

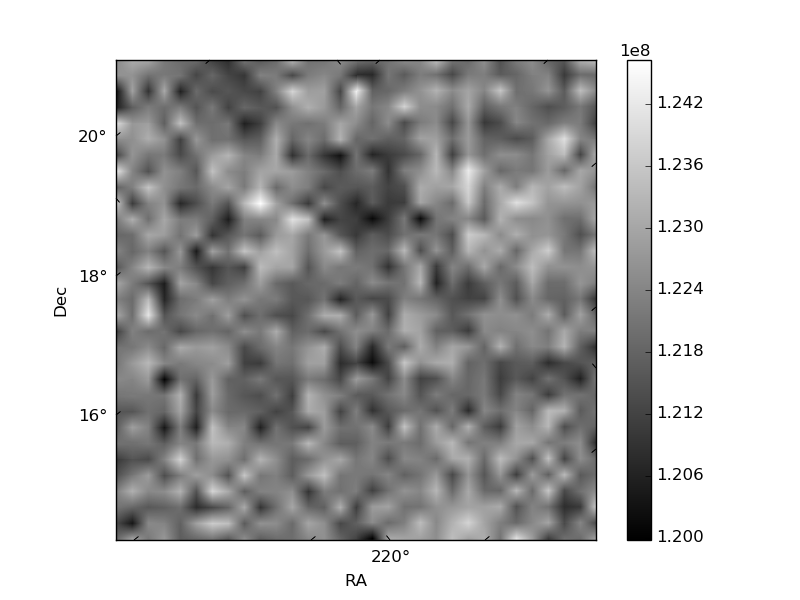

| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

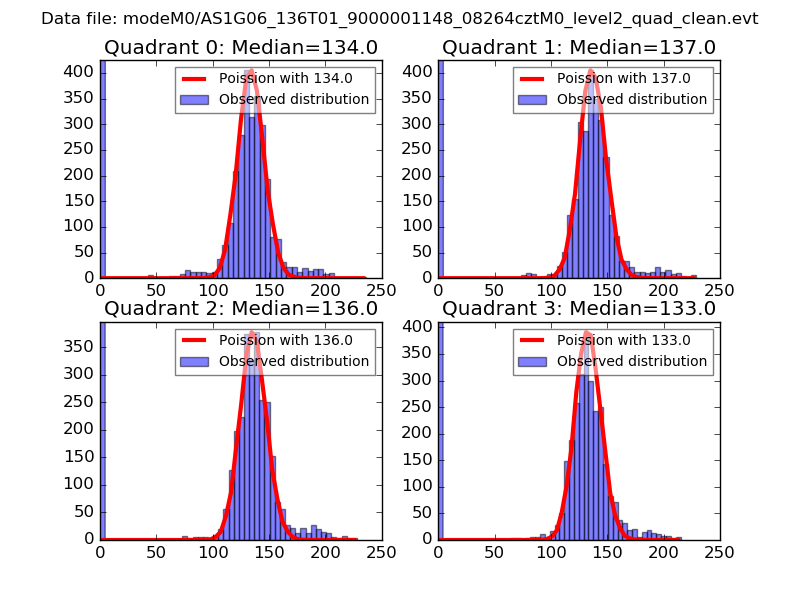

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

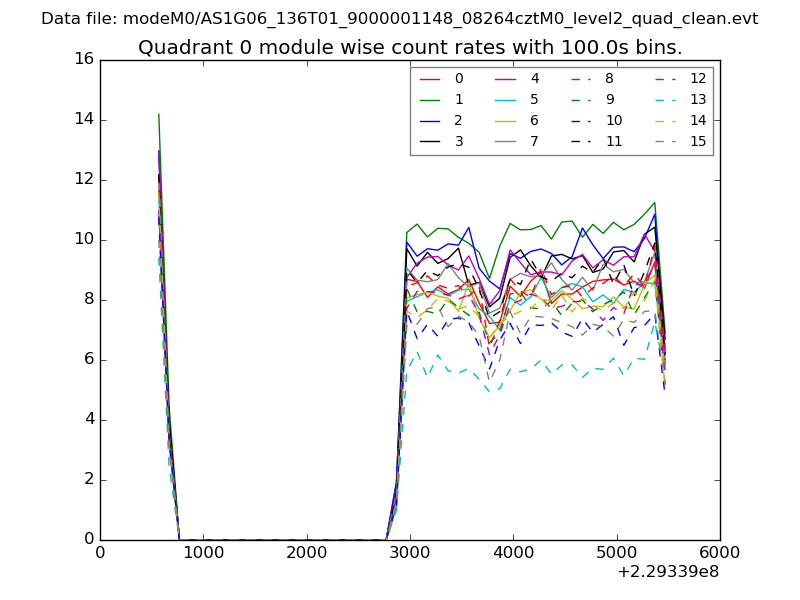

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

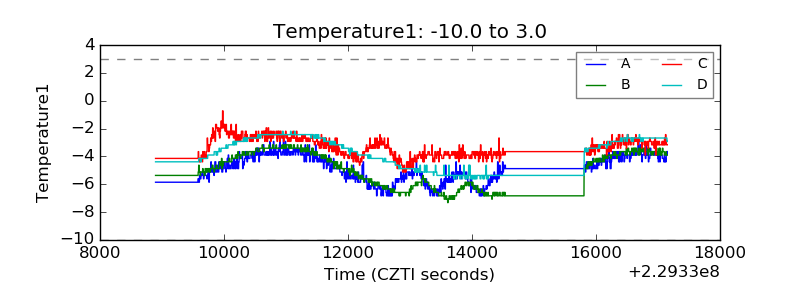

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

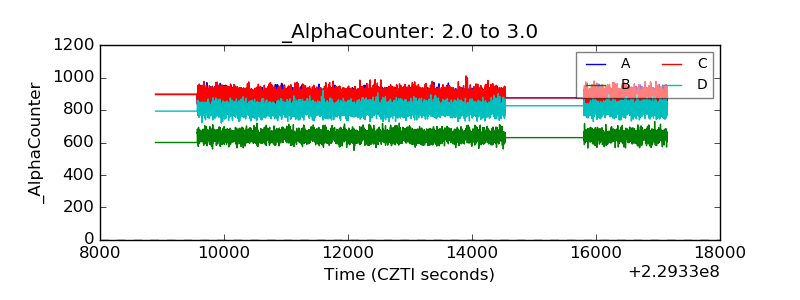

| Alpha Counter |  |

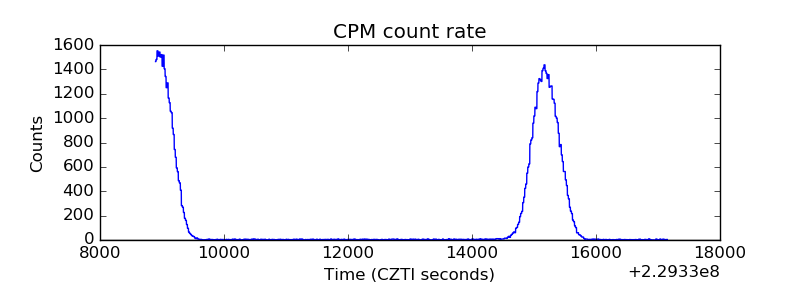

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
