| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_065T02_9000001150_08270cztM0_level2.evt | modeM0/AS1G07_065T02_9000001150_08270cztM0_level2_quad_clean.evt |
| Size (bytes) | 463,904,640 | 102,170,880 |
| Size | 442.4 MB | 97.4 MB |
| Events in quadrant A | 3,139,147 | 653,683 |
| Events in quadrant B | 3,466,721 | 661,790 |
| Events in quadrant C | 3,181,966 | 652,223 |
| Events in quadrant D | 3,768,474 | 621,745 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 2 |
| B | 0 | 6 | 1 |
| C | 0 | 7 | 3 |
| D | 0 | 6 | 2 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16195 | 1628 |
| B | 0 | 17121 | 1777 |
| C | 0 | 16381 | 1512 |
| D | 0 | 18120 | 1735 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 162 | 16 |
| B | 0 | 162 | 14 |
| C | 0 | 161 | 13 |
| D | 0 | 162 | 14 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7217 | 15 | 0.207843% |
| B | 7234 | 44 | 0.608239% |
| C | 7271 | 34 | 0.467611% |
| D | 7238 | 43 | 0.594087% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8540 | 7552 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8539 | 7526 | 15 | 15 | 0.18% | 0.20% |  |
| C | 8540 | 7580 | 25 | 25 | 0.29% | 0.33% |  |
| D | 8535 | 7557 | 45 | 45 | 0.53% | 0.60% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7550 | 40.66 | 813 | 793 | 166.2 |
| A | 12 | 194 | 7308 | 39.2 | 813 | 793 | 166.2 |
| A | 0 | 254 | 6959 | 37.1 | 813 | 793 | 166.2 |
| B | 0 | 214 | 129903 | 823.42 | 821 | 800 | 156.8 |
| B | 11 | 51 | 45463 | 284.86 | 821 | 800 | 156.8 |
| B | 10 | 16 | 32115 | 199.73 | 821 | 800 | 156.8 |
| C | 9 | 54 | 89058 | 479.16 | 792 | 794 | 184.2 |
| C | 13 | 61 | 6147 | 29.06 | 792 | 794 | 184.2 |
| C | 5 | 128 | 3355 | 13.9 | 792 | 794 | 184.2 |
| D | 1 | 52 | 346636 | 1697.03 | 780 | 760 | 203.8 |
| D | 13 | 105 | 135256 | 659.9 | 780 | 760 | 203.8 |
| D | 12 | 233 | 88467 | 430.33 | 780 | 760 | 203.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

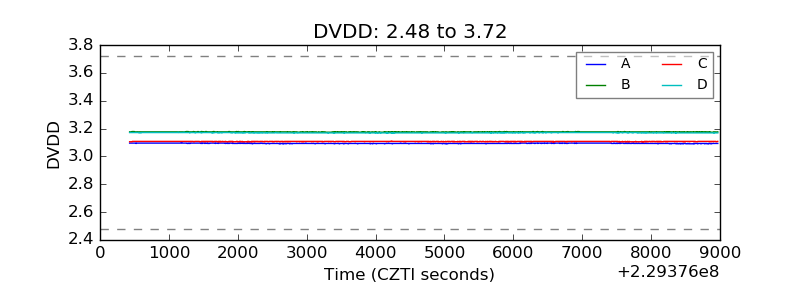

| D_VDD |  |

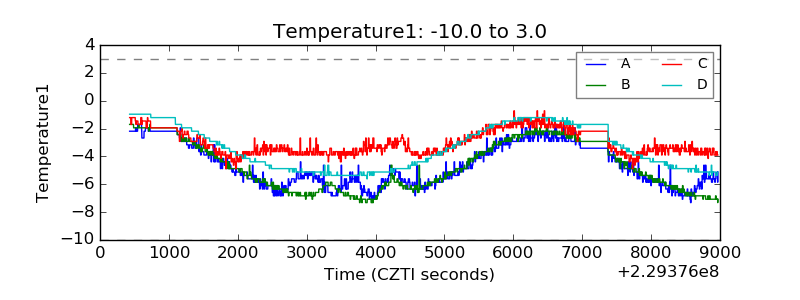

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

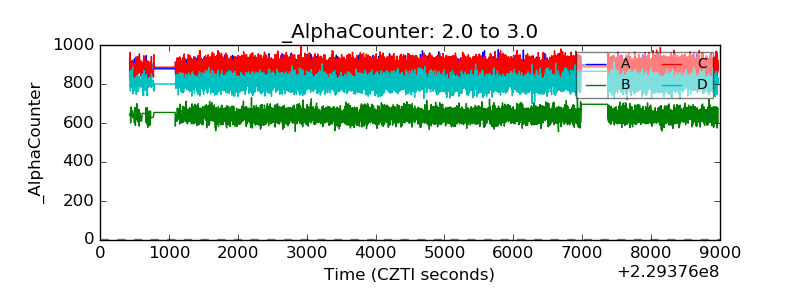

| Alpha Counter |  |

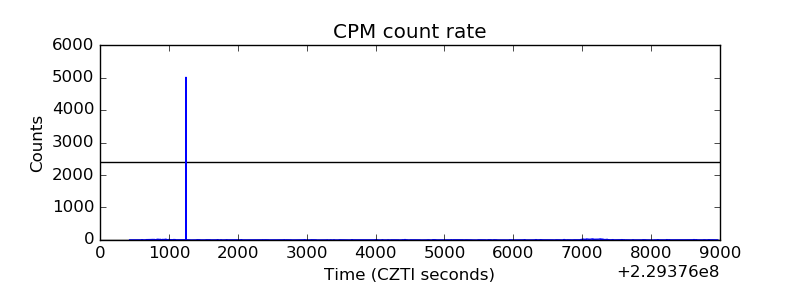

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
