| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_065T02_9000001150_08280cztM0_level2.evt | modeM0/AS1G07_065T02_9000001150_08280cztM0_level2_quad_clean.evt |
| Size (bytes) | 462,450,240 | 90,627,840 |
| Size | 441.0 MB | 86.4 MB |
| Events in quadrant A | 3,221,595 | 577,819 |
| Events in quadrant B | 3,336,709 | 589,604 |
| Events in quadrant C | 2,850,991 | 587,571 |
| Events in quadrant D | 4,174,442 | 556,495 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13621 | 2 |
| B | 0 | 13783 | 1 |
| C | 0 | 12731 | 1 |
| D | 0 | 16562 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6201 | 237 | 3.821964% |
| B | 6201 | 162 | 2.612482% |
| C | 6201 | 91 | 1.467505% |
| D | 6201 | 380 | 6.128044% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7376 | 6202 | 108 | 108 | 1.46% | 1.74% |  |
| B | 7376 | 6201 | 43 | 43 | 0.58% | 0.69% |  |
| C | 7376 | 6201 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7376 | 6202 | 221 | 221 | 3.00% | 3.56% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 234 | 329671 | 2207.05 | 741 | 724 | 149.0 |
| A | 13 | 248 | 30006 | 196.47 | 741 | 724 | 149.0 |
| A | 0 | 254 | 12400 | 78.34 | 741 | 724 | 149.0 |
| B | 0 | 214 | 173140 | 1224.86 | 749 | 731 | 140.8 |
| B | 11 | 51 | 88617 | 624.38 | 749 | 731 | 140.8 |
| B | 0 | 213 | 67348 | 473.27 | 749 | 731 | 140.8 |
| C | 9 | 54 | 12479 | 70.92 | 727 | 730 | 165.7 |
| C | 13 | 61 | 5406 | 28.23 | 727 | 730 | 165.7 |
| C | 1 | 3 | 4290 | 21.49 | 727 | 730 | 165.7 |
| D | 1 | 52 | 1024692 | 5751.26 | 711 | 694 | 178.0 |
| D | 12 | 233 | 96699 | 539.21 | 711 | 694 | 178.0 |
| D | 2 | 14 | 72573 | 403.7 | 711 | 694 | 178.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

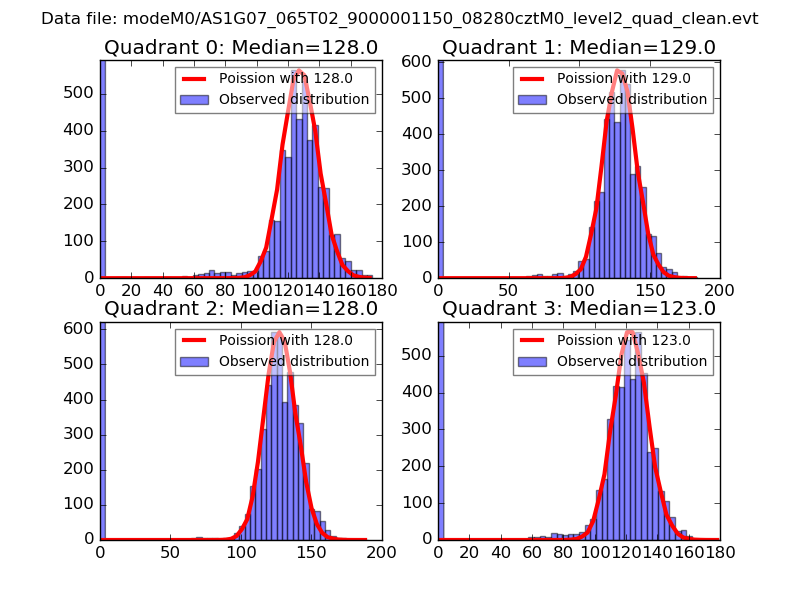

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

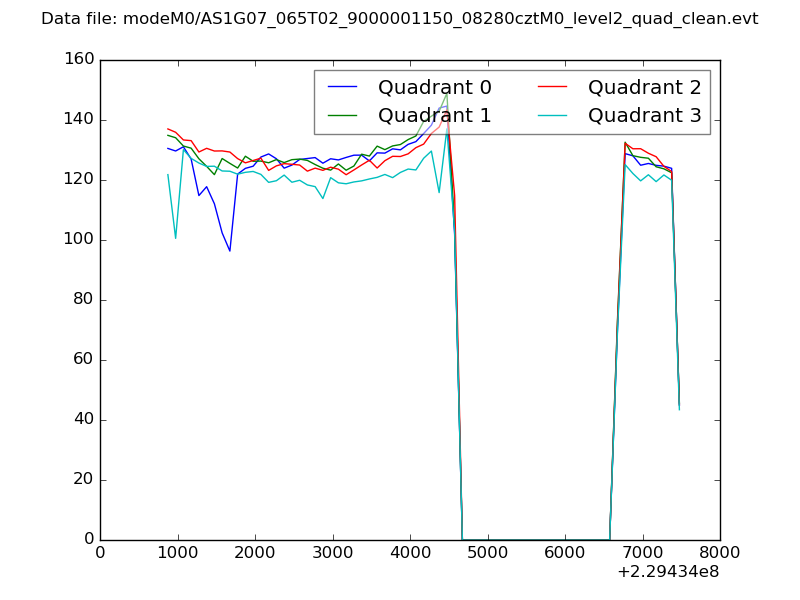

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

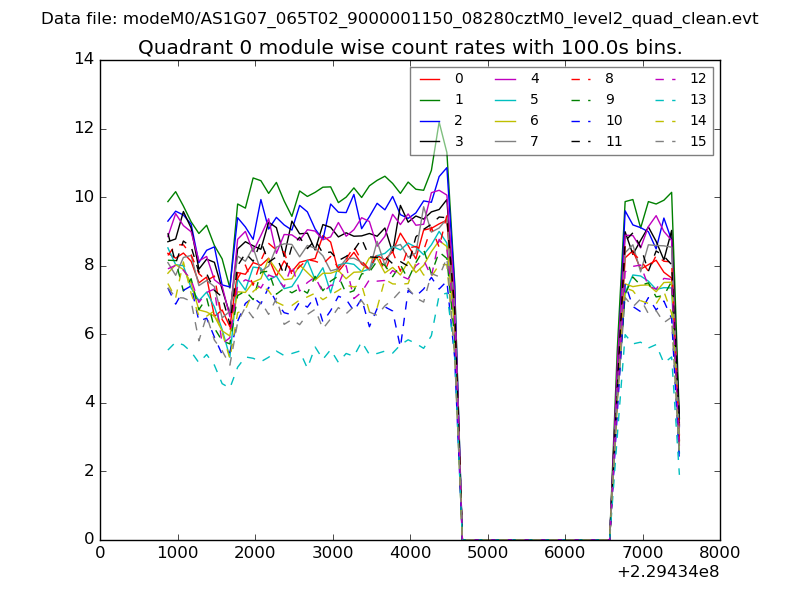

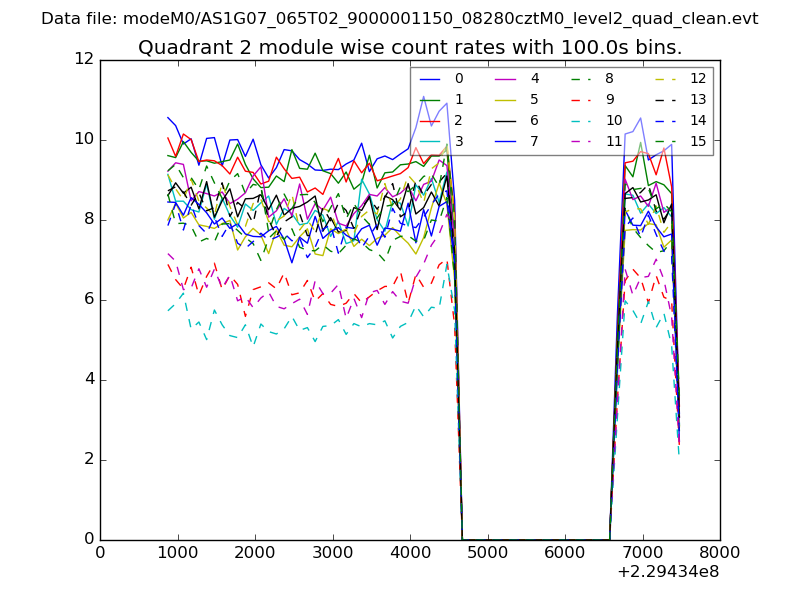

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

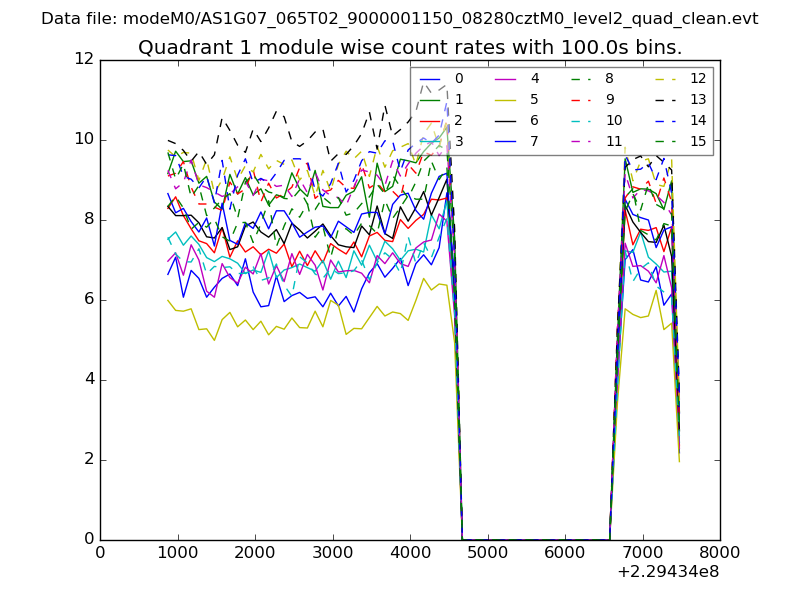

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

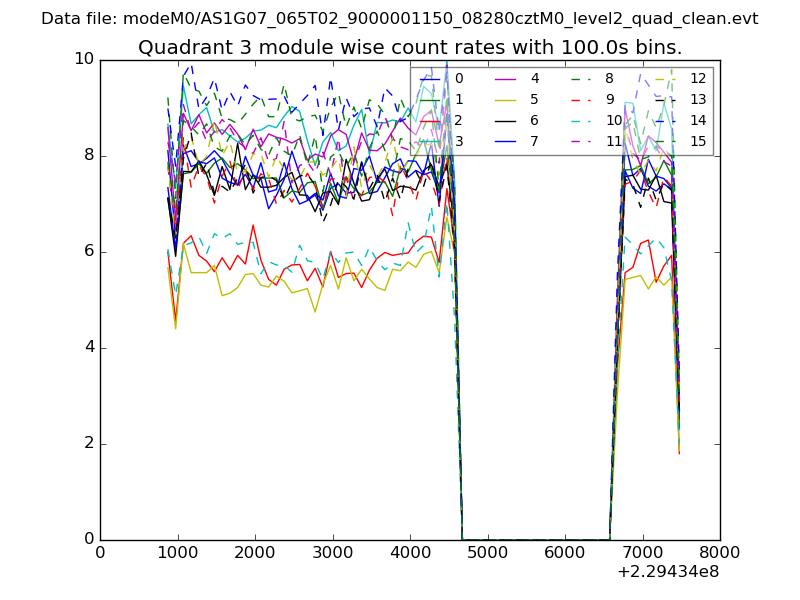

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

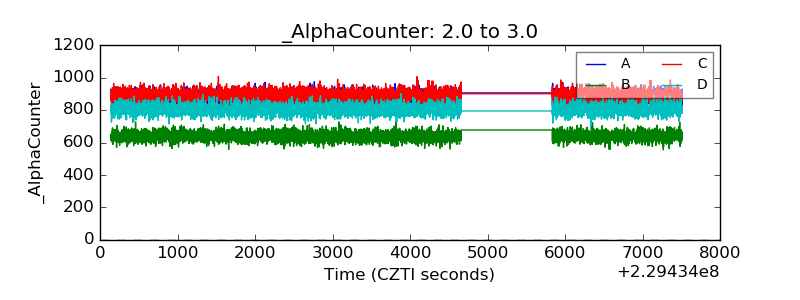

| Alpha Counter |  |

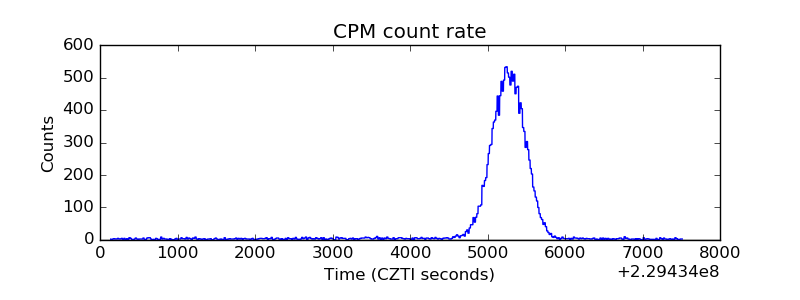

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

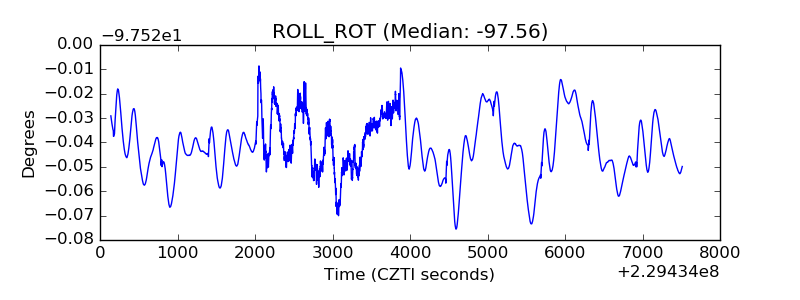

| _ROLL_ROT |  |

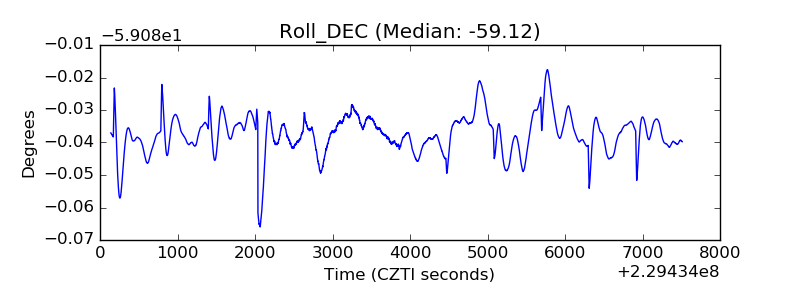

| _Roll_DEC |  |
| _Roll_RA |  |

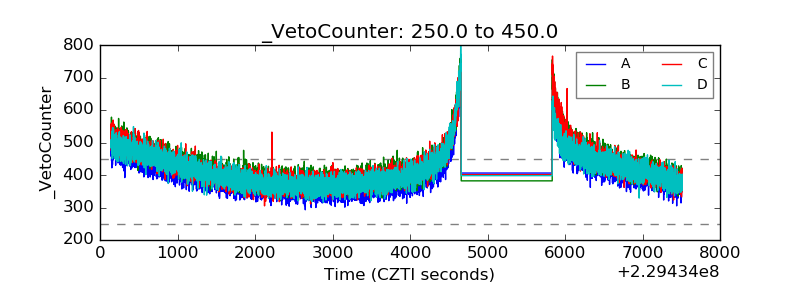

| Veto Counter |  |
