| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_065T02_9000001150_08281cztM0_level2.evt | modeM0/AS1G07_065T02_9000001150_08281cztM0_level2_quad_clean.evt |
| Size (bytes) | 404,110,080 | 98,818,560 |
| Size | 385.4 MB | 94.2 MB |
| Events in quadrant A | 2,737,704 | 650,999 |
| Events in quadrant B | 2,978,831 | 656,165 |
| Events in quadrant C | 2,661,080 | 646,108 |
| Events in quadrant D | 3,451,282 | 619,121 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12408 | 2 |
| B | 0 | 12862 | 1 |
| C | 0 | 12333 | 1 |
| D | 0 | 14469 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6019 | 103 | 1.711248% |
| B | 6019 | 124 | 2.060143% |
| C | 6019 | 68 | 1.129756% |
| D | 6019 | 203 | 3.372653% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

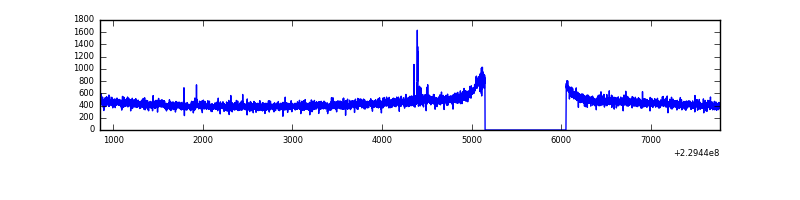

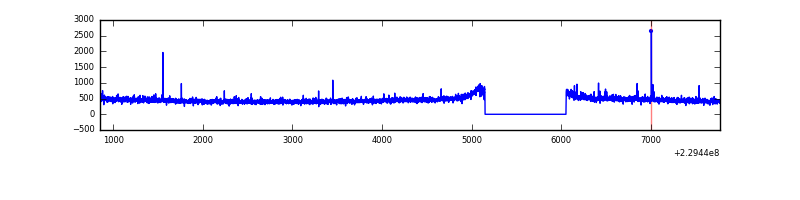

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6924 | 6019 | 1 | 1 | 0.01% | 0.02% |  |
| B | 6924 | 6019 | 13 | 13 | 0.19% | 0.22% |  |
| C | 6924 | 6019 | 0 | 0 | 0.00% | 0.00% |  |
| D | 6924 | 6020 | 113 | 113 | 1.63% | 1.88% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 27324 | 186.9 | 701 | 686 | 142.5 |
| A | 0 | 254 | 7811 | 49.99 | 701 | 686 | 142.5 |
| A | 0 | 226 | 6787 | 42.81 | 701 | 686 | 142.5 |
| B | 0 | 214 | 129102 | 964.47 | 703 | 685 | 133.1 |
| B | 11 | 51 | 72040 | 535.91 | 703 | 685 | 133.1 |
| B | 0 | 213 | 25019 | 182.76 | 703 | 685 | 133.1 |
| C | 9 | 54 | 16092 | 98.97 | 678 | 679 | 155.7 |
| C | 13 | 61 | 5166 | 28.81 | 678 | 679 | 155.7 |
| C | 1 | 3 | 1723 | 6.7 | 678 | 679 | 155.7 |
| D | 1 | 52 | 750858 | 4656.33 | 666 | 647 | 161.1 |
| D | 2 | 152 | 56418 | 346.15 | 666 | 647 | 161.1 |
| D | 13 | 122 | 47463 | 290.57 | 666 | 647 | 161.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

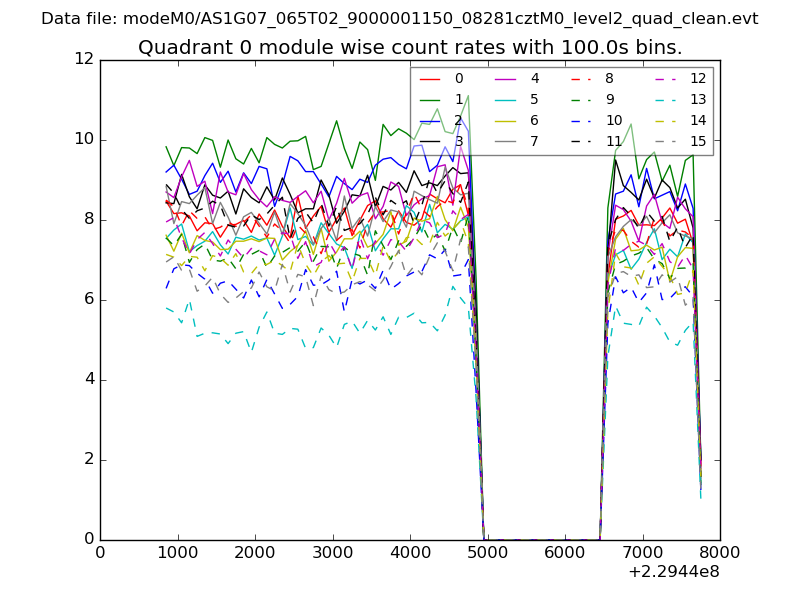

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

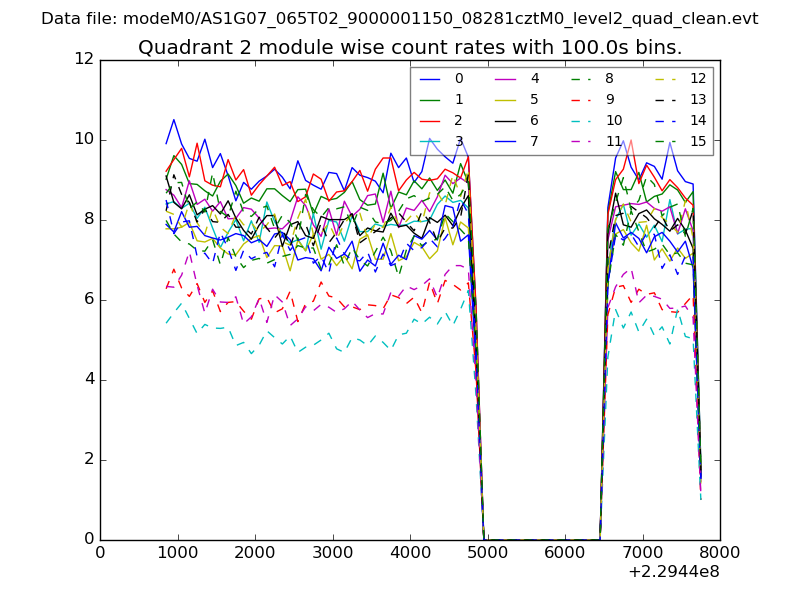

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

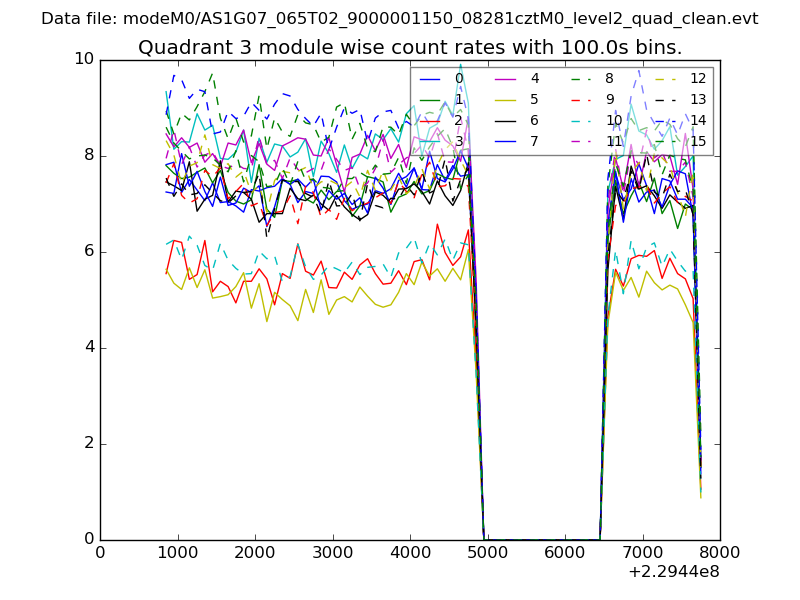

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

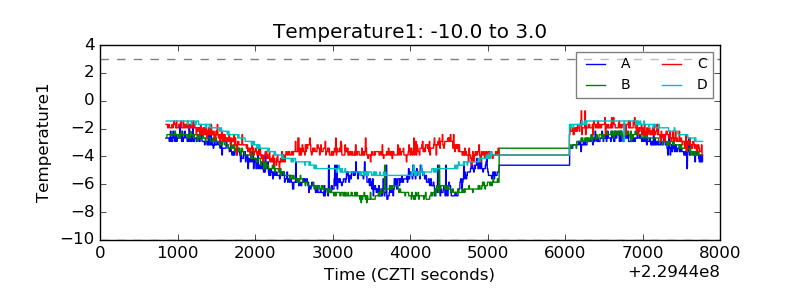

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

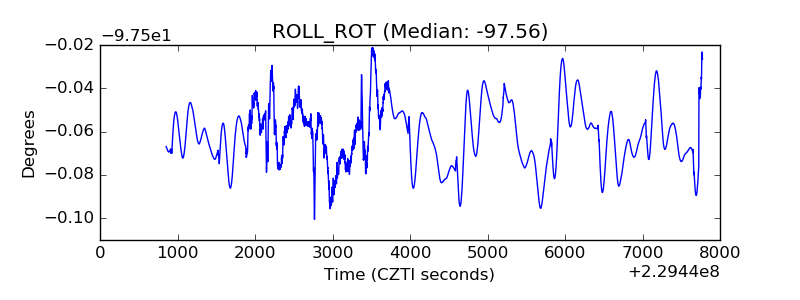

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

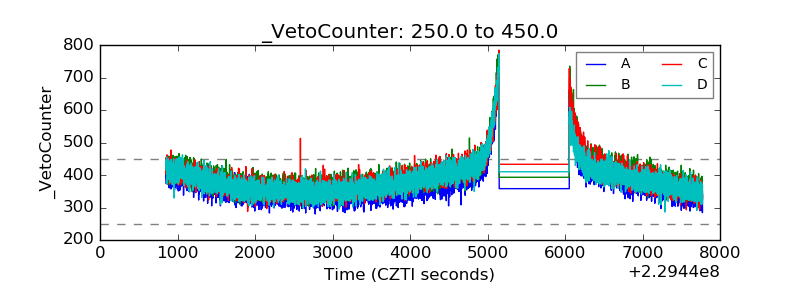

| Veto Counter |  |
