| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_065T02_9000001150_08282cztM0_level2.evt | modeM0/AS1G07_065T02_9000001150_08282cztM0_level2_quad_clean.evt |
| Size (bytes) | 448,804,800 | 103,602,240 |
| Size | 428.0 MB | 98.8 MB |
| Events in quadrant A | 2,983,733 | 675,279 |
| Events in quadrant B | 3,239,735 | 681,362 |
| Events in quadrant C | 2,961,268 | 670,529 |
| Events in quadrant D | 3,947,393 | 638,957 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13783 | 2 |
| B | 0 | 14189 | 1 |
| C | 0 | 13793 | 1 |
| D | 0 | 16478 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6762 | 46 | 0.680272% |
| B | 6762 | 63 | 0.931677% |
| C | 6762 | 19 | 0.280982% |
| D | 6762 | 115 | 1.700680% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7317 | 6763 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7317 | 6763 | 7 | 7 | 0.10% | 0.10% |  |
| C | 7317 | 6763 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7317 | 6763 | 66 | 66 | 0.90% | 0.98% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7345 | 41.6 | 773 | 757 | 158.4 |
| A | 12 | 194 | 6826 | 38.32 | 773 | 757 | 158.4 |
| A | 0 | 254 | 6771 | 37.98 | 773 | 757 | 158.4 |
| B | 11 | 51 | 70924 | 474.9 | 778 | 759 | 147.7 |
| B | 0 | 214 | 68797 | 460.5 | 778 | 759 | 147.7 |
| B | 4 | 81 | 37331 | 247.53 | 778 | 759 | 147.7 |
| C | 9 | 54 | 38274 | 217.36 | 749 | 751 | 172.6 |
| C | 13 | 61 | 5904 | 29.85 | 749 | 751 | 172.6 |
| C | 3 | 202 | 1883 | 6.56 | 749 | 751 | 172.6 |
| D | 1 | 52 | 418739 | 2344.4 | 742 | 720 | 178.3 |
| D | 8 | 230 | 209860 | 1172.93 | 742 | 720 | 178.3 |
| D | 2 | 152 | 189438 | 1058.4 | 742 | 720 | 178.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

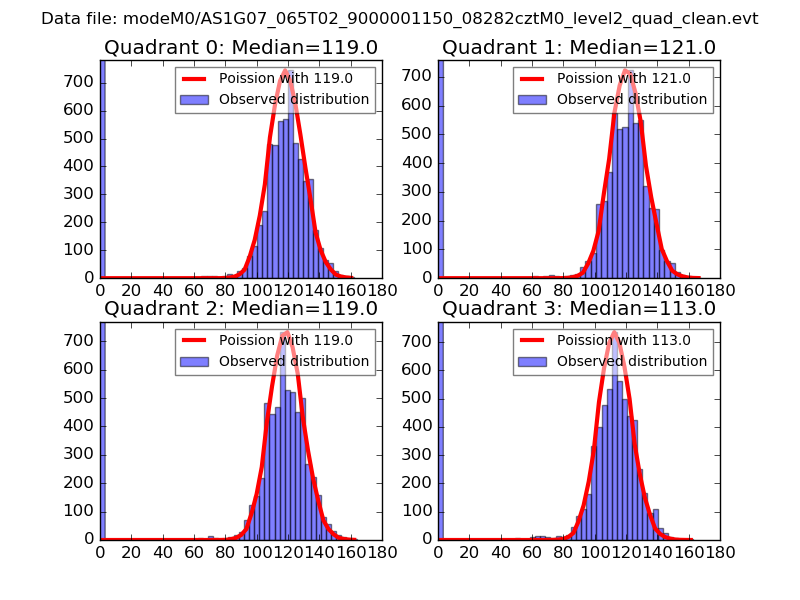

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

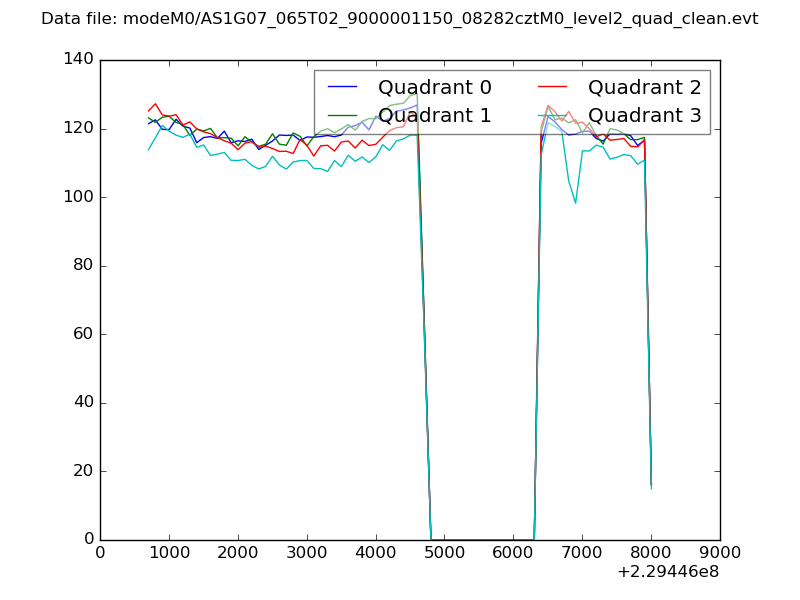

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

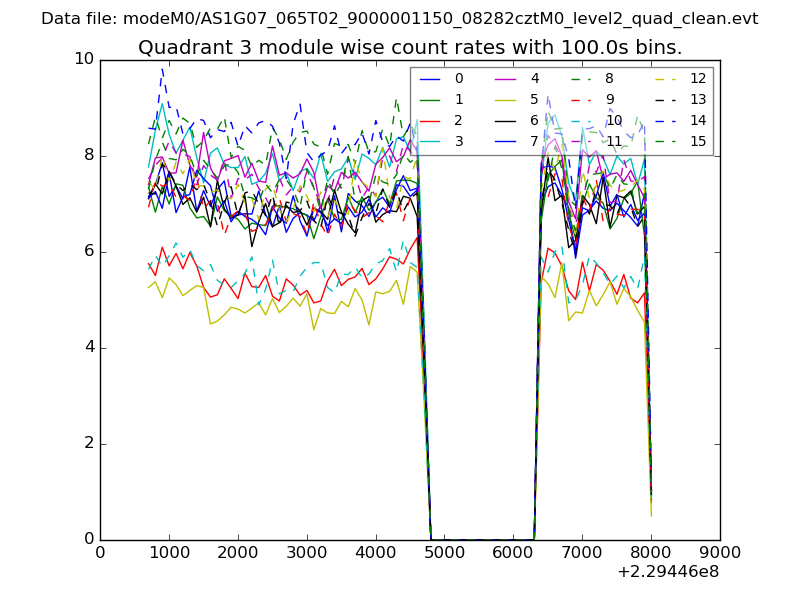

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

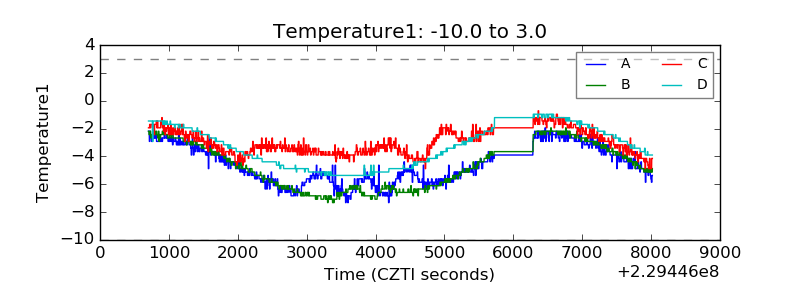

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

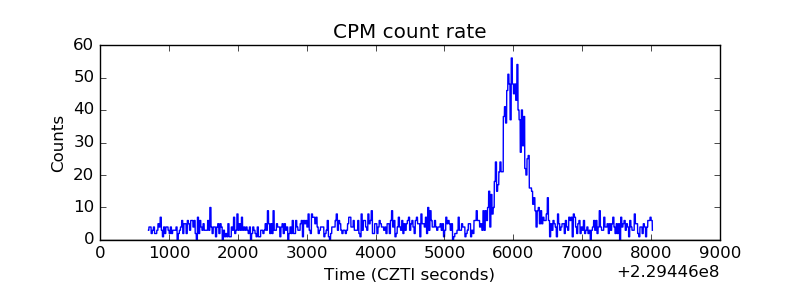

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
