| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_065T02_9000001150_08283cztM0_level2.evt | modeM0/AS1G07_065T02_9000001150_08283cztM0_level2_quad_clean.evt |
| Size (bytes) | 475,090,560 | 104,791,680 |
| Size | 453.1 MB | 99.9 MB |
| Events in quadrant A | 3,245,765 | 675,730 |
| Events in quadrant B | 3,538,818 | 679,168 |
| Events in quadrant C | 3,232,270 | 667,801 |
| Events in quadrant D | 3,870,544 | 638,301 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15056 | 2 |
| B | 0 | 15591 | 1 |
| C | 0 | 15095 | 1 |
| D | 0 | 17038 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7371 | 38 | 0.515534% |
| B | 7371 | 98 | 1.329535% |
| C | 7371 | 17 | 0.230634% |
| D | 7371 | 123 | 1.668702% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7596 | 7373 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7596 | 7373 | 17 | 17 | 0.22% | 0.23% |  |
| C | 7596 | 7373 | 5 | 5 | 0.07% | 0.07% |  |
| D | 7596 | 7373 | 68 | 68 | 0.90% | 0.92% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 254 | 17555 | 97.42 | 839 | 818 | 171.8 |
| A | 0 | 226 | 7900 | 41.22 | 839 | 818 | 171.8 |
| A | 12 | 194 | 7544 | 39.15 | 839 | 818 | 171.8 |
| B | 11 | 51 | 101929 | 628.9 | 845 | 825 | 160.8 |
| B | 4 | 81 | 54407 | 333.3 | 845 | 825 | 160.8 |
| B | 0 | 214 | 52617 | 322.16 | 845 | 825 | 160.8 |
| C | 9 | 54 | 56477 | 295.95 | 812 | 812 | 188.1 |
| C | 13 | 61 | 6235 | 28.83 | 812 | 812 | 188.1 |
| C | 12 | 4 | 3578 | 14.71 | 812 | 812 | 188.1 |
| D | 8 | 230 | 172608 | 870.25 | 806 | 778 | 197.4 |
| D | 7 | 71 | 152008 | 765.92 | 806 | 778 | 197.4 |
| D | 2 | 152 | 148414 | 747.72 | 806 | 778 | 197.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

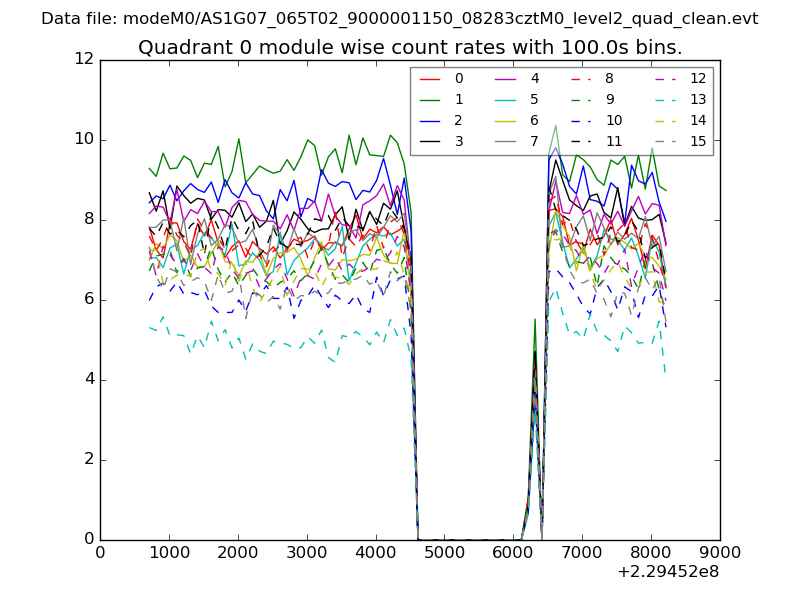

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

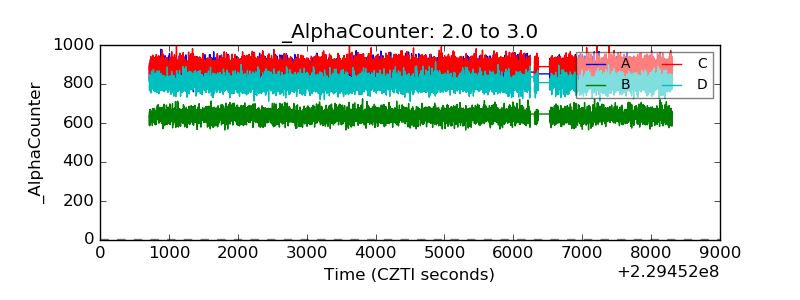

| Alpha Counter |  |

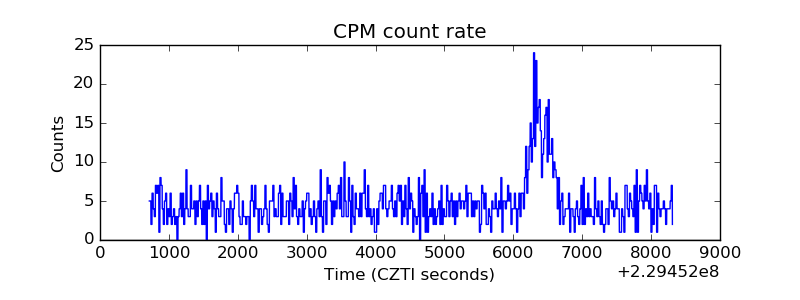

| _CPM_Rate |  |

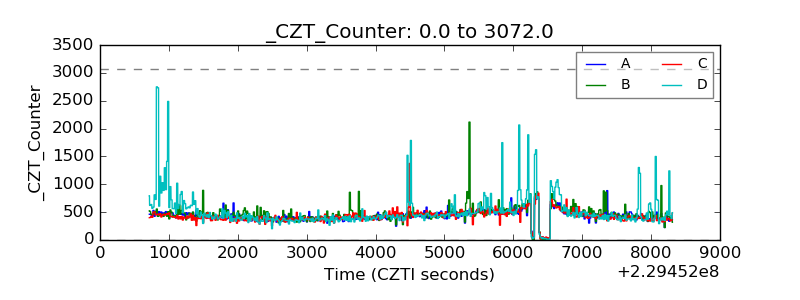

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

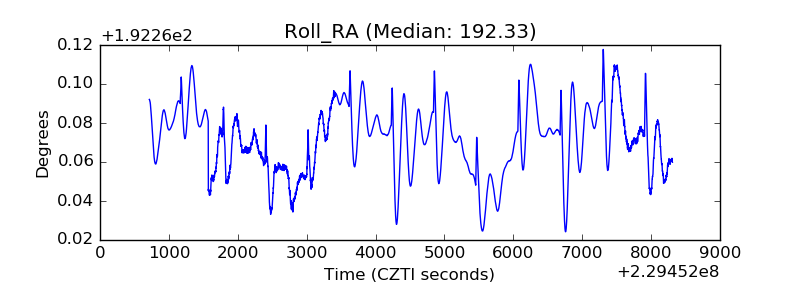

| _Roll_RA |  |
| Veto Counter |  |
