| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_163T01_9000001152_08289cztM0_level2.evt | modeM0/AS1T01_163T01_9000001152_08289cztM0_level2_quad_clean.evt |
| Size (bytes) | 421,519,680 | 59,042,880 |
| Size | 402.0 MB | 56.3 MB |
| Events in quadrant A | 2,999,282 | 339,792 |
| Events in quadrant B | 3,172,053 | 342,116 |
| Events in quadrant C | 2,953,029 | 335,685 |
| Events in quadrant D | 3,207,695 | 324,796 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13080 | 2 |
| B | 0 | 13447 | 3 |
| C | 0 | 13103 | 1 |
| D | 0 | 13866 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6383 | 25 | 0.391665% |
| B | 6382 | 50 | 0.783453% |
| C | 6383 | 10 | 0.156666% |
| D | 6383 | 30 | 0.469998% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7473 | 6384 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7473 | 6384 | 16 | 16 | 0.21% | 0.25% |  |
| C | 7473 | 6384 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7473 | 6384 | 17 | 17 | 0.23% | 0.27% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 254 | 18311 | 111.1 | 770 | 753 | 158.0 |
| A | 13 | 248 | 12822 | 76.37 | 770 | 753 | 158.0 |
| A | 0 | 226 | 7381 | 41.94 | 770 | 753 | 158.0 |
| B | 10 | 16 | 94570 | 635.24 | 774 | 757 | 147.7 |
| B | 0 | 214 | 42667 | 283.79 | 774 | 757 | 147.7 |
| B | 12 | 111 | 16223 | 104.73 | 774 | 757 | 147.7 |
| C | 9 | 54 | 59836 | 343.12 | 742 | 747 | 172.2 |
| C | 13 | 61 | 5738 | 28.98 | 742 | 747 | 172.2 |
| C | 3 | 202 | 1859 | 6.46 | 742 | 747 | 172.2 |
| D | 8 | 230 | 164605 | 884.37 | 736 | 716 | 185.3 |
| D | 2 | 152 | 78536 | 419.93 | 736 | 716 | 185.3 |
| D | 7 | 71 | 73900 | 394.91 | 736 | 716 | 185.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

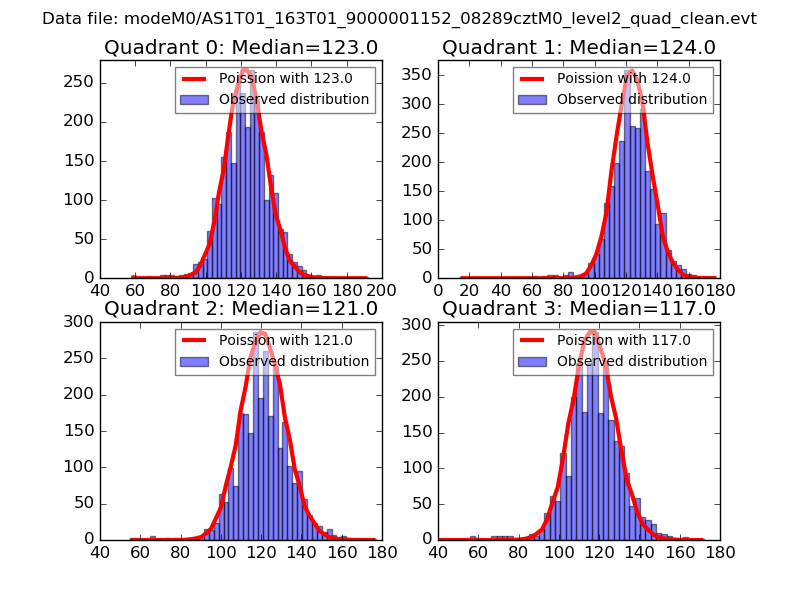

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
