| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_163T01_9000001152_08291cztM0_level2.evt | modeM0/AS1T01_163T01_9000001152_08291cztM0_level2_quad_clean.evt |
| Size (bytes) | 447,497,280 | 65,920,320 |
| Size | 426.8 MB | 62.9 MB |
| Events in quadrant A | 3,252,569 | 392,141 |
| Events in quadrant B | 3,406,729 | 393,133 |
| Events in quadrant C | 3,131,526 | 384,041 |
| Events in quadrant D | 3,318,688 | 372,040 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13690 | 3 |
| B | 0 | 14082 | 2 |
| C | 0 | 13539 | 2 |
| D | 0 | 14097 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6517 | 65 | 0.997391% |
| B | 6517 | 81 | 1.242903% |
| C | 6517 | 37 | 0.567746% |
| D | 6517 | 57 | 0.874636% |

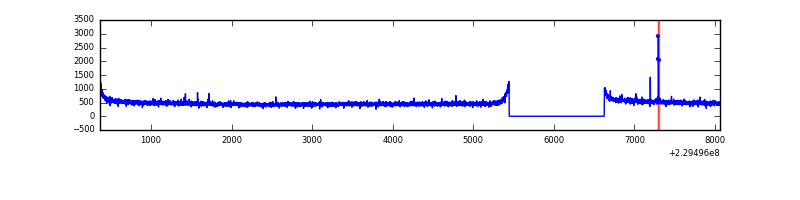

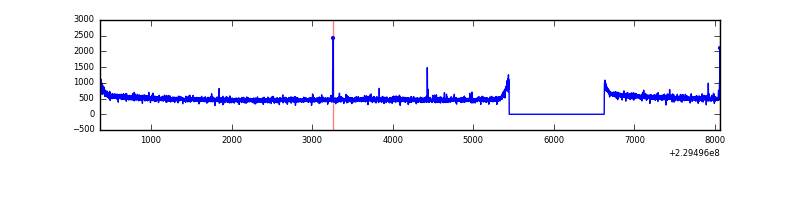

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7697 | 6518 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7697 | 6518 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7697 | 6518 | 3 | 3 | 0.04% | 0.05% |  |
| D | 7697 | 6517 | 13 | 13 | 0.17% | 0.20% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 14 | 19510 | 110.62 | 835 | 819 | 169.0 |
| A | 13 | 248 | 15694 | 88.04 | 835 | 819 | 169.0 |
| A | 13 | 251 | 9059 | 48.77 | 835 | 819 | 169.0 |
| B | 0 | 214 | 88866 | 553.1 | 836 | 816 | 159.2 |
| B | 10 | 16 | 31948 | 195.56 | 836 | 816 | 159.2 |
| B | 12 | 111 | 16941 | 101.29 | 836 | 816 | 159.2 |
| C | 9 | 54 | 24816 | 129.52 | 797 | 800 | 185.4 |
| C | 13 | 61 | 6188 | 29.06 | 797 | 800 | 185.4 |
| C | 3 | 202 | 2013 | 6.54 | 797 | 800 | 185.4 |
| D | 2 | 152 | 78995 | 387.43 | 793 | 772 | 201.9 |
| D | 7 | 71 | 34390 | 166.51 | 793 | 772 | 201.9 |
| D | 12 | 233 | 32534 | 157.32 | 793 | 772 | 201.9 |

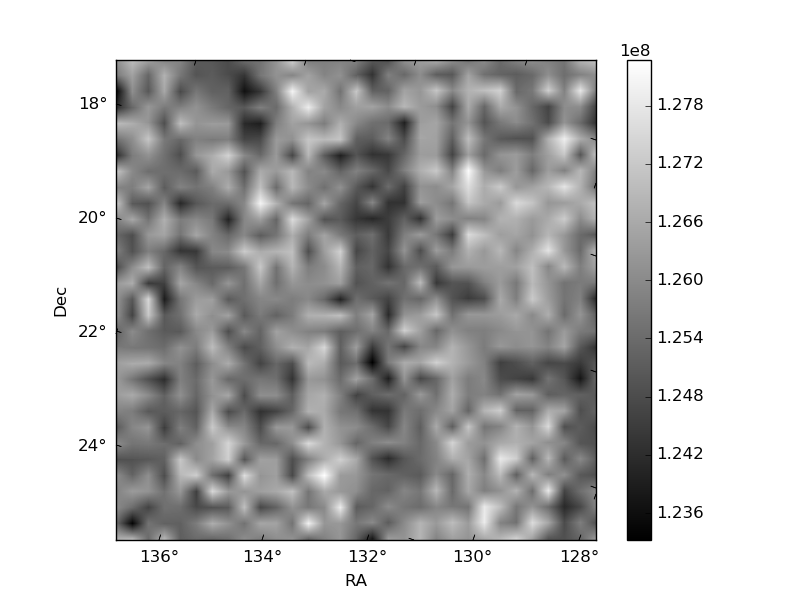

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

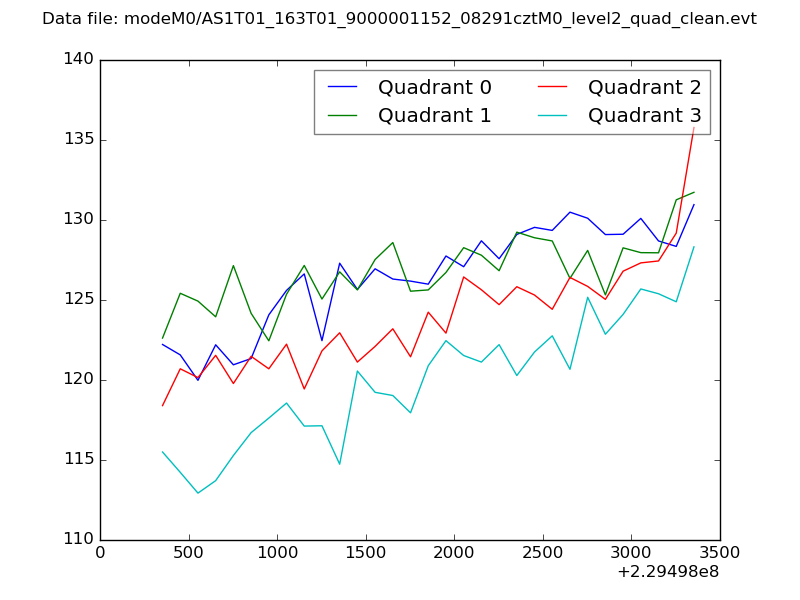

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

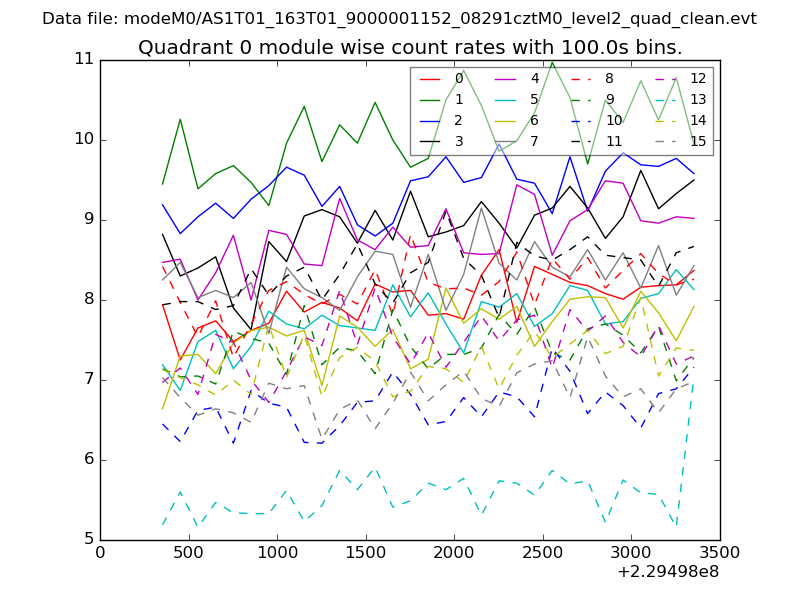

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

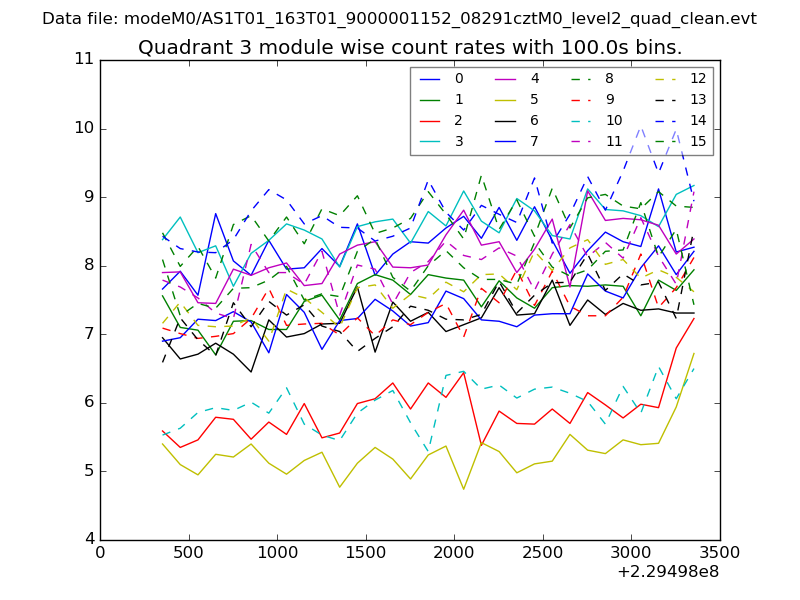

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

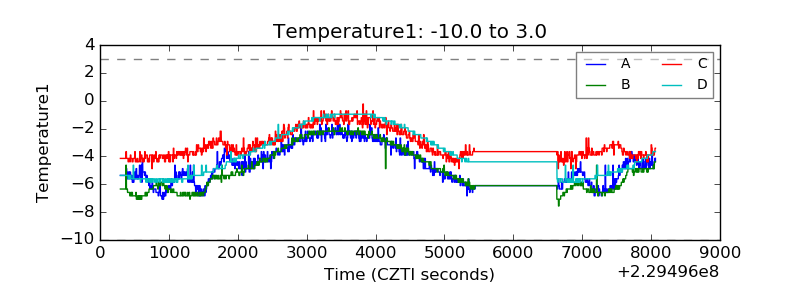

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

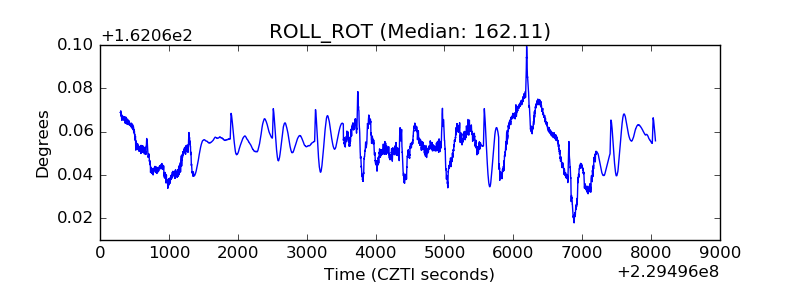

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
