| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_163T01_9000001152_08296cztM0_level2.evt | modeM0/AS1T01_163T01_9000001152_08296cztM0_level2_quad_clean.evt |
| Size (bytes) | 507,562,560 | 91,255,680 |
| Size | 484.0 MB | 87.0 MB |
| Events in quadrant A | 3,925,341 | 580,866 |
| Events in quadrant B | 3,326,486 | 589,625 |
| Events in quadrant C | 3,033,053 | 576,442 |
| Events in quadrant D | 4,633,806 | 551,210 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16202 | 2 |
| B | 0 | 14269 | 1 |
| C | 0 | 13725 | 1 |
| D | 0 | 18547 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6674 | 147 | 2.202577% |
| B | 6674 | 108 | 1.618220% |
| C | 6674 | 56 | 0.839077% |
| D | 6674 | 268 | 4.015583% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7389 | 6674 | 6 | 6 | 0.08% | 0.09% |  |
| B | 7389 | 6675 | 1 | 1 | 0.01% | 0.01% |  |
| C | 7389 | 6675 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7389 | 6675 | 73 | 73 | 0.99% | 1.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 23 | 771733 | 4677.7 | 802 | 784 | 164.8 |
| A | 0 | 226 | 59835 | 358.29 | 802 | 784 | 164.8 |
| A | 15 | 234 | 10273 | 57.57 | 802 | 784 | 164.8 |
| B | 0 | 214 | 130164 | 844.54 | 802 | 783 | 153.2 |
| B | 11 | 51 | 26437 | 167.46 | 802 | 783 | 153.2 |
| B | 10 | 16 | 24338 | 153.76 | 802 | 783 | 153.2 |
| C | 1 | 3 | 8713 | 43.95 | 774 | 780 | 180.5 |
| C | 13 | 61 | 5806 | 27.84 | 774 | 780 | 180.5 |
| C | 5 | 128 | 2778 | 11.07 | 774 | 780 | 180.5 |
| D | 1 | 52 | 1293267 | 6791.99 | 774 | 750 | 190.3 |
| D | 8 | 230 | 183929 | 962.58 | 774 | 750 | 190.3 |
| D | 12 | 221 | 115284 | 601.86 | 774 | 750 | 190.3 |

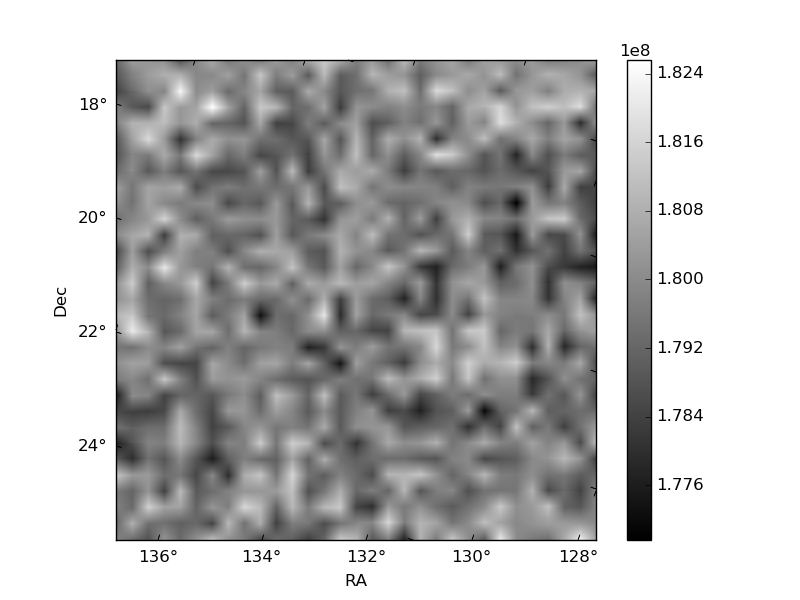

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

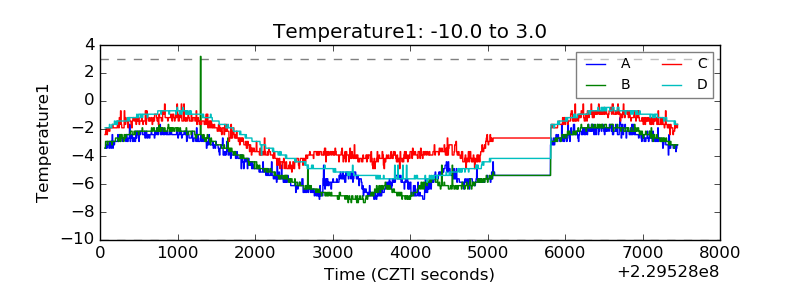

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

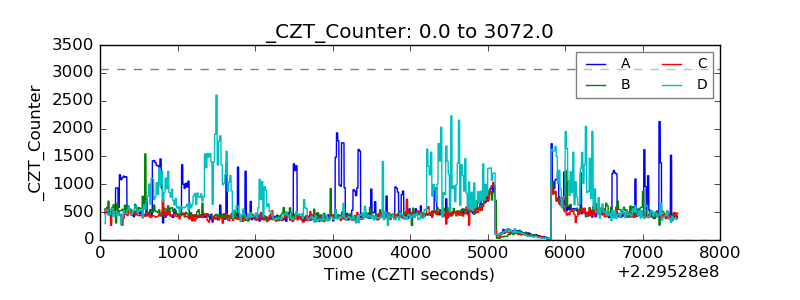

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

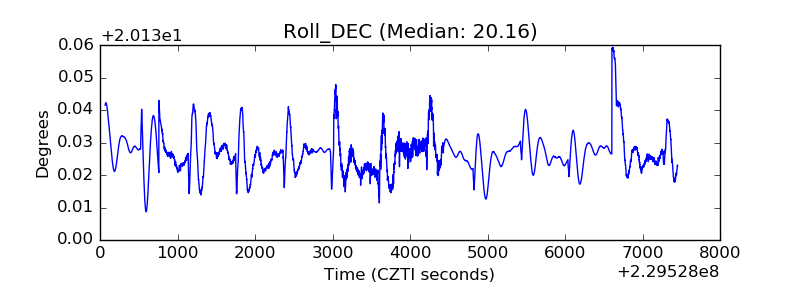

| _Roll_DEC |  |

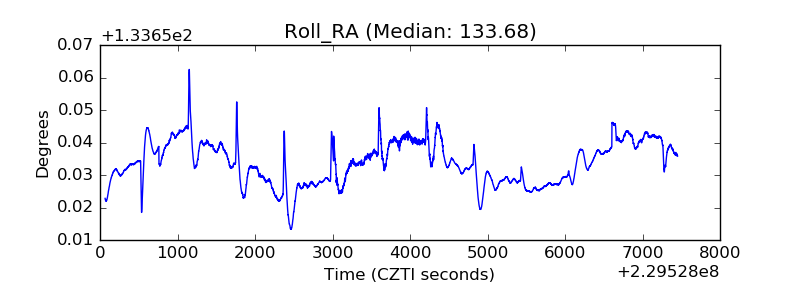

| _Roll_RA |  |
| Veto Counter |  |
