| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_163T01_9000001152_08298cztM0_level2.evt | modeM0/AS1T01_163T01_9000001152_08298cztM0_level2_quad_clean.evt |
| Size (bytes) | 523,071,360 | 106,882,560 |
| Size | 498.8 MB | 101.9 MB |
| Events in quadrant A | 4,007,041 | 679,263 |
| Events in quadrant B | 3,835,505 | 688,122 |
| Events in quadrant C | 3,666,061 | 675,945 |
| Events in quadrant D | 3,803,972 | 652,286 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17297 | 3 |
| B | 0 | 16641 | 2 |
| C | 0 | 16462 | 2 |
| D | 0 | 16921 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 158 | 0 |
| B | 0 | 158 | 0 |
| C | 0 | 158 | 0 |
| D | 0 | 158 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7780 | 202 | 2.596401% |
| B | 7780 | 195 | 2.506427% |
| C | 7780 | 85 | 1.092545% |
| D | 7781 | 129 | 1.657885% |

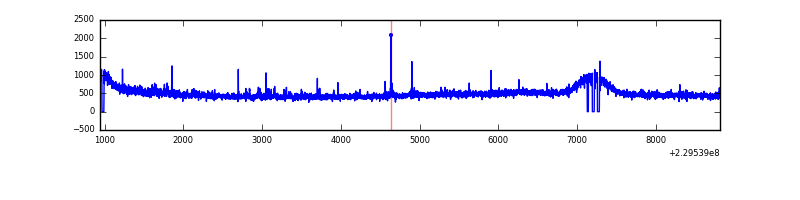

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7870 | 7784 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7870 | 7783 | 1 | 1 | 0.01% | 0.01% |  |
| C | 7870 | 7784 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7871 | 7785 | 19 | 19 | 0.24% | 0.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 23 | 214175 | 1077.24 | 953 | 930 | 198.0 |
| A | 15 | 234 | 80674 | 402.84 | 953 | 930 | 198.0 |
| A | 0 | 226 | 23971 | 116.4 | 953 | 930 | 198.0 |
| B | 0 | 214 | 49635 | 261.44 | 958 | 933 | 186.3 |
| B | 12 | 111 | 19304 | 98.62 | 958 | 933 | 186.3 |
| B | 4 | 48 | 16199 | 81.95 | 958 | 933 | 186.3 |
| C | 9 | 54 | 51700 | 233.45 | 924 | 925 | 217.5 |
| C | 13 | 61 | 7051 | 28.16 | 924 | 925 | 217.5 |
| C | 8 | 128 | 3732 | 12.9 | 924 | 925 | 217.5 |
| D | 12 | 233 | 86058 | 355.69 | 928 | 902 | 239.4 |
| D | 2 | 14 | 82165 | 339.43 | 928 | 902 | 239.4 |
| D | 2 | 234 | 30181 | 122.3 | 928 | 902 | 239.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

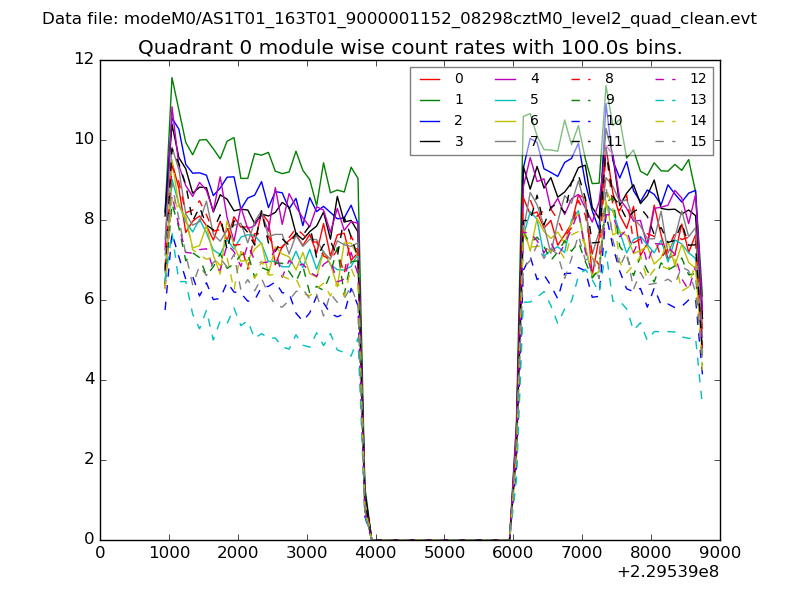

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

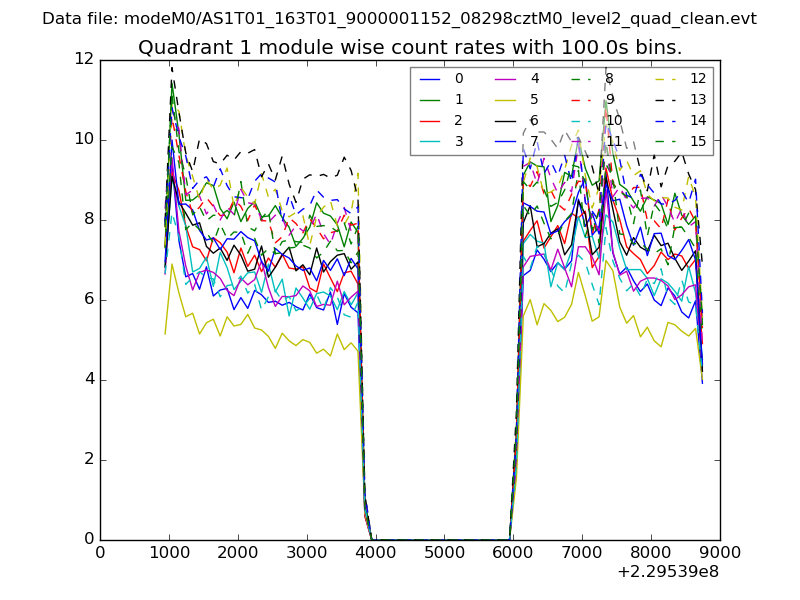

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

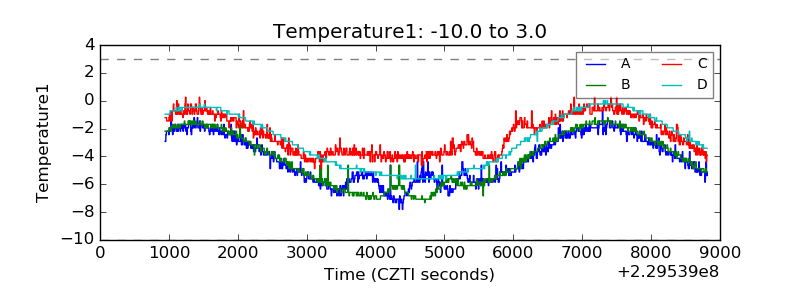

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

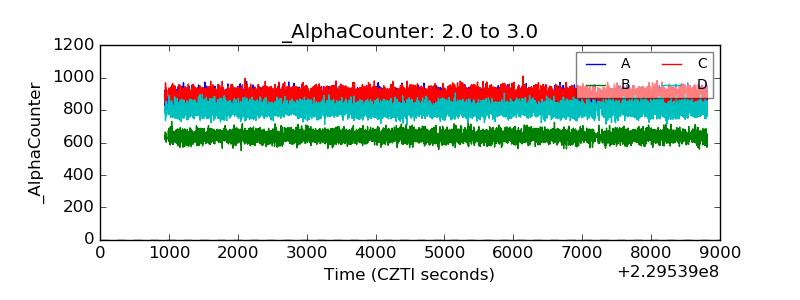

| Alpha Counter |  |

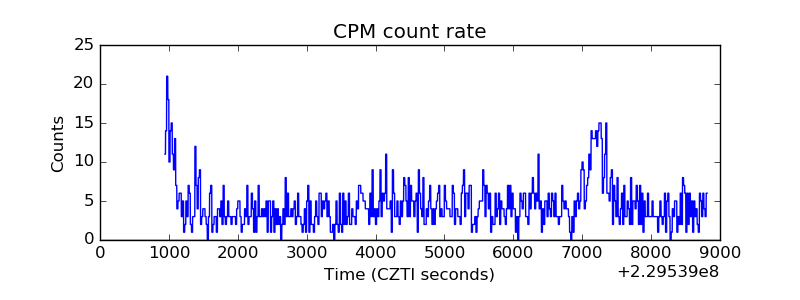

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

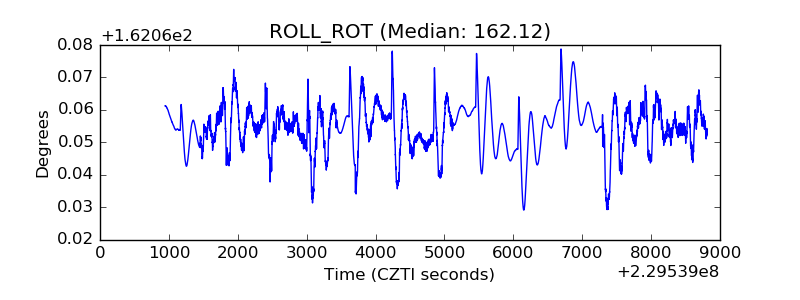

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
