| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_163T01_9000001152_08299cztM0_level2.evt | modeM0/AS1T01_163T01_9000001152_08299cztM0_level2_quad_clean.evt |
| Size (bytes) | 456,791,040 | 95,175,360 |
| Size | 435.6 MB | 90.8 MB |
| Events in quadrant A | 3,378,091 | 599,026 |
| Events in quadrant B | 3,382,878 | 605,674 |
| Events in quadrant C | 3,255,699 | 594,764 |
| Events in quadrant D | 3,323,050 | 576,729 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15125 | 3 |
| B | 0 | 14971 | 1 |
| C | 0 | 14887 | 1 |
| D | 0 | 15234 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7266 | 42 | 0.578035% |
| B | 7266 | 42 | 0.578035% |
| C | 7266 | 15 | 0.206441% |
| D | 7266 | 27 | 0.371594% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7613 | 7268 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7613 | 7268 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7613 | 7268 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7613 | 7268 | 14 | 14 | 0.18% | 0.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 234 | 79392 | 455.03 | 836 | 818 | 172.7 |
| A | 5 | 112 | 39969 | 226.73 | 836 | 818 | 172.7 |
| A | 13 | 251 | 21295 | 118.59 | 836 | 818 | 172.7 |
| B | 0 | 214 | 33320 | 200.93 | 840 | 818 | 161.8 |
| B | 4 | 81 | 19902 | 117.98 | 840 | 818 | 161.8 |
| B | 0 | 229 | 18007 | 106.27 | 840 | 818 | 161.8 |
| C | 10 | 9 | 31873 | 163.87 | 813 | 818 | 189.5 |
| C | 9 | 54 | 27989 | 143.38 | 813 | 818 | 189.5 |
| C | 8 | 128 | 12244 | 60.29 | 813 | 818 | 189.5 |
| D | 2 | 14 | 80280 | 393.98 | 814 | 790 | 201.8 |
| D | 12 | 233 | 43414 | 211.26 | 814 | 790 | 201.8 |
| D | 1 | 52 | 29940 | 144.48 | 814 | 790 | 201.8 |

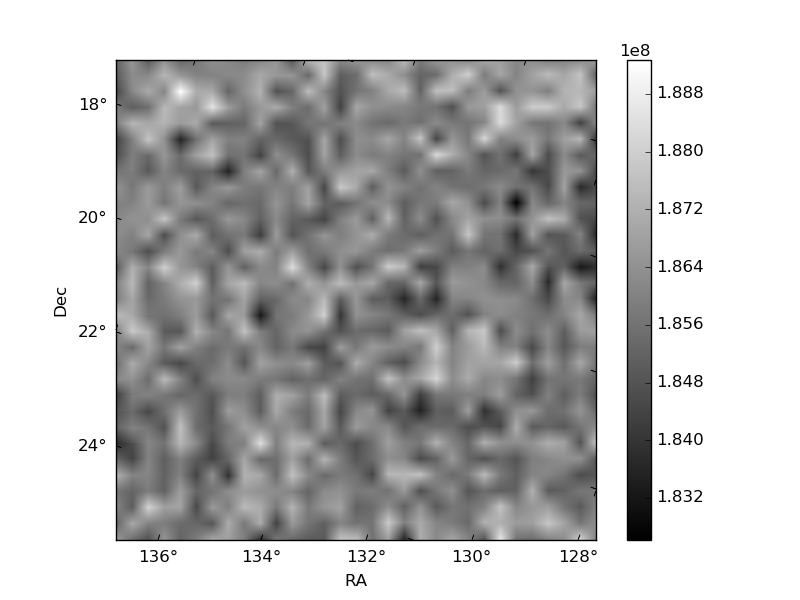

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

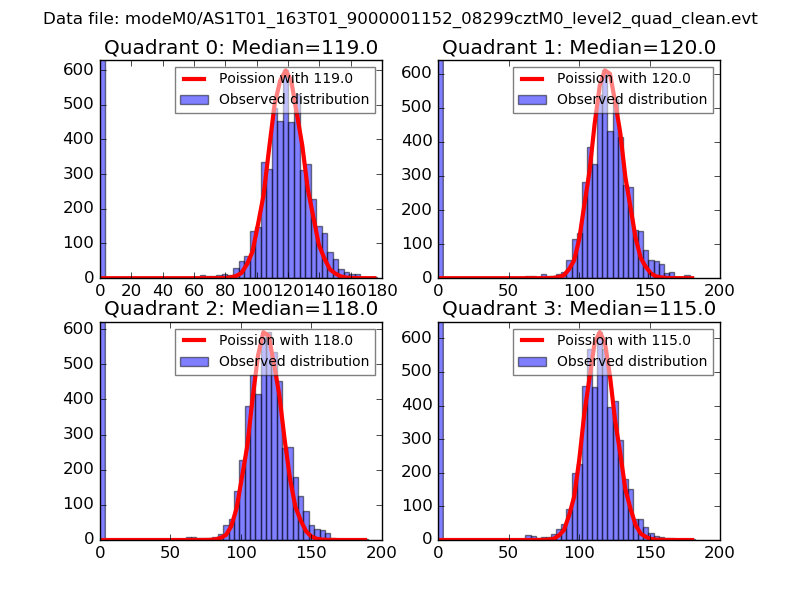

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

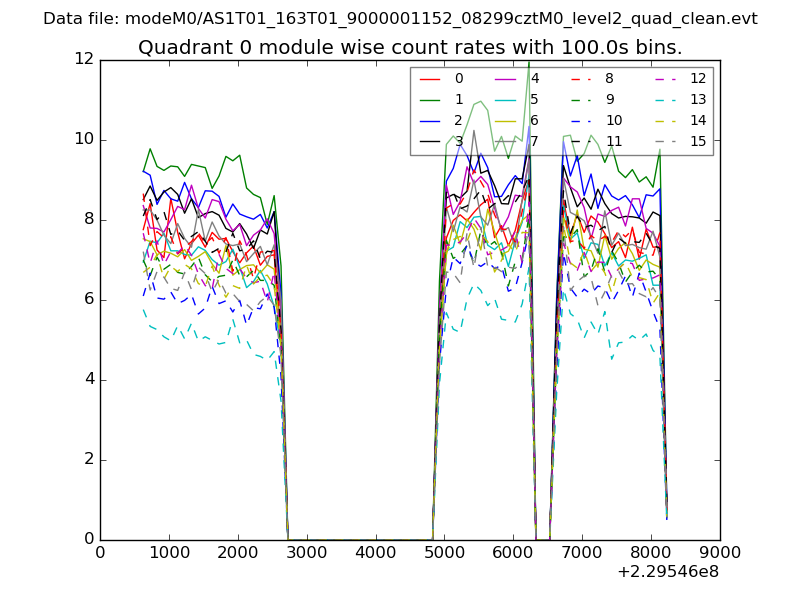

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

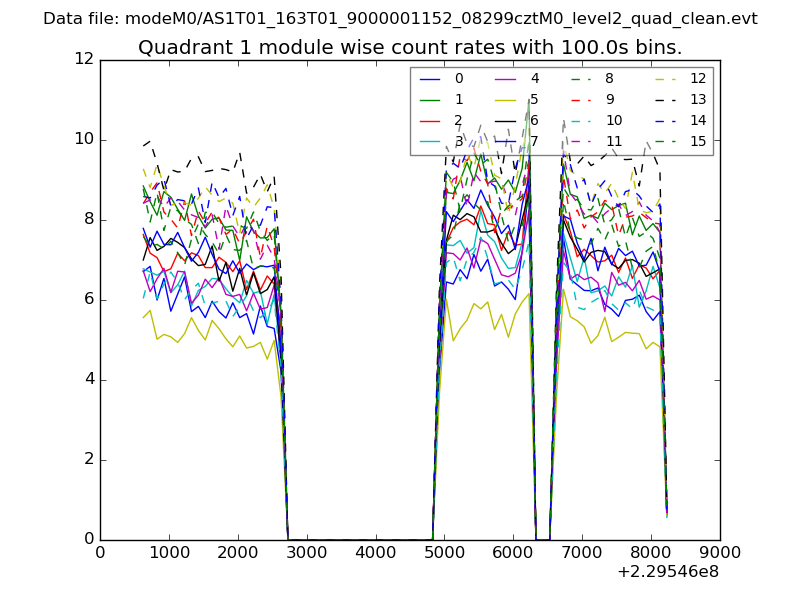

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

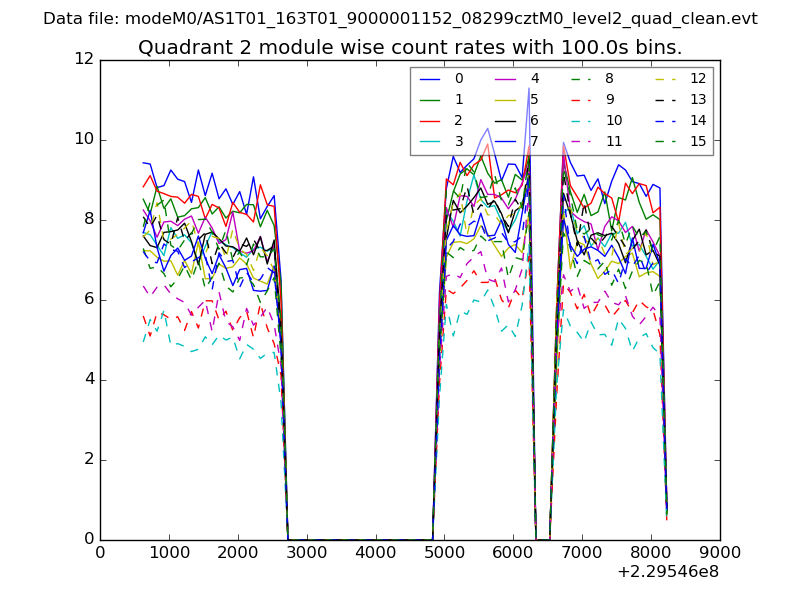

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
