| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_093T01_9000001156_08322cztM0_level2.evt | modeM0/AS1A03_093T01_9000001156_08322cztM0_level2_quad_clean.evt |
| Size (bytes) | 410,538,240 | 65,191,680 |
| Size | 391.5 MB | 62.2 MB |
| Events in quadrant A | 2,990,532 | 391,796 |
| Events in quadrant B | 3,105,674 | 400,480 |
| Events in quadrant C | 2,906,137 | 391,639 |
| Events in quadrant D | 3,032,027 | 379,915 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12223 | 6 |
| B | 0 | 12554 | 3 |
| C | 0 | 12160 | 5 |
| D | 0 | 12545 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5863 | 50 | 0.852806% |
| B | 5864 | 58 | 0.989086% |
| C | 5863 | 47 | 0.801637% |
| D | 5864 | 64 | 1.091405% |

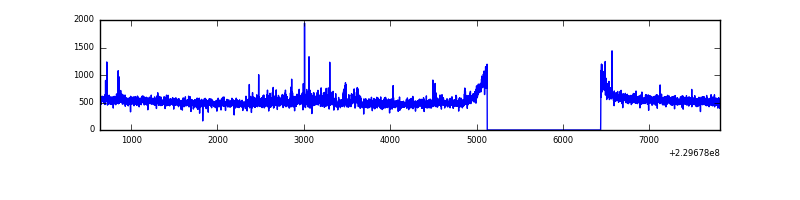

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7180 | 5866 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7180 | 5865 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7180 | 5866 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7180 | 5866 | 17 | 17 | 0.24% | 0.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 15389 | 95.39 | 765 | 750 | 153.5 |
| A | 4 | 2 | 13520 | 83.21 | 765 | 750 | 153.5 |
| A | 13 | 14 | 12704 | 77.89 | 765 | 750 | 153.5 |
| B | 0 | 214 | 82121 | 558.15 | 772 | 758 | 145.8 |
| B | 4 | 81 | 18842 | 124.06 | 772 | 758 | 145.8 |
| B | 12 | 111 | 15016 | 97.81 | 772 | 758 | 145.8 |
| C | 13 | 61 | 5817 | 29.65 | 744 | 749 | 170.9 |
| C | 9 | 54 | 3149 | 14.04 | 744 | 749 | 170.9 |
| C | 3 | 202 | 1902 | 6.75 | 744 | 749 | 170.9 |
| D | 12 | 221 | 90191 | 476.94 | 739 | 721 | 187.6 |
| D | 2 | 152 | 56766 | 298.76 | 739 | 721 | 187.6 |
| D | 12 | 110 | 30019 | 156.18 | 739 | 721 | 187.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

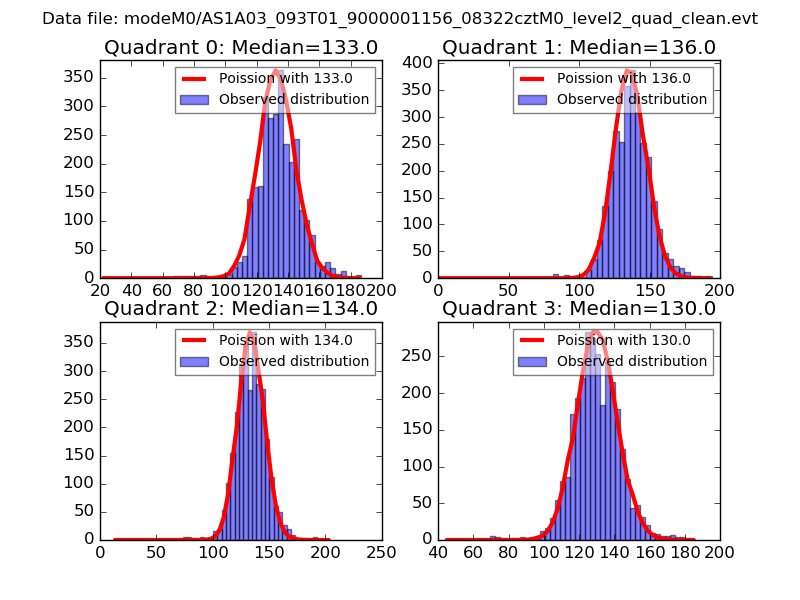

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

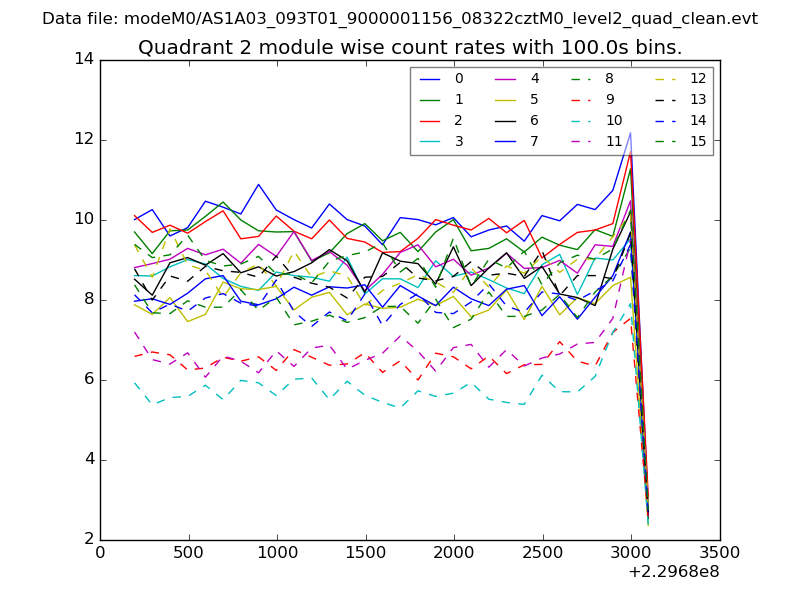

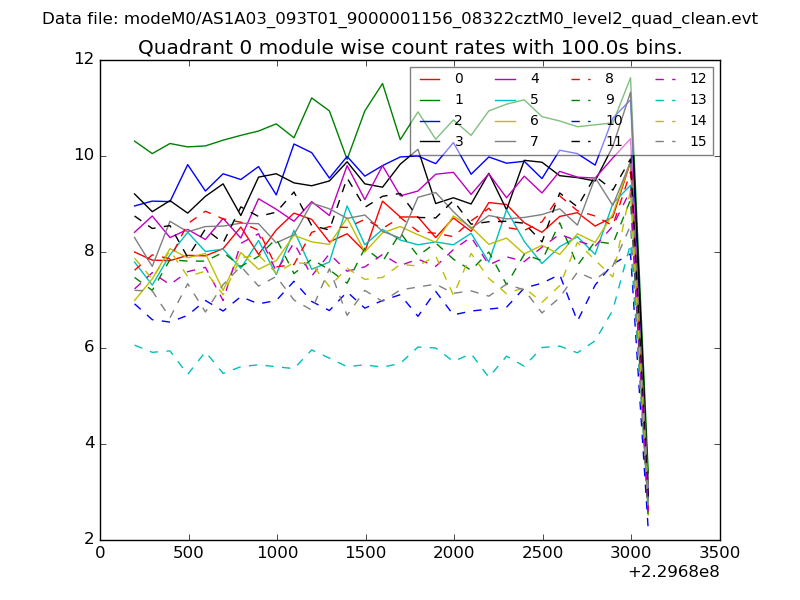

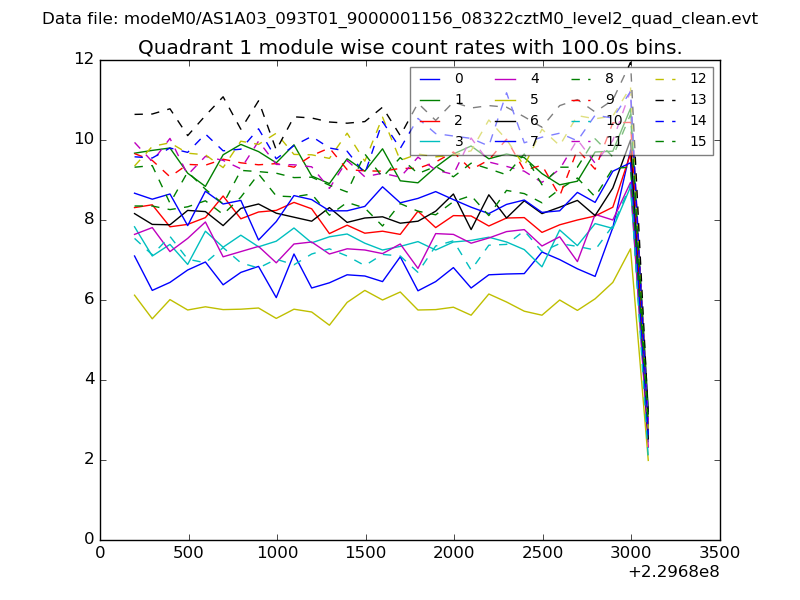

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

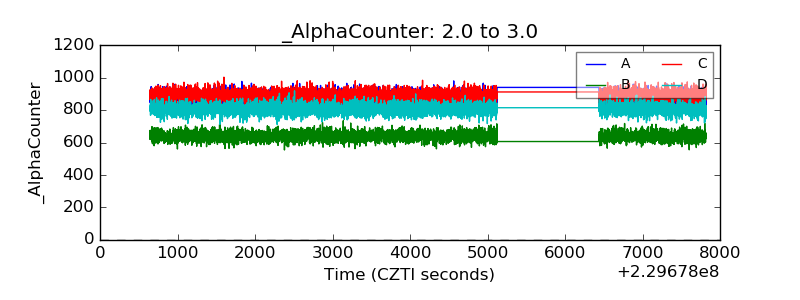

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

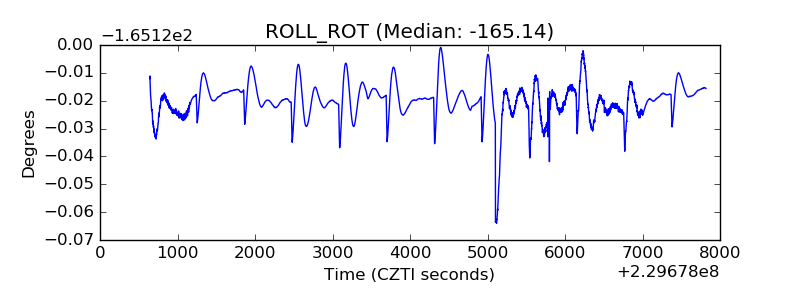

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
