| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_093T01_9000001156_08325cztM0_level2.evt | modeM0/AS1A03_093T01_9000001156_08325cztM0_level2_quad_clean.evt |
| Size (bytes) | 407,897,280 | 89,245,440 |
| Size | 389.0 MB | 85.1 MB |
| Events in quadrant A | 3,021,629 | 571,897 |
| Events in quadrant B | 3,118,033 | 578,487 |
| Events in quadrant C | 2,913,772 | 566,305 |
| Events in quadrant D | 2,874,946 | 550,494 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13027 | 2 |
| B | 0 | 13231 | 1 |
| C | 0 | 13031 | 1 |
| D | 0 | 12957 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6244 | 135 | 2.162076% |
| B | 6244 | 144 | 2.306214% |
| C | 6244 | 97 | 1.553491% |
| D | 6244 | 108 | 1.729660% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6925 | 6245 | 6 | 6 | 0.09% | 0.10% |  |
| B | 6925 | 6245 | 3 | 3 | 0.04% | 0.05% |  |
| C | 6925 | 6246 | 4 | 4 | 0.06% | 0.06% |  |
| D | 6925 | 6246 | 7 | 7 | 0.10% | 0.11% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 46209 | 291.25 | 757 | 740 | 156.1 |
| A | 14 | 111 | 42220 | 265.7 | 757 | 740 | 156.1 |
| A | 15 | 234 | 18472 | 113.58 | 757 | 740 | 156.1 |
| B | 0 | 214 | 94987 | 646.91 | 756 | 739 | 145.7 |
| B | 0 | 219 | 20162 | 133.32 | 756 | 739 | 145.7 |
| B | 0 | 187 | 17730 | 116.62 | 756 | 739 | 145.7 |
| C | 9 | 54 | 79828 | 469.05 | 727 | 730 | 168.6 |
| C | 13 | 61 | 5637 | 29.1 | 727 | 730 | 168.6 |
| C | 3 | 202 | 1769 | 6.16 | 727 | 730 | 168.6 |
| D | 2 | 14 | 51927 | 256.92 | 729 | 714 | 199.3 |
| D | 2 | 152 | 23068 | 112.14 | 729 | 714 | 199.3 |
| D | 2 | 234 | 21713 | 105.34 | 729 | 714 | 199.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

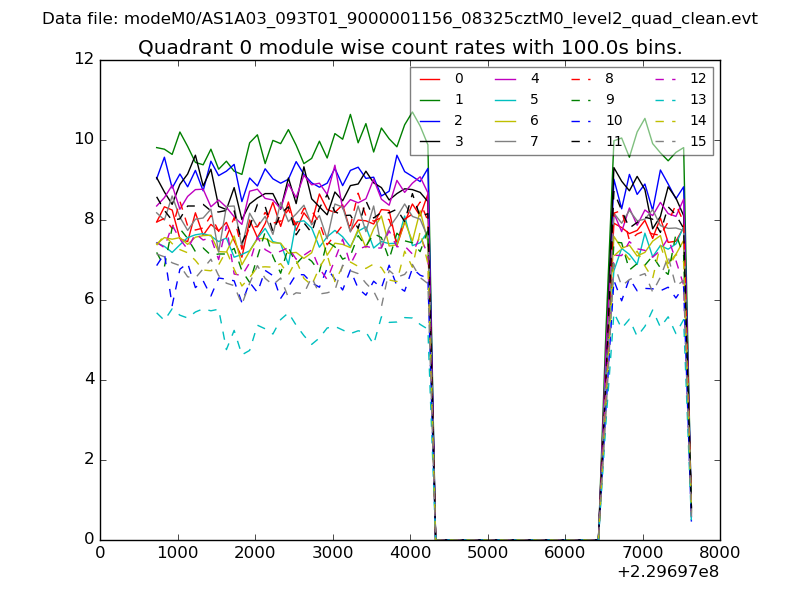

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

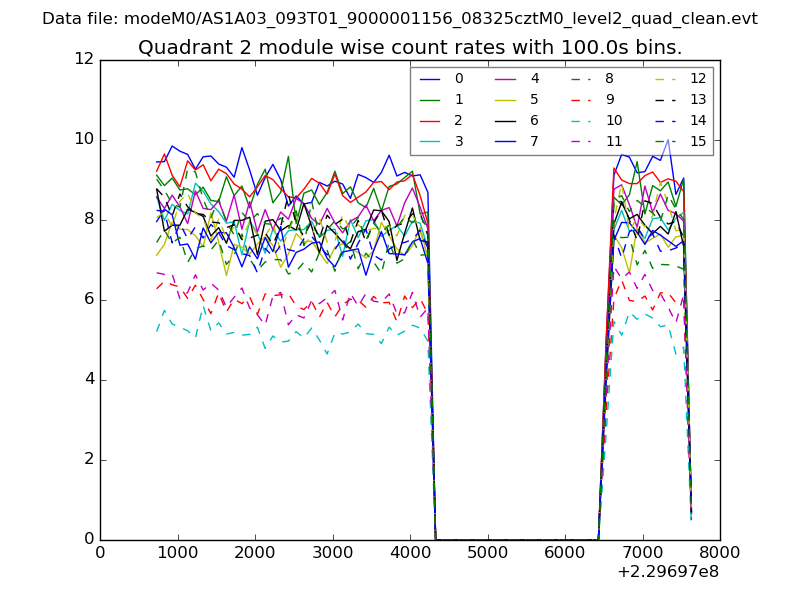

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

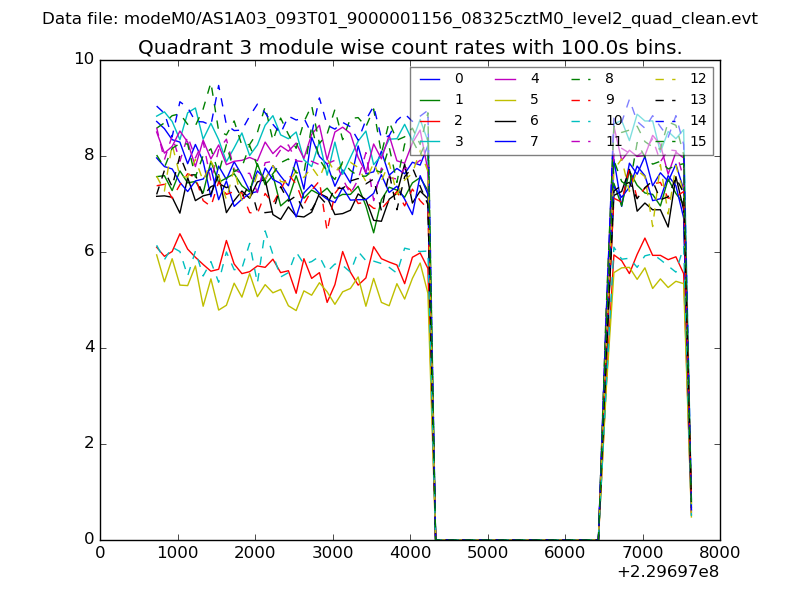

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

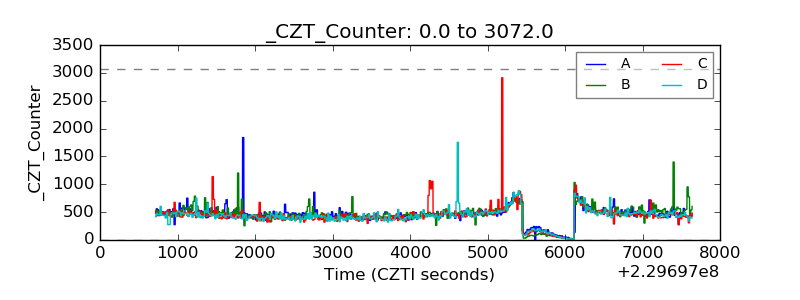

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

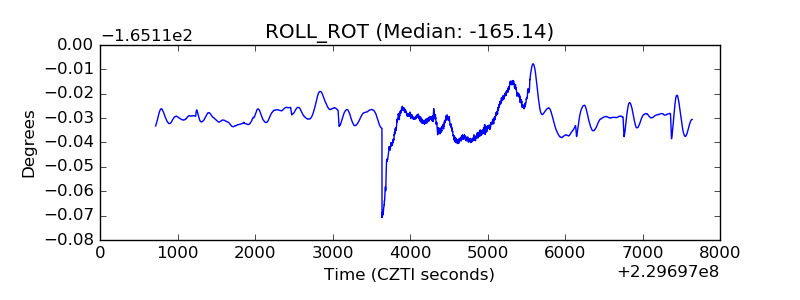

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

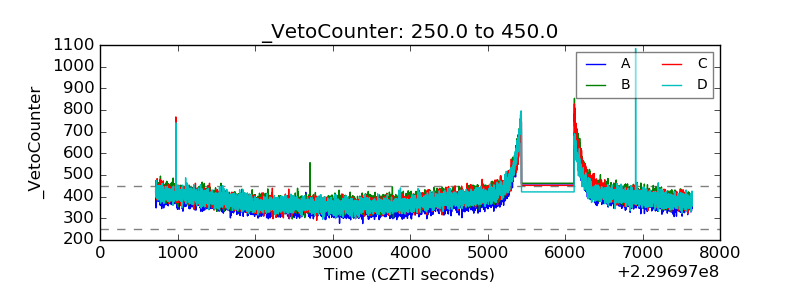

| Veto Counter |  |
