| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_080T03_9000001154_08303cztM0_level2.evt | modeM0/AS1G07_080T03_9000001154_08303cztM0_level2_quad_clean.evt |
| Size (bytes) | 382,826,880 | 60,373,440 |
| Size | 365.1 MB | 57.6 MB |
| Events in quadrant A | 2,789,438 | 354,195 |
| Events in quadrant B | 2,931,850 | 358,445 |
| Events in quadrant C | 2,739,017 | 348,686 |
| Events in quadrant D | 2,713,396 | 335,590 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12550 | 2 |
| B | 0 | 12747 | 1 |
| C | 0 | 12556 | 1 |
| D | 0 | 12654 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6176 | 26 | 0.420984% |
| B | 6176 | 38 | 0.615285% |
| C | 6176 | 23 | 0.372409% |
| D | 6176 | 22 | 0.356218% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7206 | 6177 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7206 | 6177 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7206 | 6177 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7206 | 6177 | 2 | 2 | 0.03% | 0.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 19451 | 129.24 | 713 | 699 | 145.1 |
| A | 0 | 23 | 14383 | 94.31 | 713 | 699 | 145.1 |
| A | 0 | 226 | 7634 | 47.8 | 713 | 699 | 145.1 |
| B | 0 | 214 | 78941 | 569.66 | 718 | 701 | 137.3 |
| B | 4 | 81 | 40760 | 291.67 | 718 | 701 | 137.3 |
| B | 12 | 111 | 14850 | 103.02 | 718 | 701 | 137.3 |
| C | 9 | 54 | 32238 | 196.06 | 691 | 696 | 160.9 |
| C | 10 | 9 | 12021 | 70.39 | 691 | 696 | 160.9 |
| C | 13 | 61 | 5377 | 29.1 | 691 | 696 | 160.9 |
| D | 2 | 14 | 41326 | 244.23 | 688 | 668 | 166.5 |
| D | 2 | 234 | 18612 | 107.79 | 688 | 668 | 166.5 |
| D | 7 | 71 | 18127 | 104.87 | 688 | 668 | 166.5 |

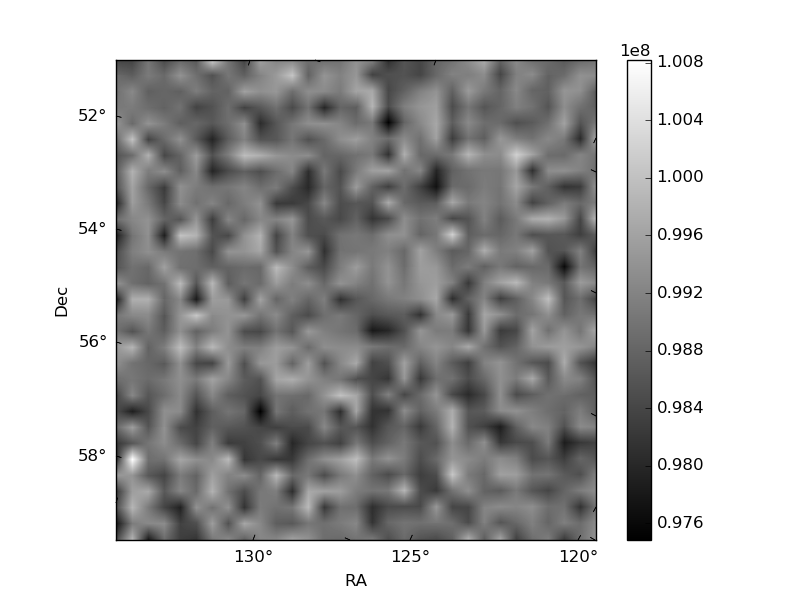

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

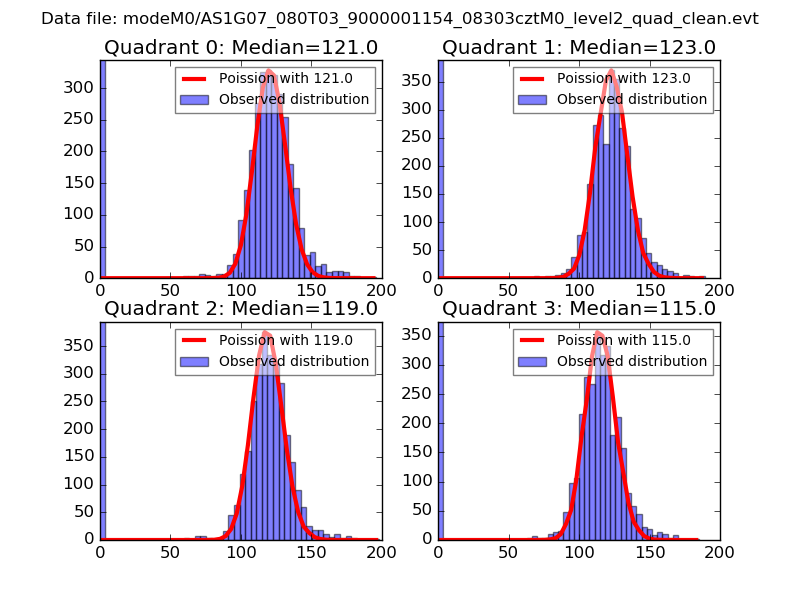

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

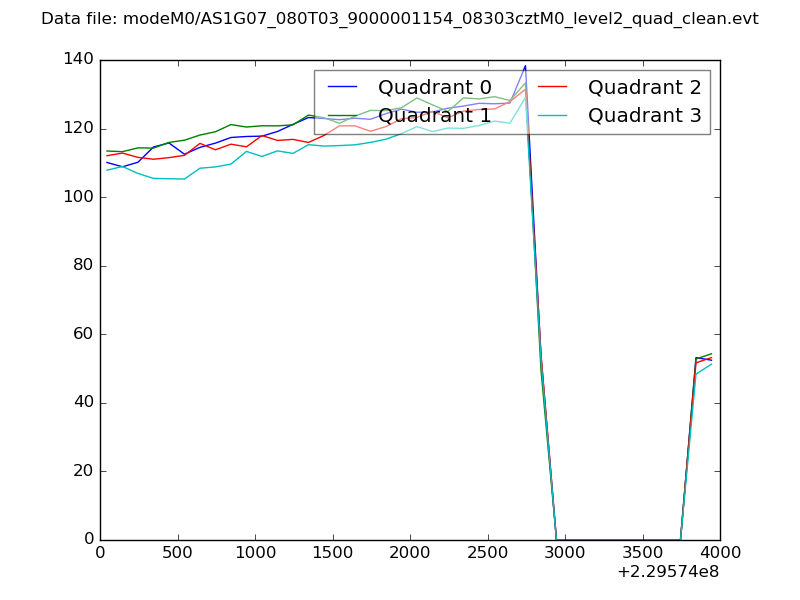

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

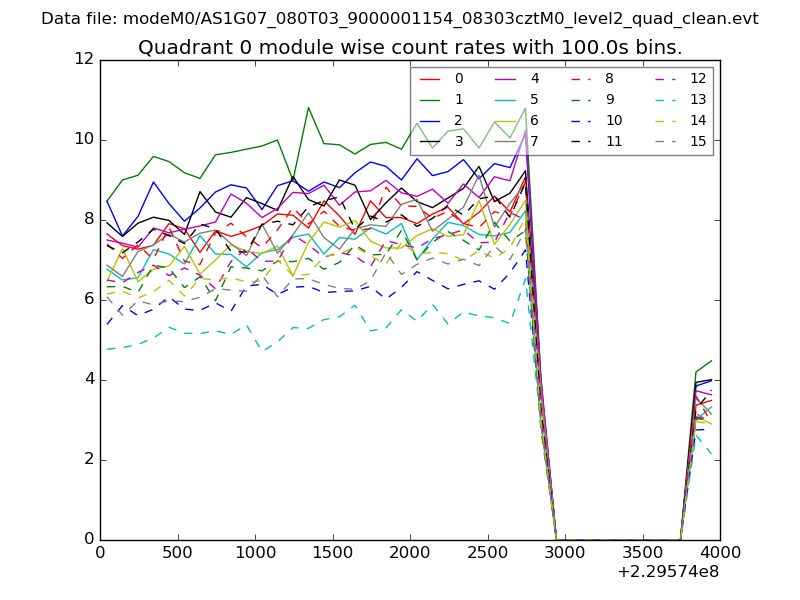

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

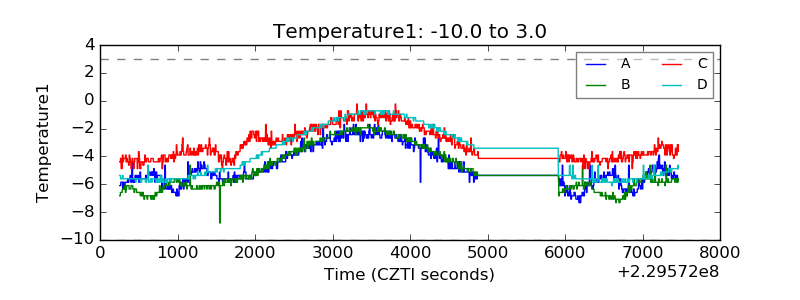

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

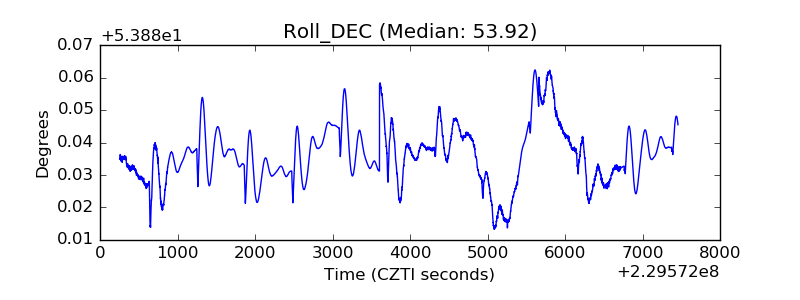

| _Roll_DEC |  |
| _Roll_RA |  |

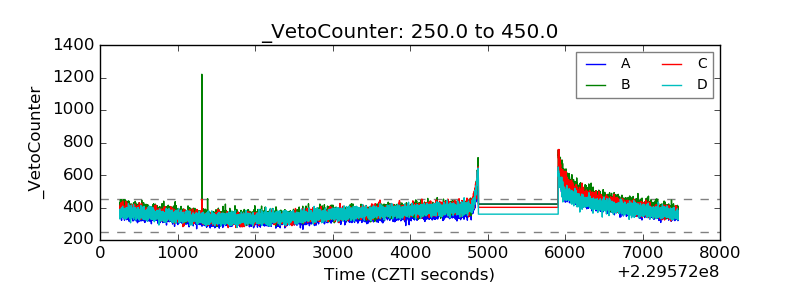

| Veto Counter |  |
