| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_080T03_9000001154_08309cztM0_level2.evt | modeM0/AS1G07_080T03_9000001154_08309cztM0_level2_quad_clean.evt |
| Size (bytes) | 454,167,360 | 111,300,480 |
| Size | 433.1 MB | 106.1 MB |
| Events in quadrant A | 3,638,278 | 742,966 |
| Events in quadrant B | 3,257,407 | 749,535 |
| Events in quadrant C | 2,978,162 | 728,313 |
| Events in quadrant D | 3,441,373 | 699,484 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14552 | 2 |
| B | 0 | 13650 | 1 |
| C | 0 | 13231 | 1 |
| D | 0 | 14644 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6465 | 198 | 3.062645% |
| B | 6465 | 128 | 1.979892% |
| C | 6465 | 92 | 1.423047% |
| D | 6465 | 220 | 3.402939% |

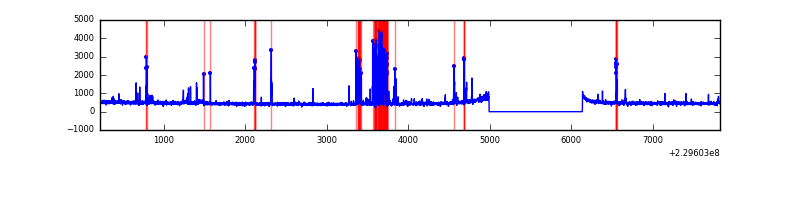

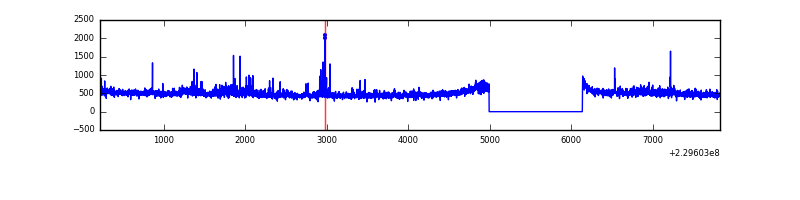

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

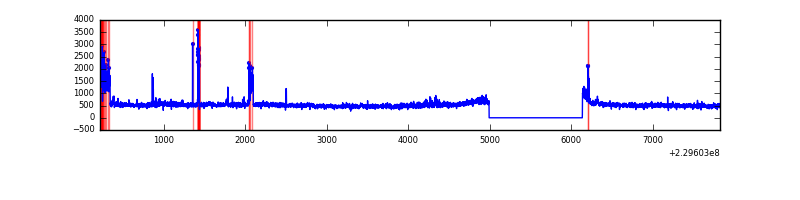

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7610 | 6466 | 41 | 41 | 0.54% | 0.63% |  |
| B | 7610 | 6465 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7610 | 6466 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7610 | 6465 | 111 | 111 | 1.46% | 1.72% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 23 | 392875 | 2474.73 | 792 | 775 | 158.4 |
| A | 15 | 234 | 129797 | 814.32 | 792 | 775 | 158.4 |
| A | 0 | 226 | 34000 | 209.7 | 792 | 775 | 158.4 |
| B | 0 | 214 | 120337 | 808.9 | 788 | 770 | 147.8 |
| B | 0 | 229 | 21085 | 137.44 | 788 | 770 | 147.8 |
| B | 0 | 219 | 17881 | 115.76 | 788 | 770 | 147.8 |
| C | 13 | 61 | 5833 | 28.91 | 763 | 767 | 175.2 |
| C | 3 | 202 | 1926 | 6.61 | 763 | 767 | 175.2 |
| C | -1 | -1 | -1 | -1.0 | 763 | 767 | 175.2 |
| D | 1 | 52 | 332795 | 1774.71 | 769 | 744 | 187.1 |
| D | 2 | 14 | 111572 | 592.34 | 769 | 744 | 187.1 |
| D | 1 | 7 | 59652 | 314.85 | 769 | 744 | 187.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

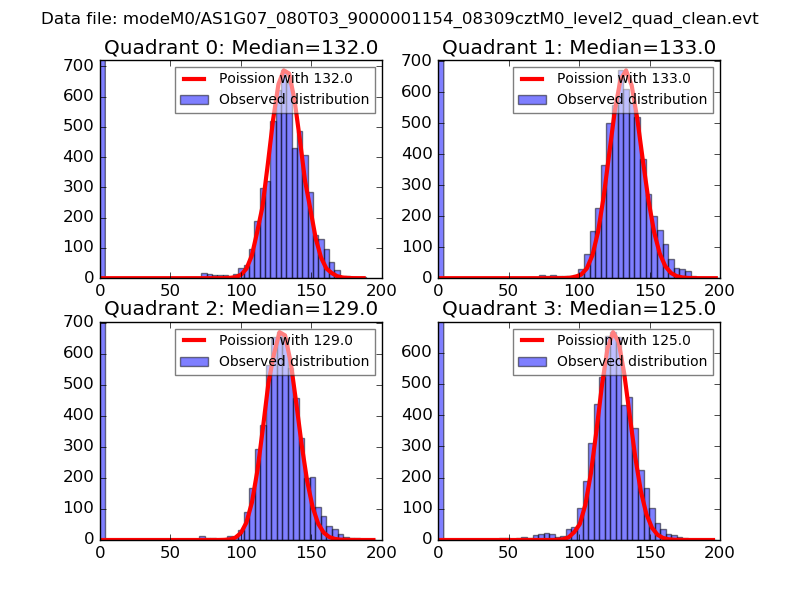

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

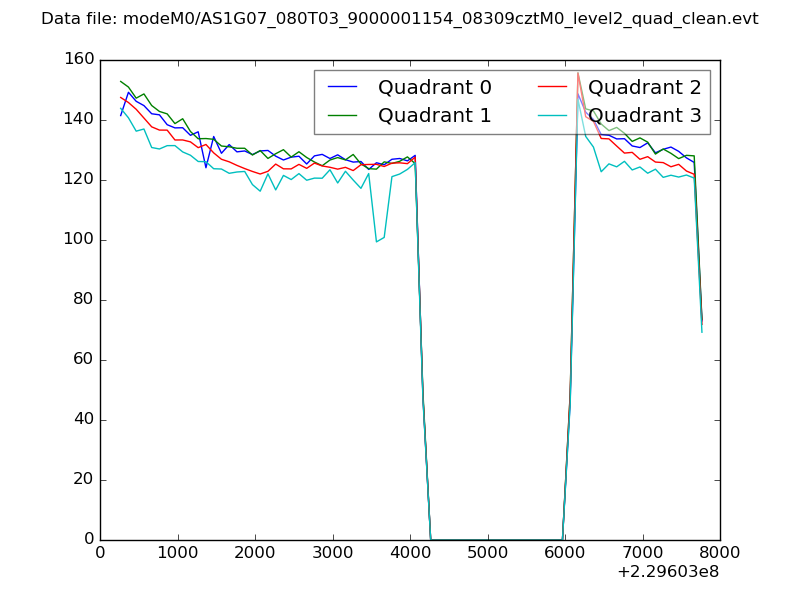

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

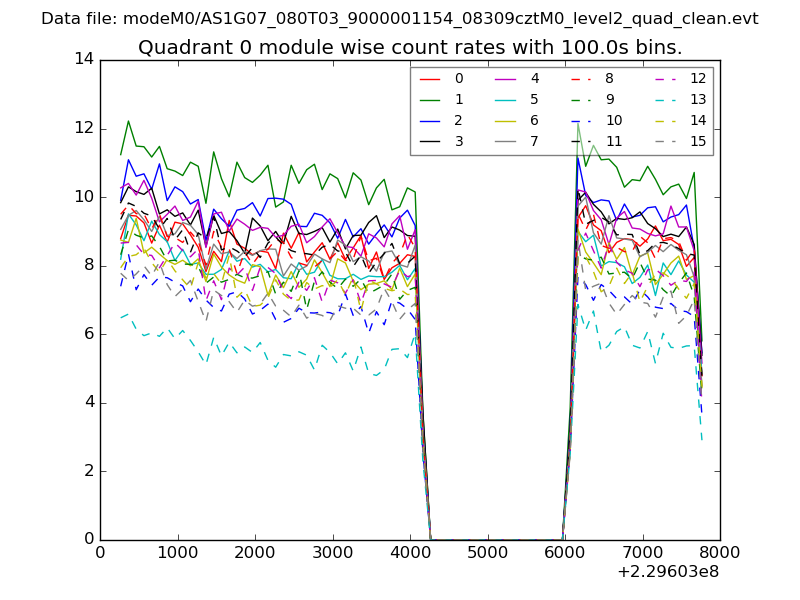

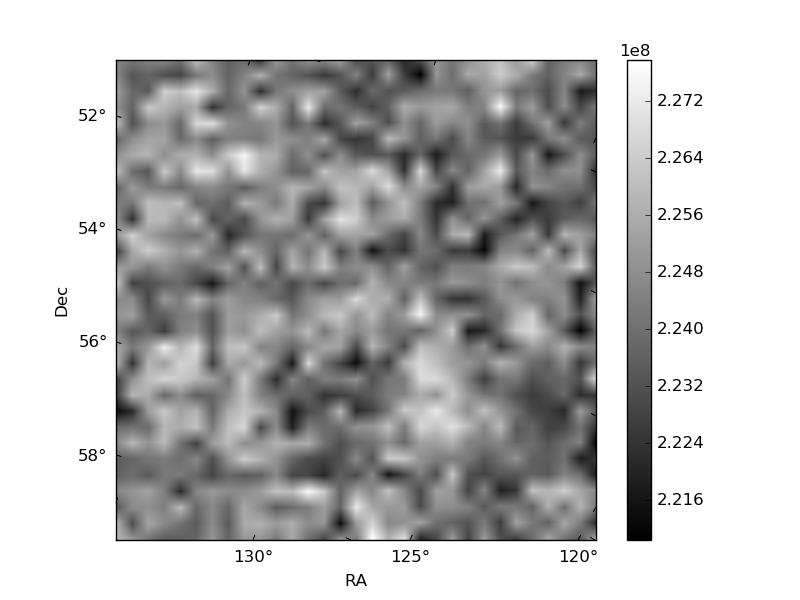

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

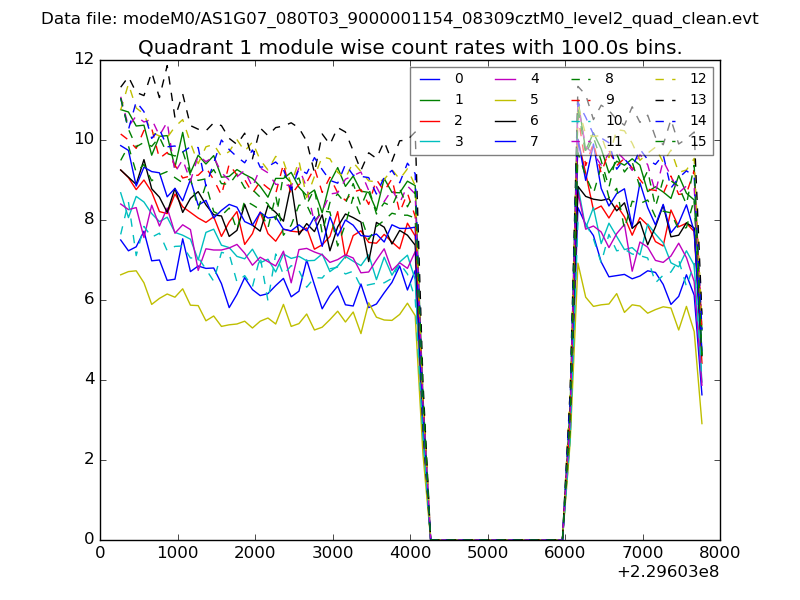

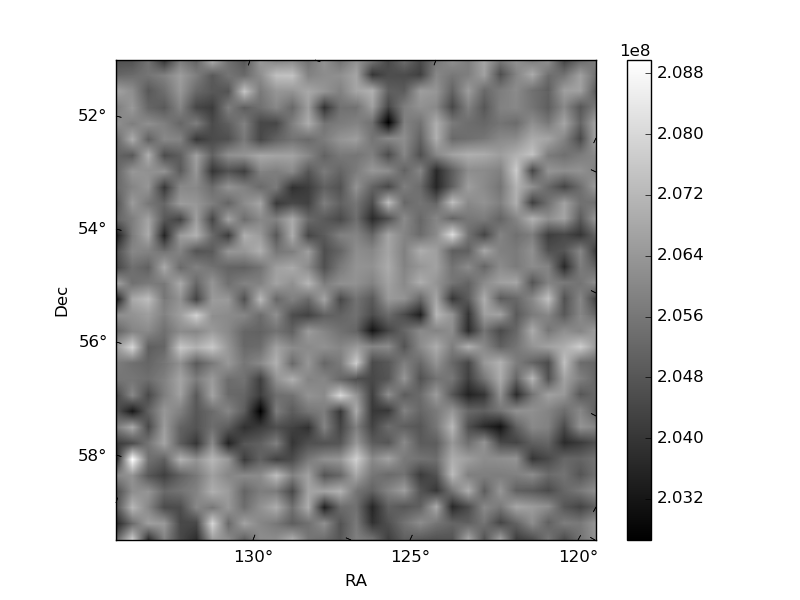

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

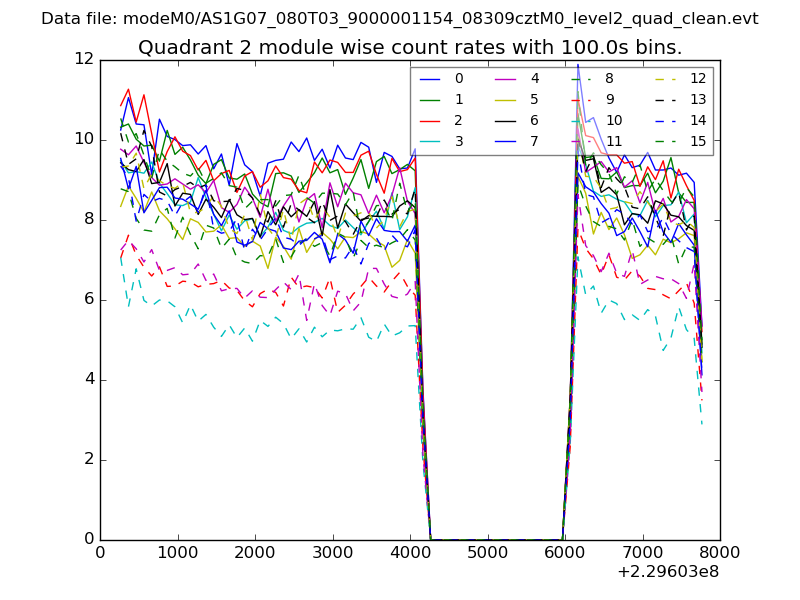

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

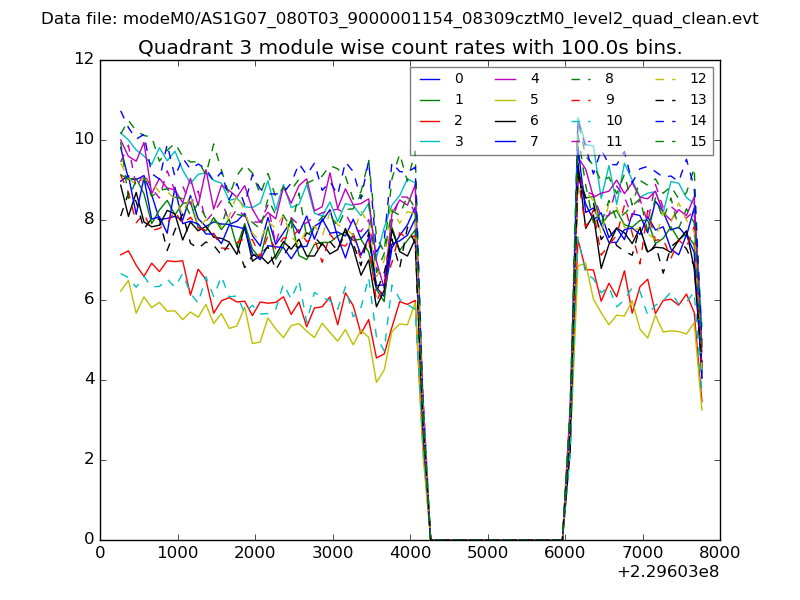

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

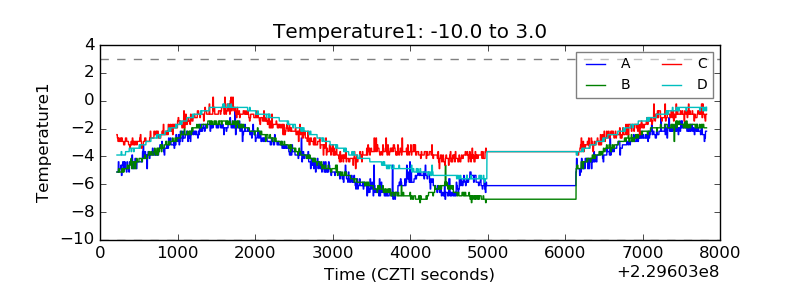

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

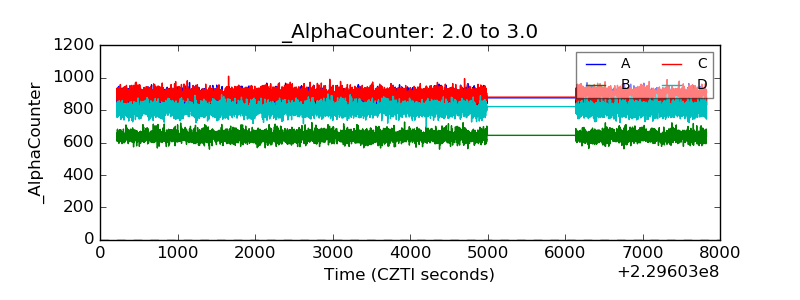

| Alpha Counter |  |

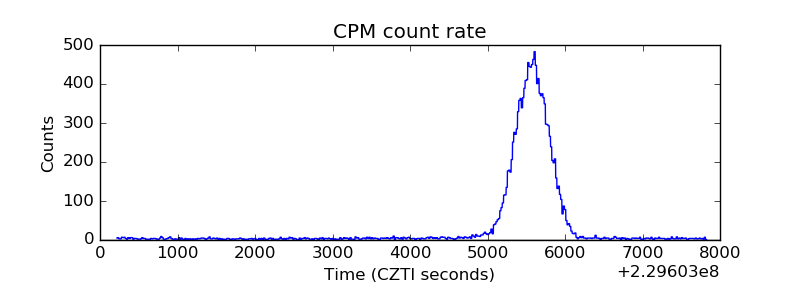

| _CPM_Rate |  |

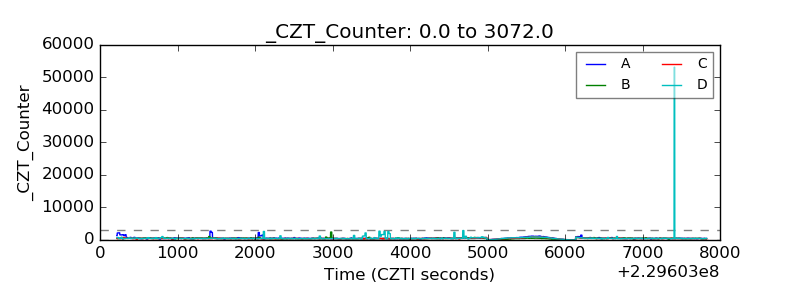

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

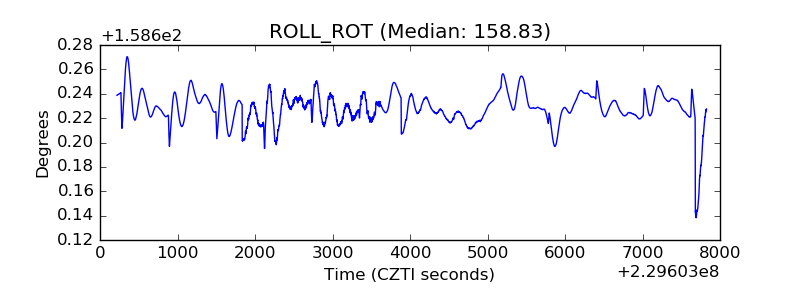

| _ROLL_ROT |  |

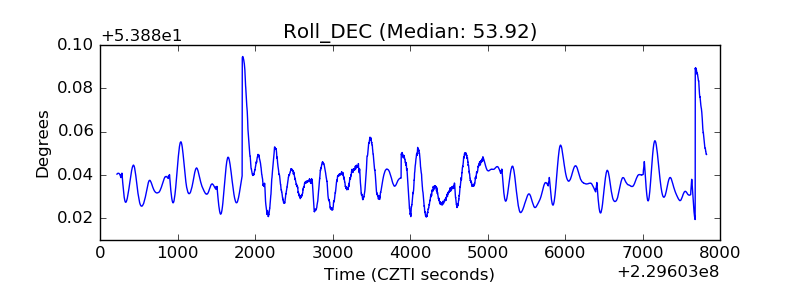

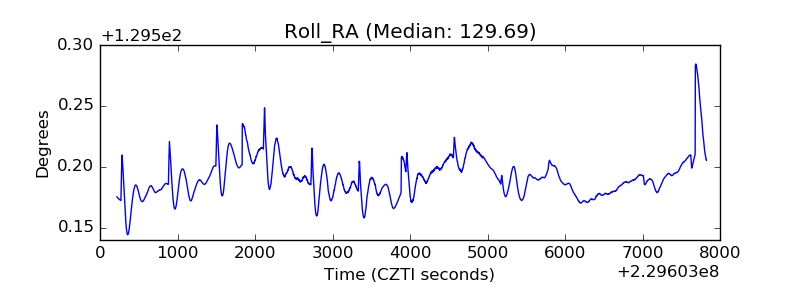

| _Roll_DEC |  |
| _Roll_RA |  |

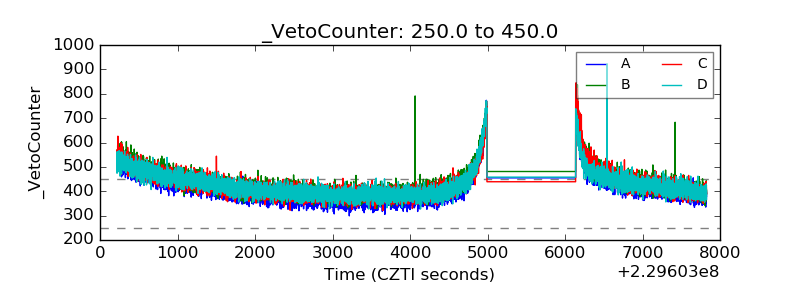

| Veto Counter |  |
