| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_029T01_9000001158_08338cztM0_level2.evt | modeM0/AS1G07_029T01_9000001158_08338cztM0_level2_quad_clean.evt |
| Size (bytes) | 545,840,640 | 79,332,480 |
| Size | 520.6 MB | 75.7 MB |
| Events in quadrant A | 3,706,533 | 496,082 |
| Events in quadrant B | 3,539,833 | 502,314 |
| Events in quadrant C | 3,447,501 | 480,081 |
| Events in quadrant D | 5,389,166 | 462,828 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15175 | 3 |
| B | 0 | 14453 | 2 |
| C | 0 | 14385 | 2 |
| D | 0 | 20588 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 26 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6608 | 208 | 3.147700% |
| B | 6608 | 168 | 2.542373% |
| C | 6608 | 172 | 2.602906% |
| D | 6608 | 196 | 2.966102% |

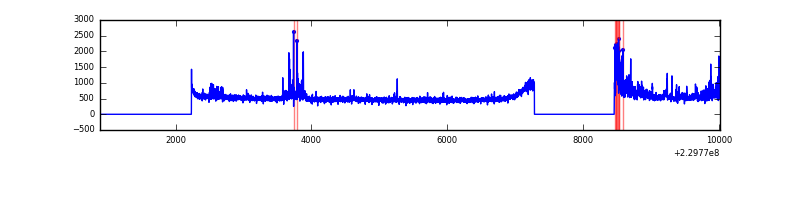

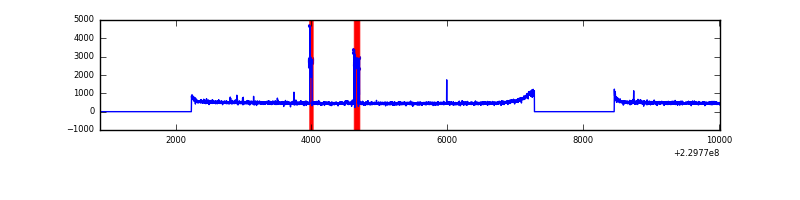

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9128 | 6608 | 10 | 10 | 0.11% | 0.15% |  |
| B | 9128 | 6610 | 30 | 30 | 0.33% | 0.45% |  |
| C | 9128 | 6609 | 79 | 79 | 0.87% | 1.20% |  |
| D | 9128 | 6610 | 70 | 70 | 0.77% | 1.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 236 | 356074 | 2045.8 | 858 | 839 | 173.6 |
| A | 14 | 111 | 26075 | 145.33 | 858 | 839 | 173.6 |
| A | 15 | 252 | 13014 | 70.12 | 858 | 839 | 173.6 |
| B | 4 | 80 | 140103 | 852.28 | 856 | 836 | 163.4 |
| B | 0 | 214 | 55184 | 332.6 | 856 | 836 | 163.4 |
| B | 12 | 111 | 18075 | 105.5 | 856 | 836 | 163.4 |
| C | 9 | 54 | 239061 | 1248.47 | 822 | 828 | 190.8 |
| C | 13 | 61 | 6055 | 27.39 | 822 | 828 | 190.8 |
| C | 10 | 169 | 2544 | 8.99 | 822 | 828 | 190.8 |
| D | 12 | 221 | 1730290 | 8849.29 | 820 | 802 | 195.4 |
| D | 2 | 152 | 333439 | 1702.01 | 820 | 802 | 195.4 |
| D | 2 | 136 | 94441 | 479.12 | 820 | 802 | 195.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

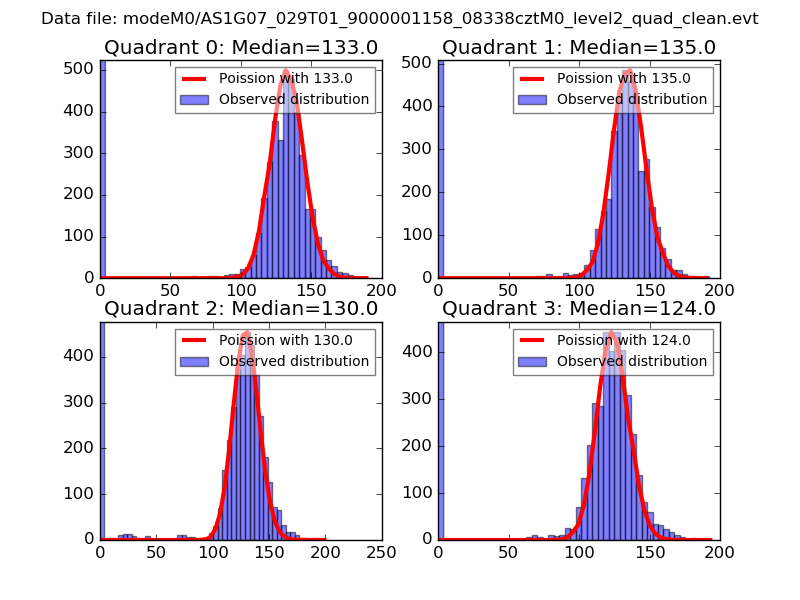

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

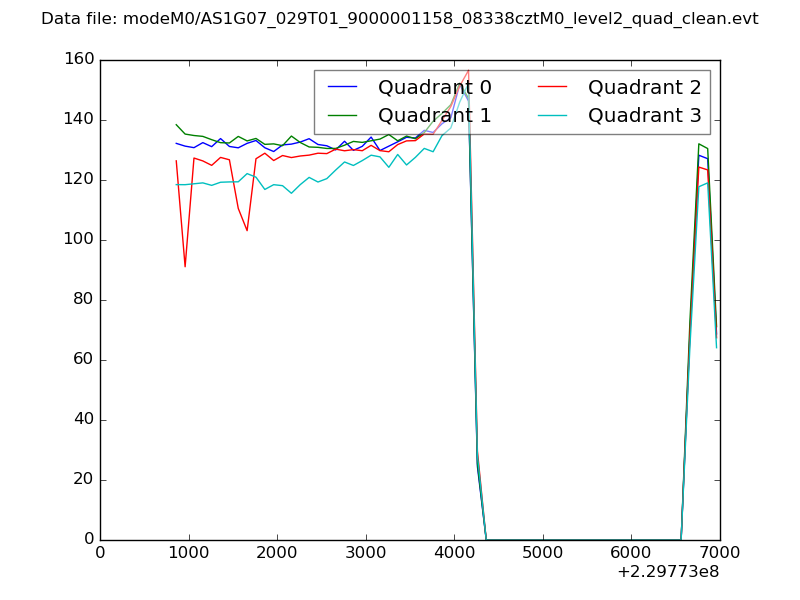

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

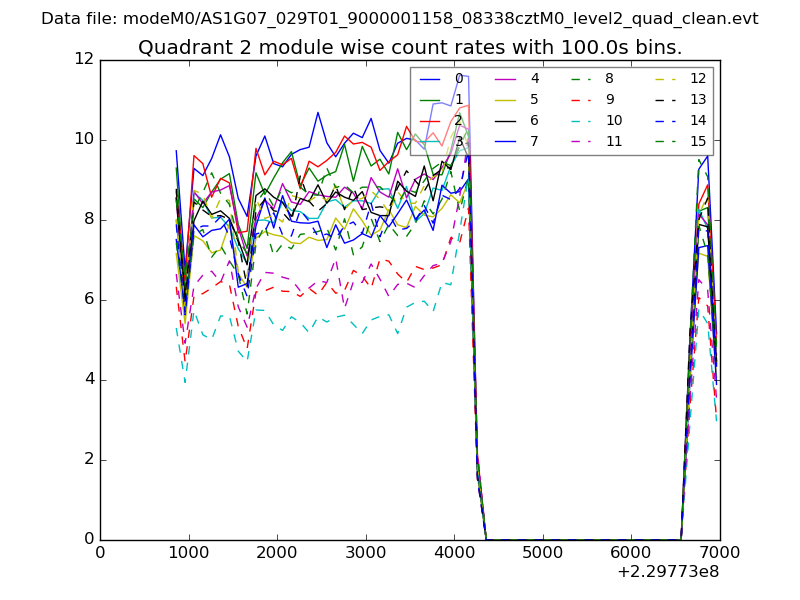

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

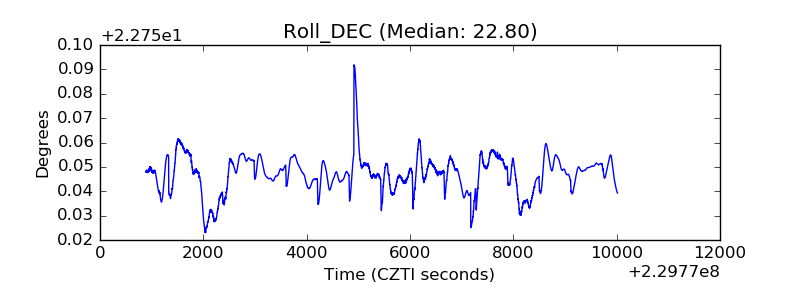

| _ROLL_ROT |  |
| _Roll_DEC |  |

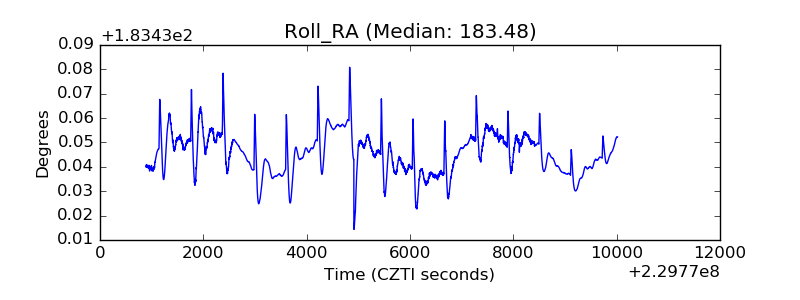

| _Roll_RA |  |

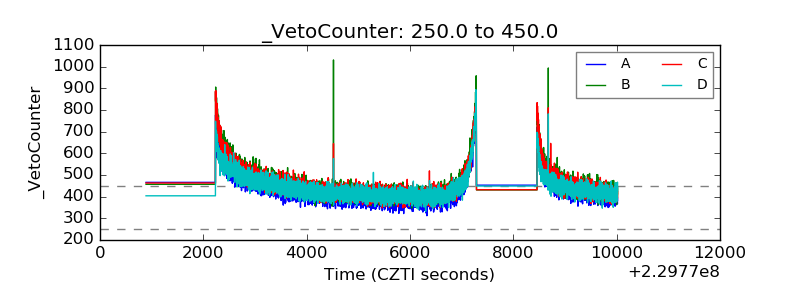

| Veto Counter |  |
