| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_029T01_9000001158_08339cztM0_level2.evt | modeM0/AS1G07_029T01_9000001158_08339cztM0_level2_quad_clean.evt |
| Size (bytes) | 511,453,440 | 87,048,000 |
| Size | 487.8 MB | 83.0 MB |
| Events in quadrant A | 3,815,252 | 545,426 |
| Events in quadrant B | 3,612,038 | 551,388 |
| Events in quadrant C | 3,289,120 | 538,688 |
| Events in quadrant D | 4,303,560 | 518,741 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15830 | 3 |
| B | 0 | 14985 | 2 |
| C | 0 | 14293 | 2 |
| D | 0 | 17516 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6917 | 283 | 4.091369% |
| B | 6917 | 198 | 2.862513% |
| C | 6917 | 102 | 1.474628% |
| D | 6918 | 144 | 2.081526% |

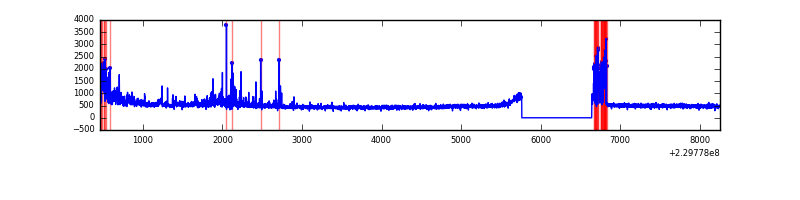

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7797 | 6918 | 49 | 49 | 0.63% | 0.71% |  |
| B | 7797 | 6918 | 37 | 37 | 0.47% | 0.53% |  |
| C | 7797 | 6918 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7798 | 6919 | 6 | 6 | 0.08% | 0.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 236 | 518830 | 2964.66 | 855 | 836 | 174.7 |
| A | 0 | 226 | 7831 | 40.03 | 855 | 836 | 174.7 |
| A | 12 | 194 | 7820 | 39.97 | 855 | 836 | 174.7 |
| B | 4 | 80 | 170273 | 1023.61 | 858 | 837 | 165.5 |
| B | 0 | 214 | 68489 | 408.7 | 858 | 837 | 165.5 |
| B | 0 | 219 | 31368 | 184.45 | 858 | 837 | 165.5 |
| C | 9 | 54 | 31166 | 156.45 | 836 | 842 | 193.8 |
| C | 13 | 61 | 6264 | 27.97 | 836 | 842 | 193.8 |
| C | 3 | 202 | 2078 | 6.38 | 836 | 842 | 193.8 |
| D | 12 | 221 | 889275 | 4403.85 | 832 | 812 | 201.7 |
| D | 13 | 105 | 139309 | 686.49 | 832 | 812 | 201.7 |
| D | 2 | 14 | 60822 | 297.45 | 832 | 812 | 201.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

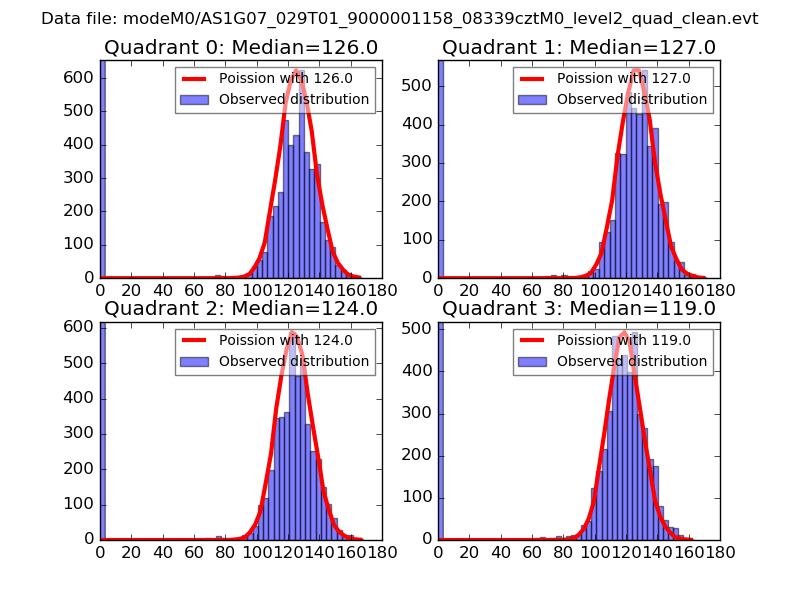

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

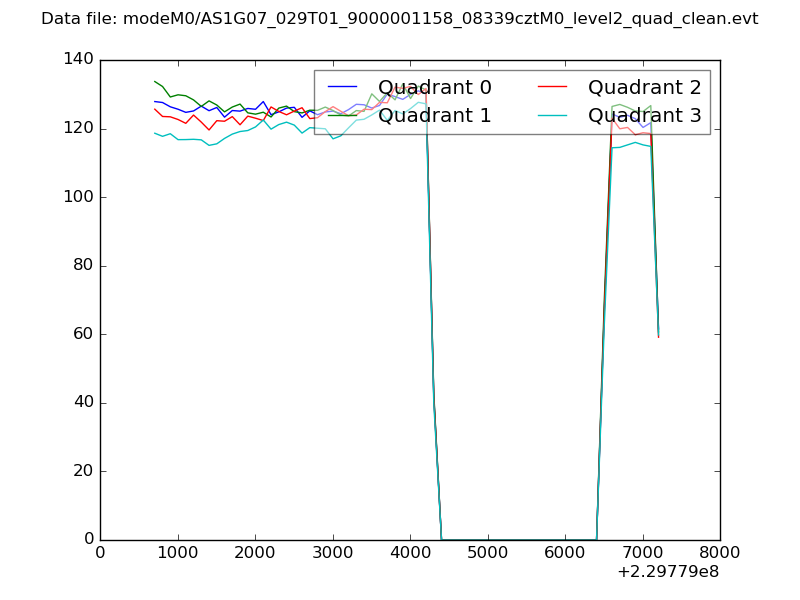

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

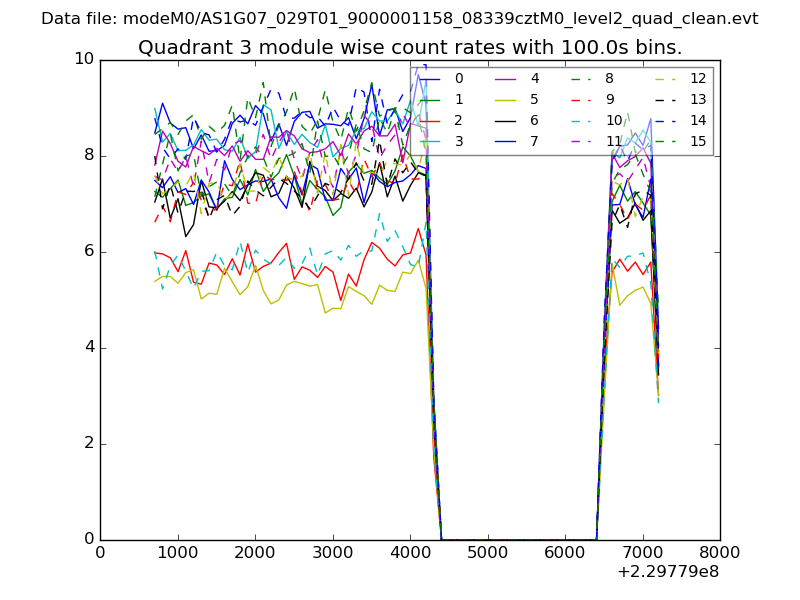

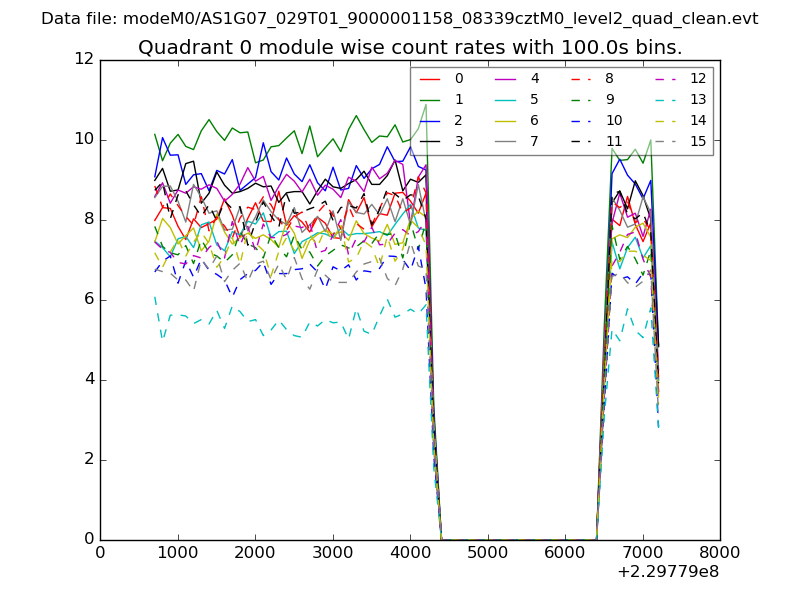

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

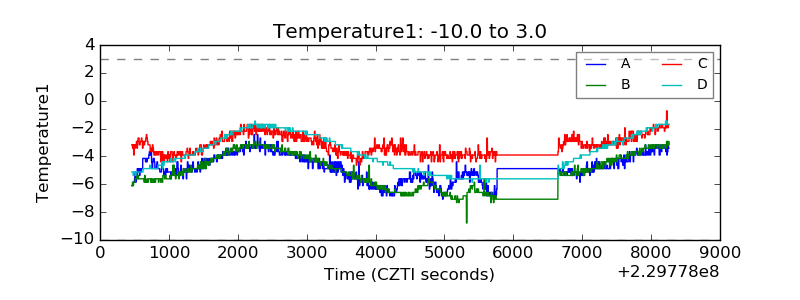

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

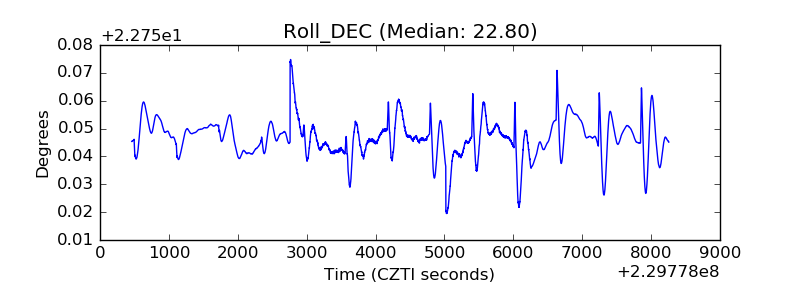

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
