| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_029T01_9000001158_08348cztM0_level2.evt | modeM0/AS1G07_029T01_9000001158_08348cztM0_level2_quad_clean.evt |
| Size (bytes) | 553,800,960 | 82,131,840 |
| Size | 528.1 MB | 78.3 MB |
| Events in quadrant A | 6,725,944 | 448,784 |
| Events in quadrant B | 3,277,818 | 537,712 |
| Events in quadrant C | 3,019,873 | 527,442 |
| Events in quadrant D | 3,294,875 | 507,177 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24675 | 3 |
| B | 0 | 14066 | 2 |
| C | 0 | 13584 | 2 |
| D | 0 | 14528 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6681 | 1606 | 24.038318% |
| B | 6681 | 70 | 1.047747% |
| C | 6681 | 10 | 0.149678% |
| D | 6681 | 50 | 0.748391% |

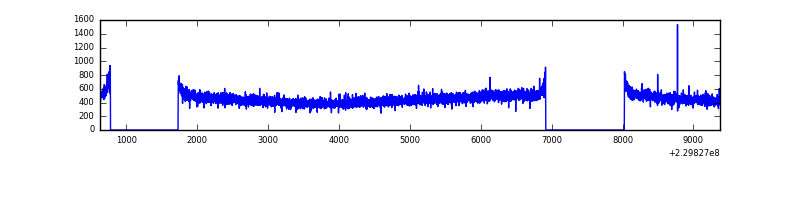

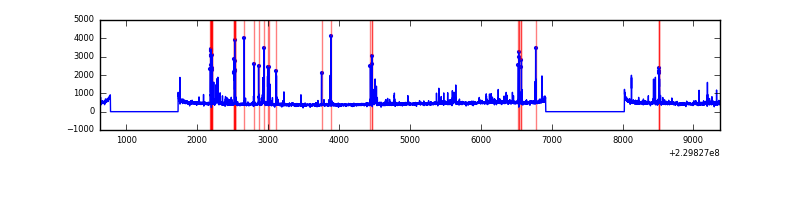

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8746 | 6682 | 1339 | 1339 | 15.31% | 20.04% |  |
| B | 8746 | 6683 | 26 | 26 | 0.30% | 0.39% |  |
| C | 8746 | 6683 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8746 | 6683 | 39 | 39 | 0.45% | 0.58% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 236 | 3967064 | 27100.22 | 714 | 699 | 146.4 |
| A | 15 | 239 | 11086 | 70.97 | 714 | 699 | 146.4 |
| A | 0 | 226 | 6589 | 40.24 | 714 | 699 | 146.4 |
| B | 4 | 80 | 108655 | 705.28 | 799 | 780 | 153.0 |
| B | 4 | 81 | 34835 | 222.65 | 799 | 780 | 153.0 |
| B | 0 | 214 | 18754 | 117.51 | 799 | 780 | 153.0 |
| C | 13 | 61 | 5980 | 28.72 | 774 | 778 | 181.1 |
| C | 5 | 128 | 2080 | 7.19 | 774 | 778 | 181.1 |
| C | 3 | 202 | 1941 | 6.42 | 774 | 778 | 181.1 |
| D | 2 | 14 | 218822 | 1178.14 | 766 | 746 | 185.1 |
| D | 13 | 105 | 92687 | 496.7 | 766 | 746 | 185.1 |
| D | 2 | 136 | 49495 | 263.36 | 766 | 746 | 185.1 |

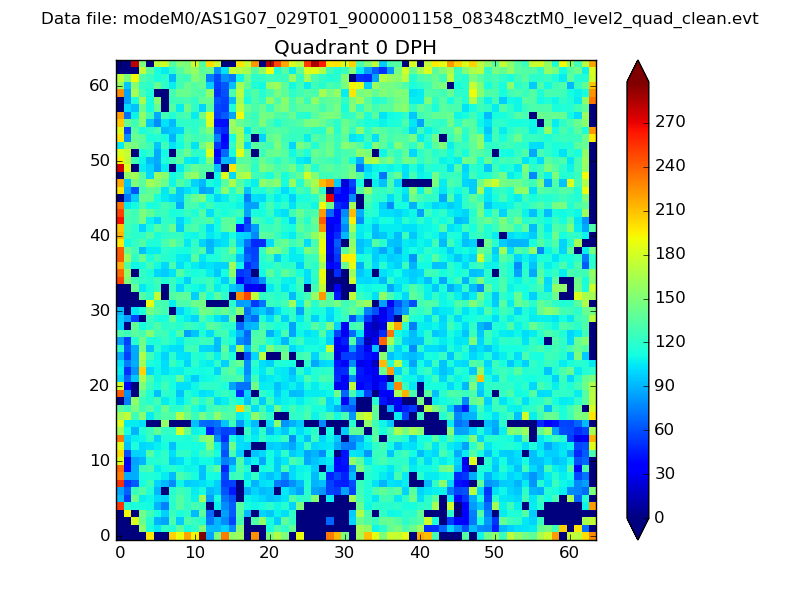

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

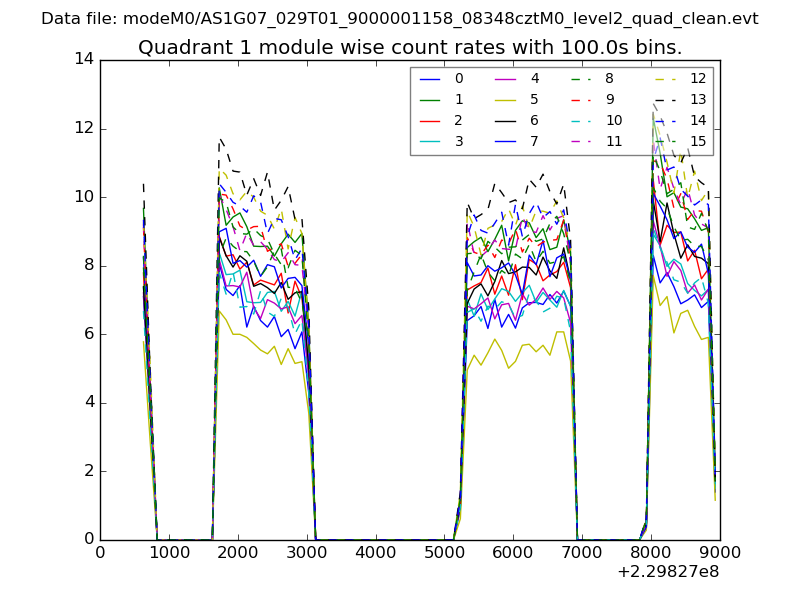

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

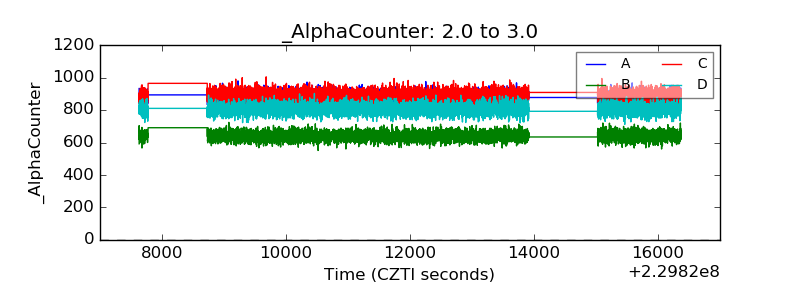

| Alpha Counter |  |

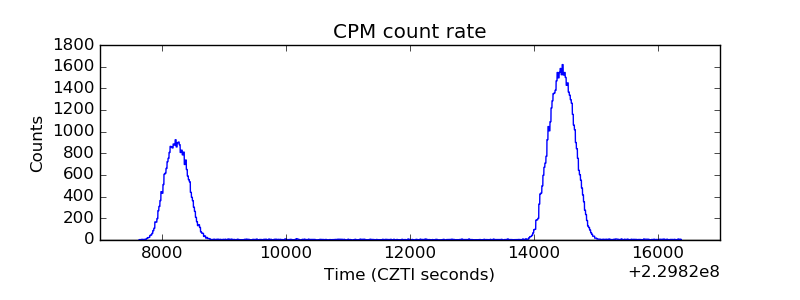

| _CPM_Rate |  |

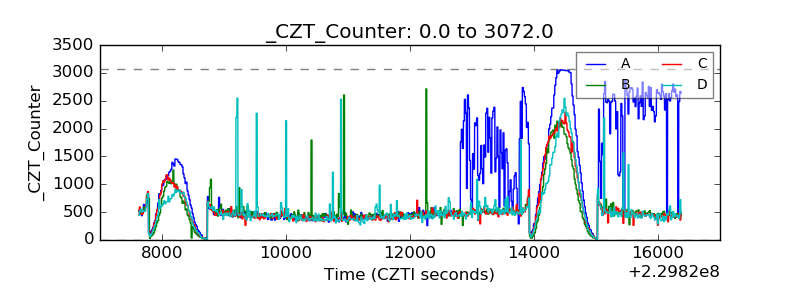

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

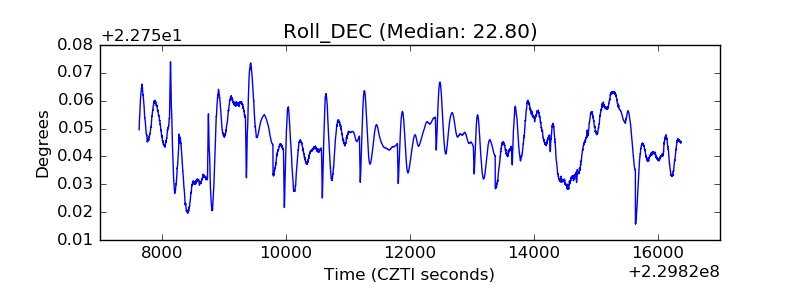

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
