| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_046T01_9000001162_08359cztM0_level2.evt | modeM0/AS1G07_046T01_9000001162_08359cztM0_level2_quad_clean.evt |
| Size (bytes) | 926,830,080 | 161,576,640 |
| Size | 883.9 MB | 154.1 MB |
| Events in quadrant A | 7,594,227 | 986,723 |
| Events in quadrant B | 6,662,129 | 1,014,570 |
| Events in quadrant C | 5,858,953 | 1,021,475 |
| Events in quadrant D | 7,083,016 | 981,312 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30903 | 4 |
| B | 0 | 28406 | 3 |
| C | 0 | 26153 | 5 |
| D | 0 | 29930 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 15 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 260 | 0 |
| B | 0 | 260 | 0 |
| C | 0 | 260 | 0 |
| D | 0 | 260 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 12874 | 550 | 4.272176% |
| B | 12874 | 164 | 1.273885% |
| C | 12873 | 53 | 0.411714% |
| D | 12874 | 192 | 1.491378% |

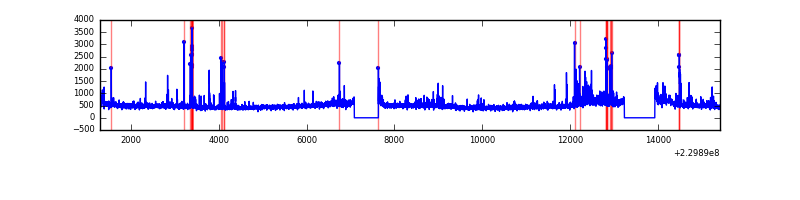

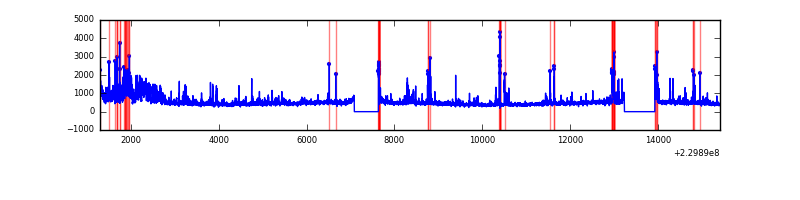

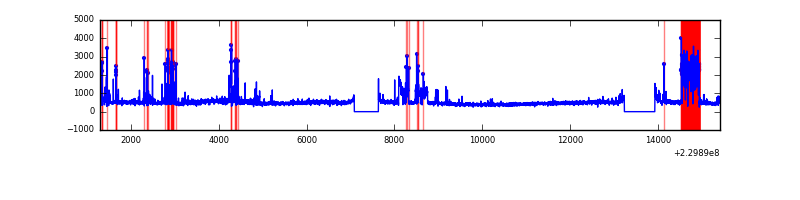

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 14119 | 12876 | 368 | 368 | 2.61% | 2.86% |  |
| B | 14119 | 12876 | 34 | 34 | 0.24% | 0.26% |  |
| C | 14119 | 12876 | 0 | 0 | 0.00% | 0.00% |  |
| D | 14119 | 12876 | 66 | 66 | 0.47% | 0.51% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 236 | 1121010 | 3646.31 | 1507 | 1475 | 307.0 |
| A | 14 | 111 | 404541 | 1312.78 | 1507 | 1475 | 307.0 |
| A | 15 | 239 | 242545 | 785.16 | 1507 | 1475 | 307.0 |
| B | 4 | 173 | 258017 | 873.78 | 1536 | 1496 | 293.6 |
| B | 0 | 214 | 168148 | 567.66 | 1536 | 1496 | 293.6 |
| B | 4 | 81 | 70256 | 234.21 | 1536 | 1496 | 293.6 |
| C | 8 | 128 | 14850 | 38.34 | 1494 | 1499 | 348.3 |
| C | 13 | 61 | 11547 | 28.85 | 1494 | 1499 | 348.3 |
| C | 8 | 208 | 9194 | 22.09 | 1494 | 1499 | 348.3 |
| D | 9 | 102 | 708409 | 1818.66 | 1473 | 1437 | 388.7 |
| D | 2 | 152 | 309130 | 791.53 | 1473 | 1437 | 388.7 |
| D | 7 | 71 | 153660 | 391.59 | 1473 | 1437 | 388.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

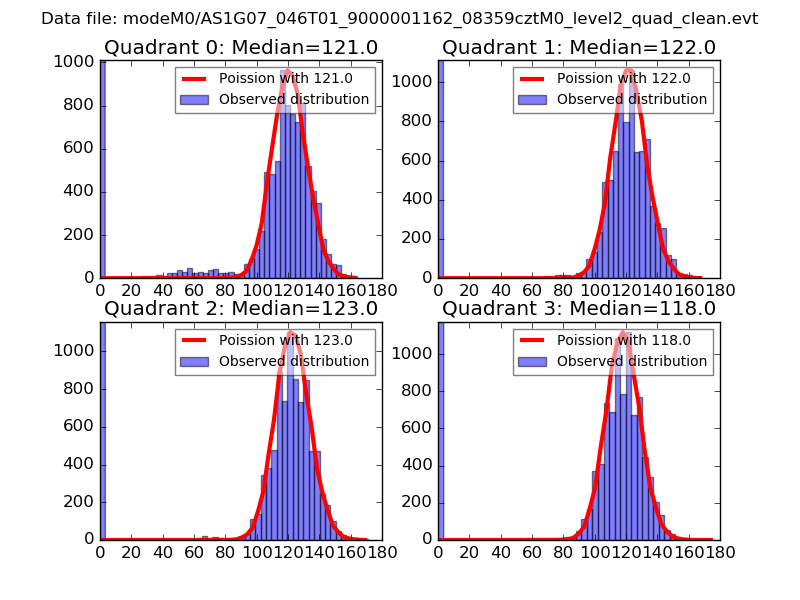

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

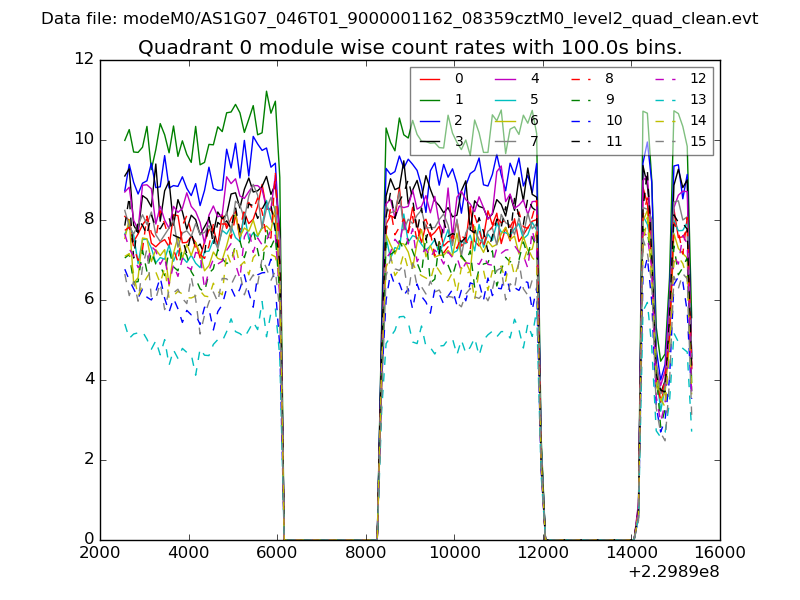

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

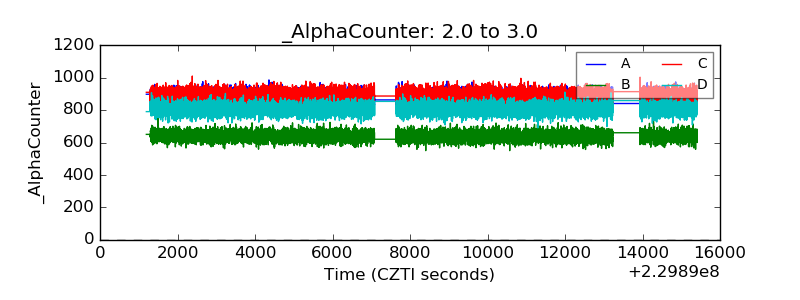

| Alpha Counter |  |
| _CPM_Rate |  |

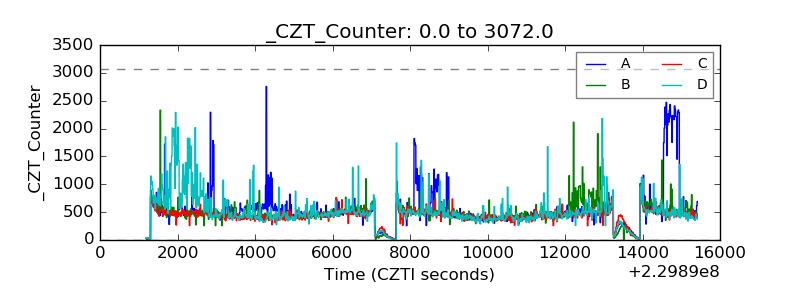

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
