| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_036T01_9000001164_08367cztM0_level2.evt | modeM0/AS1A03_036T01_9000001164_08367cztM0_level2_quad_clean.evt |
| Size (bytes) | 513,887,040 | 96,724,800 |
| Size | 490.1 MB | 92.2 MB |
| Events in quadrant A | 4,866,921 | 611,407 |
| Events in quadrant B | 3,499,408 | 647,057 |
| Events in quadrant C | 3,106,199 | 620,190 |
| Events in quadrant D | 3,653,647 | 601,658 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18518 | 3 |
| B | 0 | 14341 | 2 |
| C | 0 | 13440 | 2 |
| D | 0 | 15078 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6431 | 740 | 11.506764% |
| B | 6431 | 187 | 2.907790% |
| C | 6431 | 99 | 1.539418% |
| D | 6431 | 219 | 3.405380% |

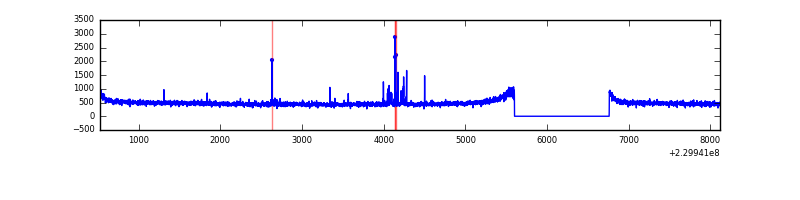

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7591 | 6432 | 424 | 424 | 5.59% | 6.59% |  |
| B | 7591 | 6432 | 7 | 7 | 0.09% | 0.11% |  |
| C | 7591 | 6432 | 4 | 4 | 0.05% | 0.06% |  |
| D | 7591 | 6431 | 74 | 74 | 0.97% | 1.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 1342289 | 8509.96 | 783 | 767 | 157.6 |
| A | 15 | 236 | 490456 | 3106.35 | 783 | 767 | 157.6 |
| A | 14 | 111 | 12952 | 77.29 | 783 | 767 | 157.6 |
| B | 4 | 173 | 116572 | 754.74 | 816 | 796 | 153.4 |
| B | 0 | 214 | 102902 | 665.63 | 816 | 796 | 153.4 |
| B | 4 | 81 | 49143 | 315.17 | 816 | 796 | 153.4 |
| C | 1 | 16 | 48575 | 266.04 | 783 | 786 | 179.6 |
| C | 13 | 61 | 5966 | 28.84 | 783 | 786 | 179.6 |
| C | 12 | 4 | 2833 | 11.4 | 783 | 786 | 179.6 |
| D | 12 | 233 | 455170 | 2295.65 | 783 | 762 | 197.9 |
| D | 7 | 71 | 85995 | 430.59 | 783 | 762 | 197.9 |
| D | 2 | 14 | 33929 | 167.56 | 783 | 762 | 197.9 |

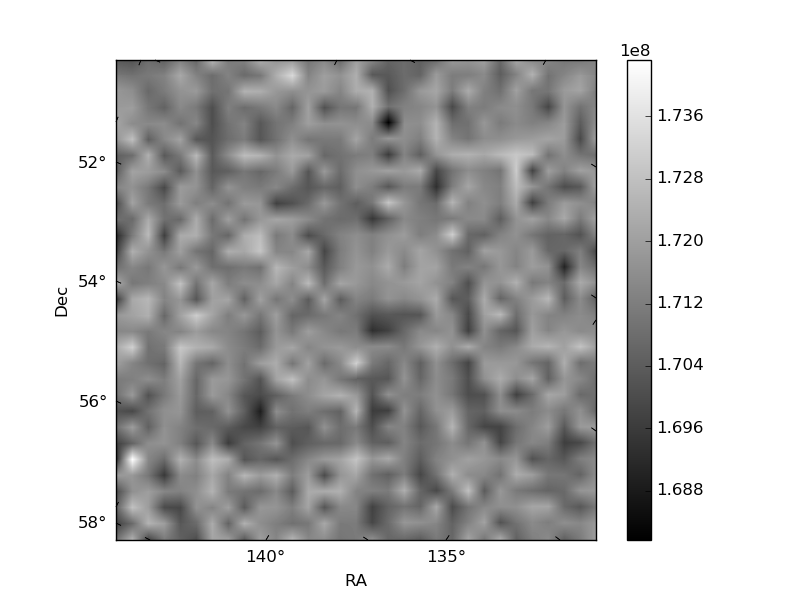

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

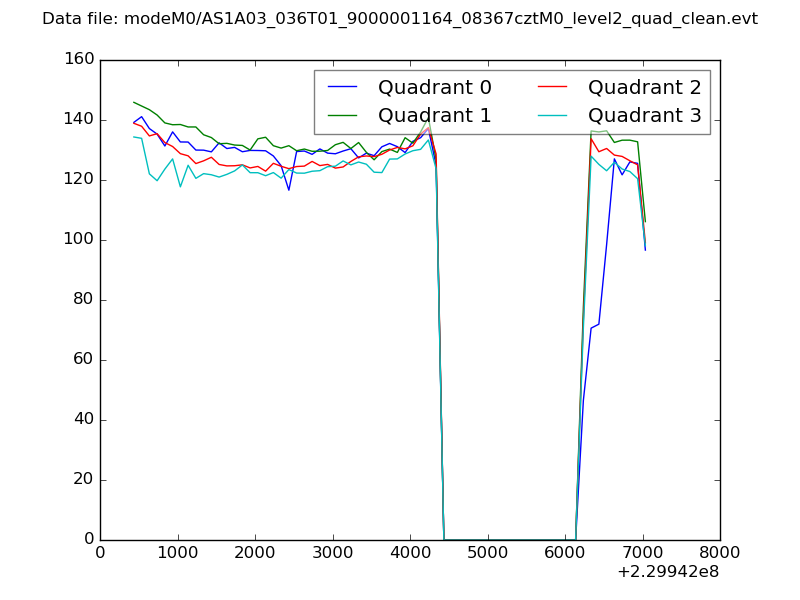

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

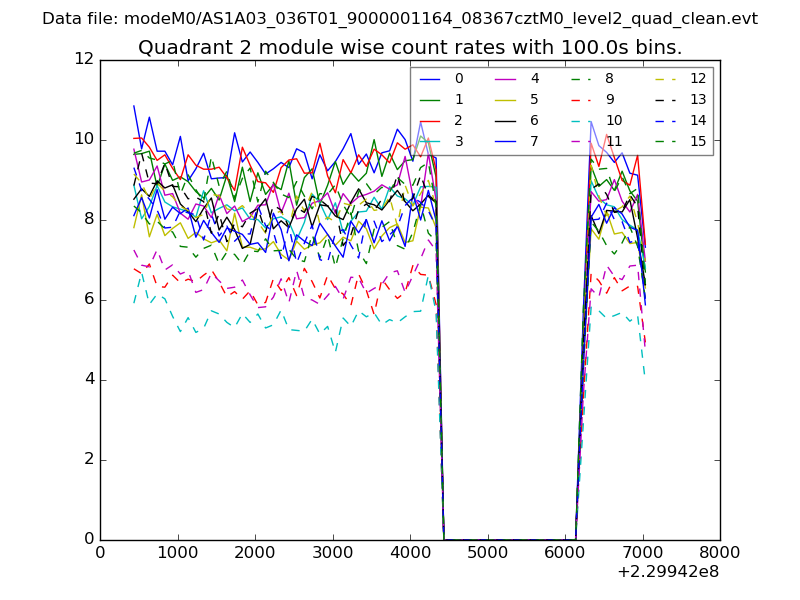

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

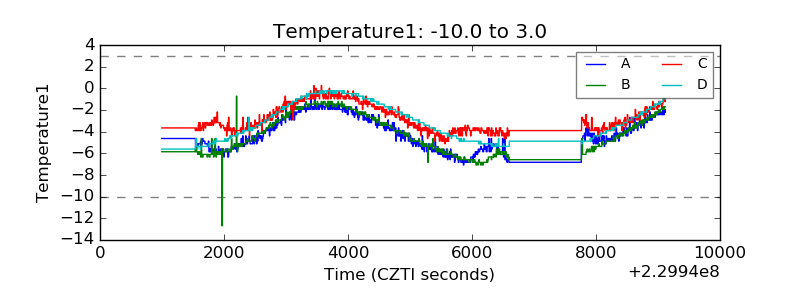

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

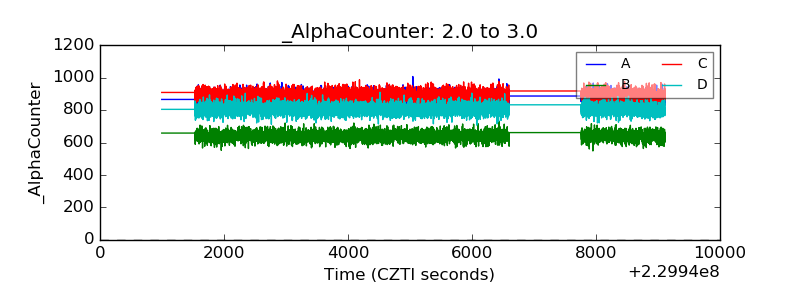

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

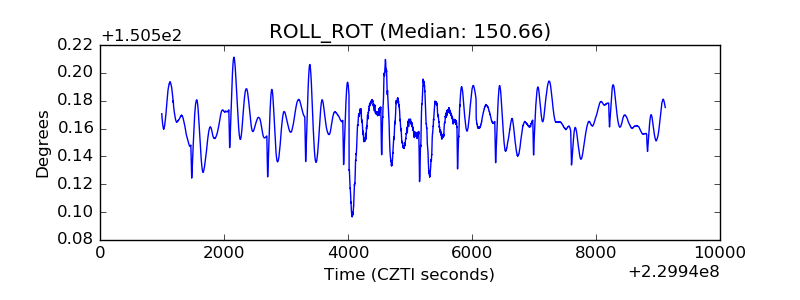

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
