| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_036T01_9000001164_08368cztM0_level2.evt | modeM0/AS1A03_036T01_9000001164_08368cztM0_level2_quad_clean.evt |
| Size (bytes) | 499,697,280 | 104,253,120 |
| Size | 476.5 MB | 99.4 MB |
| Events in quadrant A | 4,350,577 | 663,257 |
| Events in quadrant B | 3,375,858 | 705,776 |
| Events in quadrant C | 2,943,908 | 680,988 |
| Events in quadrant D | 4,018,424 | 650,941 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17370 | 2 |
| B | 0 | 14195 | 1 |
| C | 0 | 13343 | 1 |
| D | 0 | 16388 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6538 | 524 | 8.014683% |
| B | 6538 | 161 | 2.462527% |
| C | 6538 | 80 | 1.223616% |
| D | 6538 | 357 | 5.460385% |

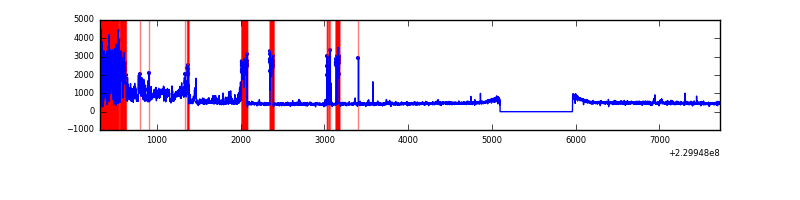

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7403 | 6539 | 332 | 332 | 4.48% | 5.08% |  |
| B | 7403 | 6539 | 22 | 22 | 0.30% | 0.34% |  |
| C | 7403 | 6539 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7403 | 6539 | 171 | 171 | 2.31% | 2.62% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 236 | 808288 | 5257.46 | 758 | 742 | 153.6 |
| A | 15 | 239 | 469290 | 3050.44 | 758 | 742 | 153.6 |
| A | 14 | 111 | 141318 | 915.21 | 758 | 742 | 153.6 |
| B | 0 | 214 | 157380 | 1064.01 | 780 | 761 | 147.2 |
| B | 4 | 81 | 53235 | 356.49 | 780 | 761 | 147.2 |
| B | 10 | 252 | 52615 | 352.28 | 780 | 761 | 147.2 |
| C | 1 | 16 | 9405 | 49.67 | 752 | 752 | 174.2 |
| C | 13 | 61 | 5803 | 28.99 | 752 | 752 | 174.2 |
| C | 8 | 208 | 2196 | 8.29 | 752 | 752 | 174.2 |
| D | 12 | 233 | 686922 | 3510.07 | 741 | 724 | 195.5 |
| D | 1 | 52 | 248582 | 1267.85 | 741 | 724 | 195.5 |
| D | 7 | 71 | 123612 | 628.6 | 741 | 724 | 195.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

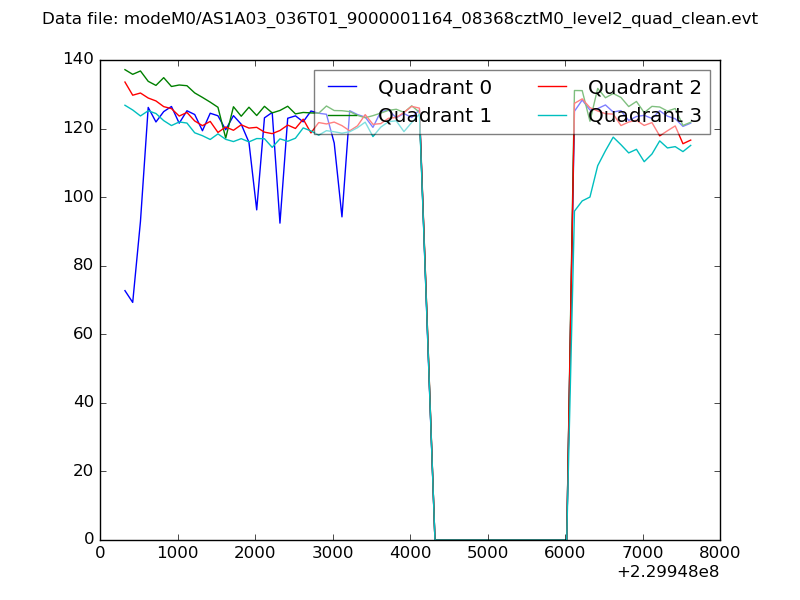

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

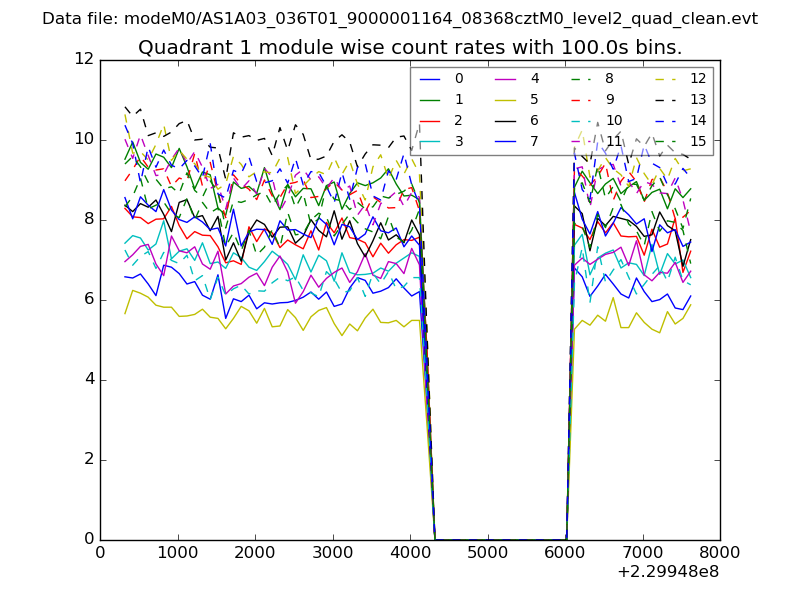

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

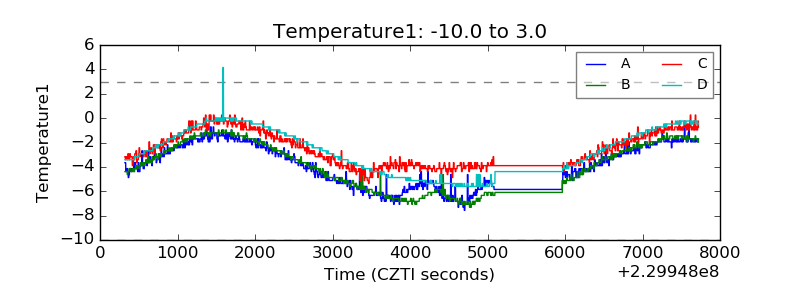

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

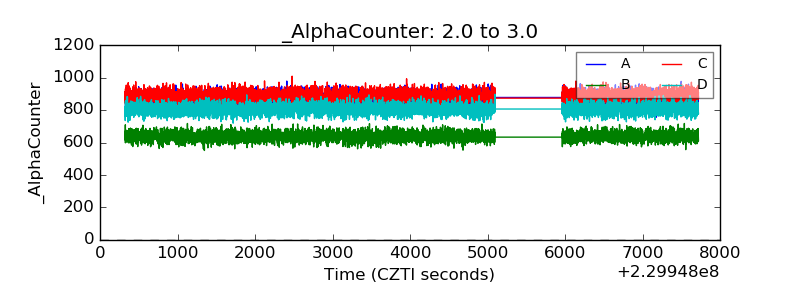

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

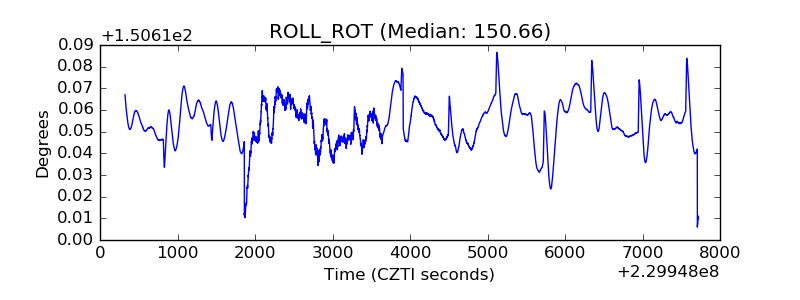

| _ROLL_ROT |  |

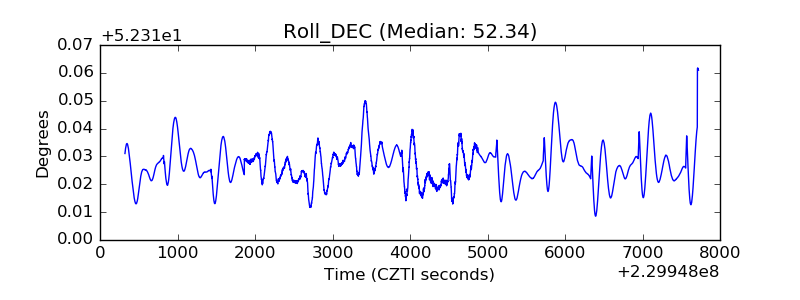

| _Roll_DEC |  |
| _Roll_RA |  |

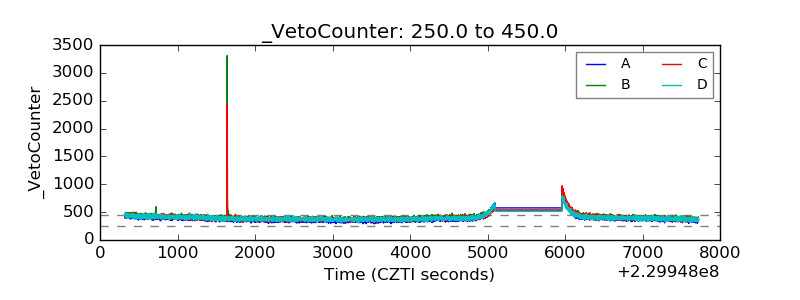

| Veto Counter |  |
