| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_036T01_9000001164_08374cztM0_level2.evt | modeM0/AS1A03_036T01_9000001164_08374cztM0_level2_quad_clean.evt |
| Size (bytes) | 486,391,680 | 108,149,760 |
| Size | 463.9 MB | 103.1 MB |
| Events in quadrant A | 3,421,153 | 690,964 |
| Events in quadrant B | 3,762,063 | 706,529 |
| Events in quadrant C | 3,454,847 | 685,668 |
| Events in quadrant D | 3,575,000 | 662,588 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 2 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15618 | 14 |
| B | 0 | 16375 | 15 |
| C | 0 | 15747 | 10 |
| D | 0 | 15974 | 25 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7618 | 39 | 0.511945% |
| B | 7619 | 76 | 0.997506% |
| C | 7620 | 20 | 0.262467% |
| D | 7613 | 20 | 0.262709% |

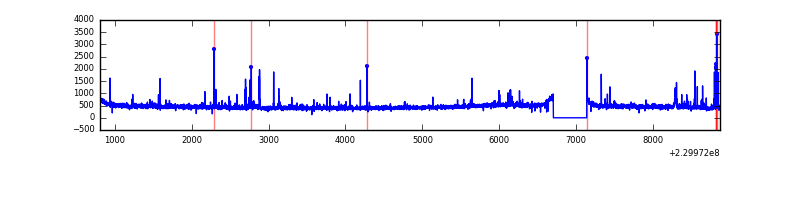

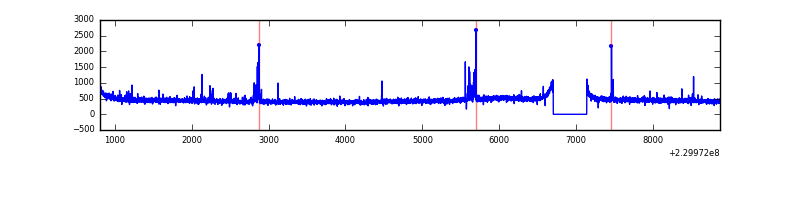

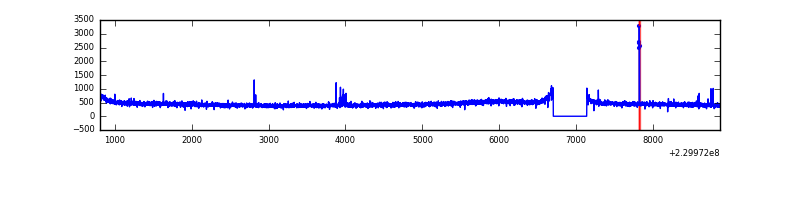

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8059 | 7625 | 5 | 5 | 0.06% | 0.07% |  |
| B | 8059 | 7625 | 25 | 25 | 0.31% | 0.33% |  |
| C | 8059 | 7625 | 3 | 3 | 0.04% | 0.04% |  |
| D | 8059 | 7625 | 8 | 8 | 0.10% | 0.10% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 19142 | 101.71 | 877 | 857 | 179.8 |
| A | 15 | 236 | 16397 | 86.44 | 877 | 857 | 179.8 |
| A | 0 | 226 | 8219 | 40.95 | 877 | 857 | 179.8 |
| B | 0 | 214 | 108337 | 638.13 | 881 | 858 | 168.4 |
| B | 4 | 80 | 61256 | 358.6 | 881 | 858 | 168.4 |
| B | 0 | 198 | 45764 | 266.62 | 881 | 858 | 168.4 |
| C | 1 | 16 | 91152 | 454.06 | 857 | 862 | 198.9 |
| C | 12 | 4 | 10375 | 47.84 | 857 | 862 | 198.9 |
| C | 13 | 61 | 6567 | 28.69 | 857 | 862 | 198.9 |
| D | 8 | 195 | 116464 | 550.57 | 858 | 831 | 210.0 |
| D | 7 | 71 | 102030 | 481.85 | 858 | 831 | 210.0 |
| D | 4 | 95 | 36058 | 167.73 | 858 | 831 | 210.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

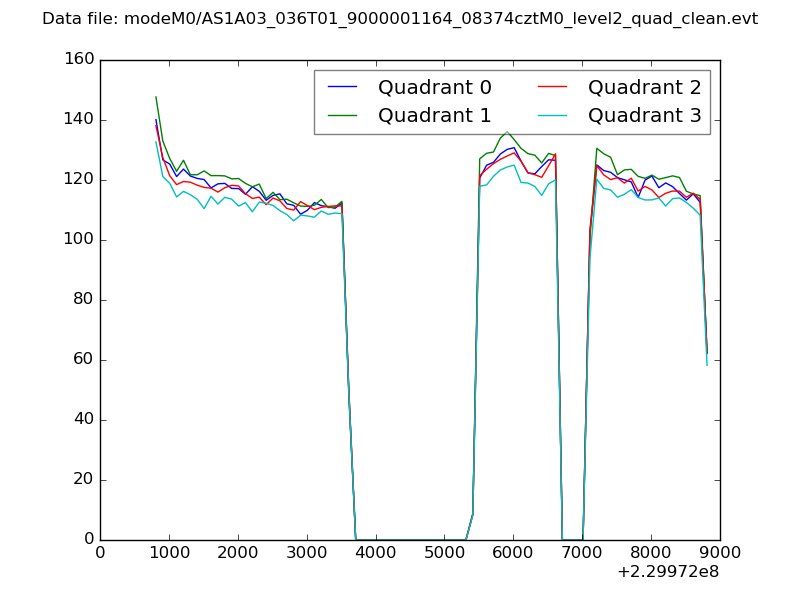

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

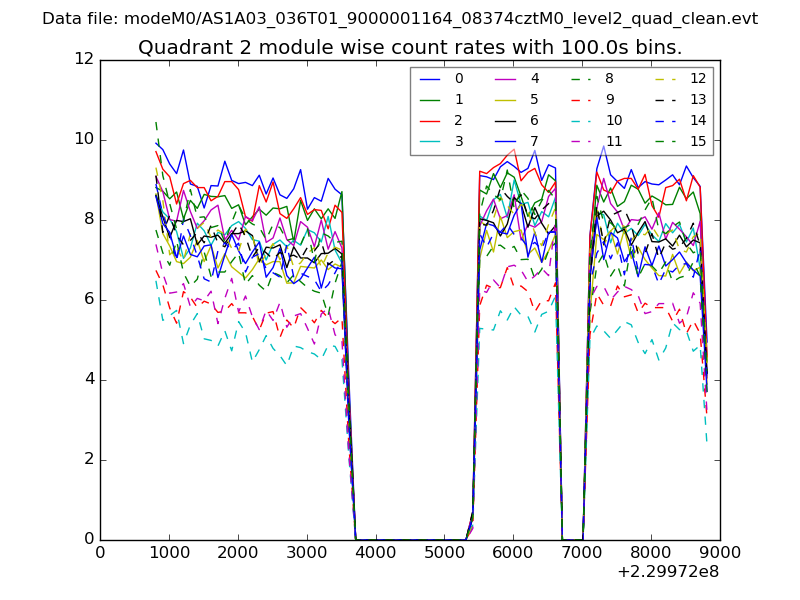

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

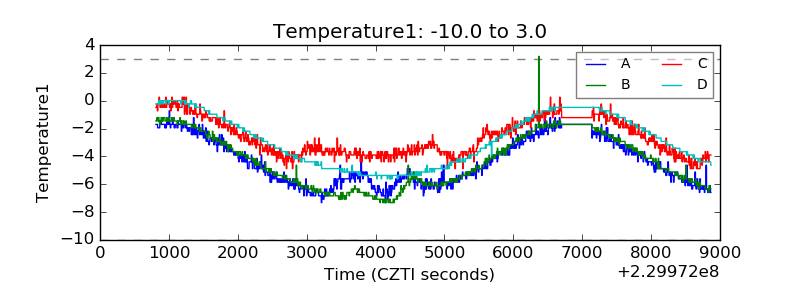

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

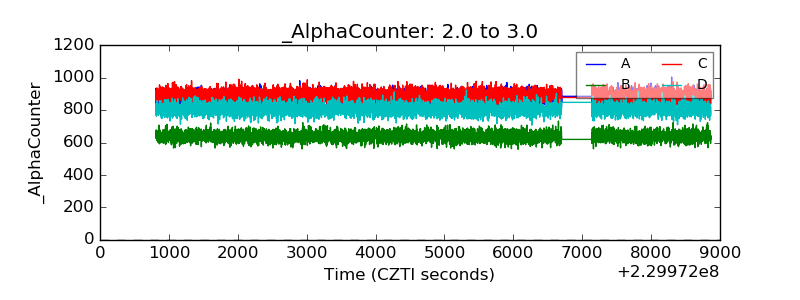

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
