| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_062T01_9000001176_08397cztM0_level2.evt | modeM0/AS1A03_062T01_9000001176_08397cztM0_level2_quad_clean.evt |
| Size (bytes) | 545,592,960 | 98,435,520 |
| Size | 520.3 MB | 93.9 MB |
| Events in quadrant A | 3,839,199 | 618,271 |
| Events in quadrant B | 4,143,261 | 622,025 |
| Events in quadrant C | 3,748,564 | 611,283 |
| Events in quadrant D | 4,266,647 | 590,804 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16328 | 3 |
| B | 0 | 17060 | 2 |
| C | 0 | 16242 | 2 |
| D | 0 | 17826 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 158 | 0 |
| B | 0 | 158 | 0 |
| C | 0 | 158 | 0 |
| D | 0 | 158 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7747 | 173 | 2.233122% |
| B | 7747 | 264 | 3.407771% |
| C | 7747 | 122 | 1.574803% |
| D | 7747 | 169 | 2.181490% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9867 | 7748 | 1 | 1 | 0.01% | 0.01% |  |
| B | 9867 | 7747 | 58 | 58 | 0.59% | 0.75% |  |
| C | 9867 | 7748 | 1 | 1 | 0.01% | 0.01% |  |
| D | 9867 | 7749 | 47 | 47 | 0.48% | 0.61% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 25946 | 122.11 | 990 | 969 | 204.5 |
| A | 0 | 226 | 9320 | 40.83 | 990 | 969 | 204.5 |
| A | 12 | 194 | 8658 | 37.59 | 990 | 969 | 204.5 |
| B | 4 | 48 | 274087 | 1423.37 | 986 | 962 | 191.9 |
| B | 0 | 214 | 22653 | 113.04 | 986 | 962 | 191.9 |
| B | 12 | 111 | 21698 | 108.06 | 986 | 962 | 191.9 |
| C | 1 | 16 | 17278 | 72.64 | 956 | 961 | 224.6 |
| C | 13 | 61 | 7247 | 27.98 | 956 | 961 | 224.6 |
| C | 10 | 169 | 2446 | 6.61 | 956 | 961 | 224.6 |
| D | 2 | 14 | 149167 | 646.86 | 950 | 928 | 229.2 |
| D | 14 | 34 | 143169 | 620.68 | 950 | 928 | 229.2 |
| D | 1 | 52 | 102790 | 444.49 | 950 | 928 | 229.2 |

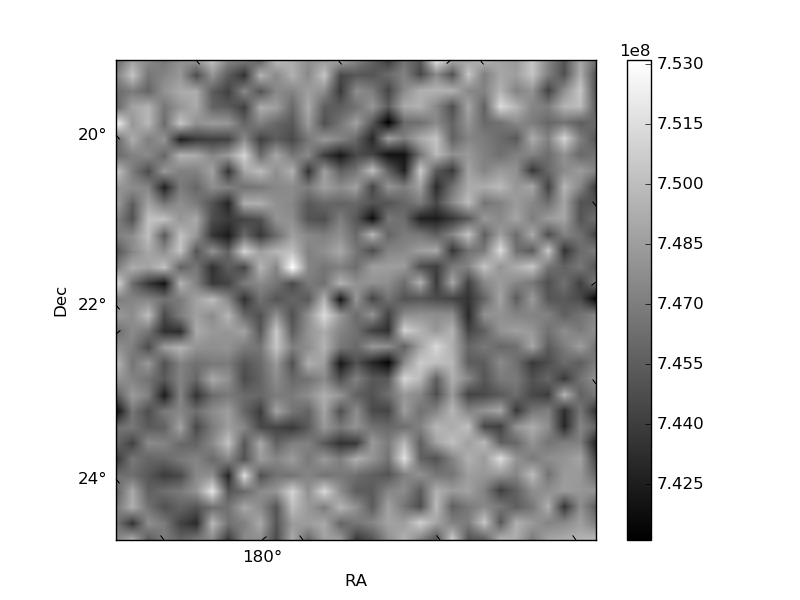

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |

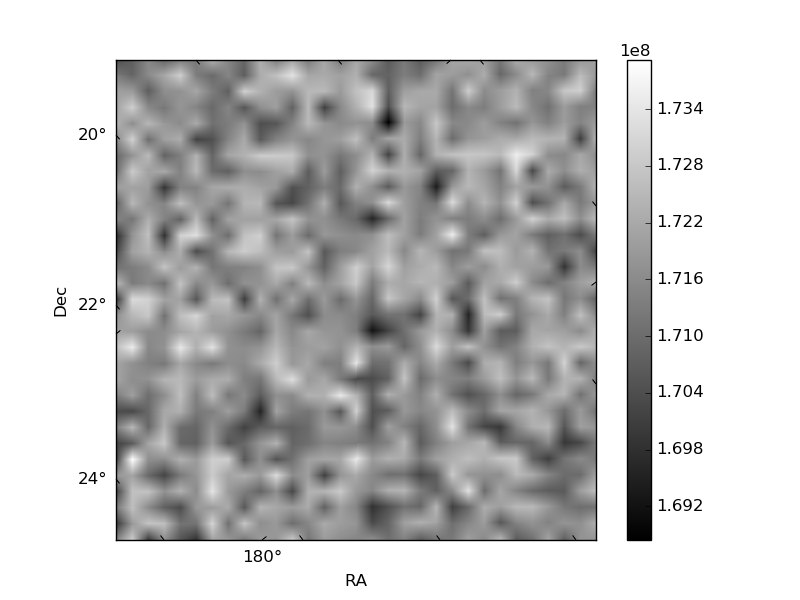

Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |

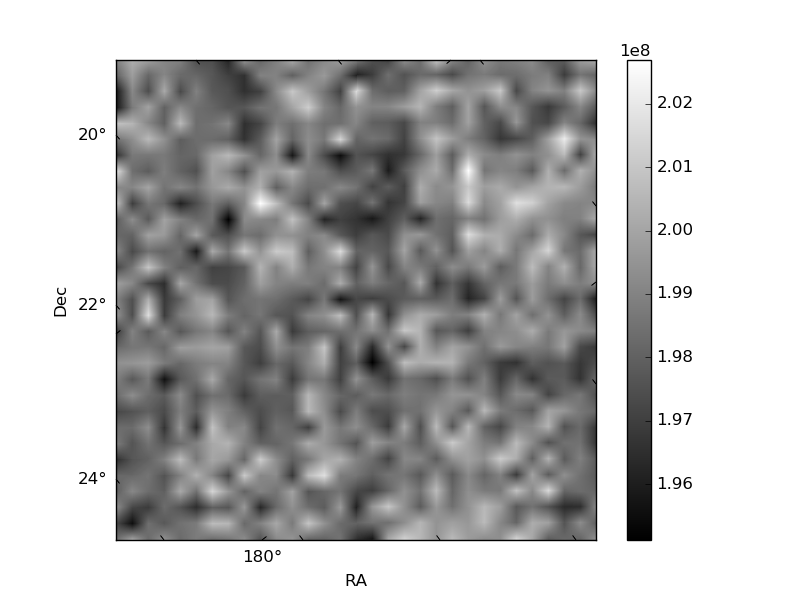

Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

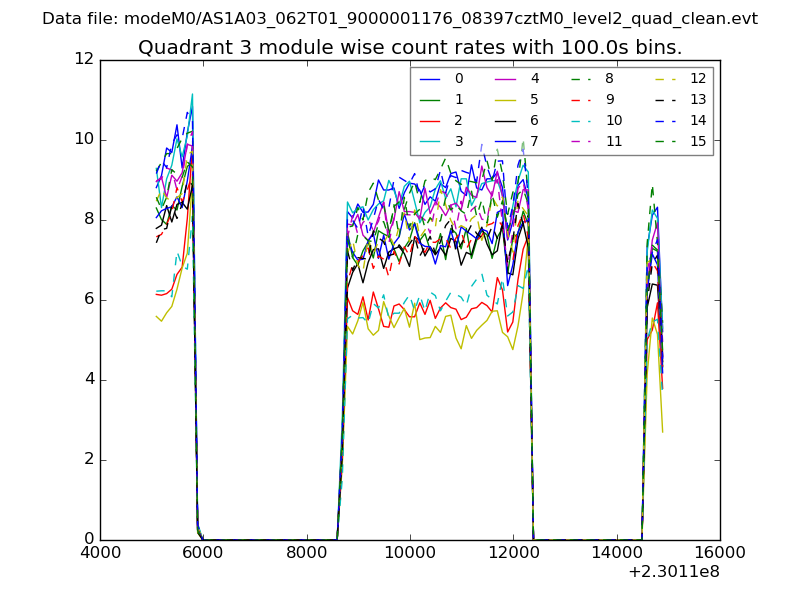

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

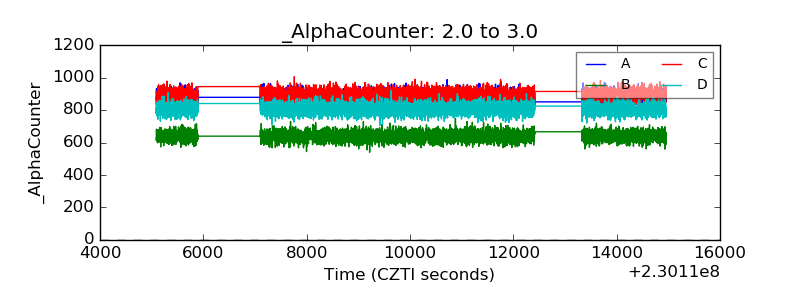

| Alpha Counter |  |
| _CPM_Rate |  |

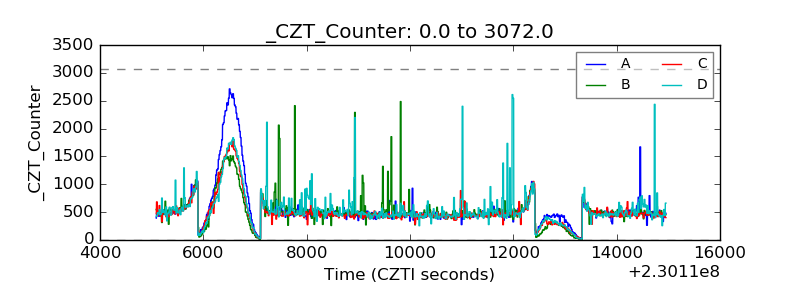

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

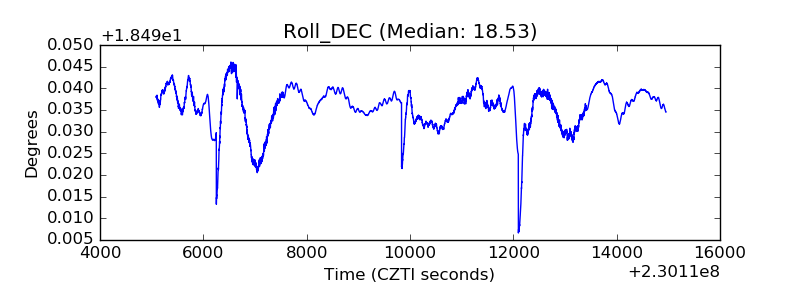

| _Roll_DEC |  |

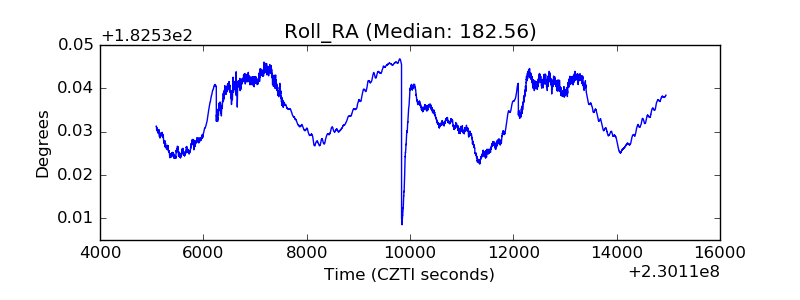

| _Roll_RA |  |
| Veto Counter |  |
